TCR20W-RRSVV (1998)

Toyota Estima

Production Jan 1998 - Dec 1999
Engine 2TZFZE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

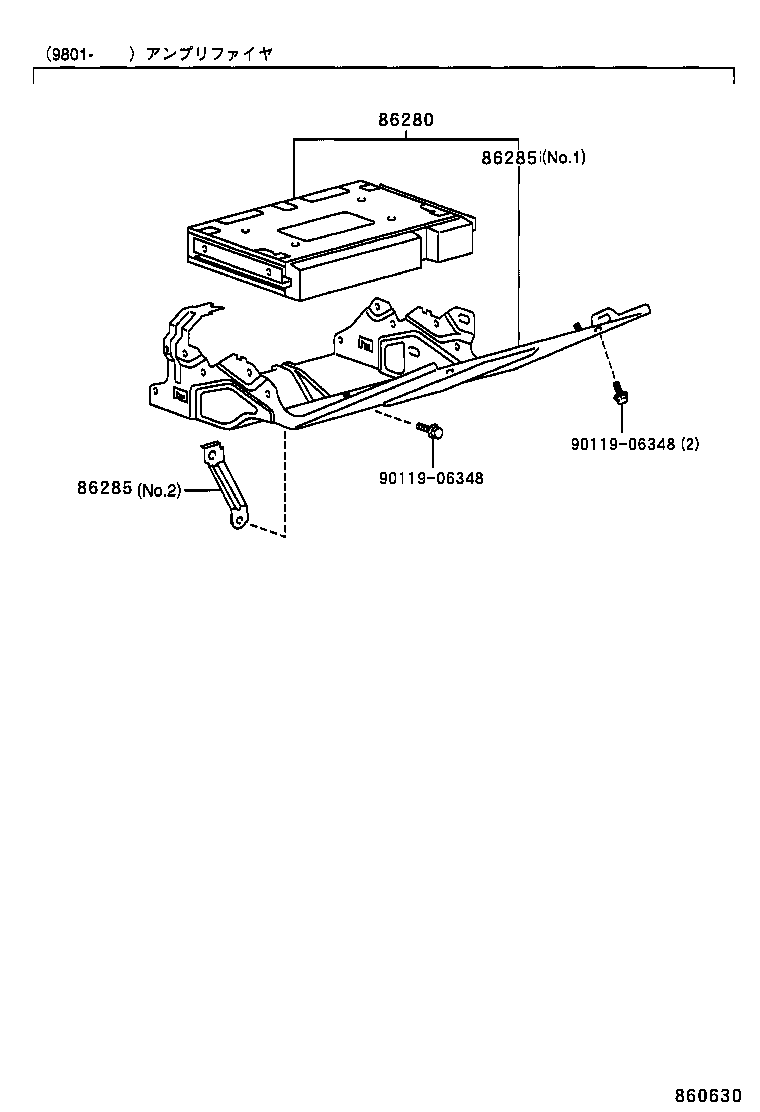

ILLUST NO. 2 OF 3(9801- )

Click highlighted areas on diagram

diagram 86280 86285 86285 9011906348 9011906348
Part # Description Qty Price
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-28120

TCR1#,2#

 1
86285 - BRACKET, AMPLIFIER, NO.1
86285-28100

TCR10,20

NO.1

 1
86285-28090

TCR10,20

NO.1

 1
86285 - BRACKET, AMPLIFIER, NO.1
86285-28100

TCR10,20

NO.1

 1
86285-28090

TCR10,20

NO.1

 1
Common parts
90119-06348
