TCR20W-RRSQV (1996)
Toyota Estima

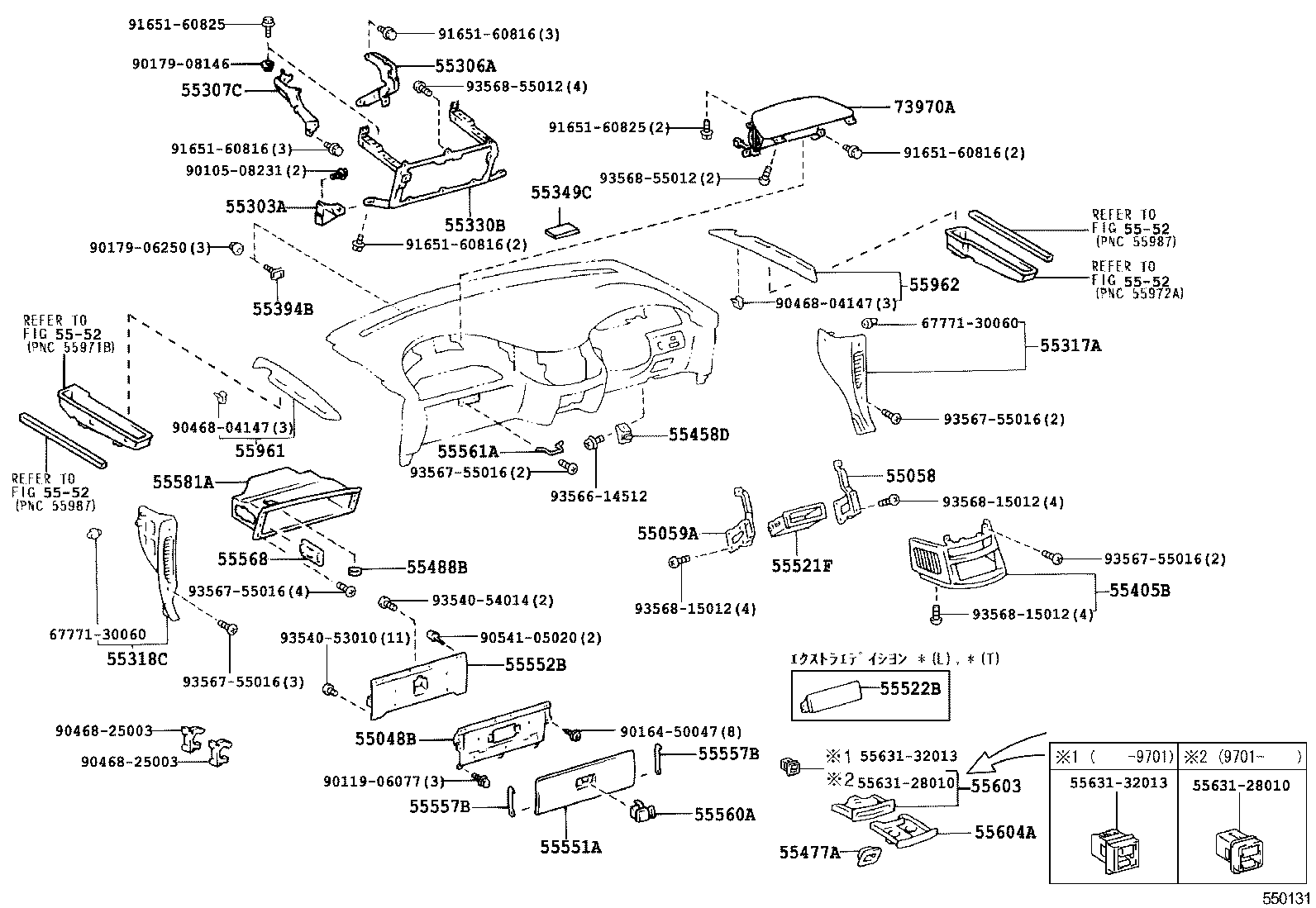

ILLUST NO. 2 OF 2(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55048B - INSERT SUB-ASSY, INSTRUMENT PANEL SAFETY PAD, NO.2 | ||||
| 55048-28020 |
TCR1#,2# |
1 | ||
| 55058 - RETAINER SUB-ASSY, RADIO TUNER OPENING, RH | ||||
| 55058-95D00 |
TCR1#,2# |
1 | ||
| 55058-28030 |
TCR1#,2# |
1 | ||
| 55059A - RETAINER SUB-ASSY, RADIO TUNER OPENING, LH | ||||
| 55059-95D00 |
TCR1#,2# |
1 | ||
| 55303A - STAY SUB-ASSY, INSTRUMENT PANEL | ||||
| 55303-28030 |
TCR1#,2# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-28100 |
TCR1#,2# |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-28090 |
TCR1#,2# |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-95D01E2 |
TCR10,20..V ﾌﾞﾗﾂｸｾﾚｸｼﾖﾝ *(C), *(D);ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(A), *(B),GREIGE,TRIM4# |
1 | ||
| 55317-95D01E2 |
TCR10,20..V ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(S),*(N),*(Z),*(Y),GREIGE,TRIM4# |
1 | ||
| 55317-95D0103 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 55317-95D01E2 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-28010E2 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
1 | ||
| 55318-28010E2 |
TCR10,20..V ﾌﾞﾗﾂｸｾﾚｸｼﾖﾝ *(C), *(D);ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(A), *(B),GREIGE,TRIM4# |
1 | ||
| 55318-2801003 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 55318-28010E2 |
TCR10,20..V ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(S),*(N),*(Z),*(Y),GREIGE,TRIM4# |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-28060 |
TCR1#,2# |
1 | ||
| 55349C - CUSHION, INSTRUMENT PANEL | ||||
| 55349-28090 |
TCR1#,2# |
3 | ||
| 55394B - BOLT, INSTRUMENT PANEL | ||||
| 55394-95D00 |
TCR1#,2# |
3 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-28140 |
TCR10,20..V ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(S),*(N),*(Z),*(Y) |
1 | ||
| 55405-28140 |
TCR10,20..V ﾌﾞﾗﾂｸｾﾚｸｼﾖﾝ *(C), *(D);ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(A), *(B) |
1 | ||
| 55405-95D00 |
TCR10,20..V,X |
1 | ||
| 55405-28140 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F) |
1 | ||
| 55405-95D00 |
TCR1#,2# |
1 | ||
| 55405-28300 |
TCR1#,2#..G,V ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ |
1 | ||
| 55458D - COVER, INSTRUMENT LOWER, RH | ||||
| 55458-28020E2 |
TCR10,20..V ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(S),*(N),*(Z),*(Y),GREIGE,TRIM4# |
1 | ||
| 55458-2802003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 55458-28020E2 |
TCR10,20..V ﾌﾞﾗﾂｸｾﾚｸｼﾖﾝ *(C), *(D);ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(A), *(B),GREIGE,TRIM4# |
1 | ||
| 55458-28020E2 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 55477-95D0044 |
TCR10,20..V ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(S),*(N),*(Z),*(Y),GREIGE,TRIM4# |
1 | ||
| 55477-95D00B0 |
TCR1#,2#..G,V ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,GRAY,TRIM1# |
1 | ||
| 55477-95D0044 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
1 | ||
| 55477-95D0044 |
TCR10,20..V ﾌﾞﾗﾂｸｾﾚｸｼﾖﾝ *(C), *(D);ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(A), *(B),GREIGE,TRIM4# |
1 | ||
| 55488B - LENS, FRONT FOOT LAMP, NO.1 | ||||
| 55488-28010 |
TCR1#,2# |
1 | ||
| 55521F - COVER, STEREO OPENING, NO.2 | ||||
| 55521-16030 |
TCR1#,2# |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-20070 |
TCR10,20..V ｴｸｽﾄﾗｴﾃﾞｲｼﾖﾝ *(L),*(T) |
1 | ||
| 55551A - DOOR, GLOVE COMPARTMENT, OUTER | ||||
| 55551-28050E0 |
TCR10,20..V ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(S),*(N),*(Z),*(Y),GREIGE,TRIM4# |
1 | ||
| 55551-28050E0 |
TCR10,20..V ﾌﾞﾗﾂｸｾﾚｸｼﾖﾝ *(C), *(D);ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(A), *(B),GREIGE,TRIM4# |
1 | ||
| 55551-28050B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 55551-28050E0 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
1 | ||
| 55552B - DOOR, GLOVE COMPARTMENT, INNER | ||||
| 55552-28050 |
TCR1#,2# |
1 | ||
| 55557B - STOPPER, GLOVE COMPERTMENT DOOR CHECK | ||||
| 55557-28040 |
TCR1#,2# |
2 | ||
| 55557B - STOPPER, GLOVE COMPERTMENT DOOR CHECK | ||||
| 55557-28040 |
TCR1#,2# |
2 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-28010B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 55560-28010E1 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
1 | ||
| 55560-28010E1 |
TCR10,20..V ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(S),*(N),*(Z),*(Y),GREIGE,TRIM4# |
1 | ||
| 55560-28010E1 |
TCR10,20..V ﾌﾞﾗﾂｸｾﾚｸｼﾖﾝ *(C), *(D);ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(A), *(B),GREIGE,TRIM4# |
1 | ||
| 55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55561-28040 |
TCR1#,2# |
1 | ||
| 55561-95D00 |
TCR1#,2# |
1 | ||
| 55568 - PLATE, GLOVE COMPARTMENT DOOR PAD | ||||
| 55568-24020 |
TCR1#,2# |
1 | ||
| 55568-95D00 |
TCR1#,2# |
1 | ||
| 55581A - COMPARTMENT, GLOVE | ||||
| 55581-95D01 |
TCR1#,2# |
1 | ||
| 55506-28090 |
TCR1#,2# |
1 | ||
| 55603 - CASE SUB-ASSY, INSTRUMENT PANEL CUP HOLDER | ||||
| 55603-95D00 |
TCR1#,2# |
1 | ||
| 55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP | ||||
| 55604-95D0044 |
TCR10,20..V ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(S),*(N),*(Z),*(Y),GREIGE,TRIM4# |
1 | ||
| 55604-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 55604-95D0044 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
1 | ||
| 55604-95D0044 |
TCR10,20..V ﾌﾞﾗﾂｸｾﾚｸｼﾖﾝ *(C), *(D);ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(A), *(B),GREIGE,TRIM4# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-2801003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 55961-28010E0 |
TCR10,20..V ﾌﾞﾗﾂｸｾﾚｸｼﾖﾝ *(C), *(D);ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(A), *(B),GREIGE,TRIM4# |
1 | ||
| 55961-28010E0 |
TCR10,20..V ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(S),*(N),*(Z),*(Y),GREIGE,TRIM4# |
1 | ||
| 55961-28010E0 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-28010E0 |
TCR10,20..V ﾌﾞﾗﾂｸｾﾚｸｼﾖﾝ *(C), *(D);ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(A), *(B),GREIGE,TRIM4# |
1 | ||
| 55962-2801003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 55962-28010E0 |
TCR10,20..V ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(S),*(N),*(Z),*(Y),GREIGE,TRIM4# |
1 | ||
| 55962-28010B1 |
TCR1#,2#..G,V ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,GRAY,TRIM1# |
1 | ||
| 55962-28010E0 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-28040B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 73970-28040E0 |
TCR10,20..V ﾌﾞﾗﾂｸｾﾚｸｼﾖﾝ *(C), *(D);ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(A), *(B),GREIGE,TRIM4# |
1 | ||
| 73970-28041B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 73970-28040E0 |
TCR10,20..V ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(S),*(N),*(Z),*(Y),GREIGE,TRIM4# |
1 | ||
| 73970-28041B1 |
TCR1#,2#..G,V ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ,GRAY,TRIM1# |
1 | ||
| 73970-28041E0 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
1 | ||
| Common parts | ||||
| 55631-28010 | ||||
| 55631-32013 | ||||
| 67771-30060 | ||||
| 90105-08231 | ||||
| 90119-06077 | ||||
| 90164-50047 | ||||
| 90179-06250 | ||||
| 90179-08146 | ||||
| 90468-04147 | ||||
| 90468-25003 | ||||
| 90541-05020 | ||||
| 91651-60816 | ||||
| 91651-60825 | ||||
| 93540-53010 | ||||
| 93540-54014 | ||||
| 93566-14512 | ||||
| 93567-55016 | ||||
| 93568-15012 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 5552 | ||||
