TCR20W-RRSEK (1993)
Toyota Estima

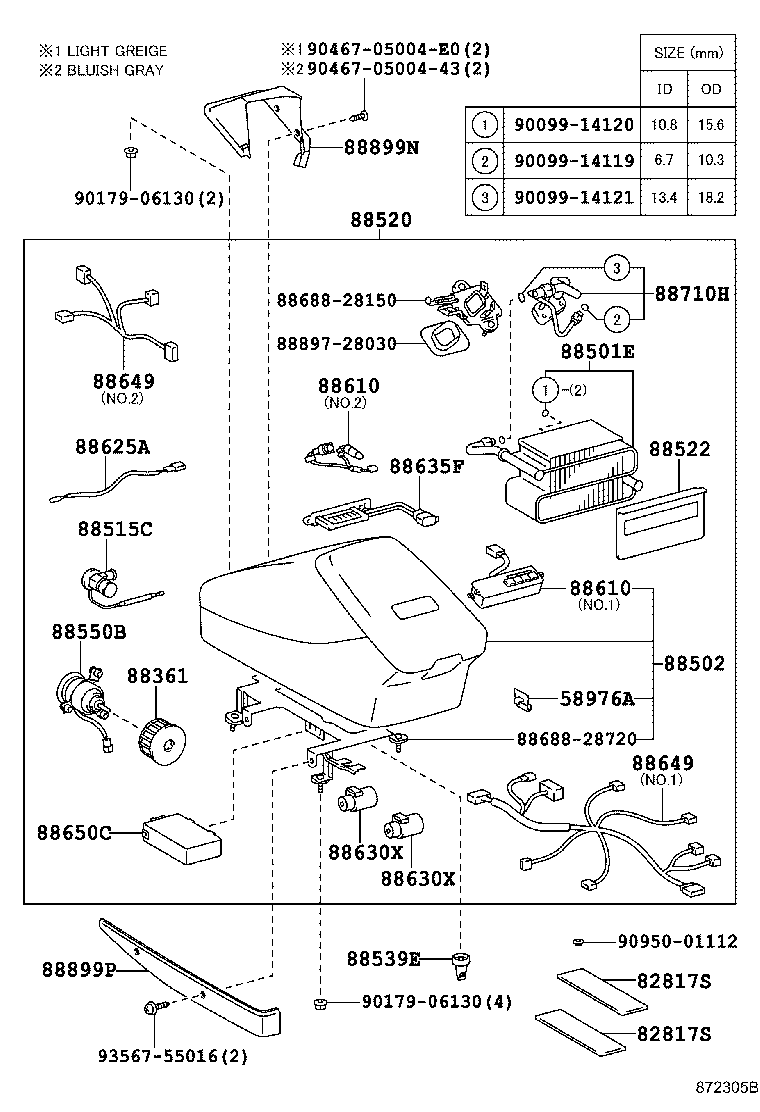

ILLUST NO. 4 OF 4(9308- )
ｸｰﾙﾎﾞｯｸｽ (ｺｶﾞﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 87105-87004 |
TCR1#,2# |
1 | ||
| 88501E - EVAPOLATOR SUB-ASSY, COOLER (COOL BOX) | ||||
| 88501-95D04 |
TCR10,20 |
1 | ||
| 88501-28190 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 88501-28180 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-28240B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88502-28230B0 |
TCR1#,2#..G,X ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),LIGHT GRAY,TRIM1# |
1 | ||
| 88515C - VALVE, COOLING BOX EXPANSION | ||||
| 88515-95700 |
TCR1#,2# |
1 | ||
| 88515-40080 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-28160B0 |
TCR10,20 ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),LIGHT GRAY |
1 | ||
| 88520-28170B0 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),LIGHT GRAY,TRIM1# |
1 | ||
| 88520-28160B0 |
TCR1#,2#..G,X ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),LIGHT GRAY,TRIM1# |
1 | ||
| 88520-28120B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88539E - HOSE, COOLER UNIT DRAIN, NO.3 | ||||
| 88539-95708 |
TCR1#,2# |
1 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 88550-28010 |
TCR10,20 |
1 | ||
| 88550-28040 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 88550-28010 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95D01 |
TCR10,20 NO.1 |
1 | ||
| 88610-28070 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.1 |
1 | ||
| 88610-95713 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) OR ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.2 |
1 | ||
| 88610-95713 |
TCR10,20 NO.2 |
1 | ||
| 88610-95D01 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.1 |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95D01 |
TCR10,20 NO.1 |
1 | ||
| 88610-28070 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.1 |
1 | ||
| 88610-95713 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) OR ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.2 |
1 | ||
| 88610-95713 |
TCR10,20 NO.2 |
1 | ||
| 88610-95D01 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.1 |
1 | ||
| 88625A - THERMISTOR, COOLER NO.2 | ||||
| 88625-28050 |
TCR1#,2# |
1 | ||
| 88625-95700 |
TCR1#,2# ｱﾘ(ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 88625-95700 |
TCR10,20 |
1 | ||
| 88625-28050 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 88630X - RELAY ASSY | ||||
| 88630-95702 |
TCR1#,2# |
2 | ||
| 88630X - RELAY ASSY | ||||
| 88630-95702 |
TCR1#,2# |
2 | ||
| 88635F - RESISTER, COOLER BLOWER | ||||
| 88635-95D00 |
TCR1#,2# ｱﾘ(ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 88635-95D00 |
TCR10,20 |
1 | ||
| 88635-28010 |
TCR1#,2# ｱﾘ(*80 & ｸ-ﾙ ﾎ"ﾂｸｽ) |
1 | ||
| 88649 - WIRING, COOLER, NO.2 | ||||
| 88605-2J390 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.1 |
1 | ||
| 88605-28230 |
TCR10,20 |
1 | ||
| 88605-2J450 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) OR ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.2 |
1 | ||
| 88605-2J380 |
TCR1#,2# NO.1 |
1 | ||
| 88605-2J380 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.1 |
1 | ||
| 88605-2J450 |
TCR1#,2# NO.2 |
1 | ||
| 88649 - WIRING, COOLER, NO.2 | ||||
| 88605-2J390 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.1 |
1 | ||
| 88605-28230 |
TCR10,20 |
1 | ||
| 88605-2J450 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) OR ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.2 |
1 | ||
| 88605-2J380 |
TCR1#,2# NO.1 |
1 | ||
| 88605-2J380 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.1 |
1 | ||
| 88605-2J450 |
TCR1#,2# NO.2 |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-28150 |
TCR10,20 |
1 | ||
| 88710-28890 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 88710-2J010 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 88899N - PLATE, COVER | ||||
| 88899-95D0003 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 88899-95D00B0 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),LIGHT GRAY,TRIM1# |
1 | ||
| 88899P - PLATE, COVER | ||||
| 88899-95D03B0 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),LIGHT GRAY,TRIM1# |
1 | ||
| 88899-95D0303 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 88899P - PLATE, COVER | ||||
| 88899-95D03B0 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),LIGHT GRAY,TRIM1# |
1 | ||
| 88899-95D0303 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 88688-28410 | ||||
| 88688-28420 | ||||
| 88688-28450 | ||||
| 88688-28460 | ||||
| 88688-2J500 | ||||
| 88897-28060 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90179-06130 | ||||
| 90467-0500443 | ||||
| 90467-05004E0 | ||||
| 91651-40616 | ||||
| 91651-60614 | ||||
| 91655-40820 | ||||
| 93540-55016 | ||||

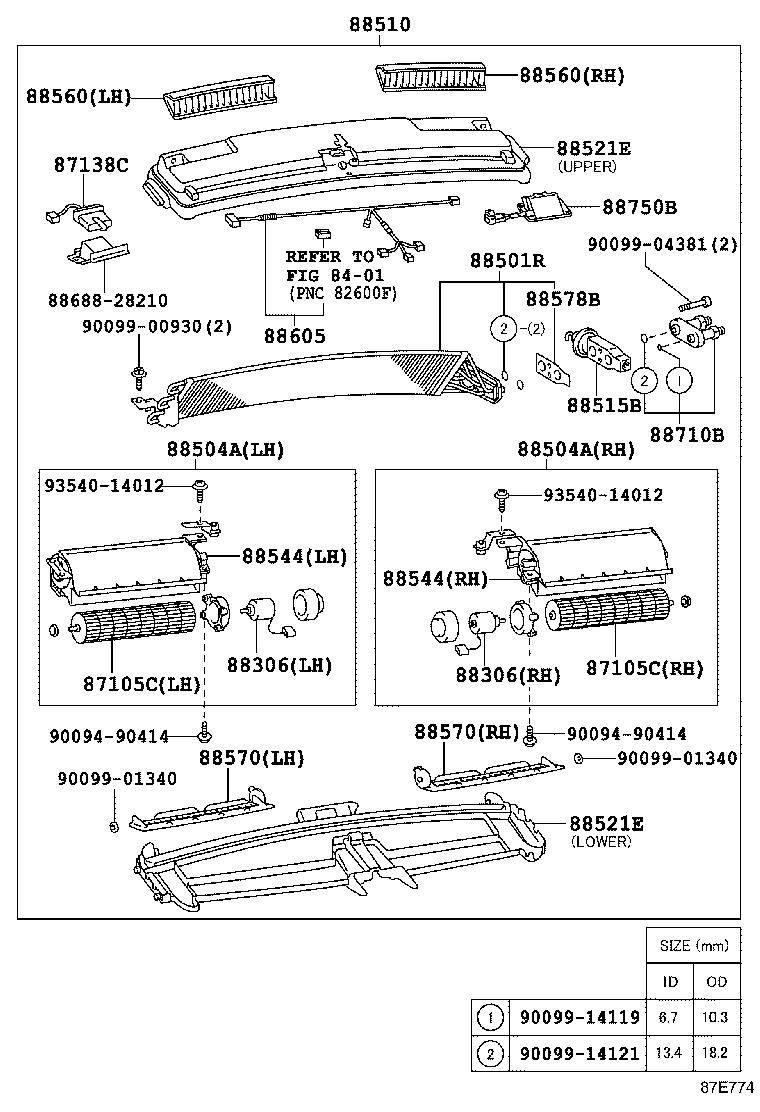

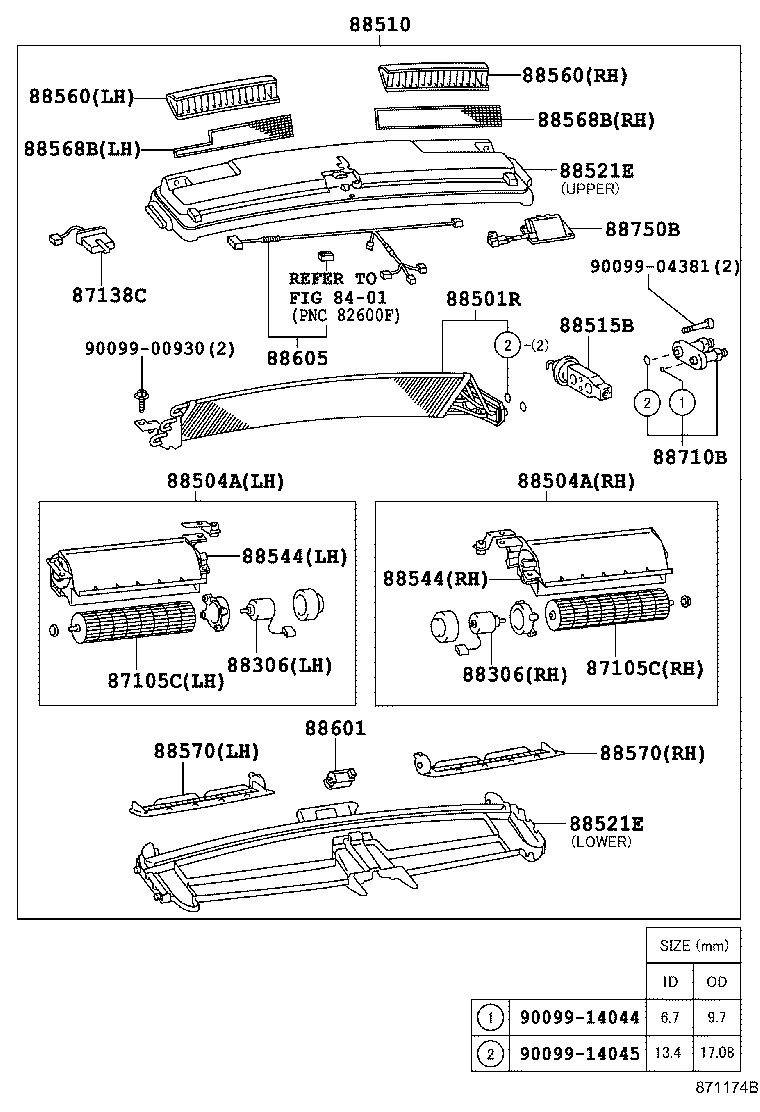

ILLUST NO. 2 OF 4(9005-9308)
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87105C - FAN SUB-ASSY, BLOWER, REAR | ||||
| 87105-95D03 |
TCR1#,2# 左側 |
1 | ||
| 87105-95D02 |
TCR1#,2# 右側 |
1 | ||
| 87105C - FAN SUB-ASSY, BLOWER, REAR | ||||
| 87105-95D03 |
TCR1#,2# 左側 |
1 | ||
| 87105-95D02 |
TCR1#,2# 右側 |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-95D02 |
TCR10,20..X |
1 | ||
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 87104-95D03 |
TCR1#,2# 左側 |
1 | ||
| 87104-95D02 |
TCR1#,2# 右側 |
1 | ||
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 87104-95D03 |
TCR1#,2# 左側 |
1 | ||
| 87104-95D02 |
TCR1#,2# 右側 |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-95D02 |
TCR1#,2# |
1 | ||
| 88504A - CASE SUB-ASSY, BLOWER | ||||
| 88504-95D03 |
TCR1#,2# 右側 |
1 | ||
| 88504-95D01 |
TCR1#,2# 左側 |
1 | ||
| 88504A - CASE SUB-ASSY, BLOWER | ||||
| 88504-95D03 |
TCR1#,2# 右側 |
1 | ||
| 88504-95D01 |
TCR1#,2# 左側 |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-28250B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88510-28420B0 |
TCR1#,2#..G,STD,V LIGHT GRAY,TRIM1# |
1 | ||
| 88510-28431B0 |
TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 88510-28430B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88521E - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-28191B0 |
TCR1#,2# LIGHT GRAY,TRIM1#,LOWER |
1 | ||
| 88521E - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-28191B0 |
TCR1#,2# LIGHT GRAY,TRIM1#,LOWER |
1 | ||
| 88544 - CASE, COOLER BLOWER | ||||
| 88544-95D04 |
TCR1#,2# 左側 |
1 | ||
| 88544-95D05 |
TCR1#,2# 右側 |
1 | ||
| 88544 - CASE, COOLER BLOWER | ||||
| 88544-95D04 |
TCR1#,2# 左側 |
1 | ||
| 88544-95D05 |
TCR1#,2# 右側 |
1 | ||
| 88560 - GRILLE ASSY, COOLER AIR INLET | ||||
| 88560-95D03 |
TCR10,20 LH,NIPPONDENSO |
1 | ||
| 88560-95D02 |
TCR10,20 RH,NIPPONDENSO |
1 | ||
| 88560 - GRILLE ASSY, COOLER AIR INLET | ||||
| 88560-95D03 |
TCR10,20 LH,NIPPONDENSO |
1 | ||
| 88560-95D02 |
TCR10,20 RH,NIPPONDENSO |
1 | ||
| 88568B - FILTER, AIR | ||||
| 88568-95D01 |
TCR1#,2# 右側 |
1 | ||
| 88568-95D02 |
TCR1#,2# 左側 |
1 | ||
| 88568B - FILTER, AIR | ||||
| 88568-95D01 |
TCR1#,2# 右側 |
1 | ||
| 88568-95D02 |
TCR1#,2# 左側 |
1 | ||
| 88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET | ||||
| 88570-95D02 |
TCR1#,2# 右側 |
1 | ||
| 88570-95D03 |
TCR1#,2# 左側 |
1 | ||
| 88570-28110 |
TCR1#,2# 左側 |
1 | ||
| 88570-28100 |
TCR1#,2# 右側 |
1 | ||
| 88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET | ||||
| 88570-95D02 |
TCR1#,2# 右側 |
1 | ||
| 88570-95D03 |
TCR1#,2# 左側 |
1 | ||
| 88570-28110 |
TCR1#,2# 左側 |
1 | ||
| 88570-28100 |
TCR1#,2# 右側 |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-2J790 |
TCR10,20..X |
1 | ||
| 88605-28370 |
TCR10,20 |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-28070 |
TCR1#,2# |
1 | ||
| 88750B - TRANSISTOR ASSY, BLOWER RESISTOR | ||||
| 88750-95D01 |
TCR1#,2#..AERAS,G,STD,V |
1 | ||
| Common parts | ||||
| 90099-00930 | ||||
| 90099-04381 | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| Linked diagrams | ||||
| 8401 | ||||

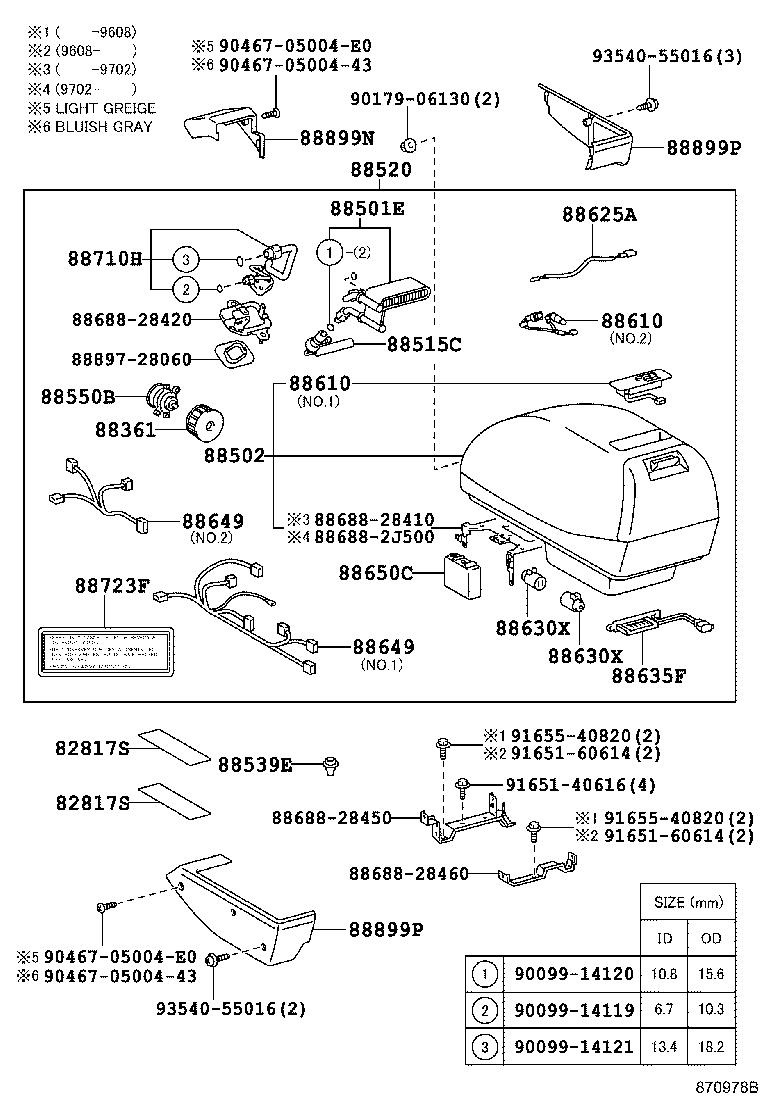

ILLUST NO. 4 OF 4(9005-9308)
ｸｰﾙﾎﾞｯｸｽ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 87105-87004 |
TCR1#,2# |
1 | ||
| 88501E - EVAPOLATOR SUB-ASSY, COOLER (COOL BOX) | ||||
| 88501-95D04 |
TCR10,20 |
1 | ||
| 88501-28190 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 88501-28180 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-28240B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88502-28230B0 |
TCR1#,2#..G,X ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),LIGHT GRAY,TRIM1# |
1 | ||
| 88515C - VALVE, COOLING BOX EXPANSION | ||||
| 88515-95700 |
TCR1#,2# |
1 | ||
| 88515-40080 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-28160B0 |
TCR10,20 ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),LIGHT GRAY |
1 | ||
| 88520-28170B0 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),LIGHT GRAY,TRIM1# |
1 | ||
| 88520-28160B0 |
TCR1#,2#..G,X ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),LIGHT GRAY,TRIM1# |
1 | ||
| 88520-28120B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88539E - HOSE, COOLER UNIT DRAIN, NO.3 | ||||
| 88539-95708 |
TCR1#,2# |
1 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 88550-28010 |
TCR10,20 |
1 | ||
| 88550-28040 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 88550-28010 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95D01 |
TCR10,20 NO.1 |
1 | ||
| 88610-28070 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.1 |
1 | ||
| 88610-95713 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) OR ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.2 |
1 | ||
| 88610-95713 |
TCR10,20 NO.2 |
1 | ||
| 88610-95D01 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.1 |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95D01 |
TCR10,20 NO.1 |
1 | ||
| 88610-28070 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.1 |
1 | ||
| 88610-95713 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) OR ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.2 |
1 | ||
| 88610-95713 |
TCR10,20 NO.2 |
1 | ||
| 88610-95D01 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.1 |
1 | ||
| 88625A - THERMISTOR, COOLER NO.2 | ||||
| 88625-28050 |
TCR1#,2# |
1 | ||
| 88625-95700 |
TCR1#,2# ｱﾘ(ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 88625-95700 |
TCR10,20 |
1 | ||
| 88625-28050 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 88630X - RELAY ASSY | ||||
| 88630-95702 |
TCR1#,2# |
2 | ||
| 88630X - RELAY ASSY | ||||
| 88630-95702 |
TCR1#,2# |
2 | ||
| 88635F - RESISTER, COOLER BLOWER | ||||
| 88635-95D00 |
TCR1#,2# ｱﾘ(ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 88635-95D00 |
TCR10,20 |
1 | ||
| 88635-28010 |
TCR1#,2# ｱﾘ(*80 & ｸ-ﾙ ﾎ"ﾂｸｽ) |
1 | ||
| 88649 - WIRING, COOLER, NO.2 | ||||
| 88605-2J390 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.1 |
1 | ||
| 88605-28230 |
TCR10,20 |
1 | ||
| 88605-2J450 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) OR ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.2 |
1 | ||
| 88605-2J380 |
TCR1#,2# NO.1 |
1 | ||
| 88605-2J380 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.1 |
1 | ||
| 88605-2J450 |
TCR1#,2# NO.2 |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-28150 |
TCR10,20 |
1 | ||
| 88710-28890 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 88710-2J010 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 88899N - PLATE, COVER | ||||
| 88899-95D0003 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 88899-95D00B0 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),LIGHT GRAY,TRIM1# |
1 | ||
| 88899P - PLATE, COVER | ||||
| 88899-95D03B0 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),LIGHT GRAY,TRIM1# |
1 | ||
| 88899-95D0303 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 88899P - PLATE, COVER | ||||
| 88899-95D03B0 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),LIGHT GRAY,TRIM1# |
1 | ||
| 88899-95D0303 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 88688-28410 | ||||
| 88688-28420 | ||||
| 88688-28450 | ||||
| 88688-28460 | ||||
| 88897-28030 | ||||
| 88897-28060 | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90099-14046 | ||||
| 90179-06130 | ||||
| 90467-0500411 | ||||
| 91651-40616 | ||||
| 91655-40820 | ||||
| 93540-55016 | ||||
ILLUST NO. 4 OF 4(9308- )
ｸｰﾙﾎﾞｯｸｽ (ｵｵｶﾞﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58976A - STRIKER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58976-20020 |
TCR1#,2# |
1 | ||
| 88361 - FAN, COOLER BLOWER, NO.1 | ||||
| 87105-87004 |
TCR1#,2# |
1 | ||
| 88501E - EVAPOLATOR SUB-ASSY, COOLER (COOL BOX) | ||||
| 88501-95D04 |
TCR10,20 |
1 | ||
| 88501-28190 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 88501-28180 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-28240B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88502-28230B0 |
TCR1#,2#..G,X ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),LIGHT GRAY,TRIM1# |
1 | ||
| 88515C - VALVE, COOLING BOX EXPANSION | ||||
| 88515-95700 |
TCR1#,2# |
1 | ||
| 88515-40080 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-28160B0 |
TCR10,20 ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),LIGHT GRAY |
1 | ||
| 88520-28170B0 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),LIGHT GRAY,TRIM1# |
1 | ||
| 88520-28160B0 |
TCR1#,2#..G,X ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),LIGHT GRAY,TRIM1# |
1 | ||
| 88520-28120B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88522 - DOOR, COOLING UNIT | ||||
| 88522-95D00 |
TCR1#,2# |
1 | ||
| 88539E - HOSE, COOLER UNIT DRAIN, NO.3 | ||||
| 88539-95708 |
TCR1#,2# |
1 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 88550-28010 |
TCR10,20 |
1 | ||
| 88550-28040 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 88550-28010 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95D01 |
TCR10,20 NO.1 |
1 | ||
| 88610-28070 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.1 |
1 | ||
| 88610-95713 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) OR ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.2 |
1 | ||
| 88610-95713 |
TCR10,20 NO.2 |
1 | ||
| 88610-95D01 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.1 |
1 | ||
| 88610 - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-95D01 |
TCR10,20 NO.1 |
1 | ||
| 88610-28070 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.1 |
1 | ||
| 88610-95713 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) OR ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.2 |
1 | ||
| 88610-95713 |
TCR10,20 NO.2 |
1 | ||
| 88610-95D01 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.1 |
1 | ||
| 88625A - THERMISTOR, COOLER NO.2 | ||||
| 88625-28050 |
TCR1#,2# |
1 | ||
| 88625-95700 |
TCR1#,2# ｱﾘ(ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 88625-95700 |
TCR10,20 |
1 | ||
| 88625-28050 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 88630X - RELAY ASSY | ||||
| 88630-95702 |
TCR1#,2# |
2 | ||
| 88630X - RELAY ASSY | ||||
| 88630-95702 |
TCR1#,2# |
2 | ||
| 88635F - RESISTER, COOLER BLOWER | ||||
| 88635-95D00 |
TCR1#,2# ｱﾘ(ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 88635-95D00 |
TCR10,20 |
1 | ||
| 88635-28010 |
TCR1#,2# ｱﾘ(*80 & ｸ-ﾙ ﾎ"ﾂｸｽ) |
1 | ||
| 88649 - WIRING, COOLER, NO.2 | ||||
| 88605-2J390 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.1 |
1 | ||
| 88605-28230 |
TCR10,20 |
1 | ||
| 88605-2J450 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) OR ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.2 |
1 | ||
| 88605-2J380 |
TCR1#,2# NO.1 |
1 | ||
| 88605-2J380 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.1 |
1 | ||
| 88605-2J450 |
TCR1#,2# NO.2 |
1 | ||
| 88649 - WIRING, COOLER, NO.2 | ||||
| 88605-2J390 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.1 |
1 | ||
| 88605-28230 |
TCR10,20 |
1 | ||
| 88605-2J450 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) OR ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.2 |
1 | ||
| 88605-2J380 |
TCR1#,2# NO.1 |
1 | ||
| 88605-2J380 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),NO.1 |
1 | ||
| 88605-2J450 |
TCR1#,2# NO.2 |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-28150 |
TCR10,20 |
1 | ||
| 88710-28890 |
TCR1#,2# ｱﾘ(*80 & ｺｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 88710-2J010 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ) |
1 | ||
| 88899N - PLATE, COVER | ||||
| 88899-95D0003 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 88899-95D00B0 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),LIGHT GRAY,TRIM1# |
1 | ||
| 88899P - PLATE, COVER | ||||
| 88899-95D03B0 |
TCR1#,2# ｱﾘ(ｵｵｶﾞﾀ ｸ-ﾙﾎﾞﾂｸｽ),LIGHT GRAY,TRIM1# |
1 | ||
| 88899-95D0303 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 88688-28150 | ||||
| 88688-28720 | ||||
| 88897-28030 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90179-06130 | ||||
| 90467-0500443 | ||||
| 90467-05004E0 | ||||
| 90950-01112 | ||||
| 93567-55016 | ||||

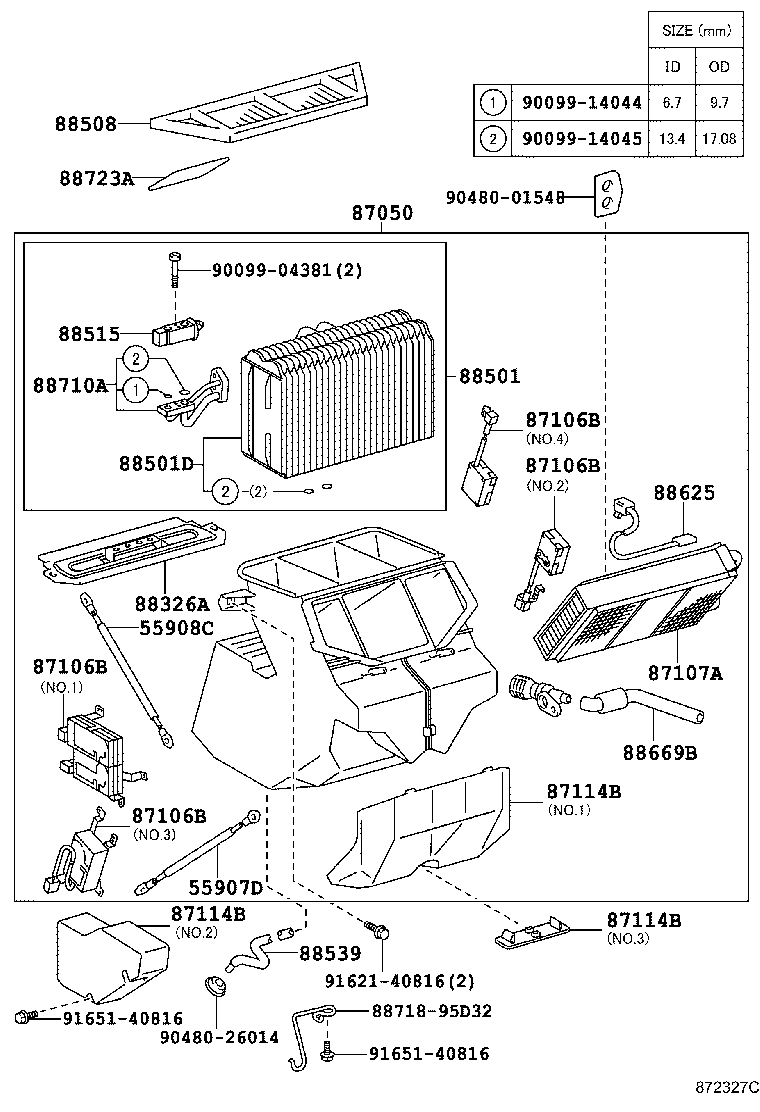

ILLUST NO. 1 OF 4(9005-9308)
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55908C - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-95D01 |
TCR1#,2#..AERAS,G,STD,V |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-95D03 |
TCR10,20 |
1 | ||
| 87050-95D01 |
TCR10,20 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87050-28060 |
TCR10,20..X ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87050-28100 |
TCR10,20..X |
1 | ||
| 87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT) | ||||
| 87106-95D00 |
TCR1#,2#..AERAS,G,STD,V NO.1 |
1 | ||
| 87106-95D03 |
TCR1#,2#..AERAS,G,STD,V NO.4 |
1 | ||
| 87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT) | ||||
| 87106-95D00 |
TCR1#,2#..AERAS,G,STD,V NO.1 |
1 | ||
| 87106-95D03 |
TCR1#,2#..AERAS,G,STD,V NO.4 |
1 | ||
| 87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT) | ||||
| 87106-95D00 |
TCR1#,2#..AERAS,G,STD,V NO.1 |
1 | ||
| 87106-95D03 |
TCR1#,2#..AERAS,G,STD,V NO.4 |
1 | ||
| 87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT) | ||||
| 87106-95D00 |
TCR1#,2#..AERAS,G,STD,V NO.1 |
1 | ||
| 87106-95D03 |
TCR1#,2#..AERAS,G,STD,V NO.4 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-95D05 |
TCR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87107-95D04 |
TCR1#,2# |
1 | ||
| 87107-28150 |
TCR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-28020 |
TCR1#,2# NO.1 |
1 | ||
| 87114-95D03 |
TCR1#,2#..AERAS,G,STD,V NO.2 |
1 | ||
| 87114-95D05 |
TCR1#,2# NO.1 |
1 | ||
| 87114-95D01 |
TCR10,20..X NO.2 |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-28020 |
TCR1#,2# NO.1 |
1 | ||
| 87114-95D03 |
TCR1#,2#..AERAS,G,STD,V NO.2 |
1 | ||
| 87114-95D05 |
TCR1#,2# NO.1 |
1 | ||
| 87114-95D01 |
TCR10,20..X NO.2 |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-28020 |
TCR1#,2# NO.1 |
1 | ||
| 87114-95D03 |
TCR1#,2#..AERAS,G,STD,V NO.2 |
1 | ||
| 87114-95D05 |
TCR1#,2# NO.1 |
1 | ||
| 87114-95D01 |
TCR10,20..X NO.2 |
1 | ||
| 88326A - PLATE, COVER | ||||
| 88326-95D01 |
TCR10,20 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-95D03 |
TCR1#,2# |
1 | ||
| 88501D - EVAPORATOR SUB-ASSY, COOLER, NO.2 | ||||
| 88511-28010 |
TCR1#,2# |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-28020 |
TCR1#,2# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-33010 |
TCR1#,2# |
1 | ||
| 88515-14062 |
TCR1#,2# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-95D03 |
TCR1#,2# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-60060 |
TCR1#,2#..AERAS,G,STD,V |
1 | ||
| 88625-60050 |
TCR10,20..X |
1 | ||
| 88625-60060 |
TCR10,20 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-28720 |
TCR1#,2# |
1 | ||
| Common parts | ||||
| 88718-95D32 | ||||
| 90099-04381 | ||||
| 90099-14044 | ||||
| 90099-14045 | ||||
| 90480-01548 | ||||
| 90480-26014 | ||||
| 91621-40816 | ||||
| 91651-40816 | ||||

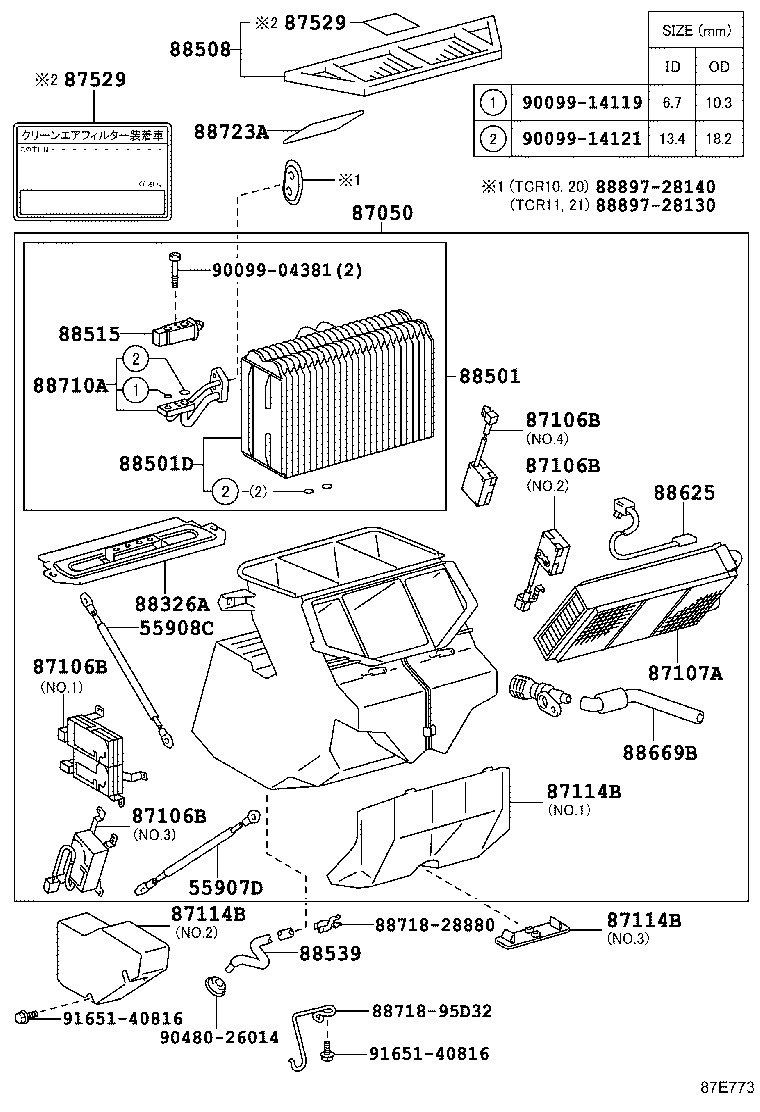

ILLUST NO. 1 OF 4(9308- )
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55908C - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-95D01 |
TCR1#,2#..AERAS,G,STD,V |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-95D03 |
TCR10,20 |
1 | ||
| 87050-95D01 |
TCR10,20 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87050-28060 |
TCR10,20..X ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87050-28100 |
TCR10,20..X |
1 | ||
| 87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT) | ||||
| 87106-95D00 |
TCR1#,2#..AERAS,G,STD,V NO.1 |
1 | ||
| 87106-95D03 |
TCR1#,2#..AERAS,G,STD,V NO.4 |
1 | ||
| 87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT) | ||||
| 87106-95D00 |
TCR1#,2#..AERAS,G,STD,V NO.1 |
1 | ||
| 87106-95D03 |
TCR1#,2#..AERAS,G,STD,V NO.4 |
1 | ||
| 87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT) | ||||
| 87106-95D00 |
TCR1#,2#..AERAS,G,STD,V NO.1 |
1 | ||
| 87106-95D03 |
TCR1#,2#..AERAS,G,STD,V NO.4 |
1 | ||
| 87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT) | ||||
| 87106-95D00 |
TCR1#,2#..AERAS,G,STD,V NO.1 |
1 | ||
| 87106-95D03 |
TCR1#,2#..AERAS,G,STD,V NO.4 |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-95D05 |
TCR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87107-95D04 |
TCR1#,2# |
1 | ||
| 87107-28150 |
TCR1#,2# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-28020 |
TCR1#,2# NO.1 |
1 | ||
| 87114-95D03 |
TCR1#,2#..AERAS,G,STD,V NO.2 |
1 | ||
| 87114-95D05 |
TCR1#,2# NO.1 |
1 | ||
| 87114-95D01 |
TCR10,20..X NO.2 |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-28020 |
TCR1#,2# NO.1 |
1 | ||
| 87114-95D03 |
TCR1#,2#..AERAS,G,STD,V NO.2 |
1 | ||
| 87114-95D05 |
TCR1#,2# NO.1 |
1 | ||
| 87114-95D01 |
TCR10,20..X NO.2 |
1 | ||
| 87114B - COVER, HEATER | ||||
| 87114-28020 |
TCR1#,2# NO.1 |
1 | ||
| 87114-95D03 |
TCR1#,2#..AERAS,G,STD,V NO.2 |
1 | ||
| 87114-95D05 |
TCR1#,2# NO.1 |
1 | ||
| 87114-95D01 |
TCR10,20..X NO.2 |
1 | ||
| 88326A - PLATE, COVER | ||||
| 88326-95D01 |
TCR10,20 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-95D03 |
TCR1#,2# |
1 | ||
| 88501D - EVAPORATOR SUB-ASSY, COOLER, NO.2 | ||||
| 88511-28010 |
TCR1#,2# |
1 | ||
| 88508 - FILTER SUB-ASSY, CLEAN AIR | ||||
| 88508-28020 |
TCR1#,2# |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-33010 |
TCR1#,2# |
1 | ||
| 88515-14062 |
TCR1#,2# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-95D03 |
TCR1#,2# |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-60060 |
TCR1#,2#..AERAS,G,STD,V |
1 | ||
| 88625-60050 |
TCR10,20..X |
1 | ||
| 88625-60060 |
TCR10,20 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-28720 |
TCR1#,2# |
1 | ||
| Common parts | ||||
| 88718-28880 | ||||
| 88718-95D32 | ||||
| 88897-28130 | ||||
| 88897-28140 | ||||
| 90099-04381 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90480-26014 | ||||
| 91651-40816 | ||||
ILLUST NO. 2 OF 4(9308- )
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87105C - FAN SUB-ASSY, BLOWER, REAR | ||||
| 87105-95D03 |
TCR1#,2# 左側 |
1 | ||
| 87105-95D02 |
TCR1#,2# 右側 |
1 | ||
| 87105C - FAN SUB-ASSY, BLOWER, REAR | ||||
| 87105-95D03 |
TCR1#,2# 左側 |
1 | ||
| 87105-95D02 |
TCR1#,2# 右側 |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-95D02 |
TCR10,20..X |
1 | ||
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 87104-95D03 |
TCR1#,2# 左側 |
1 | ||
| 87104-95D02 |
TCR1#,2# 右側 |
1 | ||
| 88306 - MOTOR SUB-ASSY, COOLER BLOWER, NO.1 | ||||
| 87104-95D03 |
TCR1#,2# 左側 |
1 | ||
| 87104-95D02 |
TCR1#,2# 右側 |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-95D02 |
TCR1#,2# |
1 | ||
| 88504A - CASE SUB-ASSY, BLOWER | ||||
| 88504-95D03 |
TCR1#,2# 右側 |
1 | ||
| 88504-95D01 |
TCR1#,2# 左側 |
1 | ||
| 88504A - CASE SUB-ASSY, BLOWER | ||||
| 88504-95D03 |
TCR1#,2# 右側 |
1 | ||
| 88504-95D01 |
TCR1#,2# 左側 |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-28250B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88510-28420B0 |
TCR1#,2#..G,STD,V LIGHT GRAY,TRIM1# |
1 | ||
| 88510-28431B0 |
TCR10,20..X LIGHT GRAY,TRIM1# |
1 | ||
| 88510-28430B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 88521E - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-28191B0 |
TCR1#,2# LIGHT GRAY,TRIM1#,LOWER |
1 | ||
| 88521E - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-28191B0 |
TCR1#,2# LIGHT GRAY,TRIM1#,LOWER |
1 | ||
| 88544 - CASE, COOLER BLOWER | ||||
| 88544-95D04 |
TCR1#,2# 左側 |
1 | ||
| 88544-95D05 |
TCR1#,2# 右側 |
1 | ||
| 88544 - CASE, COOLER BLOWER | ||||
| 88544-95D04 |
TCR1#,2# 左側 |
1 | ||
| 88544-95D05 |
TCR1#,2# 右側 |
1 | ||
| 88560 - GRILLE ASSY, COOLER AIR INLET | ||||
| 88560-95D03 |
TCR10,20 LH,NIPPONDENSO |
1 | ||
| 88560-95D02 |
TCR10,20 RH,NIPPONDENSO |
1 | ||
| 88560 - GRILLE ASSY, COOLER AIR INLET | ||||
| 88560-95D03 |
TCR10,20 LH,NIPPONDENSO |
1 | ||
| 88560-95D02 |
TCR10,20 RH,NIPPONDENSO |
1 | ||
| 88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET | ||||
| 88570-95D02 |
TCR1#,2# 右側 |
1 | ||
| 88570-95D03 |
TCR1#,2# 左側 |
1 | ||
| 88570-28110 |
TCR1#,2# 左側 |
1 | ||
| 88570-28100 |
TCR1#,2# 右側 |
1 | ||
| 88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET | ||||
| 88570-95D02 |
TCR1#,2# 右側 |
1 | ||
| 88570-95D03 |
TCR1#,2# 左側 |
1 | ||
| 88570-28110 |
TCR1#,2# 左側 |
1 | ||
| 88570-28100 |
TCR1#,2# 右側 |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-28220 |
TCR1#,2# |
1 | ||
| 88578-28220 |
TCR10,20..X |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-2J790 |
TCR10,20..X |
1 | ||
| 88605-28370 |
TCR10,20 |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-28070 |
TCR1#,2# |
1 | ||
| 88750B - TRANSISTOR ASSY, BLOWER RESISTOR | ||||
| 88750-95D01 |
TCR1#,2#..AERAS,G,STD,V |
1 | ||
| Common parts | ||||
| 88688-28210 | ||||
| 90094-90414 | ||||
| 90099-00930 | ||||
| 90099-01340 | ||||
| 90099-04381 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 93540-14012 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
