TCR11W-RFSGV (1994)

Toyota Estima

Production Aug 1994 - Dec 1999
Engine 2TZFZE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9408- )SPC

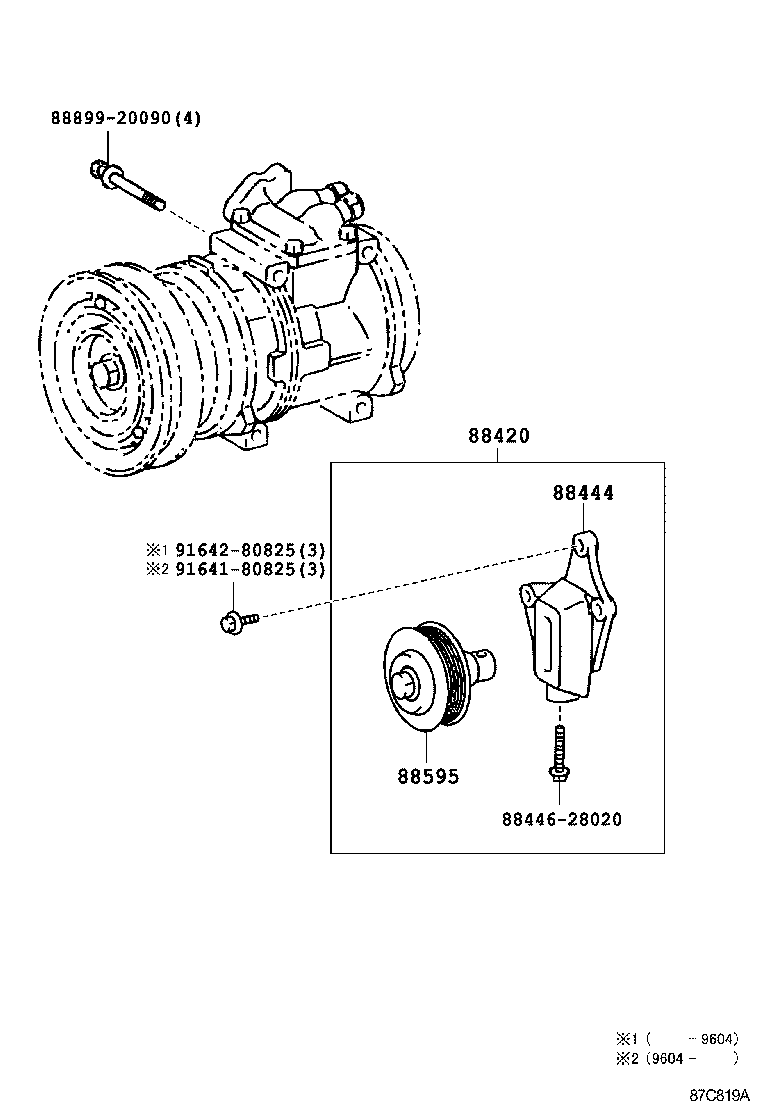

Click highlighted areas on diagram

diagram 88420 88444 8844628020 88595 8889920090 9164180825 9164280825
Part # Description Qty Price
88420 - PULLEY ASSY, IDLE, W/BRACKET
88420-28110

TCR1#,2#..SPC

 1
88444 - BRACKET, IDLE PULLEY
88444-28030

TCR1#,2#..SPC

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-26100

TCR1#,2#..SPC

 1
Common parts
88446-28020
88899-20090
91641-80825
91642-80825
