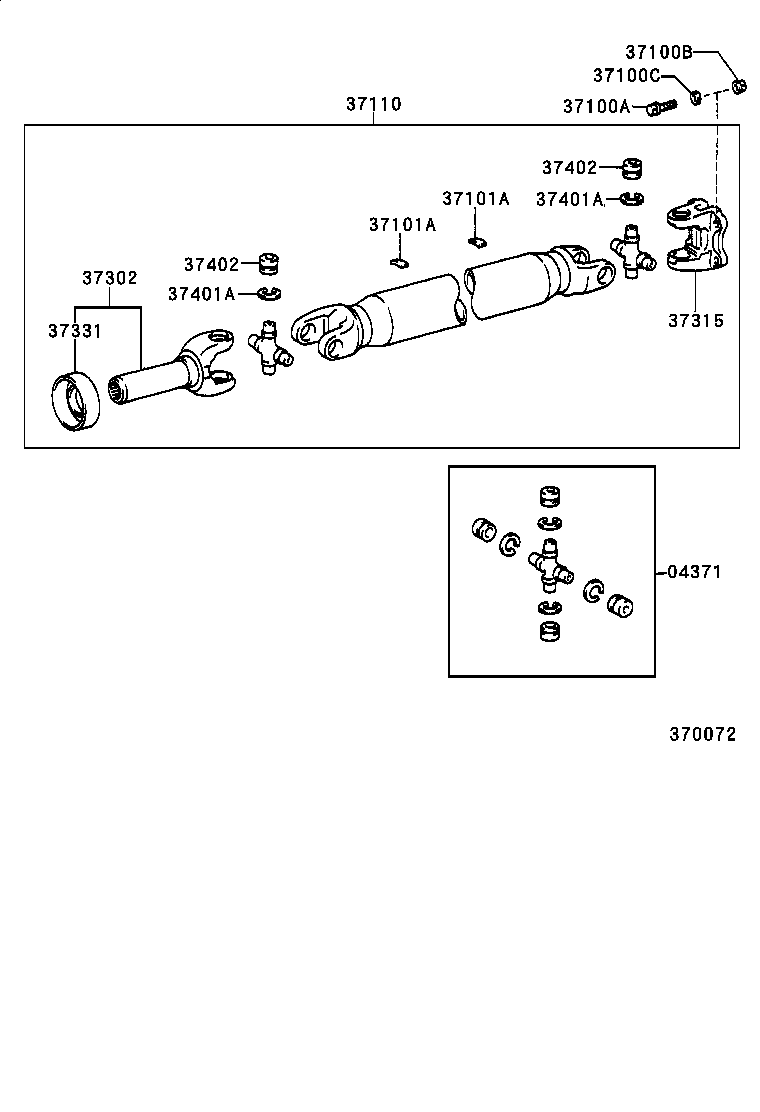

TCR11W-RFSGV (1994)
Toyota Estima
(9005-9505) ; (9505- )TCR1#..SPC
TOYOTA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT) | ||||
| 04371-30040 |
TCR11 |
2 | ||
| 04371-30030 |
TCR11 ﾚｯﾄﾞ ﾍﾟｲﾝﾄ |
2 | ||
| 04371-30021 |
TCR11 |
2 | ||
| 04371-30040 |
TCR11 |
2 | ||
| 37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-10085 |
TCR1#,2# |
4 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-10059 |
TCR1# |
4 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90204-10002 |
TCR1# |
4 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01152 |
TCR1#,2# 14G,長さ=29.0 |
1 | ||
| 90937-01148 |
TCR1#,2# 4G,厚さ=2.0 |
1 | ||
| 90937-01201 |
TCR1#,2# 30G,厚さ=4.5,長さ=27.4 |
1 | ||
| 90937-01132 |
TCR1#,2# 10G,長さ=20.7 |
1 | ||
| 90937-01147 |
TCR1#,2# 2G,厚さ=2.0 |
1 | ||
| 90937-01149 |
TCR1#,2# 6G,長さ=12.4 |
1 | ||
| 90937-01204 |
TCR1#,2# 36G,厚さ=4.5,長さ=32.9 |
1 | ||
| 90937-01151 |
TCR1#,2# 12G,長さ=24.9 |
1 | ||
| 90937-01203 |
TCR1#,2# 34G,厚さ=4.5,長さ=31.0 |
1 | ||
| 90937-01202 |
TCR1#,2# 32G,厚さ=4.5,長さ=29.2 |
1 | ||
| 90937-01399 |
TCR1#,2# 22G,厚さ=4.5,長さ=20.1 |
1 | ||
| 90937-01205 |
TCR1#,2# 38G,厚さ=4.5,長さ=34.7 |
1 | ||
| 90937-01402 |
TCR1#,2# 28G,厚さ=4.5,長さ=25.6 |
1 | ||
| 90937-01396 |
TCR1#,2# 16G,厚さ=4.5,長さ=14.6 |
1 | ||
| 90937-01150 |
TCR1#,2# 8G,長さ=16.6 |
1 | ||
| 90937-01400 |
TCR1#,2# 24G,厚さ=4.5,長さ=21.9 |
1 | ||
| 90937-01397 |
TCR1#,2# 18G,厚さ=4.5,長さ=16.4 |
1 | ||
| 90937-01401 |
TCR1#,2# 26G,厚さ=4.5,長さ=23.7 |
1 | ||
| 90937-01398 |
TCR1#,2# 20G,厚さ=4.5,長さ=18.3 |
1 | ||
| 90937-01136 |
TCR1# 20G,長さ=41.4,TOYOTA |
1 | ||
| 90937-01148 |
TCR1# 4G,厚さ=2.0,TOYOTA |
1 | ||
| 90937-01132 |
TCR1# 10G,長さ=20.7,TOYOTA |
1 | ||
| 90937-01147 |
TCR1# 2G,厚さ=2.0,TOYOTA |
1 | ||
| 90937-01149 |
TCR1# 6G,長さ=12.4,TOYOTA |
1 | ||
| 90937-01152 |
TCR1# 14G,長さ=29.0,TOYOTA |
1 | ||
| 90937-01140 |
TCR1# 30G,長さ=62.2,TOYOTA |
1 | ||
| 90937-01155 |
TCR1# 22G,長さ=45.6,TOYOTA |
1 | ||
| 90937-01151 |
TCR1# 12G,長さ=24.9,TOYOTA |
1 | ||
| 90937-01150 |
TCR1# 8G,長さ=16.6,TOYOTA |
1 | ||
| 90937-01158 |
TCR1# 28G,長さ=58.1,TOYOTA |
1 | ||
| 90937-01156 |
TCR1# 24G,長さ=49.7,TOYOTA |
1 | ||
| 90937-01157 |
TCR1# 26G,長さ=53.9,TOYOTA |
1 | ||
| 90937-01153 |
TCR1# 16G,長さ=33.2,TOYOTA |
1 | ||
| 90937-01201 |
TCR1# 30G,厚さ=4.5,長さ=27.4,TOYOTA |
1 | ||
| 90937-01202 |
TCR1# 32G,厚さ=4.5,長さ=29.2,TOYOTA |
1 | ||
| 90937-01154 |
TCR1# 18G,長さ=37.3,TOYOTA |
1 | ||
| 90937-01397 |
TCR1# 18G,厚さ=4.5,長さ=16.4,TOYOTA |
1 | ||
| 90937-01399 |
TCR1# 22G,厚さ=4.5,長さ=20.1,TOYOTA |
1 | ||
| 90937-01203 |
TCR1# 34G,厚さ=4.5,長さ=31.0,TOYOTA |
1 | ||
| 90937-01204 |
TCR1# 36G,厚さ=4.5,長さ=32.9,TOYOTA |
1 | ||
| 90937-01401 |
TCR1# 26G,厚さ=4.5,長さ=23.7,TOYOTA |
1 | ||
| 90937-01400 |
TCR1# 24G,厚さ=4.5,長さ=21.9,TOYOTA |
1 | ||
| 90937-01396 |
TCR1# 16G,厚さ=4.5,長さ=14.6,TOYOTA |
1 | ||
| 90937-01205 |
TCR1# 38G,厚さ=4.5,長さ=34.7,TOYOTA |
1 | ||
| 90937-01402 |
TCR1# 28G,厚さ=4.5,長さ=25.6,TOYOTA |
1 | ||
| 90937-01398 |
TCR1# 20G,厚さ=4.5,長さ=18.3,TOYOTA |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01152 |
TCR1#,2# 14G,長さ=29.0 |
1 | ||
| 90937-01148 |
TCR1#,2# 4G,厚さ=2.0 |
1 | ||
| 90937-01201 |
TCR1#,2# 30G,厚さ=4.5,長さ=27.4 |
1 | ||
| 90937-01132 |
TCR1#,2# 10G,長さ=20.7 |
1 | ||
| 90937-01147 |
TCR1#,2# 2G,厚さ=2.0 |
1 | ||
| 90937-01149 |
TCR1#,2# 6G,長さ=12.4 |
1 | ||
| 90937-01204 |
TCR1#,2# 36G,厚さ=4.5,長さ=32.9 |
1 | ||
| 90937-01151 |
TCR1#,2# 12G,長さ=24.9 |
1 | ||
| 90937-01203 |
TCR1#,2# 34G,厚さ=4.5,長さ=31.0 |
1 | ||
| 90937-01202 |
TCR1#,2# 32G,厚さ=4.5,長さ=29.2 |
1 | ||
| 90937-01399 |
TCR1#,2# 22G,厚さ=4.5,長さ=20.1 |
1 | ||
| 90937-01205 |
TCR1#,2# 38G,厚さ=4.5,長さ=34.7 |
1 | ||
| 90937-01402 |
TCR1#,2# 28G,厚さ=4.5,長さ=25.6 |
1 | ||
| 90937-01396 |
TCR1#,2# 16G,厚さ=4.5,長さ=14.6 |
1 | ||
| 90937-01150 |
TCR1#,2# 8G,長さ=16.6 |
1 | ||
| 90937-01400 |
TCR1#,2# 24G,厚さ=4.5,長さ=21.9 |
1 | ||
| 90937-01397 |
TCR1#,2# 18G,厚さ=4.5,長さ=16.4 |
1 | ||
| 90937-01401 |
TCR1#,2# 26G,厚さ=4.5,長さ=23.7 |
1 | ||
| 90937-01398 |
TCR1#,2# 20G,厚さ=4.5,長さ=18.3 |
1 | ||
| 90937-01136 |
TCR1# 20G,長さ=41.4,TOYOTA |
1 | ||
| 90937-01148 |
TCR1# 4G,厚さ=2.0,TOYOTA |
1 | ||
| 90937-01132 |
TCR1# 10G,長さ=20.7,TOYOTA |
1 | ||
| 90937-01147 |
TCR1# 2G,厚さ=2.0,TOYOTA |
1 | ||
| 90937-01149 |
TCR1# 6G,長さ=12.4,TOYOTA |
1 | ||
| 90937-01152 |
TCR1# 14G,長さ=29.0,TOYOTA |
1 | ||
| 90937-01140 |
TCR1# 30G,長さ=62.2,TOYOTA |
1 | ||
| 90937-01155 |
TCR1# 22G,長さ=45.6,TOYOTA |
1 | ||
| 90937-01151 |
TCR1# 12G,長さ=24.9,TOYOTA |
1 | ||
| 90937-01150 |
TCR1# 8G,長さ=16.6,TOYOTA |
1 | ||
| 90937-01158 |
TCR1# 28G,長さ=58.1,TOYOTA |
1 | ||
| 90937-01156 |
TCR1# 24G,長さ=49.7,TOYOTA |
1 | ||
| 90937-01157 |
TCR1# 26G,長さ=53.9,TOYOTA |
1 | ||
| 90937-01153 |
TCR1# 16G,長さ=33.2,TOYOTA |
1 | ||
| 90937-01201 |
TCR1# 30G,厚さ=4.5,長さ=27.4,TOYOTA |
1 | ||
| 90937-01202 |
TCR1# 32G,厚さ=4.5,長さ=29.2,TOYOTA |
1 | ||
| 90937-01154 |
TCR1# 18G,長さ=37.3,TOYOTA |
1 | ||
| 90937-01397 |
TCR1# 18G,厚さ=4.5,長さ=16.4,TOYOTA |
1 | ||
| 90937-01399 |
TCR1# 22G,厚さ=4.5,長さ=20.1,TOYOTA |
1 | ||
| 90937-01203 |
TCR1# 34G,厚さ=4.5,長さ=31.0,TOYOTA |
1 | ||
| 90937-01204 |
TCR1# 36G,厚さ=4.5,長さ=32.9,TOYOTA |
1 | ||
| 90937-01401 |
TCR1# 26G,厚さ=4.5,長さ=23.7,TOYOTA |
1 | ||
| 90937-01400 |
TCR1# 24G,厚さ=4.5,長さ=21.9,TOYOTA |
1 | ||
| 90937-01396 |
TCR1# 16G,厚さ=4.5,長さ=14.6,TOYOTA |
1 | ||
| 90937-01205 |
TCR1# 38G,厚さ=4.5,長さ=34.7,TOYOTA |
1 | ||
| 90937-01402 |
TCR1# 28G,厚さ=4.5,長さ=25.6,TOYOTA |
1 | ||
| 90937-01398 |
TCR1# 20G,厚さ=4.5,長さ=18.3,TOYOTA |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-28300 |
TCR11 |
1 | ||
| 37110-28430 |
TCR11 |
1 | ||
| 37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE | ||||
| 37302-24010 |
TCR1#..SPC |
1 | ||
| 37302-24010 |
TCR11 |
1 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-35040 |
TCR11 |
1 | ||
| 37315-35040 |
TCR11 |
1 | ||
| 37315-35040 |
TCR1# |
1 | ||
| 37331 - COVER, SLIDING SHAFT DUST | ||||
| 37331-24010 |
TCR1#..SPC |
1 | ||
| 37331-24010 |
TCR11 |
1 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-26041 |
TCR1# 厚さ=2.225,ﾏｰｸ 3 |
8 | ||
| 90520-26038 |
TCR1# 厚さ=2.125,ﾏｰｸ 1 |
8 | ||
| 90520-26042 |
TCR1# 厚さ=2.275,ﾏｰｸ 4 |
8 | ||
| 90520-26040 |
TCR1# 厚さ=2.175,ﾏｰｸ 2 |
8 | ||
| 90520-26038 |
TCR11 厚さ=2.125,ﾏｰｸ 1 |
8 | ||
| 90520-26046 |
TCR1# 厚さ=2.475,ﾏｰｸ 8 |
8 | ||
| 90520-26043 |
TCR11 厚さ=2.325,ﾏｰｸ 5 |
8 | ||
| 90520-26044 |
TCR1# 厚さ=2.375,ﾏｰｸ 6 |
8 | ||
| 90520-26045 |
TCR1# 厚さ=2.425,ﾏｰｸ 7 |
8 | ||
| 90520-26042 |
TCR11 厚さ=2.275,ﾏｰｸ 4 |
8 | ||
| 90520-26046 |
TCR11 厚さ=2.475,ﾏｰｸ 8 |
8 | ||
| 90520-26043 |
TCR1# 厚さ=2.325,ﾏｰｸ 5 |
8 | ||
| 90520-26041 |
TCR11 厚さ=2.225,ﾏｰｸ 3 |
8 | ||
| 90520-26040 |
TCR11 厚さ=2.175,ﾏｰｸ 2 |
8 | ||
| 90520-26045 |
TCR11 厚さ=2.425,ﾏｰｸ 7 |
8 | ||
| 90520-26044 |
TCR11 厚さ=2.375,ﾏｰｸ 6 |
8 | ||
| 90520-26051 |
TCR11 厚さ=2.46−2.48 |
8 | ||
| 90520-26054 |
TCR11 厚さ=2.32−2.34 |
8 | ||
| 90520-26053 |
TCR11 厚さ=2.30−2.32 |
8 | ||
| 90520-26050 |
TCR11 厚さ=2.44−2.46 |
8 | ||
| 90520-26052 |
TCR11 厚さ=2.28−2.30 |
8 | ||
| 90520-26058 |
TCR11 厚さ=2.40−2.42 |
8 | ||
| 90520-26055 |
TCR11 厚さ=2.34−2.36 |
8 | ||
| 90520-26056 |
TCR11 厚さ=2.36−2.38 |
8 | ||
| 90520-26057 |
TCR11 厚さ=2.38−2.40 |
8 | ||
| 90520-26052 |
TCR11 厚さ=2.28−2.30,TOYOTA |
8 | ||
| 90520-26059 |
TCR11 厚さ=2.42−2.44 |
8 | ||
| 90520-26050 |
TCR11 厚さ=2.44−2.46,TOYOTA |
8 | ||
| 90520-26053 |
TCR11 厚さ=2.30−2.32,TOYOTA |
8 | ||
| 90520-26059 |
TCR11 厚さ=2.42−2.44,TOYOTA |
8 | ||
| 90520-26051 |
TCR11 厚さ=2.46−2.48,TOYOTA |
8 | ||
| 90520-26055 |
TCR11 厚さ=2.34−2.36,TOYOTA |
8 | ||
| 90520-26064 |
TCR11 厚さ=2.22−2.24,TOYOTA |
8 | ||
| 90520-26063 |
TCR11 厚さ=2.20−2.22,TOYOTA |
8 | ||
| 90520-26069 |
TCR11 厚さ=2.52−2.54,TOYOTA |
8 | ||
| 90520-26065 |
TCR11 厚さ=2.24−2.26,TOYOTA |
8 | ||
| 90520-26068 |
TCR11 厚さ=2.50−2.52,TOYOTA |
8 | ||
| 90520-26062 |
TCR11 厚さ=2.18−2.20,TOYOTA |
8 | ||
| 90520-26056 |
TCR11 厚さ=2.36−2.38,TOYOTA |
8 | ||
| 90520-26057 |
TCR11 厚さ=2.38−2.40,TOYOTA |
8 | ||
| 90520-26058 |
TCR11 厚さ=2.40−2.42,TOYOTA |
8 | ||
| 90520-26066 |
TCR11 厚さ=2.26−2.28,TOYOTA |
8 | ||
| 90520-26054 |
TCR11 厚さ=2.32−2.34,TOYOTA |
8 | ||
| 90520-26067 |
TCR11 厚さ=2.48−2.50,TOYOTA |
8 | ||
| 37401A - RING, HOLE SNAP (FOR SPIDER BEARING) | ||||
| 90520-26041 |
TCR1# 厚さ=2.225,ﾏｰｸ 3 |
8 | ||
| 90520-26038 |
TCR1# 厚さ=2.125,ﾏｰｸ 1 |
8 | ||
| 90520-26042 |
TCR1# 厚さ=2.275,ﾏｰｸ 4 |
8 | ||
| 90520-26040 |
TCR1# 厚さ=2.175,ﾏｰｸ 2 |
8 | ||
| 90520-26038 |
TCR11 厚さ=2.125,ﾏｰｸ 1 |
8 | ||
| 90520-26046 |
TCR1# 厚さ=2.475,ﾏｰｸ 8 |
8 | ||
| 90520-26043 |
TCR11 厚さ=2.325,ﾏｰｸ 5 |
8 | ||
| 90520-26044 |
TCR1# 厚さ=2.375,ﾏｰｸ 6 |
8 | ||
| 90520-26045 |
TCR1# 厚さ=2.425,ﾏｰｸ 7 |
8 | ||
| 90520-26042 |
TCR11 厚さ=2.275,ﾏｰｸ 4 |
8 | ||
| 90520-26046 |
TCR11 厚さ=2.475,ﾏｰｸ 8 |
8 | ||
| 90520-26043 |
TCR1# 厚さ=2.325,ﾏｰｸ 5 |
8 | ||
| 90520-26041 |
TCR11 厚さ=2.225,ﾏｰｸ 3 |
8 | ||
| 90520-26040 |
TCR11 厚さ=2.175,ﾏｰｸ 2 |
8 | ||
| 90520-26045 |
TCR11 厚さ=2.425,ﾏｰｸ 7 |
8 | ||
| 90520-26044 |
TCR11 厚さ=2.375,ﾏｰｸ 6 |
8 | ||
| 90520-26051 |
TCR11 厚さ=2.46−2.48 |
8 | ||
| 90520-26054 |
TCR11 厚さ=2.32−2.34 |
8 | ||
| 90520-26053 |
TCR11 厚さ=2.30−2.32 |
8 | ||
| 90520-26050 |
TCR11 厚さ=2.44−2.46 |
8 | ||
| 90520-26052 |
TCR11 厚さ=2.28−2.30 |
8 | ||
| 90520-26058 |
TCR11 厚さ=2.40−2.42 |
8 | ||
| 90520-26055 |
TCR11 厚さ=2.34−2.36 |
8 | ||
| 90520-26056 |
TCR11 厚さ=2.36−2.38 |
8 | ||
| 90520-26057 |
TCR11 厚さ=2.38−2.40 |
8 | ||
| 90520-26052 |
TCR11 厚さ=2.28−2.30,TOYOTA |
8 | ||
| 90520-26059 |
TCR11 厚さ=2.42−2.44 |
8 | ||
| 90520-26050 |
TCR11 厚さ=2.44−2.46,TOYOTA |
8 | ||
| 90520-26053 |
TCR11 厚さ=2.30−2.32,TOYOTA |
8 | ||
| 90520-26059 |
TCR11 厚さ=2.42−2.44,TOYOTA |
8 | ||
| 90520-26051 |
TCR11 厚さ=2.46−2.48,TOYOTA |
8 | ||
| 90520-26055 |
TCR11 厚さ=2.34−2.36,TOYOTA |
8 | ||
| 90520-26064 |
TCR11 厚さ=2.22−2.24,TOYOTA |
8 | ||
| 90520-26063 |
TCR11 厚さ=2.20−2.22,TOYOTA |
8 | ||
| 90520-26069 |
TCR11 厚さ=2.52−2.54,TOYOTA |
8 | ||
| 90520-26065 |
TCR11 厚さ=2.24−2.26,TOYOTA |
8 | ||
| 90520-26068 |
TCR11 厚さ=2.50−2.52,TOYOTA |
8 | ||
| 90520-26062 |
TCR11 厚さ=2.18−2.20,TOYOTA |
8 | ||
| 90520-26056 |
TCR11 厚さ=2.36−2.38,TOYOTA |
8 | ||
| 90520-26057 |
TCR11 厚さ=2.38−2.40,TOYOTA |
8 | ||
| 90520-26058 |
TCR11 厚さ=2.40−2.42,TOYOTA |
8 | ||
| 90520-26066 |
TCR11 厚さ=2.26−2.28,TOYOTA |
8 | ||
| 90520-26054 |
TCR11 厚さ=2.32−2.34,TOYOTA |
8 | ||
| 90520-26067 |
TCR11 厚さ=2.48−2.50,TOYOTA |
8 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-30011 |
TCR11 |
8 | ||
| 37402-30021 |
TCR1# ﾚｯﾄﾞ ﾍﾟｲﾝﾄ |
8 | ||
| 37402-30021 |
TCR11 ﾚｯﾄﾞ ﾍﾟｲﾝﾄ |
8 | ||
| 37402-30011 |
TCR1# |
8 | ||
| 37402-30011 |
TCR11 |
8 | ||
| 37402-30021 |
TCR11 ﾚｯﾄﾞ ﾍﾟｲﾝﾄ |
8 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-30011 |
TCR11 |
8 | ||
| 37402-30021 |
TCR1# ﾚｯﾄﾞ ﾍﾟｲﾝﾄ |
8 | ||
| 37402-30021 |
TCR11 ﾚｯﾄﾞ ﾍﾟｲﾝﾄ |
8 | ||
| 37402-30011 |
TCR1# |
8 | ||
| 37402-30011 |
TCR11 |
8 | ||
| 37402-30021 |
TCR11 ﾚｯﾄﾞ ﾍﾟｲﾝﾄ |
8 | ||
Part Price Details
Loading price information...
Part Number:
Price:
