TCR11W-RFSGK (1990)

Toyota Estima

Production May 1990 - Aug 1994
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005- )

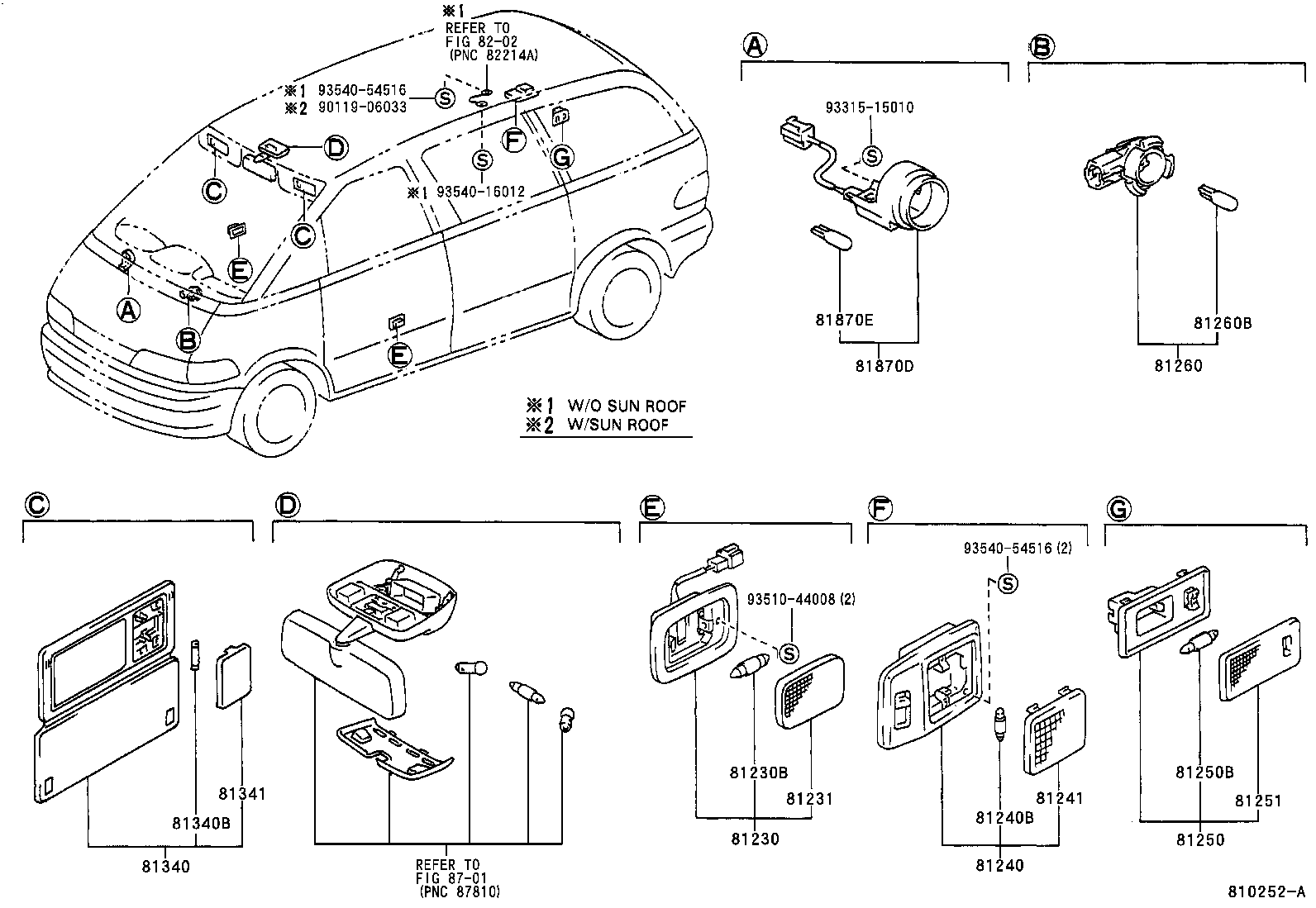

Click highlighted areas on diagram

diagram 81230 81230B 81231 81240 81240B 81241 81250 81250B 81251 81260 81260B 81340 81340B 81341 81870D 81870E 8202 8701 9011906033 9331515010 9351044008 9354016012 9354054516 9354054516
Part # Description Qty Price
81230 - LAMP ASSY, COURTESY
81230-28020E1

TCR11,21

GREIGE,TRIM4#

 2
81240 - LAMP ASSY, ROOM, NO.1
81240-95D01L1

TCR11,21

LIGHT GRAIGE,TRIM4#

 1
81240-95D0105

TCR11,21

LIGHT GRAIGE,TRIM4#

 1
81240-95D0103

TCR1#,2#

LIGHT GRAY,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
99132-12100

TCR1#,2#

12V 10W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-30100

TCR1#,2#

 1
81250 - LAMP ASSY, ROOM, NO.2
81250-12030E2

TCR11,21

LIGHT GRAIGE,TRIM4#

 1
81250-1203013

TCR1#,2#

GRAY,TRIM1#

 1
81250B - BULB, ROOM LAMP, NO.2
99132-13050

TCR1#,2#

12V 5W

 1
81251 - LENS, ROOM LAMP, NO.2
81251-12030

TCR1#,2#

 1
81260 - LAMP ASSY, GLOVE BOX
81260-32071

TCR1#,2#

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

TCR1#,2#

12V 1.2W ｿｹｯﾄ無し

 1
81340 - LAMP ASSY, VANITY
81340-28011E0

TCR11

GREIGE,TRIM4#

 2
81340-95D0003

TCR1#

LIGHT GRAY,TRIM1#

 2
81340-95D0005

TCR11

LIGHT GREIGE,TRIM4#

 2
81340B - BULB (FOR VANITY LAMP)
90981-14007

TCR11,21

12V 3W

 4
81341 - LENS, VANITY LAMP
81341-95D00

TCR11

 1
81341-95D00

TCR11,21

 1
81870D - LAMP ASSY, KEY CYLINDER
81870-28020

TCR1#,2#

 1
81870E - BULB, KEY CYLINDER LAMP
90981-11014

TCR1#,2#

14V 1.4W

 1
Common parts
90119-06033
93315-15010
93510-44008
93540-16012
93540-54516
Linked diagrams
8202
8701
