TCR11W-RFSGK (1990)

Toyota Estima

Production May 1990 - Aug 1994
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005-9801)

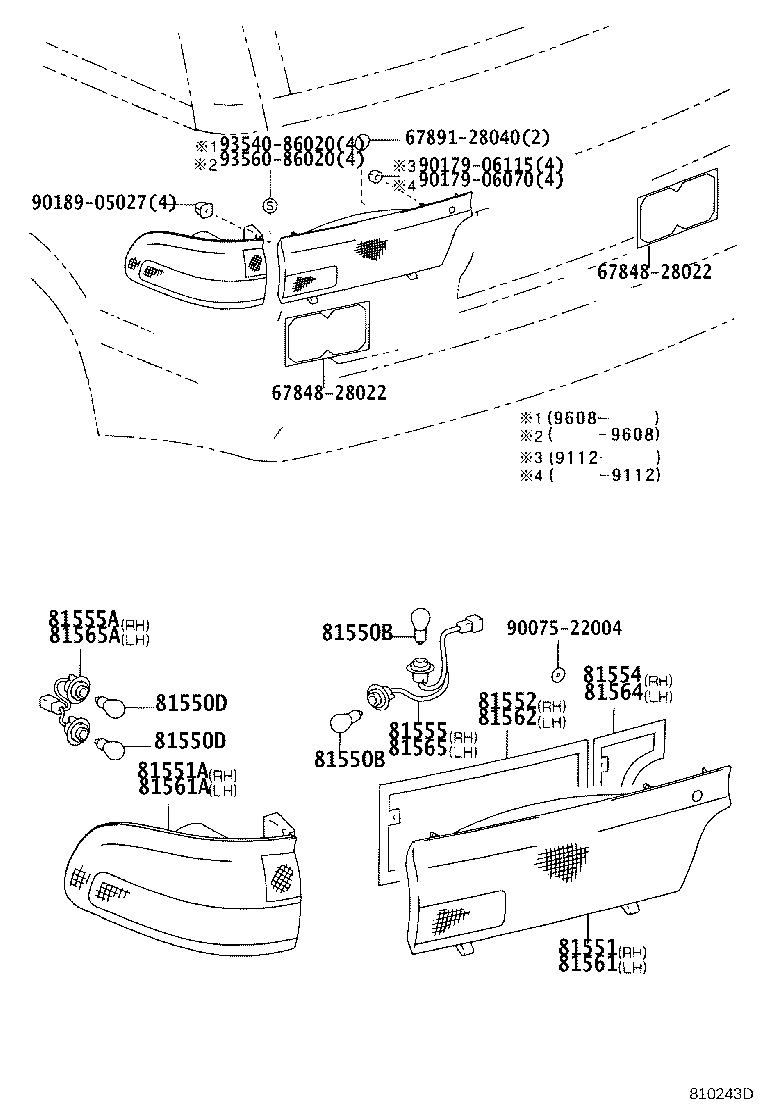

Click highlighted areas on diagram

diagram 6784828022 6784828022 6789128040 81550B 81550B 81550D 81550D 81551 81551A 81552 81554 81555 81555A 81561 81561A 81562 81564 81565 81565A 9007522004 9017906070 9017906115 9018905027 9354086020 9356086020
Part # Description Qty Price
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

TCR1#,2#

12V 21/5W

 2
99132-11210

TCR1#,2#

12V 21W

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
99132-21210

TCR1#,2#

12V 21/5W

 2
99132-11210

TCR1#,2#

12V 21W

 2
81550D - BULB(FOR REAR COMBINATION LAMP)
99132-11210

TCR1#,2#

12V 21W

 2
99132-21210

TCR1#,2#

12V 21/5W

 2
81550D - BULB(FOR REAR COMBINATION LAMP)
99132-11210

TCR1#,2#

12V 21W

 2
99132-21210

TCR1#,2#

12V 21/5W

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-95D02

TCR1#,2#

 1
81551A - LENS, REAR COMBINATION LAMP, RH
81551-95D03

TCR1#,2#

 1
81552 - GASKET, REAR COMBINATION LAMP LENS, RH
81552-95D02

TCR1#,2#

 1
81554 - GASKET, REAR COMBINATION LAMP BODY, RH
81554-95D02

TCR1#,2#

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-95D07

TCR1#,2#

 1
81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-95D01

TCR1#,2#

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-95D02

TCR1#,2#

 1
81561A - LENS, REAR COMBINATION LAMP, LH
81561-95D03

TCR1#,2#

 1
81562 - GASKET, REAR COMBINATION LAMP LENS, LH
81562-95D02

TCR1#,2#

 1
81564 - GASKET, REAR COMBINATION LAMP BODY, LH
81554-95D02

TCR1#,2#

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-95D07

TCR1#,2#

 1
81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-95D01

TCR1#,2#

 1
Common parts
67848-28022
67891-28040
90075-22004
90179-06070
90179-06115
90189-05027
93540-86020
93560-86020
