TCR11W-RFSGK (1990)

Toyota Estima

Production May 1990 - Aug 1994
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9005-9801)EFI

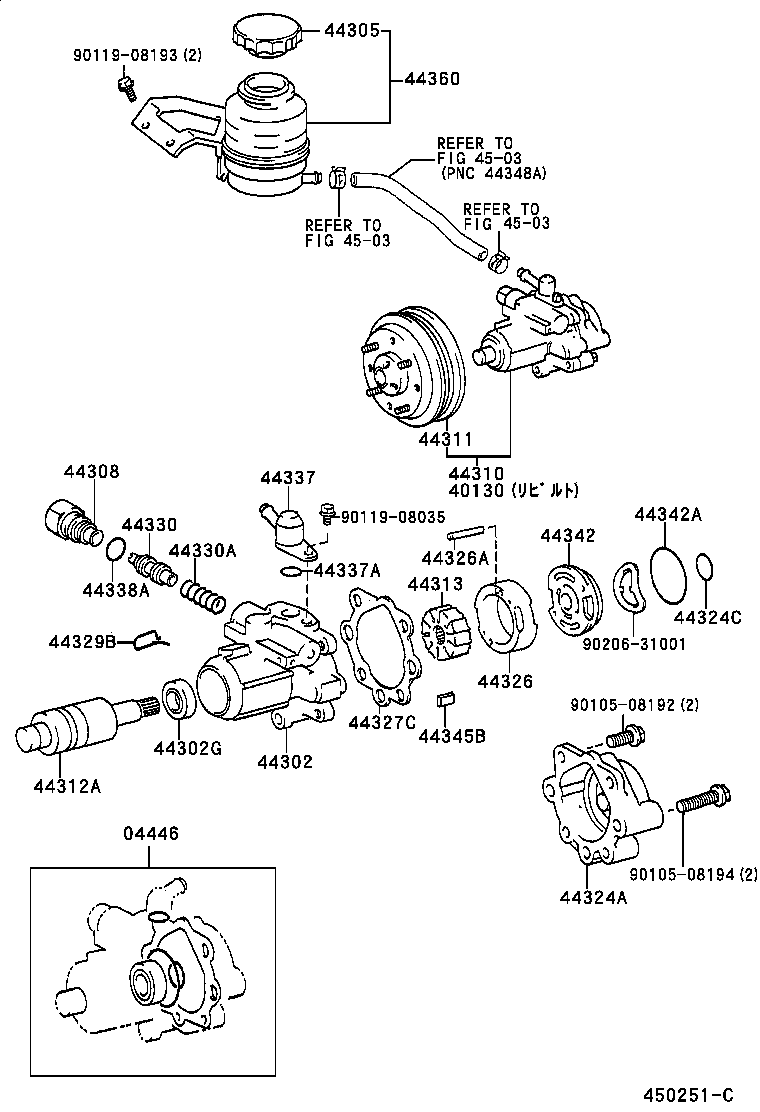

Click highlighted areas on diagram

diagram 04446 40130 44302 44302G 44305 44308 44310 44311 44312A 44313 44324A 44324C 44326 44326A 44327C 44329B 44330 44330A 44337 44337A 44338A 44342 44342A 44345B 44360 4503 4503 4503 9010508192 9010508194 9011908035 9011908193 9020631001
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-28010

TCR1#,2#

 1
40130 - PUMP ASSY,VANE REBUILT
40130-28060

TCR1#,2#..EFI

TOYODA KOKI

 1
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-28011

TCR11,21

 1
44302-28010

TCR11,21

 1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-17007

TCR1#,2#

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-22030

TCR1#,2#..EFI

 1
44308 - UNION SUB-ASSY, PRESSURE PORT
44308-28020

TCR11,21

 1
44310 - PUMP ASSY, VANE
44310-28060

TCR1#,2#..EFI

 1
44311 - PULLEY, VANE PUMP
44311-28011

TCR1#,2#

 1
44312A - BEARING(FOR VANE PUMP SHAFT)
44317-28030

TCR1#,2#

 1
44313 - ROTOR, VANE PUMP
44313-26090

TCR1#,2#

ﾏｰｸ 3

 1
44313-26080

TCR1#,2#

ﾏｰｸ 2

 1
44313-26060

TCR1#,2#

ﾏｰｸ無し

 1
44313-26070

TCR1#,2#

ﾏｰｸ 1

 1
44313-26100

TCR1#,2#

ﾏｰｸ 4

 1
44324A - HOUSING, PUMP, REAR
44324-26040

TCR11,21

 1
44324C - RING, O(FOR PUMP HOUSING REAR)
90301-18007

TCR1#,2#

 1
44326 - RING, CAM(FOR VANE PUMP)
44325-26020

TCR11,21

ﾏｰｸ 1

 1
44325-32120

TCR11,21

ﾏｰｸ 1

 1
44325-26030

TCR11,21

ﾏｰｸ 2

 1
44325-26010

TCR11,21

ﾏｰｸ無し

 1
44325-26040

TCR11,21

ﾏｰｸ 3

 1
44325-32150

TCR11,21

ﾏｰｸ 4

 1
44325-32140

TCR11,21

ﾏｰｸ 3

 1
44325-32130

TCR11,21

ﾏｰｸ 2

 1
44325-26050

TCR11,21

ﾏｰｸ 4

 1
44325-32110

TCR11,21

ﾏｰｸ無し

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-04071

TCR1#,2#

長さ=23.3,外径=4.0

 2
44327C - GASKET, VANE PUMP HOUSING
44327-26010

TCR1#,2#

 1
44329B - WIRE, VANE PUMP BEARING
44329-28010

TCR1#,2#

 1
44330 - VALVE ASSY, FLOW CONTROL
44330-28030

TCR11,21

ﾏｰｸ C

 1
44330-28010

TCR11,21

ﾏｰｸ A

 1
44330-28020

TCR11,21

ﾏｰｸ B

 1
44330-28050

TCR11,21

ﾏｰｸ E

 1
44330-28060

TCR11,21

ﾏｰｸ F

 1
44330-28040

TCR11,21

ﾏｰｸ D

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-11047

TCR11,21

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-28030

TCR11,21

 1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-11010

TCR1#,2#

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-19003

TCR1#,2#

内径=19.5,外径=22.5

 1
44342 - PLATE, VANE PUMP SIDE, REAR
44342-26010

TCR11,21

 1
44342-32050

TCR11,21

 1
44342-32060

TCR11,21

 1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-47001

TCR1#,2#

 1
44345B - PLATE, VANE PUMP
44345-26050

TCR1#,2#

長さ=14.992

 10
44345-26030

TCR1#,2#

長さ=14.996

 10
44345-26010

TCR1#,2#

長さ=15.000

 10
44345-26020

TCR1#,2#

長さ=14.998

 10
44345-26040

TCR1#,2#

長さ=14.994

 10
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-28080

TCR1#,2#..EFI

 1
Common parts
90105-08192
90105-08194
90119-08035
90119-08193
90206-31001
Linked diagrams
4503
