TCR10W-RRSVV (1998)
Toyota Estima

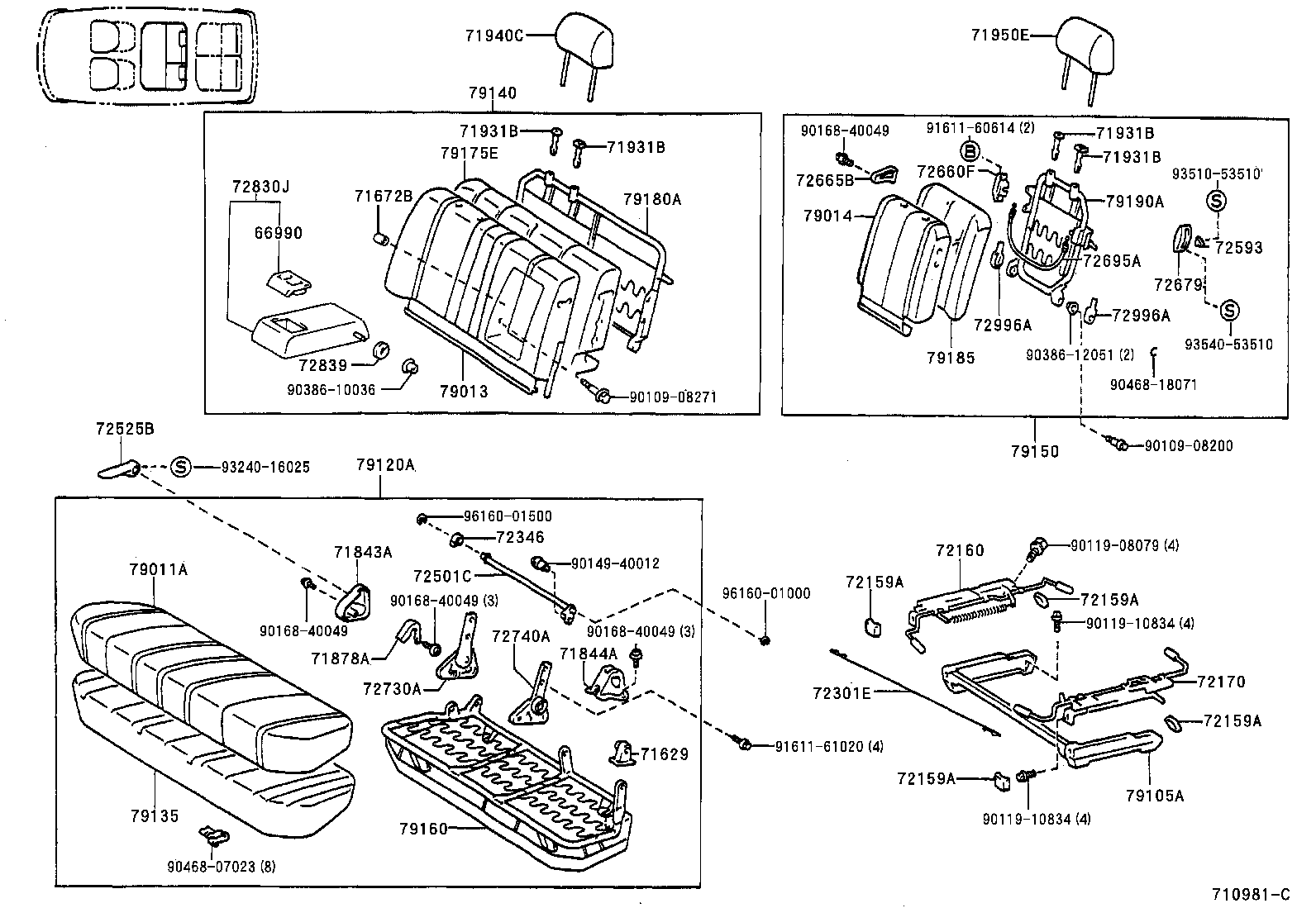

ILLUST NO. 2 OF 4(9801- )TCR10,20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66990 - HOLDER ASSY, CUP | ||||
| 66991-28040B0 |
TCR10,20 BLUISH GRAY,TRIM1# |
1 | ||
| 66991-28040E0 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
1 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-95D00E2 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
1 | ||
| 71672B - SILENCER, REAR SEAT BACK, RH | ||||
| 71672-28010 |
TCR10,20 |
2 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-95D03E2 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-95D03E2 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-95D03E2 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71931-28030E0 |
TCR10,20..V ﾛｯｸ無,ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
1 | ||
| 71930-28030E0 |
TCR10,20..V ﾛｯｸ付,ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71931-28030E0 |
TCR10,20..V ﾛｯｸ無,ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
1 | ||
| 71930-28030E0 |
TCR10,20..V ﾛｯｸ付,ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71931-28030E0 |
TCR10,20..V ﾛｯｸ無,ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
1 | ||
| 71930-28030E0 |
TCR10,20..V ﾛｯｸ付,ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71931-28030E0 |
TCR10,20..V ﾛｯｸ無,ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
1 | ||
| 71930-28030E0 |
TCR10,20..V ﾛｯｸ付,ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
1 | ||
| 71940C - HEADREST ASSY, REAR NO.1 SEAT, RH | ||||
| 71940-28691B3 |
TCR10,20..V BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28860B0 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F),BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28840B0 |
TCR10,20..AERAS BLUE GRAY,TRIM1# |
1 | ||
| 71940-2J120B0 |
TCR10,20..V ｴｸｽﾄﾗｴﾃﾞｲｼﾖﾝ *(L),*(T),BLUISH GRAY,TRIM11 |
1 | ||
| 71940-2J030E0 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,LIGHT GREIGE,TRIM41 |
1 | ||
| 71940-2J060C0 |
TCR10,20..V ﾓﾃﾞﾘｽﾀ- RVEX ﾋﾞﾚﾂﾄｴﾃﾞｼﾖﾝ 2,BLACK,TRIM12 |
1 | ||
| 71950E - HEADREST ASSY, REAR NO.1 SEAT, LH | ||||
| 71940-28691B3 |
TCR10,20..V BLUISH GRAY,TRIM1# |
1 | ||
| 71940-2J030E0 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,LIGHT GREIGE,TRIM41 |
1 | ||
| 71940-28840B0 |
TCR10,20..AERAS BLUE GRAY,TRIM1# |
1 | ||
| 71940-2J120B0 |
TCR10,20..V ｴｸｽﾄﾗｴﾃﾞｲｼﾖﾝ *(L),*(T),BLUISH GRAY,TRIM11 |
1 | ||
| 71940-2J060C0 |
TCR10,20..V ﾓﾃﾞﾘｽﾀ- RVEX ﾋﾞﾚﾂﾄｴﾃﾞｼﾖﾝ 2,BLACK,TRIM12 |
1 | ||
| 71940-28860B0 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F),BLUISH GRAY,TRIM1# |
1 | ||
| 72159A - COVER, REAR SEAT TRACK BRACKET | ||||
| 72159-95D00E2 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
1 | ||
| 72159A - COVER, REAR SEAT TRACK BRACKET | ||||
| 72159-95D00E2 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
1 | ||
| 72159A - COVER, REAR SEAT TRACK BRACKET | ||||
| 72159-95D00E2 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
1 | ||
| 72159A - COVER, REAR SEAT TRACK BRACKET | ||||
| 72159-95D00E2 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
1 | ||
| 72170 - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72170-95D01C0 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,BLACK,TRIM41 |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95D01E2 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
1 | ||
| 72593 - KNOB, RECLINING REMOTE CONTROL LEVER | ||||
| 72593-95D00E2 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
1 | ||
| 72665B - COVER, REAR SEAT BACK LOCK | ||||
| 72665-95D00E2 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
1 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-28010E0 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
1 | ||
| 72830J - ARMREST ASSY, REAR NO.1 SEAT, RH | ||||
| 72830-28400B0 |
TCR10,20..V BLUISH GRAY,TRIM1# |
1 | ||
| 72830-28390B0 |
TCR10,20..AERAS BLUE GRAY,TRIM1# |
1 | ||
| 72830-28440E0 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,LIGHT GREIGE,TRIM41 |
1 | ||
| 72830-28450C0 |
TCR10,20..V ﾓﾃﾞﾘｽﾀ- RVEX ﾋﾞﾚﾂﾄｴﾃﾞｼﾖﾝ 2,BLACK,TRIM12 |
1 | ||
| 72830-28500B0 |
TCR10,20..V ｴｸｽﾄﾗｴﾃﾞｲｼﾖﾝ *(L),*(T),BLUISH GRAY,TRIM11 |
1 | ||
| 72830-28420B0 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F),BLUISH GRAY,TRIM1# |
1 | ||
| 72839 - SHIM, REAR SEAT ARMREST HINGE | ||||
| 72839-28010 |
TCR10,20 |
1 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-95D00E2 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
2 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-95D00E2 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,GREIGE,TRIM41 |
2 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-28620E0 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,LIGHT GREIGE,TRIM41 |
1 | ||
| 79011-28431B3 |
TCR10,20..V BLUISH GRAY,TRIM1# |
1 | ||
| 79011-28670B0 |
TCR10,20..V ｴｸｽﾄﾗｴﾃﾞｲｼﾖﾝ *(L),*(T),BLUISH GRAY,TRIM11 |
1 | ||
| 79011-28600B0 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F),BLUISH GRAY,TRIM1# |
1 | ||
| 79011-28630C0 |
TCR10,20..V ﾓﾃﾞﾘｽﾀ- RVEX ﾋﾞﾚﾂﾄｴﾃﾞｼﾖﾝ 2,BLACK,TRIM12 |
1 | ||
| 79011-28580B0 |
TCR10,20..AERAS BLUISH GRAY,TRIM1# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-28551B3 |
TCR10,20..V BLUISH GRAY,TRIM1# |
1 | ||
| 79013-28740E0 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,LIGHT GREIGE,TRIM41 |
1 | ||
| 79013-28720B0 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F),BLUISH GRAY,TRIM1# |
1 | ||
| 79013-28700B0 |
TCR10,20..AERAS BLUISH GRAY,TRIM1# |
1 | ||
| 79013-28750C0 |
TCR10,20..V ﾓﾃﾞﾘｽﾀ- RVEX ﾋﾞﾚﾂﾄｴﾃﾞｼﾖﾝ 2,BLACK,TRIM12 |
1 | ||
| 79013-28790B0 |
TCR10,20..V ｴｸｽﾄﾗｴﾃﾞｲｼﾖﾝ *(L),*(T),BLUISH GRAY,TRIM11 |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-28570E0 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,LIGHT GREIGE,TRIM41 |
1 | ||
| 79014-28550B0 |
TCR10,20..V ﾘﾐﾃﾂﾄﾞ *(E), *(F),BLUISH GRAY,TRIM1# |
1 | ||
| 79014-28421B3 |
TCR10,20..V BLUISH GRAY,TRIM1# |
1 | ||
| 79014-28530B0 |
TCR10,20..AERAS BLUISH GRAY,TRIM1# |
1 | ||
| 79014-28620B0 |
TCR10,20..V ｴｸｽﾄﾗｴﾃﾞｲｼﾖﾝ *(L),*(T),BLUISH GRAY,TRIM11 |
1 | ||
| 79014-28580C0 |
TCR10,20..V ﾓﾃﾞﾘｽﾀ- RVEX ﾋﾞﾚﾂﾄｴﾃﾞｼﾖﾝ 2,BLACK,TRIM12 |
1 | ||
| 79105A - LEG SUB-ASSY, NO.1 SEAT | ||||
| 79105-28170 |
TCR10,20 |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-2J060B0 |
TCR10,20..AERAS ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79120-2J090B0 |
TCR10,20..V ***,ﾘﾐﾃﾂﾄﾞ *(E), *(F),BLUISH GRAY,TRIM1# |
1 | ||
| 79120-2J190E0 |
TCR10,20..V ***,ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,LIGHT GREIGE,TRIM41 |
1 | ||
| 79120-28781B1 |
TCR10,20..V ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79120-2J220C0 |
TCR10,20..V ﾓﾃﾞﾘｽﾀ- RVEX ﾋﾞﾚﾂﾄｴﾃﾞｼﾖﾝ 2,BLACK,TRIM12 |
1 | ||
| 79120-2J260B0 |
TCR10,20..V ***,ｴｸｽﾄﾗｴﾃﾞｲｼﾖﾝ *(L),*(T),BLUISH GRAY,TRIM11 |
1 | ||
| 79140 - BACK ASSY, NO.1 SEAT, RH | ||||
| 79140-2J270B0 |
TCR10,20..AERAS ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79140-2J440C0 |
TCR10,20..V ﾓﾃﾞﾘｽﾀ- RVEX ﾋﾞﾚﾂﾄｴﾃﾞｼﾖﾝ 2,BLACK,TRIM12 |
1 | ||
| 79140-2J300B0 |
TCR10,20..V ***,ﾘﾐﾃﾂﾄﾞ *(E), *(F),BLUISH GRAY,TRIM1# |
1 | ||
| 79140-2J081B1 |
TCR10,20..V ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79140-2J480B0 |
TCR10,20..V ***,ｴｸｽﾄﾗｴﾃﾞｲｼﾖﾝ *(L),*(T),BLUISH GRAY,TRIM11 |
1 | ||
| 79140-2J400E0 |
TCR10,20..V ***,ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,LIGHT GREIGE,TRIM41 |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79150-28811B1 |
TCR10,20..V ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79150-2J180E0 |
TCR10,20..V ***,ﾘﾐﾃﾂﾄﾞ *(E), *(F), ｴｸｾ-ﾇﾊﾟﾂｹ-ｼﾞ,LIGHT GREIGE,TRIM41 |
1 | ||
| 79150-2J110B0 |
TCR10,20..V ***,ﾘﾐﾃﾂﾄﾞ *(E), *(F),BLUISH GRAY,TRIM1# |
1 | ||
| 79150-2J080B0 |
TCR10,20..AERAS ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79150-2J220C0 |
TCR10,20..V ﾓﾃﾞﾘｽﾀ- RVEX ﾋﾞﾚﾂﾄｴﾃﾞｼﾖﾝ 2,BLACK,TRIM12 |
1 | ||
| 79150-2J270B0 |
TCR10,20..V ***,ｴｸｽﾄﾗｴﾃﾞｲｼﾖﾝ *(L),*(T),BLUISH GRAY,TRIM11 |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-28100 |
TCR10,20 |
1 | ||
| 79180A - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79180-28310 |
TCR10,20 |
1 | ||
| 79190A - SPRING ASSY, NO.1 SEAT BACK, LH | ||||
| 79190-28310 |
TCR10,20 |
1 | ||
| Common parts | ||||
| 90109-08200 | ||||
| 90109-08271 | ||||
| 90119-08079 | ||||
| 90119-10834 | ||||
| 90149-40012 | ||||
| 90168-40049 | ||||
| 90386-10036 | ||||
| 90386-12051 | ||||
| 90468-07023 | ||||
| 90468-18071 | ||||
| 91611-60614 | ||||
| 91611-61020 | ||||
| 93240-16025 | ||||
| 93510-53510 | ||||
| 93540-53510 | ||||
| 96160-01000 | ||||
| 96160-01500 | ||||
