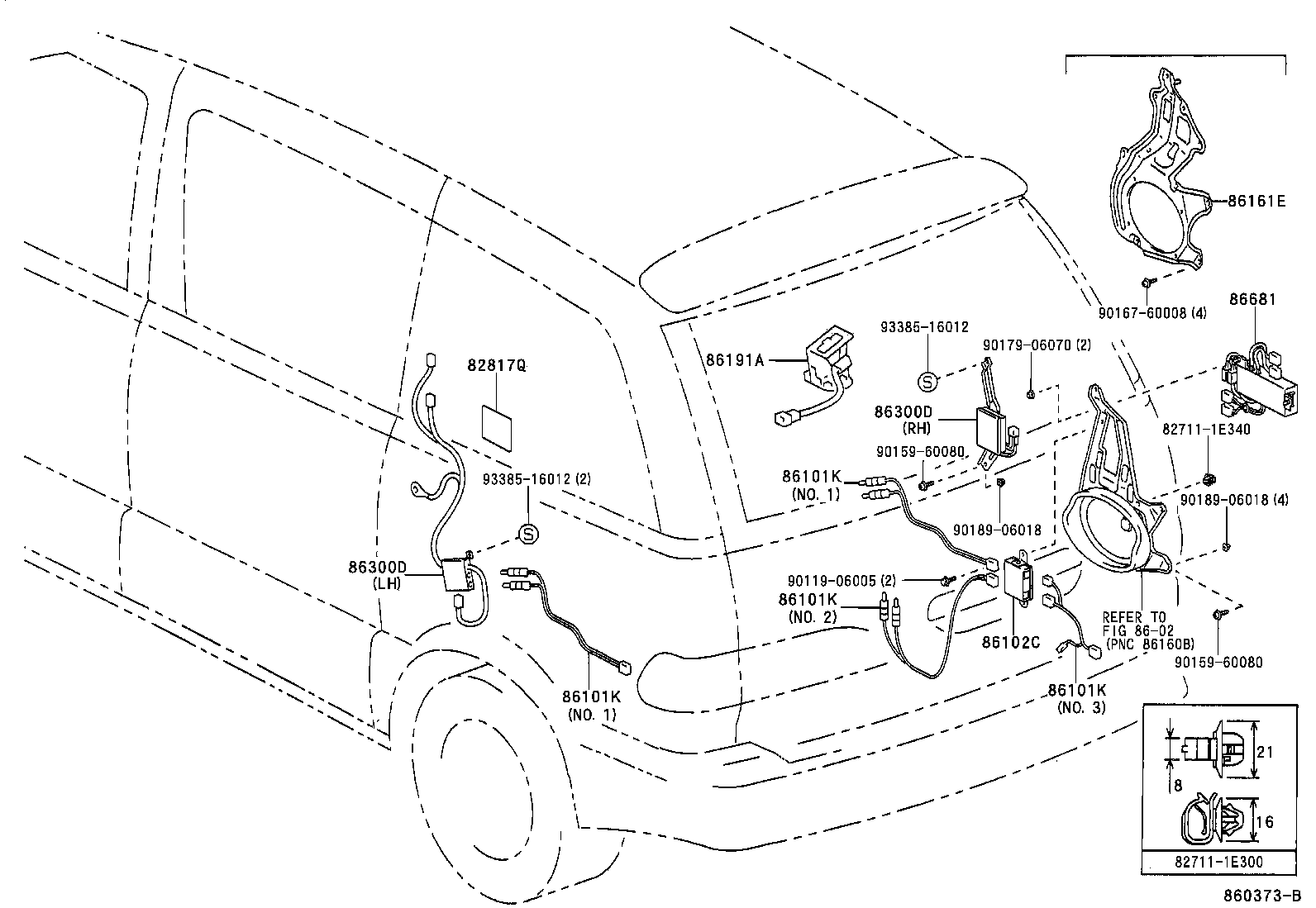

TCR10W-RRSQV (1996)
Toyota Estima
(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82817Q - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-12400 |
TCR1#,2# |
1 | ||
| 86101K - CORD SUB-ASSY, TELEVISION ANTENNA | ||||
| 86101-28290 |
TCR1#,2#..G,V,X ｱﾘ("ﾏﾙﾁ AV ｽﾃ-ｼﾖﾝ"),NO.2 |
1 | ||
| 86101-28290 |
TCR10,20..V ﾌﾞﾗﾂｸｾﾚｸｼﾖﾝ *(C), *(D);ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(A), *(B),NO.2 |
1 | ||
| 86101-28300 |
TCR10,20..V ﾌﾞﾗﾂｸｾﾚｸｼﾖﾝ *(C), *(D);ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(A), *(B),NO.1 |
1 | ||
| 86101-28110 |
TCR1#,2# 5.7ｲﾝﾁ TV |
1 | ||
| 86101-28280 |
TCR1#,2# ｱﾘ("ﾏﾙﾁ AV ｽﾃ-ｼﾖﾝ") & 5.7ｲﾝﾁ TV,NO.1 |
1 | ||
| 86101-28300 |
TCR1#,2#..G,V,X ｱﾘ("ﾏﾙﾁ AV ｽﾃ-ｼﾖﾝ"),NO.1 |
1 | ||
| 86101-28410 |
TCR10,20 ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),NO.1 |
1 | ||
| 86101-28310 |
TCR10,20..V ﾌﾞﾗﾂｸｾﾚｸｼﾖﾝ *(C), *(D);ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(A), *(B),NO.3 |
1 | ||
| 86101-28310 |
TCR1#,2#..G,V,X ｱﾘ("ﾏﾙﾁ AV ｽﾃ-ｼﾖﾝ"),NO.3 |
1 | ||
| 86101-28420 |
TCR1#,2#..G,V ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ);ｱﾘ(ﾏﾙﾁ AV ｽﾃ-ｼﾖﾝ),NO.1 |
1 | ||
| 86101K - CORD SUB-ASSY, TELEVISION ANTENNA | ||||
| 86101-28290 |
TCR10,20..V ﾌﾞﾗﾂｸｾﾚｸｼﾖﾝ *(C), *(D);ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(A), *(B),NO.2 |
1 | ||
| 86101-28300 |
TCR10,20..V ﾌﾞﾗﾂｸｾﾚｸｼﾖﾝ *(C), *(D);ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(A), *(B),NO.1 |
1 | ||
| 86101-28110 |
TCR1#,2# 5.7ｲﾝﾁ TV |
1 | ||
| 86101-28280 |
TCR1#,2# ｱﾘ("ﾏﾙﾁ AV ｽﾃ-ｼﾖﾝ") & 5.7ｲﾝﾁ TV,NO.1 |
1 | ||
| 86101-28290 |
TCR1#,2#..G,V,X ｱﾘ("ﾏﾙﾁ AV ｽﾃ-ｼﾖﾝ"),NO.2 |
1 | ||
| 86101-28300 |
TCR1#,2#..G,V,X ｱﾘ("ﾏﾙﾁ AV ｽﾃ-ｼﾖﾝ"),NO.1 |
1 | ||
| 86101-28410 |
TCR10,20 ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),NO.1 |
1 | ||
| 86101-28310 |
TCR10,20..V ﾌﾞﾗﾂｸｾﾚｸｼﾖﾝ *(C), *(D);ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(A), *(B),NO.3 |
1 | ||
| 86101-28310 |
TCR1#,2#..G,V,X ｱﾘ("ﾏﾙﾁ AV ｽﾃ-ｼﾖﾝ"),NO.3 |
1 | ||
| 86101-28420 |
TCR1#,2#..G,V ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ);ｱﾘ(ﾏﾙﾁ AV ｽﾃ-ｼﾖﾝ),NO.1 |
1 | ||
| 86101K - CORD SUB-ASSY, TELEVISION ANTENNA | ||||
| 86101-28290 |
TCR10,20..V ﾌﾞﾗﾂｸｾﾚｸｼﾖﾝ *(C), *(D);ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(A), *(B),NO.2 |
1 | ||
| 86101-28300 |
TCR10,20..V ﾌﾞﾗﾂｸｾﾚｸｼﾖﾝ *(C), *(D);ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(A), *(B),NO.1 |
1 | ||
| 86101-28110 |
TCR1#,2# 5.7ｲﾝﾁ TV |
1 | ||
| 86101-28280 |
TCR1#,2# ｱﾘ("ﾏﾙﾁ AV ｽﾃ-ｼﾖﾝ") & 5.7ｲﾝﾁ TV,NO.1 |
1 | ||
| 86101-28290 |
TCR1#,2#..G,V,X ｱﾘ("ﾏﾙﾁ AV ｽﾃ-ｼﾖﾝ"),NO.2 |
1 | ||
| 86101-28300 |
TCR1#,2#..G,V,X ｱﾘ("ﾏﾙﾁ AV ｽﾃ-ｼﾖﾝ"),NO.1 |
1 | ||
| 86101-28410 |
TCR10,20 ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),NO.1 |
1 | ||
| 86101-28310 |
TCR10,20..V ﾌﾞﾗﾂｸｾﾚｸｼﾖﾝ *(C), *(D);ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(A), *(B),NO.3 |
1 | ||
| 86101-28310 |
TCR1#,2#..G,V,X ｱﾘ("ﾏﾙﾁ AV ｽﾃ-ｼﾖﾝ"),NO.3 |
1 | ||
| 86101-28420 |
TCR1#,2#..G,V ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ);ｱﾘ(ﾏﾙﾁ AV ｽﾃ-ｼﾖﾝ),NO.1 |
1 | ||
| 86101K - CORD SUB-ASSY, TELEVISION ANTENNA | ||||
| 86101-28290 |
TCR10,20..V ﾌﾞﾗﾂｸｾﾚｸｼﾖﾝ *(C), *(D);ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(A), *(B),NO.2 |
1 | ||
| 86101-28300 |
TCR10,20..V ﾌﾞﾗﾂｸｾﾚｸｼﾖﾝ *(C), *(D);ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(A), *(B),NO.1 |
1 | ||
| 86101-28110 |
TCR1#,2# 5.7ｲﾝﾁ TV |
1 | ||
| 86101-28280 |
TCR1#,2# ｱﾘ("ﾏﾙﾁ AV ｽﾃ-ｼﾖﾝ") & 5.7ｲﾝﾁ TV,NO.1 |
1 | ||
| 86101-28290 |
TCR1#,2#..G,V,X ｱﾘ("ﾏﾙﾁ AV ｽﾃ-ｼﾖﾝ"),NO.2 |
1 | ||
| 86101-28300 |
TCR1#,2#..G,V,X ｱﾘ("ﾏﾙﾁ AV ｽﾃ-ｼﾖﾝ"),NO.1 |
1 | ||
| 86101-28410 |
TCR10,20 ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),NO.1 |
1 | ||
| 86101-28310 |
TCR10,20..V ﾌﾞﾗﾂｸｾﾚｸｼﾖﾝ *(C), *(D);ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(A), *(B),NO.3 |
1 | ||
| 86101-28310 |
TCR1#,2#..G,V,X ｱﾘ("ﾏﾙﾁ AV ｽﾃ-ｼﾖﾝ"),NO.3 |
1 | ||
| 86101-28420 |
TCR1#,2#..G,V ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ);ｱﾘ(ﾏﾙﾁ AV ｽﾃ-ｼﾖﾝ),NO.1 |
1 | ||
| 86102C - SELECTOR SUB-ASSY, ANTENNA | ||||
| 86102-26010 |
TCR10,20..V ﾌﾞﾗﾂｸｾﾚｸｼﾖﾝ *(C), *(D);ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(A), *(B) |
1 | ||
| 86102-26010 |
TCR1#,2# |
1 | ||
| 86161E - ANTENNA SELECTOR BRACKET | ||||
| 86161-28030 |
TCR10,20 |
1 | ||
| 86161-28030 |
TCR10,20..V ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(S),*(N),*(Z),*(Y) |
1 | ||
| 86161-28030 |
TCR10,20..V ﾌﾞﾗﾂｸｾﾚｸｼﾖﾝ *(C), *(D);ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(A), *(B) |
1 | ||
| 86191A - TERMINAL, VIDEO(VIDEO ADAPTER) | ||||
| 86191-28040 |
TCR10,20..V ﾌﾞﾗﾂｸｾﾚｸｼﾖﾝ *(C), *(D);ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(A), *(B) |
1 | ||
| 86191-28040 |
TCR1#,2# |
1 | ||
| 86300D - ANTENNA ASSY, TELEVISION AMPLIFIER | ||||
| 86300-28061 |
TCR10,20..V ﾌﾞﾗﾂｸｾﾚｸｼﾖﾝ *(C), *(D);ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(A), *(B),右側 |
1 | ||
| 86300-28040 |
TCR10,20..V ﾌﾞﾗﾂｸｾﾚｸｼﾖﾝ *(C), *(D);ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(A), *(B),左側 |
1 | ||
| 86300-28090 |
TCR1#,2# 5.7ｲﾝﾁ TV,左側 |
1 | ||
| 86300-28061 |
TCR1#,2# ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),右側 |
1 | ||
| 86300-28040 |
TCR10,20..V,X ｱﾘ("ﾏﾙﾁ AV ｽﾃ-ｼﾖﾝ"),左側 |
1 | ||
| 86300-28061 |
TCR1#,2#..G,V,X 5.7ｲﾝﾁ TV,右側 |
1 | ||
| 86300-28140 |
TCR1#,2# ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),左側 |
1 | ||
| 86300D - ANTENNA ASSY, TELEVISION AMPLIFIER | ||||
| 86300-28061 |
TCR10,20..V ﾌﾞﾗﾂｸｾﾚｸｼﾖﾝ *(C), *(D);ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(A), *(B),右側 |
1 | ||
| 86300-28040 |
TCR10,20..V ﾌﾞﾗﾂｸｾﾚｸｼﾖﾝ *(C), *(D);ﾎﾜｲﾄﾊﾟ-ﾙｾﾚｸｼﾖﾝ *(A), *(B),左側 |
1 | ||
| 86300-28090 |
TCR1#,2# 5.7ｲﾝﾁ TV,左側 |
1 | ||
| 86300-28061 |
TCR1#,2# ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),右側 |
1 | ||
| 86300-28040 |
TCR10,20..V,X ｱﾘ("ﾏﾙﾁ AV ｽﾃ-ｼﾖﾝ"),左側 |
1 | ||
| 86300-28061 |
TCR1#,2#..G,V,X 5.7ｲﾝﾁ TV,右側 |
1 | ||
| 86300-28140 |
TCR1#,2# ｱﾘ(ﾘﾔ ﾃﾚﾋﾞ),左側 |
1 | ||
| 86681 - DIVIDER, ANTENNA | ||||
| 86681-28010 |
TCR1#,2# |
1 | ||
| Common parts | ||||
| 82711-1E300 | ||||
| 82711-1E340 | ||||
| 90119-06005 | ||||
| 90159-60080 | ||||
| 90167-60008 | ||||
| 90179-06070 | ||||
| 90189-06018 | ||||
| 93385-16012 | ||||
| Linked diagrams | ||||
| 8602 | ||||

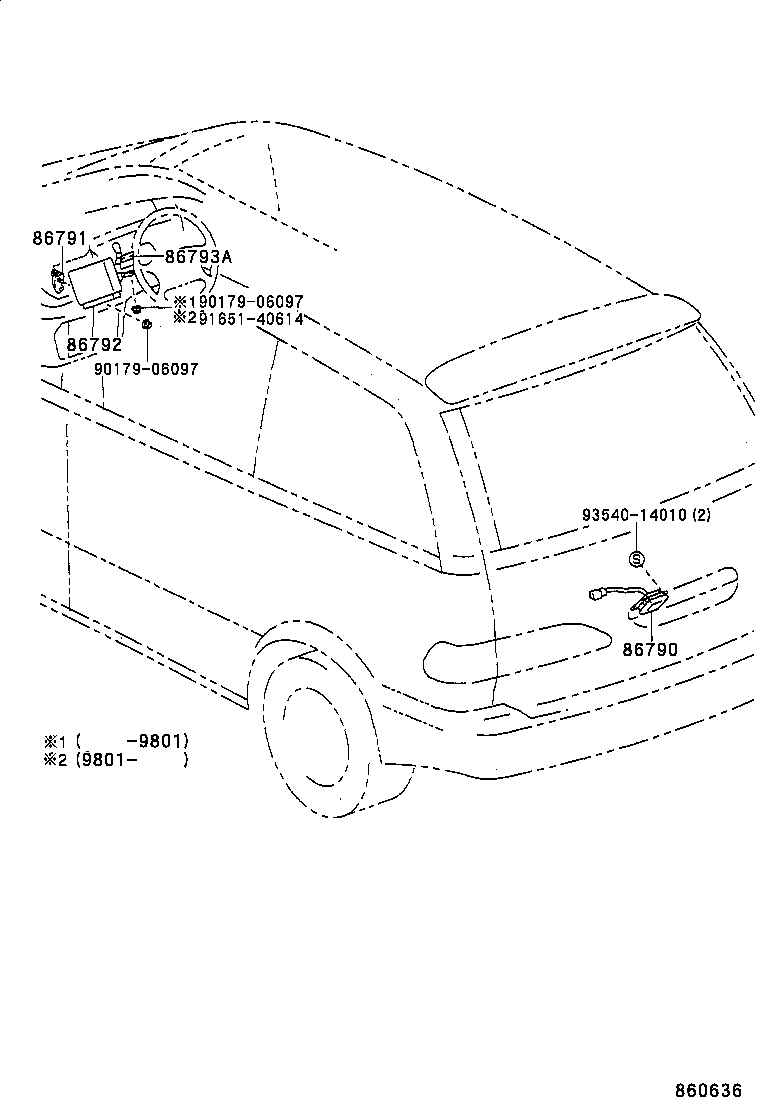

(9608- )
ﾊﾞﾂｸﾓﾆﾀ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86790 - CAMERA ASSY, TELEVISION | ||||
| 86790-28050 |
TCR1#,2# |
1 | ||
| 86790-28030 |
TCR1#,2# |
1 | ||
| 86791 - BRACKET, TELEVISION CAMERA | ||||
| 86791-28010 |
TCR1#,2# |
1 | ||
| 86792 - CONTROLLER, TELEVISION CAMERA | ||||
| 86792-28020 |
TCR1#,2# |
1 | ||
| 86793A - LABEL, TELEVISION CAMERA INFORMATION | ||||
| 86793-28010 |
TCR1#,2# |
1 | ||
| Common parts | ||||
| 90179-06097 | ||||
| 91651-40614 | ||||
| 93540-14010 | ||||
