TCR10W-RRSEK (1993)
Toyota Estima

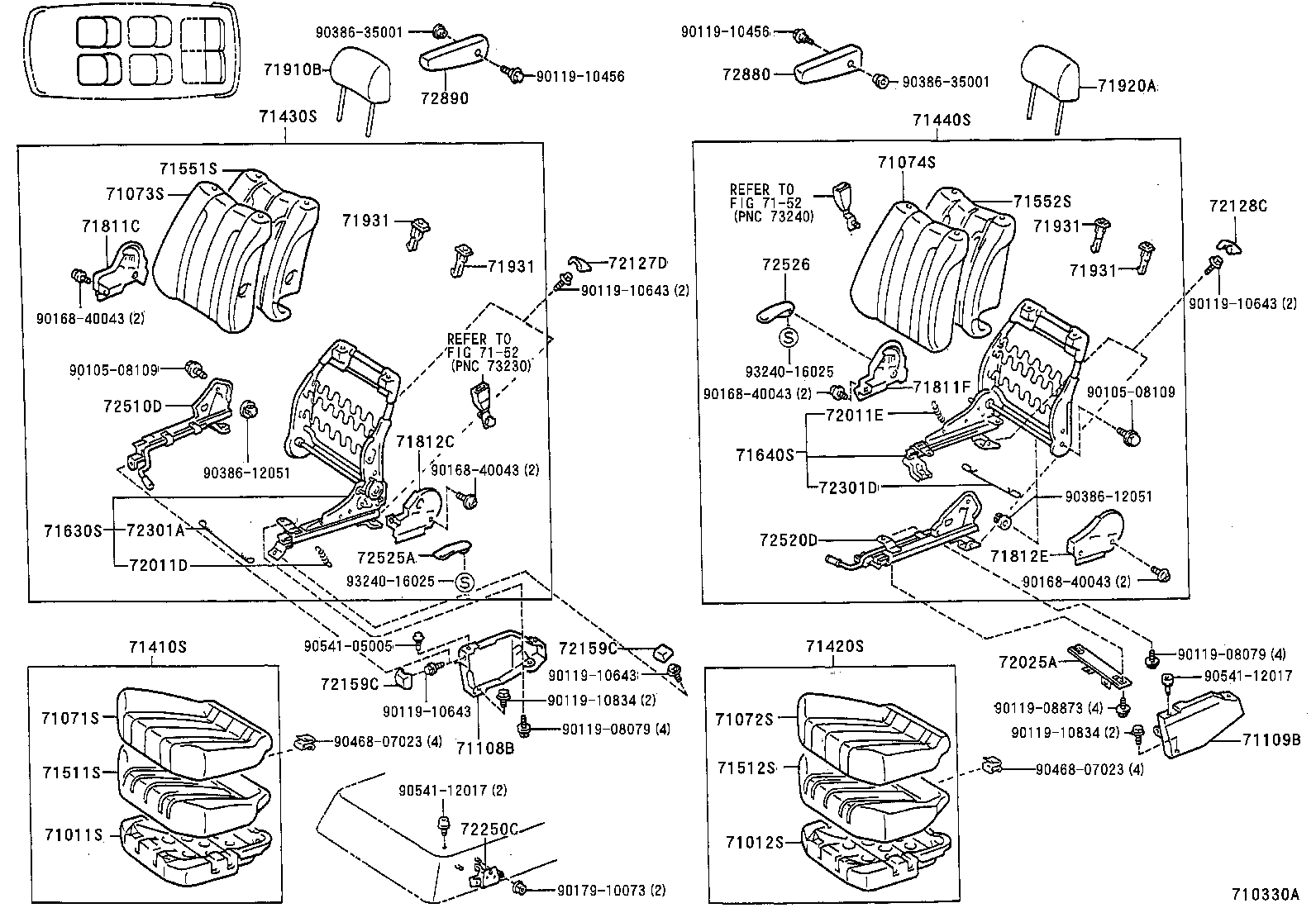

ILLUST NO. 1 OF 4(9608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95D03 |
TCR1#,2# |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-95D00 |
TCR1#,2# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-28400B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71071-2J020B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71071-2J021B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71071-28630B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-28400B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71072-2J011B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71072-28620B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 71072-2J010B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-28370B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71073-28560B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 71073-28830B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71073-28831B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-28420B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71074-28630B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 71074-28850B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71074-28851B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71108B - LEG SUB-ASSY, FRONT SEAT, RH | ||||
| 71108-95D0103 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71109B - LEG SUB-ASSY, FRONT SEAT, LH | ||||
| 71109-95D0103 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71109-28030B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-28330B1 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71410-28480B0 |
TCR10,20 ***,GRAY,TRIM1# |
1 | ||
| 71410-2J020B0 |
TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-28330B0 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-28330B1 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71420-28460B0 |
TCR10,20 ***,GRAY,TRIM1# |
1 | ||
| 71420-28330B0 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71420-28850B0 |
TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-28450B0 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71430-28450B1 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71430-28690B0 |
TCR10,20 ***,GRAY,TRIM1# |
1 | ||
| 71430-2J420B0 |
TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-28680B0 |
TCR10,20 ***,GRAY,TRIM1# |
1 | ||
| 71440-28450B0 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71440-2J300B0 |
TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71440-28450B1 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-28140 |
TCR1#,2# |
1 | ||
| 71511-95D01 |
TCR1#,2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-95D01 |
TCR1#,2# |
1 | ||
| 71512-28120 |
TCR1#,2# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-95D02 |
TCR1#,2# |
1 | ||
| 71551-28150 |
TCR1#,2# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-28180 |
TCR1#,2# |
1 | ||
| 71552-95D01 |
TCR1#,2# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-28320 |
TCR1#,2# |
1 | ||
| 71630-28250 |
TCR1#,2# |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-28430 |
TCR1#,2# |
1 | ||
| 71640-28370 |
TCR1#,2# |
1 | ||
| 71640-28350 |
TCR1#,2# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95D0103 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 71811-95D01B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71811F - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95D03B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71811-95D0303 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-95D0103 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 71812-95D01B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71812E - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-95D0403 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 71812-95D04B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71910B - HEADREST ASSY, FRONT SEAT | ||||
| 71910-28190B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71910-28190B1 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71910-28550B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71910-28360B0 |
TCR10,20 BLUISH GRAY,TRIM1# |
1 | ||
| 71920A - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71920-28020B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71920-28070B0 |
TCR10,20 BLUISH GRAY,TRIM1# |
1 | ||
| 71920-28020B1 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71920-28130B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205013 |
TCR1#,2# ﾛｯｸ付,LIGHT GRAY,TRIM1# |
4 | ||
| 71930-12050B0 |
TCR1#,2# ﾛｯｸ付,BLUISH GRAY,TRIM1# |
4 | ||
| 71930-32020B1 |
TCR1#,2# ﾛｯｸ付,BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-32020B1 |
TCR1#,2# ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205013 |
TCR1#,2# ﾛｯｸ付,LIGHT GRAY,TRIM1# |
4 | ||
| 71930-12050B0 |
TCR1#,2# ﾛｯｸ付,BLUISH GRAY,TRIM1# |
4 | ||
| 71930-32020B1 |
TCR1#,2# ﾛｯｸ付,BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-32020B1 |
TCR1#,2# ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205013 |
TCR1#,2# ﾛｯｸ付,LIGHT GRAY,TRIM1# |
4 | ||
| 71930-12050B0 |
TCR1#,2# ﾛｯｸ付,BLUISH GRAY,TRIM1# |
4 | ||
| 71930-32020B1 |
TCR1#,2# ﾛｯｸ付,BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-32020B1 |
TCR1#,2# ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205013 |
TCR1#,2# ﾛｯｸ付,LIGHT GRAY,TRIM1# |
4 | ||
| 71930-12050B0 |
TCR1#,2# ﾛｯｸ付,BLUISH GRAY,TRIM1# |
4 | ||
| 71930-32020B1 |
TCR1#,2# ﾛｯｸ付,BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-32020B1 |
TCR1#,2# ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 72025A - STRIKER SUB-ASSY, FRONT SEAT LOCK | ||||
| 72025-95D02 |
TCR1#,2# |
1 | ||
| 72127D - COVER, SEAT TRACK BRACKET, FRONT, RH | ||||
| 72127-95D01B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72127-95D0103 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72128C - COVER, SEAT TRACK BRACKET, FRONT, LH | ||||
| 72128-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72128-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72159C - COVER, FRONT SEAT TRACK BRACKET | ||||
| 72159-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72159-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72250C - LOCK ASSY, FRONT SEAT | ||||
| 72250-95D00 |
TCR1#,2# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-95D00 |
TCR1#,2# |
1 | ||
| 72301-28050 |
TCR1#,2# |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-28050 |
TCR1#,2# |
1 | ||
| 72301-95D00 |
TCR1#,2# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72525-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72526-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72880 - ARMREST ASSY, SEAT, C RH | ||||
| 72890-28150B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 72890-28240B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 72890-28150B1 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 72890-28450B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 72890-28340B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 72890 - ARMREST ASSY, SEAT, C LH | ||||
| 72880-28140B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 72880-28370B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 72880-28140B1 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 72880-28240B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 72880-28510B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-08079 | ||||
| 90119-08873 | ||||
| 90119-10456 | ||||
| 90119-10824 | ||||
| 90119-10834 | ||||
| 90168-40043 | ||||
| 90179-10073 | ||||
| 90386-35001 | ||||
| 90541-05005 | ||||
| 90541-12017 | ||||
| 93240-16025 | ||||

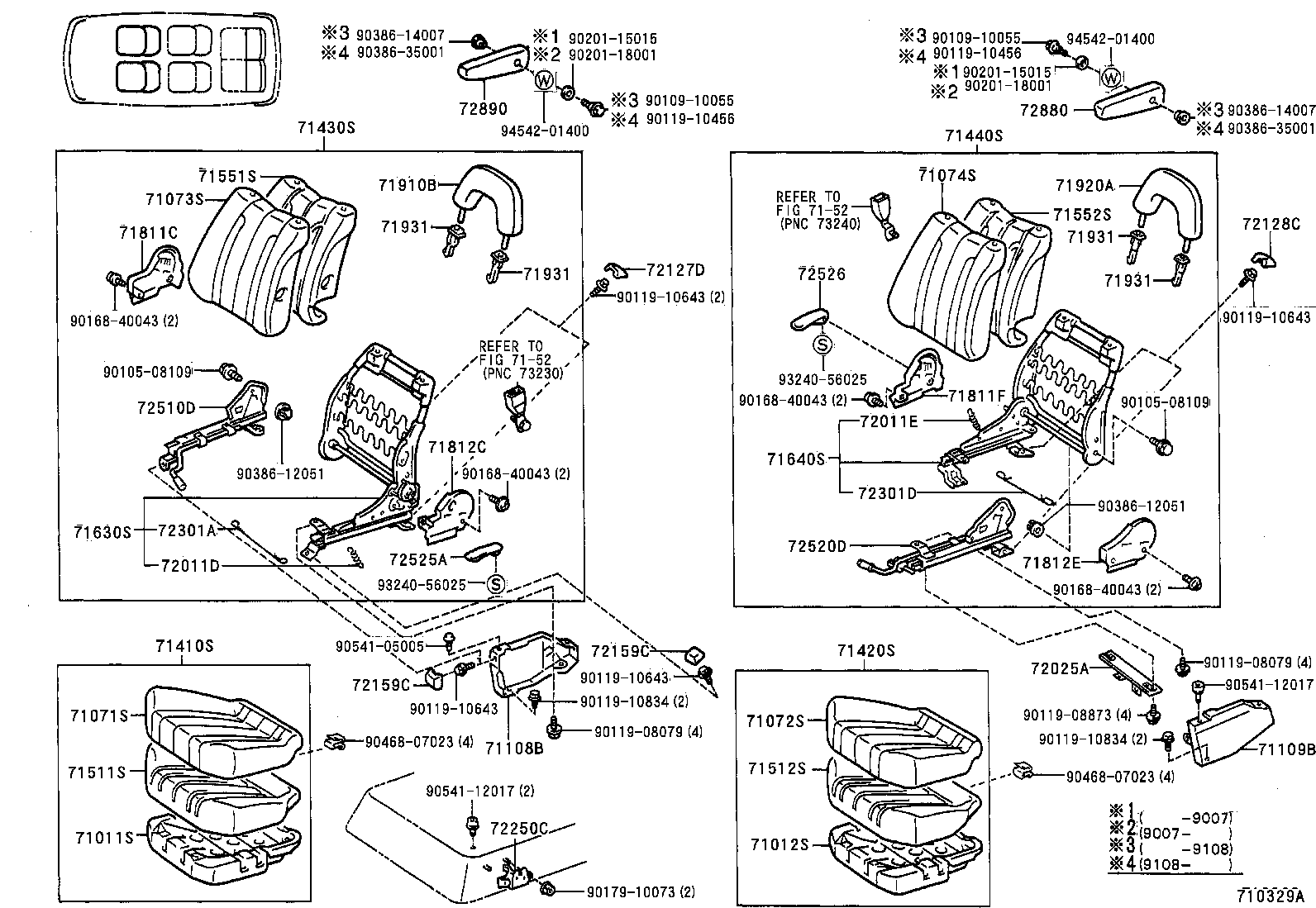

ILLUST NO. 1 OF 4(9005-9408)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95D03 |
TCR1#,2# |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-95D00 |
TCR1#,2# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-28400B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71071-2J020B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71071-2J021B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71071-28630B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-28400B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71072-2J011B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71072-28620B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 71072-2J010B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-28370B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71073-28560B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 71073-28830B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71073-28831B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-28420B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71074-28630B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 71074-28850B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71074-28851B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71108B - LEG SUB-ASSY, FRONT SEAT, RH | ||||
| 71108-95D0103 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71109B - LEG SUB-ASSY, FRONT SEAT, LH | ||||
| 71109-95D0103 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71109-28030B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-28330B1 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71410-28480B0 |
TCR10,20 ***,GRAY,TRIM1# |
1 | ||
| 71410-2J020B0 |
TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-28330B0 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-28330B1 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71420-28460B0 |
TCR10,20 ***,GRAY,TRIM1# |
1 | ||
| 71420-28330B0 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71420-28850B0 |
TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-28450B0 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71430-28450B1 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71430-28690B0 |
TCR10,20 ***,GRAY,TRIM1# |
1 | ||
| 71430-2J420B0 |
TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-28680B0 |
TCR10,20 ***,GRAY,TRIM1# |
1 | ||
| 71440-28450B0 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71440-2J300B0 |
TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71440-28450B1 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-28140 |
TCR1#,2# |
1 | ||
| 71511-95D01 |
TCR1#,2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-95D01 |
TCR1#,2# |
1 | ||
| 71512-28120 |
TCR1#,2# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-95D02 |
TCR1#,2# |
1 | ||
| 71551-28150 |
TCR1#,2# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-28180 |
TCR1#,2# |
1 | ||
| 71552-95D01 |
TCR1#,2# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-28320 |
TCR1#,2# |
1 | ||
| 71630-28250 |
TCR1#,2# |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-28430 |
TCR1#,2# |
1 | ||
| 71640-28370 |
TCR1#,2# |
1 | ||
| 71640-28350 |
TCR1#,2# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95D0103 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 71811-95D01B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71811F - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95D03B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71811-95D0303 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-95D0103 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 71812-95D01B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71812E - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-95D0403 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 71812-95D04B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71910B - HEADREST ASSY, FRONT SEAT | ||||
| 71910-28190B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71910-28190B1 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71910-28550B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71910-28360B0 |
TCR10,20 BLUISH GRAY,TRIM1# |
1 | ||
| 71920A - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71920-28020B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71920-28070B0 |
TCR10,20 BLUISH GRAY,TRIM1# |
1 | ||
| 71920-28020B1 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71920-28130B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205013 |
TCR1#,2# ﾛｯｸ付,LIGHT GRAY,TRIM1# |
4 | ||
| 71930-12050B0 |
TCR1#,2# ﾛｯｸ付,BLUISH GRAY,TRIM1# |
4 | ||
| 71930-32020B1 |
TCR1#,2# ﾛｯｸ付,BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-32020B1 |
TCR1#,2# ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205013 |
TCR1#,2# ﾛｯｸ付,LIGHT GRAY,TRIM1# |
4 | ||
| 71930-12050B0 |
TCR1#,2# ﾛｯｸ付,BLUISH GRAY,TRIM1# |
4 | ||
| 71930-32020B1 |
TCR1#,2# ﾛｯｸ付,BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-32020B1 |
TCR1#,2# ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205013 |
TCR1#,2# ﾛｯｸ付,LIGHT GRAY,TRIM1# |
4 | ||
| 71930-12050B0 |
TCR1#,2# ﾛｯｸ付,BLUISH GRAY,TRIM1# |
4 | ||
| 71930-32020B1 |
TCR1#,2# ﾛｯｸ付,BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-32020B1 |
TCR1#,2# ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205013 |
TCR1#,2# ﾛｯｸ付,LIGHT GRAY,TRIM1# |
4 | ||
| 71930-12050B0 |
TCR1#,2# ﾛｯｸ付,BLUISH GRAY,TRIM1# |
4 | ||
| 71930-32020B1 |
TCR1#,2# ﾛｯｸ付,BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-32020B1 |
TCR1#,2# ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 72011D - SPRING, TENSION, RH(FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-16061 |
TCR1#,2# |
1 | ||
| 72011E - SPRING, TENSION, LH(FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-16061 |
TCR1#,2# |
1 | ||
| 72025A - STRIKER SUB-ASSY, FRONT SEAT LOCK | ||||
| 72025-95D02 |
TCR1#,2# |
1 | ||
| 72127D - COVER, SEAT TRACK BRACKET, FRONT, RH | ||||
| 72127-95D01B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72127-95D0103 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72128C - COVER, SEAT TRACK BRACKET, FRONT, LH | ||||
| 72128-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72128-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72159C - COVER, FRONT SEAT TRACK BRACKET | ||||
| 72159-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72159-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72159C - COVER, FRONT SEAT TRACK BRACKET | ||||
| 72159-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72159-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72250C - LOCK ASSY, FRONT SEAT | ||||
| 72250-95D00 |
TCR1#,2# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-95D00 |
TCR1#,2# |
1 | ||
| 72301-28050 |
TCR1#,2# |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-28050 |
TCR1#,2# |
1 | ||
| 72301-95D00 |
TCR1#,2# |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-95D02C0 |
TCR1#,2# BLACK,TRIM1#,4# |
1 | ||
| 72510-95D02C0 |
TCR1#,2#..G,X BLACK,TRIM1# |
1 | ||
| 72520D - ADJUSTER ASSY, RECLINING SEAT, OUTER LH | ||||
| 72520-95D02C0 |
TCR1#,2# BLACK,TRIM1#,4# |
1 | ||
| 72520-95D02C0 |
TCR1#,2#..G,X BLACK,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72525-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72526-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72880 - ARMREST ASSY, SEAT, C RH | ||||
| 72890-28150B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 72890-28240B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 72890-28150B1 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 72890-28450B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 72890-28340B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 72890 - ARMREST ASSY, SEAT, C LH | ||||
| 72880-28140B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 72880-28370B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 72880-28140B1 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 72880-28240B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 72880-28510B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-08109 | ||||
| 90109-10055 | ||||
| 90119-08079 | ||||
| 90119-08873 | ||||
| 90119-10456 | ||||
| 90119-10643 | ||||
| 90119-10834 | ||||
| 90168-40043 | ||||
| 90179-10073 | ||||
| 90201-15015 | ||||
| 90201-18001 | ||||
| 90386-12051 | ||||
| 90386-14007 | ||||
| 90386-35001 | ||||
| 90468-07023 | ||||
| 90541-05005 | ||||
| 90541-12017 | ||||
| 93240-56025 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 1 OF 4(9408-9608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-95D03 |
TCR1#,2# |
1 | ||
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71012-95D00 |
TCR1#,2# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-28400B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71071-2J020B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71071-2J021B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71071-28630B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-28400B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71072-2J011B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71072-28620B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 71072-2J010B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-28370B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71073-28560B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 71073-28830B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71073-28831B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-28420B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71074-28630B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 71074-28850B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71074-28851B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71108B - LEG SUB-ASSY, FRONT SEAT, RH | ||||
| 71108-95D0103 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71109B - LEG SUB-ASSY, FRONT SEAT, LH | ||||
| 71109-95D0103 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71109-28030B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-28330B1 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71410-28480B0 |
TCR10,20 ***,GRAY,TRIM1# |
1 | ||
| 71410-2J020B0 |
TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71410-28330B0 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-28330B1 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71420-28460B0 |
TCR10,20 ***,GRAY,TRIM1# |
1 | ||
| 71420-28330B0 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71420-28850B0 |
TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-28450B0 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71430-28450B1 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71430-28690B0 |
TCR10,20 ***,GRAY,TRIM1# |
1 | ||
| 71430-2J420B0 |
TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-28680B0 |
TCR10,20 ***,GRAY,TRIM1# |
1 | ||
| 71440-28450B0 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71440-2J300B0 |
TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 71440-28450B1 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-28140 |
TCR1#,2# |
1 | ||
| 71511-95D01 |
TCR1#,2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-95D01 |
TCR1#,2# |
1 | ||
| 71512-28120 |
TCR1#,2# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-95D02 |
TCR1#,2# |
1 | ||
| 71551-28150 |
TCR1#,2# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-28180 |
TCR1#,2# |
1 | ||
| 71552-95D01 |
TCR1#,2# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-28320 |
TCR1#,2# |
1 | ||
| 71630-28250 |
TCR1#,2# |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-28430 |
TCR1#,2# |
1 | ||
| 71640-28370 |
TCR1#,2# |
1 | ||
| 71640-28350 |
TCR1#,2# |
1 | ||
| 71811C - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95D0103 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 71811-95D01B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71811F - COVER, RECLINING ADJUSTER, RH | ||||
| 71811-95D03B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71811-95D0303 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 71812C - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-95D0103 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 71812-95D01B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71812E - COVER, RECLINING ADJUSTER, LH | ||||
| 71812-95D0403 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 71812-95D04B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 71910B - HEADREST ASSY, FRONT SEAT | ||||
| 71910-28190B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71910-28190B1 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71910-28550B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71910-28360B0 |
TCR10,20 BLUISH GRAY,TRIM1# |
1 | ||
| 71920A - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71920-28020B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71920-28070B0 |
TCR10,20 BLUISH GRAY,TRIM1# |
1 | ||
| 71920-28020B1 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71920-28130B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205013 |
TCR1#,2# ﾛｯｸ付,LIGHT GRAY,TRIM1# |
4 | ||
| 71930-12050B0 |
TCR1#,2# ﾛｯｸ付,BLUISH GRAY,TRIM1# |
4 | ||
| 71930-32020B1 |
TCR1#,2# ﾛｯｸ付,BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-32020B1 |
TCR1#,2# ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205013 |
TCR1#,2# ﾛｯｸ付,LIGHT GRAY,TRIM1# |
4 | ||
| 71930-12050B0 |
TCR1#,2# ﾛｯｸ付,BLUISH GRAY,TRIM1# |
4 | ||
| 71930-32020B1 |
TCR1#,2# ﾛｯｸ付,BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-32020B1 |
TCR1#,2# ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205013 |
TCR1#,2# ﾛｯｸ付,LIGHT GRAY,TRIM1# |
4 | ||
| 71930-12050B0 |
TCR1#,2# ﾛｯｸ付,BLUISH GRAY,TRIM1# |
4 | ||
| 71930-32020B1 |
TCR1#,2# ﾛｯｸ付,BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-32020B1 |
TCR1#,2# ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1205013 |
TCR1#,2# ﾛｯｸ付,LIGHT GRAY,TRIM1# |
4 | ||
| 71930-12050B0 |
TCR1#,2# ﾛｯｸ付,BLUISH GRAY,TRIM1# |
4 | ||
| 71930-32020B1 |
TCR1#,2# ﾛｯｸ付,BLUISH GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-32020B1 |
TCR1#,2# ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 72011D - SPRING, TENSION, RH(FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-16061 |
TCR1#,2# |
1 | ||
| 72011E - SPRING, TENSION, LH(FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-16061 |
TCR1#,2# |
1 | ||
| 72025A - STRIKER SUB-ASSY, FRONT SEAT LOCK | ||||
| 72025-95D02 |
TCR1#,2# |
1 | ||
| 72127D - COVER, SEAT TRACK BRACKET, FRONT, RH | ||||
| 72127-95D01B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72127-95D0103 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72128C - COVER, SEAT TRACK BRACKET, FRONT, LH | ||||
| 72128-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72128-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72159C - COVER, FRONT SEAT TRACK BRACKET | ||||
| 72159-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72159-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72159C - COVER, FRONT SEAT TRACK BRACKET | ||||
| 72159-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72159-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72250C - LOCK ASSY, FRONT SEAT | ||||
| 72250-95D00 |
TCR1#,2# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-95D00 |
TCR1#,2# |
1 | ||
| 72301-28050 |
TCR1#,2# |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-28050 |
TCR1#,2# |
1 | ||
| 72301-95D00 |
TCR1#,2# |
1 | ||
| 72510D - ADJUSTER ASSY, RECLINING SEAT, OUTER RH | ||||
| 72510-95D02C0 |
TCR1#,2# BLACK,TRIM1#,4# |
1 | ||
| 72510-95D02C0 |
TCR1#,2#..G,X BLACK,TRIM1# |
1 | ||
| 72520D - ADJUSTER ASSY, RECLINING SEAT, OUTER LH | ||||
| 72520-95D02C0 |
TCR1#,2# BLACK,TRIM1#,4# |
1 | ||
| 72520-95D02C0 |
TCR1#,2#..G,X BLACK,TRIM1# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72525-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72526-95D00B0 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 72880 - ARMREST ASSY, SEAT, C RH | ||||
| 72890-28150B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 72890-28240B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 72890-28150B1 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 72890-28450B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 72890-28340B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 72890 - ARMREST ASSY, SEAT, C LH | ||||
| 72880-28370B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 72880-28140B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 72880-28140B1 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 72880-28240B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 72880-28510B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90105-08109 | ||||
| 90119-08079 | ||||
| 90119-08873 | ||||
| 90119-10456 | ||||
| 90119-10643 | ||||
| 90119-10834 | ||||
| 90168-40043 | ||||
| 90179-10073 | ||||
| 90386-12051 | ||||
| 90386-35001 | ||||
| 90468-07023 | ||||
| 90541-05005 | ||||
| 90541-12017 | ||||
| 93240-16025 | ||||
| Linked diagrams | ||||
| 7152 | ||||

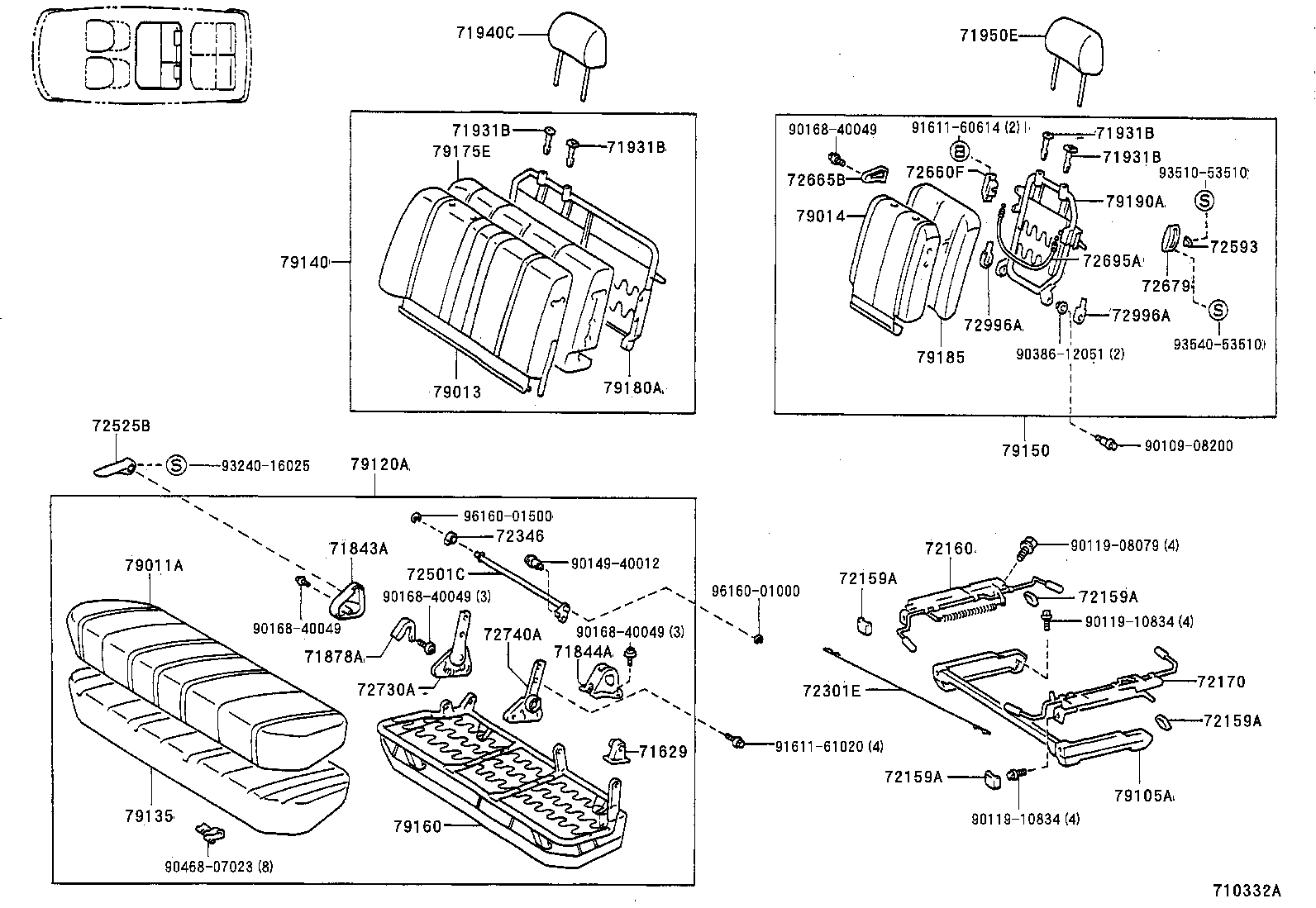

ILLUST NO. 2 OF 4(9302-9801)TCR10,20
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-95D0303 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-95D0303 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-95D0303 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71931-28020B0 |
TCR10,20 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR10,20 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2#..G,X ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2#..G,X ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR10,20 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR10,20 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71931-28020B0 |
TCR10,20 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR10,20 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2#..G,X ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2#..G,X ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR10,20 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR10,20 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71931-28020B0 |
TCR10,20 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR10,20 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2#..G,X ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2#..G,X ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR10,20 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR10,20 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71931-28020B0 |
TCR10,20 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR10,20 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR1#,2#..G,X ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2#..G,X ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28030B0 |
TCR10,20 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR10,20 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71940C - HEADREST ASSY, REAR NO.1 SEAT, RH | ||||
| 71940-28200B2 |
TCR10,20 BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28680B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28200B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28430B0 |
TCR10,20 BLUISH GRAY,TRIM1# |
1 | ||
| 71950E - HEADREST ASSY, REAR NO.1 SEAT, LH | ||||
| 71950-28010B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71950-28010B2 |
TCR10,20 BLUISH GRAY,TRIM1# |
1 | ||
| 71950-28130B0 |
TCR10,20 BLUISH GRAY,TRIM1# |
1 | ||
| 71950-28230B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 72159A - COVER, REAR SEAT TRACK BRACKET | ||||
| 72159-95D0003 |
TCR10,20 GRAY,TRIM1# |
4 | ||
| 72159A - COVER, REAR SEAT TRACK BRACKET | ||||
| 72159-95D0003 |
TCR10,20 GRAY,TRIM1# |
4 | ||
| 72159A - COVER, REAR SEAT TRACK BRACKET | ||||
| 72159-95D0003 |
TCR10,20 GRAY,TRIM1# |
4 | ||
| 72159A - COVER, REAR SEAT TRACK BRACKET | ||||
| 72159-95D0003 |
TCR10,20 GRAY,TRIM1# |
4 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-95D0103 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 72593 - KNOB, RECLINING REMOTE CONTROL LEVER | ||||
| 72593-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 72660F - LOCK ASSY, REAR SEAT, LH | ||||
| 72660-95D00 |
TCR10,20 |
1 | ||
| 72665B - COVER, REAR SEAT BACK LOCK | ||||
| 72665-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-95D0003 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-95D0003 |
TCR10,20 GRAY,TRIM1# |
2 | ||
| 72996A - COVER, REAR SEAT BACK | ||||
| 72996-95D0003 |
TCR10,20 GRAY,TRIM1# |
2 | ||
| 79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION | ||||
| 79011-28420B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79011-28140B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79011-28421B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79011-28260B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-28310B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 79013-28541B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79013-28120B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79013-28540B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-28100B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79014-28250B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 79014-28411B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79014-28410B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79105A - LEG SUB-ASSY, NO.1 SEAT | ||||
| 79105-95D0403 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 79120A - CUSHION ASSY, NO.1 SEAT | ||||
| 79120-28390B0 |
TCR10,20 ***,GRAY,TRIM1# |
1 | ||
| 79120-28770B0 |
TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79120-28250B0 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79120-28250B1 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79140 - BACK ASSY, NO.1 SEAT, RH | ||||
| 79140-28330B0 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79140-28520B0 |
TCR10,20 ***,GRAY,TRIM1# |
1 | ||
| 79140-28330B1 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79140-2J070B0 |
TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79150 - BACK ASSY, NO.1 SEAT, LH | ||||
| 79150-28270B0 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79150-28270B1 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79150-28800B0 |
TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79150-28450B0 |
TCR10,20 ***,GRAY,TRIM1# |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-28010 |
TCR10,20 |
1 | ||
| 79180A - SPRING ASSY, NO.1 SEAT BACK, RH | ||||
| 79180-95D03 |
TCR10,20 |
1 | ||
| 79180-28200 |
TCR10,20 |
1 | ||
| 79180-28270 |
TCR10,20 |
1 | ||
| 79190A - SPRING ASSY, NO.1 SEAT BACK, LH | ||||
| 79190-95D06 |
TCR10,20 |
1 | ||
| 79190-28200 |
TCR10,20 |
1 | ||
| 79190-28260 |
TCR10,20 |
1 | ||
| Common parts | ||||
| 90109-08200 | ||||
| 90119-08079 | ||||
| 90119-10834 | ||||
| 90149-40012 | ||||
| 90168-40049 | ||||
| 90386-12051 | ||||
| 90468-07023 | ||||
| 91611-60614 | ||||
| 91611-61020 | ||||
| 93240-16025 | ||||
| 93510-53510 | ||||
| 93540-53510 | ||||
| 96160-01000 | ||||
| 96160-01500 | ||||

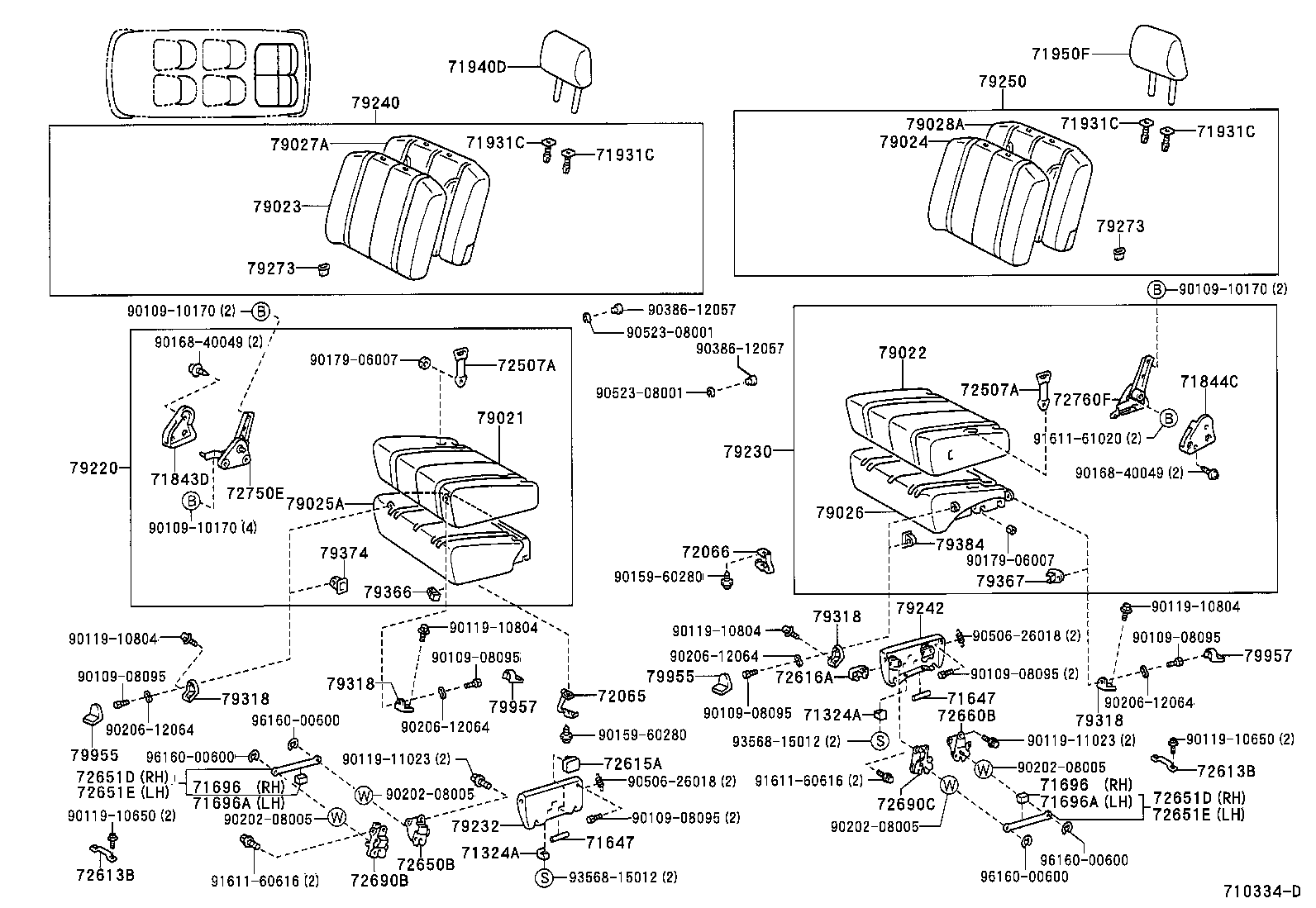

ILLUST NO. 4 OF 4(9005-9408)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-95D00 |
TCR1#,2# |
4 | ||
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-95D00 |
TCR1#,2# |
4 | ||
| 71647 - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-95D00 |
TCR1#,2# |
2 | ||
| 71647 - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-95D00 |
TCR1#,2# |
2 | ||
| 71843D - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-95D0503 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71844C - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-95D0503 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71931-28030B0 |
TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR10,20 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR10,20 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-32020B1 |
TCR1#,2# ﾛｯｸ付,BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020B1 |
TCR1#,2# ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71931-28030B0 |
TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR10,20 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR10,20 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-32020B1 |
TCR1#,2# ﾛｯｸ付,BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020B1 |
TCR1#,2# ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71931-28030B0 |
TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR10,20 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR10,20 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-32020B1 |
TCR1#,2# ﾛｯｸ付,BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020B1 |
TCR1#,2# ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71931-28030B0 |
TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR10,20 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR10,20 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-32020B1 |
TCR1#,2# ﾛｯｸ付,BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020B1 |
TCR1#,2# ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 71940D - HEADREST ASSY, REAR NO.2 SEAT, RH | ||||
| 71940-28200B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28680B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28430B0 |
TCR10,20 BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28200B2 |
TCR10,20 BLUISH GRAY,TRIM1# |
1 | ||
| 71950F - HEADREST ASSY, REAR NO.2 SEAT, LH | ||||
| 71950-28010B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71950-28130B0 |
TCR10,20 BLUISH GRAY,TRIM1# |
1 | ||
| 71950-28010B2 |
TCR10,20 BLUISH GRAY,TRIM1# |
1 | ||
| 71950-28230B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH | ||||
| 72065-2801003 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 72066 - BELT SUB-ASSY, REAR SEAT HOOK, LH | ||||
| 72065-2801003 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 72507A - HANDLE SUB-ASSY, RECLINING RELEASE | ||||
| 72507-28011B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72507A - HANDLE SUB-ASSY, RECLINING RELEASE | ||||
| 72507-28011B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-95D01 |
TCR1#,2# |
2 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-95D01 |
TCR1#,2# |
2 | ||
| 72650B - LOCK ASSY, REAR NO.3 SEAT, RH | ||||
| 72650-95D02 |
TCR1#,2# |
1 | ||
| 72651D - ROD, REAR SEAT BACK LOCK, RH | ||||
| 72651-95D00 |
TCR1#,2# |
1 | ||
| 72651D - ROD, REAR SEAT BACK LOCK, RH | ||||
| 72651-95D00 |
TCR1#,2# |
1 | ||
| 72651E - ROD, REAR SEAT BACK LOCK, LH | ||||
| 72651-95D00 |
TCR1#,2# |
1 | ||
| 72651E - ROD, REAR SEAT BACK LOCK, LH | ||||
| 72651-95D00 |
TCR1#,2# |
1 | ||
| 72660B - LOCK ASSY, REAR NO.3 SEAT, LH | ||||
| 72660-95D03 |
TCR1#,2# |
1 | ||
| 72690B - LEVER ASSY, SEAT CUSHION LOCK RELEASE, RH | ||||
| 72690-95D00 |
TCR1#,2# |
1 | ||
| 72690C - LEVER ASSY, SEAT CUSHION LOCK RELEASE, LH | ||||
| 72690-95D01 |
TCR1#,2# |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-28110B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79021-28111B1 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79021-28200B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 79021-28110B1 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79021-28341B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79021-28340B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-28080B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79022-28080B1 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79022-28081B1 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79022-28310B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79022-28311B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79022-28170B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-28070B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79023-28300B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79023-28190B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 79023-28070B1 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79023-28301B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79024-28050B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79024-28280B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79024-28170B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 79024-28050B1 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79024-28281B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79027A - PAD SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79027-28060 |
TCR10,20 |
1 | ||
| 79028A - PAD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79028-28060 |
TCR10,20 |
1 | ||
| 79220 - CUSHION ASSY, NO.2 SEAT, RH | ||||
| 79220-28170B0 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79220-28240B0 |
TCR10,20 ***,GRAY,TRIM1# |
1 | ||
| 79220-28171B1 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79220-28340B0 |
TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79230 - CUSHION ASSY, NO.2 SEAT, LH | ||||
| 79230-28121B1 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79230-28120B0 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79230-28190B0 |
TCR10,20 ***,GRAY,TRIM1# |
1 | ||
| 79230-28300B0 |
TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79240 - BACK ASSY, NO.2 SEAT, RH | ||||
| 79240-28140B1 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79240-28140B0 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79240-28360B0 |
TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79240-28220B0 |
TCR10,20 ***,GRAY,TRIM1# |
1 | ||
| 79250 - BACK ASSY, NO.2 SEAT, LH | ||||
| 79250-28110B0 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79250-28190B0 |
TCR10,20 ***,GRAY,TRIM1# |
1 | ||
| 79250-28110B1 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79250-28330B0 |
TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79273 - COVER, NO.2 SEAT HINGE | ||||
| 79273-2801003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 79273 - COVER, NO.2 SEAT HINGE | ||||
| 79273-2801003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 79318 - BRACKET, NO.3 SEAT LEG | ||||
| 79318-95D00 |
TCR1#,2# ﾌﾛﾝﾄ |
2 | ||
| 79319-95D00 |
TCR1#,2# ﾘﾔ |
2 | ||
| 79318 - BRACKET, NO.3 SEAT LEG | ||||
| 79318-95D00 |
TCR1#,2# ﾌﾛﾝﾄ |
2 | ||
| 79319-95D00 |
TCR1#,2# ﾘﾔ |
2 | ||
| 79318 - BRACKET, NO.3 SEAT LEG | ||||
| 79318-95D00 |
TCR1#,2# ﾌﾛﾝﾄ |
2 | ||
| 79319-95D00 |
TCR1#,2# ﾘﾔ |
2 | ||
| 79318 - BRACKET, NO.3 SEAT LEG | ||||
| 79318-95D00 |
TCR1#,2# ﾌﾛﾝﾄ |
2 | ||
| 79319-95D00 |
TCR1#,2# ﾘﾔ |
2 | ||
| 79366 - COVER, NO.3 SEAT LEG, NO.1 | ||||
| 79366-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 79367 - COVER, NO.3 SEAT LEG, NO.2 | ||||
| 79367-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 79374 - COVER, NO.3 SEAT LEG, REAR RH | ||||
| 79374-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 79384 - COVER, NO.3 SEAT LEG, REAR LH | ||||
| 79384-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 79955 - COVER, REAR SEAT FRONT BRACKET, FRONT | ||||
| 79955-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 79955 - COVER, REAR SEAT FRONT BRACKET, FRONT | ||||
| 79955-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 79957 - COVER, REAR SEAT REAR BRACKET, REAR | ||||
| 79957-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 79957 - COVER, REAR SEAT REAR BRACKET, REAR | ||||
| 79957-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90109-08095 | ||||
| 90109-10055 | ||||
| 90119-10082 | ||||
| 90119-10650 | ||||
| 90119-11023 | ||||
| 90159-60280 | ||||
| 90168-40049 | ||||
| 90179-06007 | ||||
| 90201-15015 | ||||
| 90206-12064 | ||||
| 90386-12051 | ||||
| 90386-14007 | ||||
| 90506-26018 | ||||
| 90523-08001 | ||||
| 91611-60616 | ||||
| 91611-61020 | ||||
| 93568-15012 | ||||
| 94542-01400 | ||||
| 94543-00800 | ||||
| 96160-00600 | ||||
ILLUST NO. 4 OF 4(9408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-95D00 |
TCR1#,2# |
4 | ||
| 71324A - CUSHION, REAR SEAT | ||||
| 71324-95D00 |
TCR1#,2# |
4 | ||
| 71647 - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-95D00 |
TCR1#,2# |
2 | ||
| 71647 - PROTECTOR, REAR SEAT CUSHION EDGE | ||||
| 71647-95D00 |
TCR1#,2# |
2 | ||
| 71843D - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-95D0503 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71844C - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-95D0503 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71931-28030B0 |
TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR10,20 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR10,20 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-32020B1 |
TCR1#,2# ﾛｯｸ付,BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020B1 |
TCR1#,2# ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71931-28030B0 |
TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR10,20 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR10,20 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-32020B1 |
TCR1#,2# ﾛｯｸ付,BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020B1 |
TCR1#,2# ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71931-28030B0 |
TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR10,20 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR10,20 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-32020B1 |
TCR1#,2# ﾛｯｸ付,BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020B1 |
TCR1#,2# ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71931-28030B0 |
TCR1#,2# ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28020B0 |
TCR10,20 ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71931-28020B0 |
TCR10,20 ﾛｯｸ無,GRAY,TRIM1# |
2 | ||
| 71930-28030B0 |
TCR1#,2# ﾛｯｸ付,GRAY,TRIM1# |
2 | ||
| 71930-32020B1 |
TCR1#,2# ﾛｯｸ付,BLUISH GRAY,TRIM1# |
2 | ||
| 71931-32020B1 |
TCR1#,2# ﾛｯｸ無,BLUISH GRAY,TRIM1# |
2 | ||
| 71940D - HEADREST ASSY, REAR NO.2 SEAT, RH | ||||
| 71940-28200B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71940-28680B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28430B0 |
TCR10,20 BLUISH GRAY,TRIM1# |
1 | ||
| 71940-28200B2 |
TCR10,20 BLUISH GRAY,TRIM1# |
1 | ||
| 71950F - HEADREST ASSY, REAR NO.2 SEAT, LH | ||||
| 71950-28010B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 71950-28130B0 |
TCR10,20 BLUISH GRAY,TRIM1# |
1 | ||
| 71950-28010B2 |
TCR10,20 BLUISH GRAY,TRIM1# |
1 | ||
| 71950-28230B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 72065 - BELT SUB-ASSY, REAR SEAT HOOK, RH | ||||
| 72065-2801003 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 72066 - BELT SUB-ASSY, REAR SEAT HOOK, LH | ||||
| 72065-2801003 |
TCR1#,2# LIGHT GRAY,TRIM1# |
1 | ||
| 72507A - HANDLE SUB-ASSY, RECLINING RELEASE | ||||
| 72507-28011B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72507A - HANDLE SUB-ASSY, RECLINING RELEASE | ||||
| 72507-28011B0 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-95D01 |
TCR1#,2# |
2 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-95D01 |
TCR1#,2# |
2 | ||
| 72650B - LOCK ASSY, REAR NO.3 SEAT, RH | ||||
| 72650-95D02 |
TCR1#,2# |
1 | ||
| 72651D - ROD, REAR SEAT BACK LOCK, RH | ||||
| 72651-95D00 |
TCR1#,2# |
1 | ||
| 72651D - ROD, REAR SEAT BACK LOCK, RH | ||||
| 72651-95D00 |
TCR1#,2# |
1 | ||
| 72651E - ROD, REAR SEAT BACK LOCK, LH | ||||
| 72651-95D00 |
TCR1#,2# |
1 | ||
| 72651E - ROD, REAR SEAT BACK LOCK, LH | ||||
| 72651-95D00 |
TCR1#,2# |
1 | ||
| 72660B - LOCK ASSY, REAR NO.3 SEAT, LH | ||||
| 72660-95D03 |
TCR1#,2# |
1 | ||
| 72690B - LEVER ASSY, SEAT CUSHION LOCK RELEASE, RH | ||||
| 72690-95D00 |
TCR1#,2# |
1 | ||
| 72690C - LEVER ASSY, SEAT CUSHION LOCK RELEASE, LH | ||||
| 72690-95D01 |
TCR1#,2# |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-28110B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79021-28111B1 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79021-28200B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 79021-28110B1 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79021-28341B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79021-28340B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-28080B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79022-28080B1 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79022-28081B1 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79022-28310B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79022-28311B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79022-28170B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-28070B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79023-28300B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79023-28190B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 79023-28070B1 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79023-28301B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79024-28050B0 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79024-28280B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79024-28170B0 |
TCR10,20 GRAY,TRIM1# |
1 | ||
| 79024-28050B1 |
TCR10,20 LIGHT GRAY,TRIM1# |
1 | ||
| 79024-28281B0 |
TCR10,20..X BLUISH GRAY,TRIM1# |
1 | ||
| 79027A - PAD SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79027-28060 |
TCR10,20 |
1 | ||
| 79028A - PAD SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79028-28060 |
TCR10,20 |
1 | ||
| 79220 - CUSHION ASSY, NO.2 SEAT, RH | ||||
| 79220-28170B0 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79220-28240B0 |
TCR10,20 ***,GRAY,TRIM1# |
1 | ||
| 79220-28171B1 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79220-28340B0 |
TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79230 - CUSHION ASSY, NO.2 SEAT, LH | ||||
| 79230-28121B1 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79230-28120B0 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79230-28190B0 |
TCR10,20 ***,GRAY,TRIM1# |
1 | ||
| 79230-28300B0 |
TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79240 - BACK ASSY, NO.2 SEAT, RH | ||||
| 79240-28140B1 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79240-28140B0 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79240-28360B0 |
TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79240-28220B0 |
TCR10,20 ***,GRAY,TRIM1# |
1 | ||
| 79250 - BACK ASSY, NO.2 SEAT, LH | ||||
| 79250-28110B0 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79250-28190B0 |
TCR10,20 ***,GRAY,TRIM1# |
1 | ||
| 79250-28110B1 |
TCR10,20 ***,LIGHT GRAY,TRIM1# |
1 | ||
| 79250-28330B0 |
TCR10,20..X ***,BLUISH GRAY,TRIM1# |
1 | ||
| 79273 - COVER, NO.2 SEAT HINGE | ||||
| 79273-2801003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 79273 - COVER, NO.2 SEAT HINGE | ||||
| 79273-2801003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 79318 - BRACKET, NO.3 SEAT LEG | ||||
| 79318-95D00 |
TCR1#,2# ﾌﾛﾝﾄ |
2 | ||
| 79319-95D00 |
TCR1#,2# ﾘﾔ |
2 | ||
| 79318 - BRACKET, NO.3 SEAT LEG | ||||
| 79318-95D00 |
TCR1#,2# ﾌﾛﾝﾄ |
2 | ||
| 79319-95D00 |
TCR1#,2# ﾘﾔ |
2 | ||
| 79318 - BRACKET, NO.3 SEAT LEG | ||||
| 79318-95D00 |
TCR1#,2# ﾌﾛﾝﾄ |
2 | ||
| 79319-95D00 |
TCR1#,2# ﾘﾔ |
2 | ||
| 79318 - BRACKET, NO.3 SEAT LEG | ||||
| 79318-95D00 |
TCR1#,2# ﾌﾛﾝﾄ |
2 | ||
| 79319-95D00 |
TCR1#,2# ﾘﾔ |
2 | ||
| 79366 - COVER, NO.3 SEAT LEG, NO.1 | ||||
| 79366-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 79367 - COVER, NO.3 SEAT LEG, NO.2 | ||||
| 79367-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 79374 - COVER, NO.3 SEAT LEG, REAR RH | ||||
| 79374-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 79384 - COVER, NO.3 SEAT LEG, REAR LH | ||||
| 79384-95D0003 |
TCR1#,2# GRAY,TRIM1# |
1 | ||
| 79955 - COVER, REAR SEAT FRONT BRACKET, FRONT | ||||
| 79955-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 79955 - COVER, REAR SEAT FRONT BRACKET, FRONT | ||||
| 79955-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 79957 - COVER, REAR SEAT REAR BRACKET, REAR | ||||
| 79957-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| 79957 - COVER, REAR SEAT REAR BRACKET, REAR | ||||
| 79957-95D0003 |
TCR1#,2# GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90109-08095 | ||||
| 90109-10170 | ||||
| 90119-10650 | ||||
| 90119-10804 | ||||
| 90119-11023 | ||||
| 90159-60280 | ||||
| 90168-40049 | ||||
| 90179-06007 | ||||
| 90202-08005 | ||||
| 90206-12064 | ||||
| 90386-12057 | ||||
| 90506-26018 | ||||
| 90523-08001 | ||||
| 91611-60616 | ||||
| 91611-61020 | ||||
| 93568-15012 | ||||
| 96160-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
