TCR10W-RRSEK (1993)

Toyota Estima

Production Feb 1993 - Jan 1998
Engine 2TZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

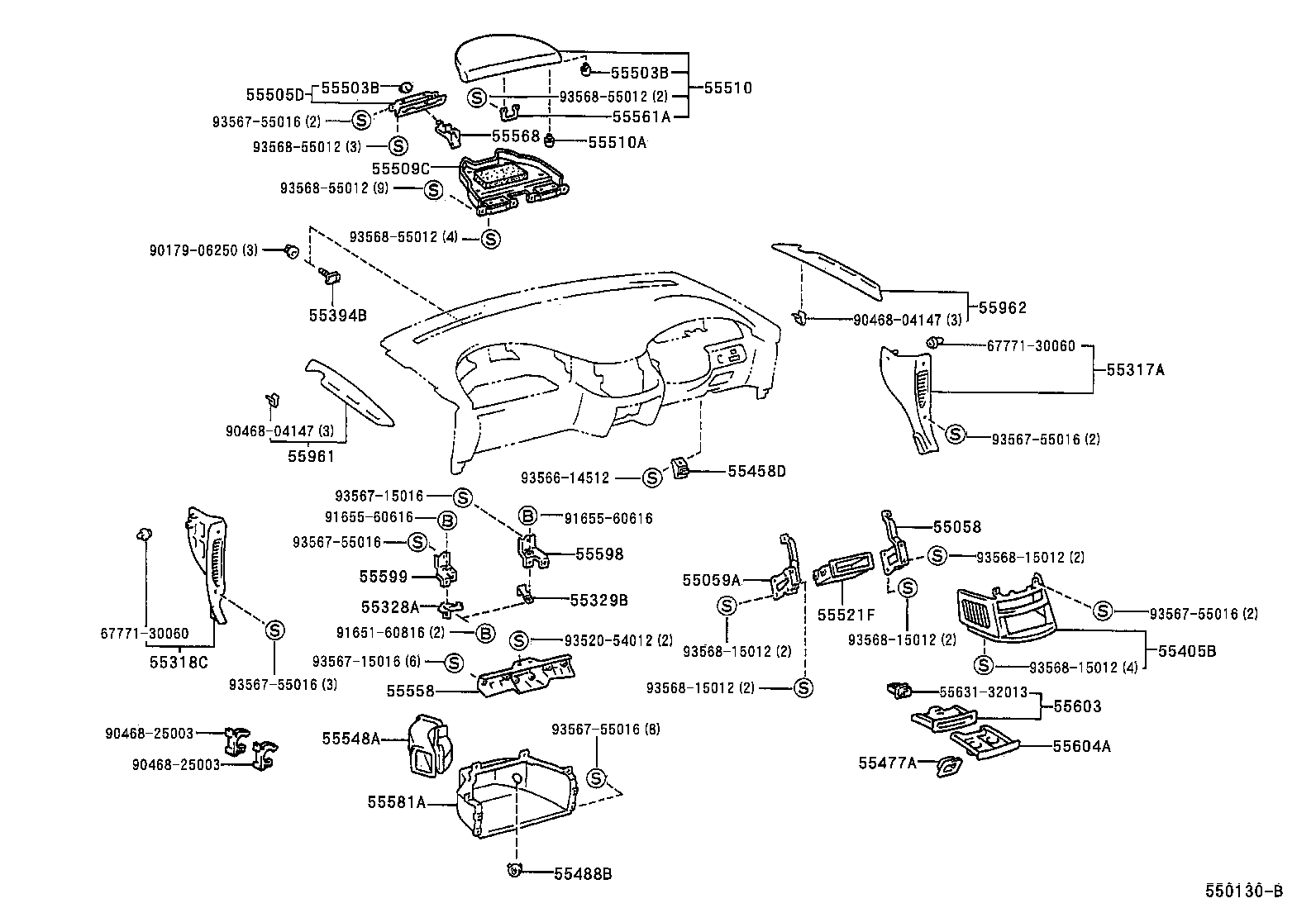

ILLUST NO. 2 OF 2(9005-9608)

Click highlighted areas on diagram

diagram 55058 55059A 55317A 55318C 55328A 55329B 55394B 55405B 55458D 55477A 55488B 55503B 55503B 55505D 55509C 55510 55510A 55521F 55548A 55558 55561A 55568 55581A 55598 55599 55603 55604A 5563132013 55961 55962 6777130060 6777130060 9017906250 9046804147 9046804147 9046825003 9046825003 9165160816 9165560616 9165560616 9352054012 9356614512 9356715016 9356715016 9356755016 9356755016 9356755016 9356755016 9356755016 9356755016 9356815012 9356815012 9356815012 9356815012 9356815012 9356855012 9356855012 9356855012 9356855012
Part # Description Qty Price
55058 - RETAINER SUB-ASSY, RADIO TUNER OPENING, RH
55058-95D00

TCR1#,2#

 1
55059A - RETAINER SUB-ASSY, RADIO TUNER OPENING, LH
55059-95D00

TCR1#,2#

 1
55317A - PANEL, INSTRUMENT SIDE, RH
55317-95D0103

TCR1#,2#

GRAY,TRIM1#

 1
55318C - PANEL, INSTRUMENT SIDE, LH
55318-2801003

TCR1#,2#

LIGHT GRAY,TRIM1#

 1
55328A - STAY, INSTRUMENT PANEL, NO.3
55328-28010

TCR1#,2#

 1
55329B - STAY, INSTRUMENT PANEL, NO.4
55329-28020

TCR1#,2#

 1
55394B - BOLT, INSTRUMENT PANEL
55394-95D00

TCR1#,2#

 3
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-95D00

TCR1#,2#

 1
55458D - COVER, INSTRUMENT LOWER, RH
55458-2802003

TCR1#,2#

GRAY,TRIM1#

 1
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-95D0003

TCR1#,2#

GRAY,TRIM1#

 1
55488B - LENS, FRONT FOOT LAMP, NO.1
55488-28010

TCR1#,2#

 1
55503B - CUSHION(FOR GLOVE COMPARTMENT)
90541-07037

TCR1#,2#

 2
55503B - CUSHION(FOR GLOVE COMPARTMENT)
90541-07037

TCR1#,2#

 2
55521F - COVER, STEREO OPENING, NO.2
55521-16030

TCR1#,2#

 1
55548A - COVER, INSTRUMENT PANEL HOLE
55548-95D01

TCR1#,2#

 1
55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR
55558-95D01

TCR1#,2#

 1
55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK
55561-95D00

TCR1#,2#

 1
55568 - PLATE, GLOVE COMPARTMENT DOOR PAD
55568-95D00

TCR1#,2#

 1
55581A - COMPARTMENT, GLOVE
55581-95D01

TCR1#,2#

 1
55598 - BRACKET, GLOVE COMPARTMENT DOOR HINGE, RH
55598-95D01

TCR1#,2#

 1
55599 - BRACKET, GLOVE COMPARTMENT DOOR HINGE, LH
55599-95D01

TCR1#,2#

 1
55603 - CASE SUB-ASSY, INSTRUMENT PANEL CUP HOLDER
55603-95D00

TCR1#,2#

 1
55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP
55604-95D0003

TCR1#,2#

GRAY,TRIM1#

 1
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-2801003

TCR1#,2#

GRAY,TRIM1#

 1
55962 - NOZZLE, SIDE DEFROSTER, NO.2
55962-2801003

TCR1#,2#

GRAY,TRIM1#

 1
Common parts
55631-32013
67771-30060
90179-06250
90468-04147
90468-25003
91651-60816
91655-60616
93520-54012
93566-14512
93567-15016
93567-55016
93568-15012
93568-55012

ILLUST NO. 2 OF 2(9608- )

Click highlighted areas on diagram

diagram 55048B 55058 55059A 55303A 55306A 55307C 55317A 55318C 55330B 55349C 55394B 55405B 55458D 55477A 55488B 5552 5552 5552 5552 55521F 55522B 55551A 55552B 55557B 55557B 55560A 55561A 55568 55581A 55603 55604A 5563128010 5563128010 5563132013 5563132013 55961 55962 6777130060 6777130060 73970A 9010508231 9011906077 9016450047 9017906250 9017908146 9046804147 9046804147 9046825003 9046825003 9054105020 9165160816 9165160816 9165160816 9165160816 9165160825 9165160825 9354053010 9354054014 9356614512 9356755016 9356755016 9356755016 9356755016 9356755016 9356815012 9356815012 9356815012 9356855012 9356855012
Part # Description Qty Price
55058 - RETAINER SUB-ASSY, RADIO TUNER OPENING, RH
55058-95D00

TCR1#,2#

 1
55059A - RETAINER SUB-ASSY, RADIO TUNER OPENING, LH
55059-95D00

TCR1#,2#

 1
55317A - PANEL, INSTRUMENT SIDE, RH
55317-95D0103

TCR1#,2#

GRAY,TRIM1#

 1
55318C - PANEL, INSTRUMENT SIDE, LH
55318-2801003

TCR1#,2#

LIGHT GRAY,TRIM1#

 1
55394B - BOLT, INSTRUMENT PANEL
55394-95D00

TCR1#,2#

 3
55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER
55405-95D00

TCR1#,2#

 1
55458D - COVER, INSTRUMENT LOWER, RH
55458-2802003

TCR1#,2#

GRAY,TRIM1#

 1
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-95D0003

TCR1#,2#

GRAY,TRIM1#

 1
55488B - LENS, FRONT FOOT LAMP, NO.1
55488-28010

TCR1#,2#

 1
55521F - COVER, STEREO OPENING, NO.2
55521-16030

TCR1#,2#

 1
55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR
55560-95D00B0

TCR1#,2#

GRAY,TRIM1#

 1
55560-95D0003

TCR10,20

GRAY,TRIM1#

 1
55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK
55561-95D00

TCR1#,2#

 1
55568 - PLATE, GLOVE COMPARTMENT DOOR PAD
55568-95D00

TCR1#,2#

 1
55581A - COMPARTMENT, GLOVE
55581-95D01

TCR1#,2#

 1
55603 - CASE SUB-ASSY, INSTRUMENT PANEL CUP HOLDER
55603-95D00

TCR1#,2#

 1
55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP
55604-95D0003

TCR1#,2#

GRAY,TRIM1#

 1
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-2801003

TCR1#,2#

GRAY,TRIM1#

 1
55962 - NOZZLE, SIDE DEFROSTER, NO.2
55962-2801003

TCR1#,2#

GRAY,TRIM1#

 1
73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER
73970-28040B0

TCR1#,2#

GRAY,TRIM1#

 1
Common parts
55631-28010
55631-32013
67771-30060
90105-08231
90119-06077
90164-50047
90179-06250
90179-08146
90468-04147
90468-25003
90541-05020
91651-60816
91651-60825
93540-53010
93540-54014
93566-14512
93567-55016
93568-15012
93568-55012
Linked diagrams
5552
