GSR55W-GFTSK (2006)
Toyota Estima

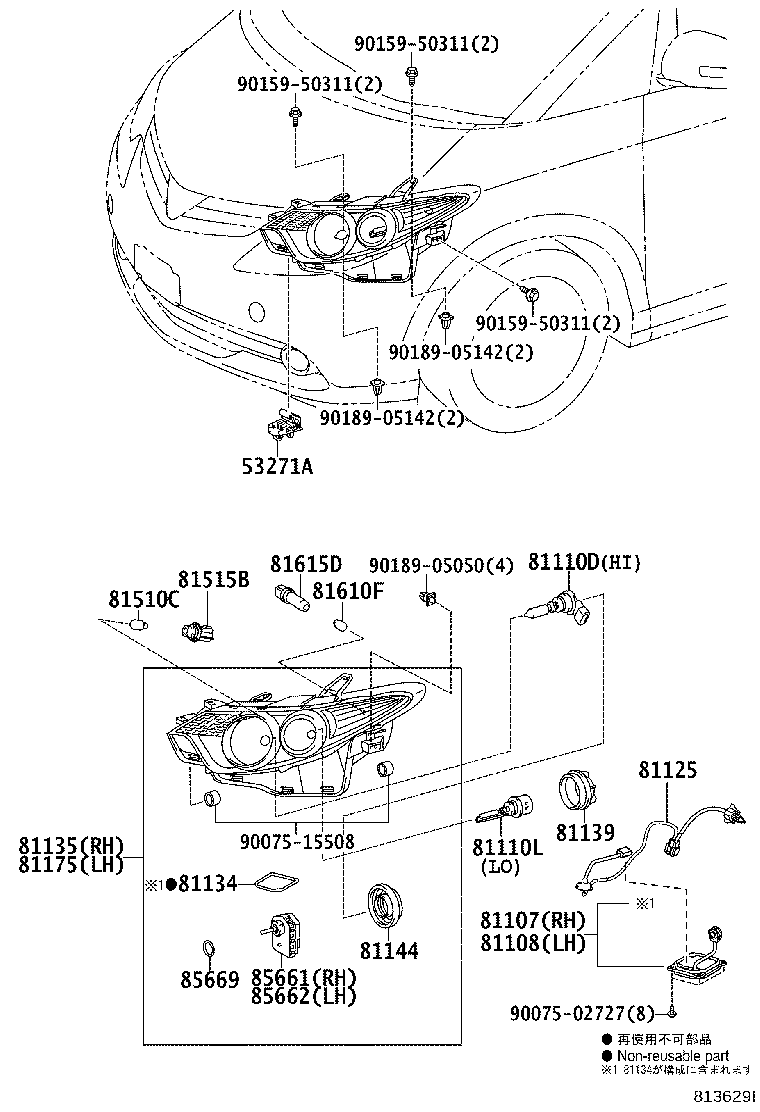

ILLUST NO. 1 OF 2(0601-0812)AERAS,G
ﾃﾞｨｽﾁｬｰｼﾞ ﾍｯﾄﾞﾗﾝﾌﾟ & W(AFS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53271A - BRACKET, HEADLAMP MOUNTING | ||||
| 53271-44010 |
ACR5#,GSR5#..CBU |
2 | ||
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-21150 |
GSR5#..AERAS..CBU Gﾊﾟｯｹｰｼﾞ(国内) |
1 | ||
| 81107-21150 |
ACR5#,GSR5#..(AERAS,G)..CBU |
1 | ||
| 81107-21150 |
ACR5#,GSR5#..AERAS..CBU Sﾊﾟｯｹｰｼﾞ(国内) |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-21150 |
ACR5#,GSR5#..(AERAS,G)..CBU |
1 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13046 |
ACR5#,GSR5#..(AERAS,G)..CBU 12V65W(SAE),60W(ECE) |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20013 |
ACR5#,GSR5#..(AERAS,G)..CBU 45V 35W |
2 | ||
| 90981-20021 |
ACR5#,GSR5#..(AERAS,G)..CBU 45V 35W |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-28A10 |
ACR5#,GSR5#..(AERAS,G)..CBU |
2 | ||
| 81125A - CORD, HEADLAMP, RH | ||||
| 81165-28A10 |
ACR5#,GSR5#..AERAS..CBU Sﾊﾟｯｹｰｼﾞ(国内) |
1 | ||
| 81165-28A10 |
GSR5#..AERAS..CBU Gﾊﾟｯｹｰｼﾞ(国内) |
1 | ||
| 81165-28A10 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 81129A - REFLECTOR, HEADLAMP, RH | ||||
| 81129-33680 |
GSR5#..AERAS..CBU Gﾊﾟｯｹｰｼﾞ(国内) |
1 | ||
| 81129-33680 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 81129-33680 |
ACR5#,GSR5#..AERAS..CBU Sﾊﾟｯｹｰｼﾞ(国内) |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68007 |
ACR5#,GSR5#..(AERAS,G)..CBU |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-28A80 |
ACR5#,GSR5#..AERAS..CBU Sﾊﾟｯｹｰｼﾞ(国内) |
1 | ||
| 81145-28A10 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 81145-28A80 |
GSR5#..AERAS..CBU Gﾊﾟｯｹｰｼﾞ(国内) |
1 | ||
| 81145-28A70 |
ACR5#,GSR5#..AERAS..CBU |
1 | ||
| 81145-28C00 |
GSR5#..07S..AERAS ｽﾍﾟｼｬﾙGｴﾃﾞｨｼｮﾝ OR Gｴﾃﾞｨｼｮﾝ |
1 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 81189-28A10 |
ACR5#,GSR5#..CBU |
2 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-65006 |
ACR5#,GSR5#..CBU |
2 | ||
| 81165 - CORD, HEADLAMP, LH | ||||
| 81165-28A10 |
ACR5#,GSR5#..AERAS..CBU Sﾊﾟｯｹｰｼﾞ(国内) |
1 | ||
| 81165-28A10 |
GSR5#..AERAS..CBU Gﾊﾟｯｹｰｼﾞ(国内) |
1 | ||
| 81165-28A10 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 81169 - REFLECTOR, HEADLAMP, LH | ||||
| 81169-33680 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 81169-33680 |
ACR5#,GSR5#..AERAS..CBU Sﾊﾟｯｹｰｼﾞ(国内) |
1 | ||
| 81169-33680 |
GSR5#..AERAS..CBU Gﾊﾟｯｹｰｼﾞ(国内) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-28A10 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 81185-28A80 |
GSR5#..AERAS..CBU Gﾊﾟｯｹｰｼﾞ(国内) |
1 | ||
| 81185-28A80 |
ACR5#,GSR5#..AERAS..CBU Sﾊﾟｯｹｰｼﾞ(国内) |
1 | ||
| 81185-28A70 |
ACR5#,GSR5#..AERAS..CBU |
1 | ||
| 81185-28C00 |
GSR5#..07S..AERAS ｽﾍﾟｼｬﾙGｴﾃﾞｨｼｮﾝ OR Gｴﾃﾞｨｼｮﾝ |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
ACR5#,GSR5#..CBU 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
ACR5#,GSR5#..CBU |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
ACR5#,GSR5#..CBU 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
ACR5#,GSR5#..CBU |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-28010 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 85661-28010 |
GSR5#..AERAS..CBU Gﾊﾟｯｹｰｼﾞ(国内) |
1 | ||
| 85661-12020 |
ACR5#,GSR5#..AERAS..CBU |
1 | ||
| 85661-28010 |
ACR5#,GSR5#..AERAS..CBU Sﾊﾟｯｹｰｼﾞ(国内) |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85691-28010 |
ACR5#,GSR5#..AERAS..CBU Sﾊﾟｯｹｰｼﾞ(国内) |
1 | ||
| 85691-28010 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 85661-12020 |
ACR5#,GSR5#..AERAS..CBU |
1 | ||
| 85691-28010 |
GSR5#..AERAS..CBU Gﾊﾟｯｹｰｼﾞ(国内) |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
ACR5#,GSR5#..CBU |
2 | ||
| Common parts | ||||
| 90075-02727 | ||||
| 90075-15508 | ||||
| 90159-50311 | ||||
| 90189-05050 | ||||
| 90189-05142 | ||||

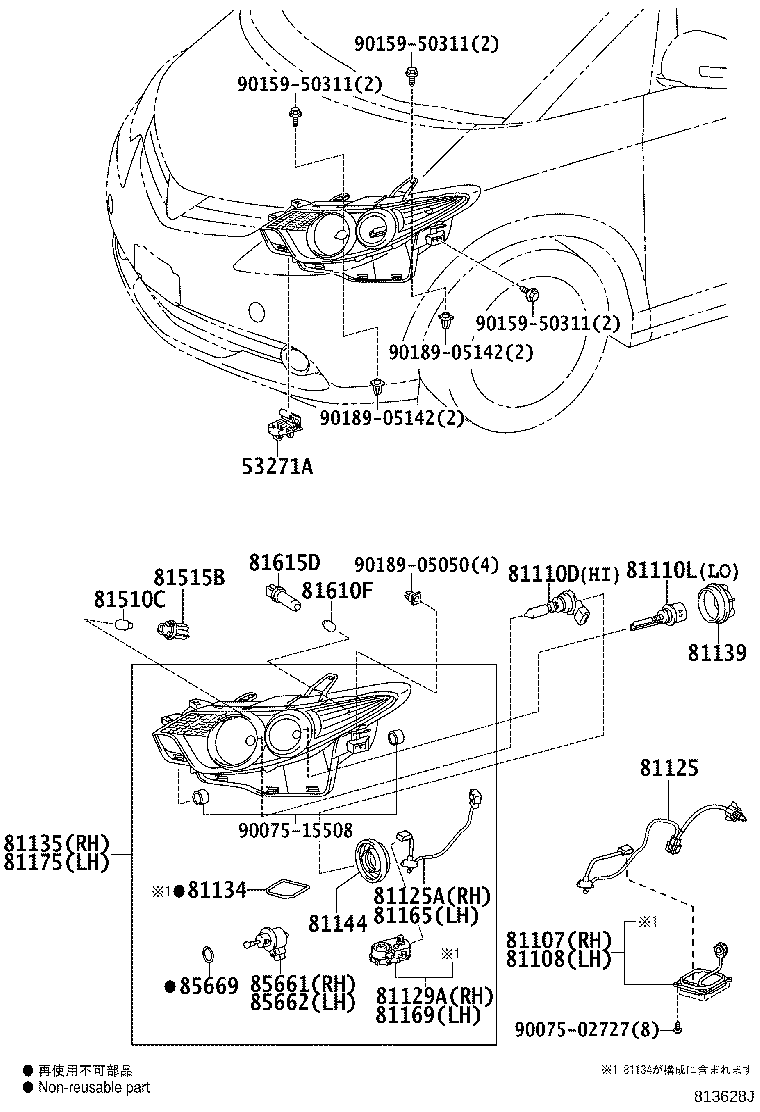

ILLUST NO. 1 OF 2(0601-0812)AERAS
ﾃﾞｨｽﾁｬｰｼﾞﾍｯﾄﾞﾗﾝﾌﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53271A - BRACKET, HEADLAMP MOUNTING | ||||
| 53271-44010 |
ACR5#,GSR5#..CBU |
2 | ||
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-21150 |
GSR5#..AERAS..CBU Gﾊﾟｯｹｰｼﾞ(国内) |
1 | ||
| 81107-21150 |
ACR5#,GSR5#..(AERAS,G)..CBU |
1 | ||
| 81107-21150 |
ACR5#,GSR5#..AERAS..CBU Sﾊﾟｯｹｰｼﾞ(国内) |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-21150 |
ACR5#,GSR5#..(AERAS,G)..CBU |
1 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13046 |
ACR5#,GSR5#..(AERAS,G)..CBU 12V65W(SAE),60W(ECE) |
2 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20013 |
ACR5#,GSR5#..(AERAS,G)..CBU 45V 35W |
2 | ||
| 90981-20021 |
ACR5#,GSR5#..(AERAS,G)..CBU 45V 35W |
2 | ||
| 81125 - CORD, HEADLAMP | ||||
| 81125-28A10 |
ACR5#,GSR5#..(AERAS,G)..CBU |
2 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-68007 |
ACR5#,GSR5#..(AERAS,G)..CBU |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-28A80 |
ACR5#,GSR5#..AERAS..CBU Sﾊﾟｯｹｰｼﾞ(国内) |
1 | ||
| 81145-28A10 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 81145-28A80 |
GSR5#..AERAS..CBU Gﾊﾟｯｹｰｼﾞ(国内) |
1 | ||
| 81145-28A70 |
ACR5#,GSR5#..AERAS..CBU |
1 | ||
| 81145-28C00 |
GSR5#..07S..AERAS ｽﾍﾟｼｬﾙGｴﾃﾞｨｼｮﾝ OR Gｴﾃﾞｨｼｮﾝ |
1 | ||
| 81139 - COVER, HEADLAMP SOCKET | ||||
| 81189-28A10 |
ACR5#,GSR5#..CBU |
2 | ||
| 81144 - COVER, HEADLAMP, NO.1 | ||||
| 90075-65006 |
ACR5#,GSR5#..CBU |
2 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-28A10 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 81185-28A80 |
GSR5#..AERAS..CBU Gﾊﾟｯｹｰｼﾞ(国内) |
1 | ||
| 81185-28A80 |
ACR5#,GSR5#..AERAS..CBU Sﾊﾟｯｹｰｼﾞ(国内) |
1 | ||
| 81185-28A70 |
ACR5#,GSR5#..AERAS..CBU |
1 | ||
| 81185-28C00 |
GSR5#..07S..AERAS ｽﾍﾟｼｬﾙGｴﾃﾞｨｼｮﾝ OR Gｴﾃﾞｨｼｮﾝ |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
ACR5#,GSR5#..CBU 12V 21W,ｱﾝﾊﾞｰ |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
ACR5#,GSR5#..CBU |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 99132-12050 |
ACR5#,GSR5#..CBU 12V 5W |
2 | ||
| 81615D - SOCKET, CLEARANCE LAMP | ||||
| 90075-60077 |
ACR5#,GSR5#..CBU |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-28010 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 85661-28010 |
GSR5#..AERAS..CBU Gﾊﾟｯｹｰｼﾞ(国内) |
1 | ||
| 85661-12020 |
ACR5#,GSR5#..AERAS..CBU |
1 | ||
| 85661-28010 |
ACR5#,GSR5#..AERAS..CBU Sﾊﾟｯｹｰｼﾞ(国内) |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85691-28010 |
ACR5#,GSR5#..AERAS..CBU Sﾊﾟｯｹｰｼﾞ(国内) |
1 | ||
| 85691-28010 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 85661-12020 |
ACR5#,GSR5#..AERAS..CBU |
1 | ||
| 85691-28010 |
GSR5#..AERAS..CBU Gﾊﾟｯｹｰｼﾞ(国内) |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
ACR5#,GSR5#..CBU |
2 | ||
| Common parts | ||||
| 90075-02727 | ||||
| 90075-15508 | ||||
| 90159-50311 | ||||
| 90189-05050 | ||||
| 90189-05142 | ||||
ILLUST NO. 2 OF 2(0601-0812)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-28060 |
ACR5#,GSR5#..CBU |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-28070 |
ACR5#,GSR5#..CBU |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-28060 |
ACR5#,GSR5#..CBU |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-28070 |
ACR5#,GSR5#..CBU |
1 | ||
