GSR55W-GFTSK (2006)

Toyota Estima

Production Jan 2006 - Dec 2008
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )AEPR ; (0601- )AEPG,AERAS,AESM,G,X

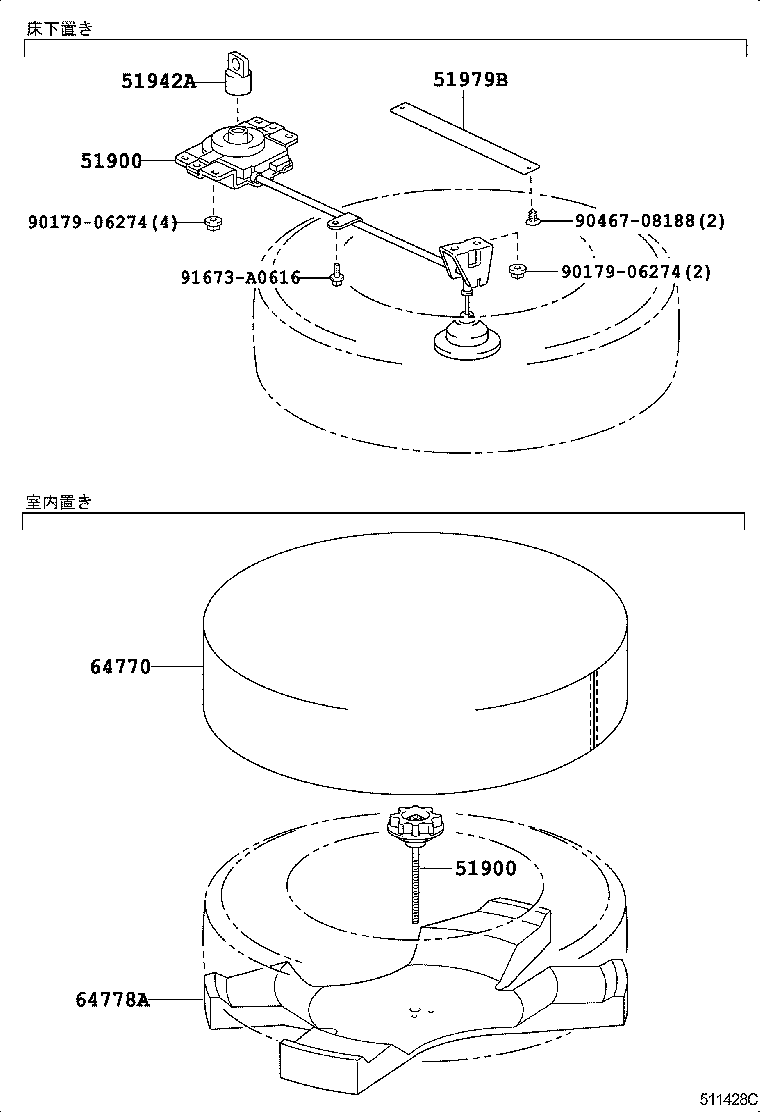

Click highlighted areas on diagram

diagram 51900 51900 51942A 51979B 64770 64778A 9017906274 9017906274 9046708188 91673A0616
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-28300

ACR55,GSR55..CBU

ｽﾍﾟｱﾀｲﾔ−T145 90D16&ｽﾍﾟｱﾎｲｰﾙｷｬﾘｱ−ﾘﾔﾃﾞｯｷ(応急用ﾀｲﾔ)

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-28300

ACR55,GSR55..CBU

ｽﾍﾟｱﾀｲﾔ−T145 90D16&ｽﾍﾟｱﾎｲｰﾙｷｬﾘｱ−ﾘﾔﾃﾞｯｷ(応急用ﾀｲﾔ)

 1
64770 - COVER ASSY, SPARE WHEEL
64770-28010

ACR55,GSR55..CBU

ｽﾍﾟｱﾀｲﾔ−T145 90D16

 1
64778A - PROTECTOR, SPARE WHEEL
64778-28030

ACR55,GSR55..CBU

ｽﾍﾟｱﾀｲﾔ−T145 90D16&ｽﾍﾟｱﾎｲｰﾙｷｬﾘｱ−ﾘﾔﾃﾞｯｷ(応急用ﾀｲﾔ)

 1
Common parts
90179-06274
90467-08188
91673-A0616
