GSR50W-GRTSK (2006)
Toyota Estima
Production
Jan 2006
-
Dec 2008
Engine
2GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0601- )AEPR ; (0601- )AEPG,AERAS,AESM,G,X

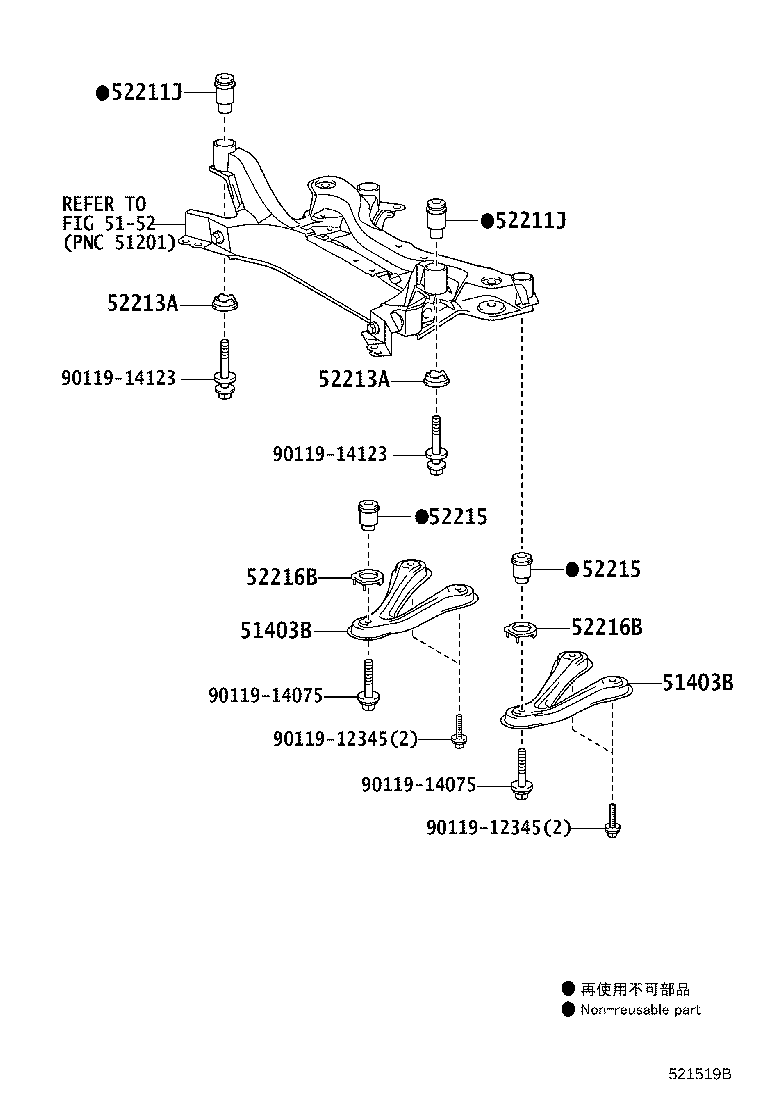

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51403B - BRACE SUB-ASSY, FRONT SUSPENSION MEMBER | ||||
| 51403-28070 |
ACR5#,GSR5#..CBU |
2 | ||
| 51403B - BRACE SUB-ASSY, FRONT SUSPENSION MEMBER | ||||
| 51403-28070 |
ACR5#,GSR5#..CBU |
2 | ||
| 52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52211-28040 |
ACR5#,GSR5#..CBU |
2 | ||
| 52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52211-28040 |
ACR5#,GSR5#..CBU |
2 | ||
| 52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52213-28040 |
ACR5#,GSR5#..CBU |
2 | ||
| 52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52213-28040 |
ACR5#,GSR5#..CBU |
2 | ||
| 52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52215-28030 |
ACR5#,GSR5#..CBU |
2 | ||
| 52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52215-28030 |
ACR5#,GSR5#..CBU |
2 | ||
| 52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52216-28030 |
ACR5#,GSR5#..CBU |
2 | ||
| 52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52216-28030 |
ACR5#,GSR5#..CBU |
2 | ||
| Common parts | ||||
| 90119-12345 | ||||
| 90119-14075 | ||||
| 90119-14123 | ||||
| Linked diagrams | ||||
| 5152 | ||||
