GSR50W-GFTSK (2012)
Toyota Estima
(1204-1605)AERAS

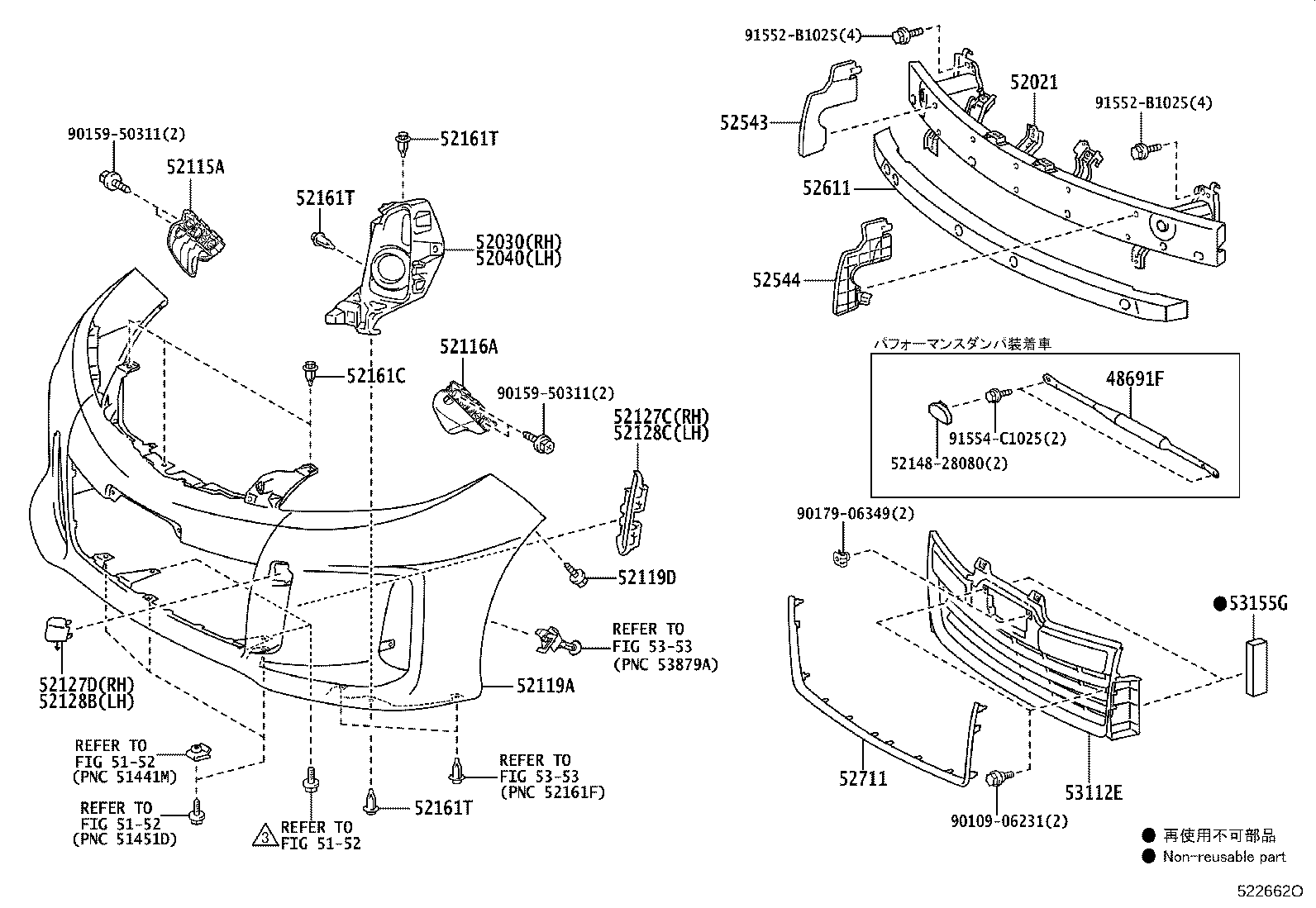

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-28210 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式 |
1 | ||
| 52021-28230 |
ACR5#,GSR5#..AERAS..CBU |
1 | ||
| 52021-28211 |
GSR5#..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式 |
1 | ||
| 52021-28220 |
ACR5#,GSR5#..CBU |
1 | ||
| 52021-28221 |
ACR5#,GSR5#..(G,X)..CBU |
1 | ||
| 52030 - COVER ASSY, FRONT BUMPER HOLE, RH | ||||
| 52030-28010 |
ACR5#,GSR5#..AERAS..CBU ﾒｯｷ |
1 | ||
| 52040 - COVER ASSY, FRONT BUMPER HOLE, LH | ||||
| 52040-28010 |
ACR5#,GSR5#..AERAS..CBU ﾒｯｷ |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-28120 |
ACR5#,GSR5#..CBU |
1 | ||
| 52115-28170 |
ACR5#,GSR5#..CBU |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-28170 |
ACR5#,GSR5#..CBU |
1 | ||
| 52116-28060 |
ACR5#,GSR5#..CBU |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-28B60B0 |
ACR5#,GSR5#..(G,X)..CBU SILVER ME.,1F7 |
1 | ||
| 52119-28B60J0 |
ACR5#,GSR5#..(G,X)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 52119-28B60A1 |
ACR5#,GSR5#..(G,X)..CBU WHITE PEARL CS.,070 |
1 | ||
| 52119-28B70D0 |
ACR5#,GSR5#..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),DK. RED M.M.,3Q3 |
1 | ||
| 52119-28B60F0 |
ACR5#,GSR5#..(G,X)..CBU SILKY GOLD M.M.,5A4 |
1 | ||
| 52119-28B70J0 |
ACR5#,GSR5#..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),DK.BLUE MC.,8S6 |
1 | ||
| 52119-28B60D0 |
ACR5#,GSR5#..(G,X)..CBU DK. RED M.M.,3Q3 |
1 | ||
| 52119-28B70A1 |
ACR5#,GSR5#..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ),WHITE PEARL CS.,070 |
1 | ||
| 52119-28B70B0 |
ACR5#,GSR5#..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ),SILVER ME.,1F7 |
1 | ||
| 52119-28B70A1 |
ACR5#,GSR5#..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),WHITE PEARL CS.,070 |
1 | ||
| 52119-28B70D0 |
ACR5#,GSR5#..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ),DK. RED M.M.,3Q3 |
1 | ||
| 52119-28B60J1 |
ACR5#,GSR5#..(G,X)..CBU LT.BLUE M.M.,8S7 |
1 | ||
| 52119-28B70J1 |
ACR5#,GSR5#..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),LT.BLUE M.M.,8S7 |
1 | ||
| 52119-28B70B0 |
ACR5#,GSR5#..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),SILVER ME.,1F7 |
1 | ||
| 52119-28B70J0 |
ACR5#,GSR5#..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ),DK.BLUE MC.,8S6 |
1 | ||
| 52119-28B70F0 |
ACR5#,GSR5#..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),SILKY GOLD M.M.,5A4 |
1 | ||
| 52119-28B70J1 |
ACR5#,GSR5#..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ),LT.BLUE M.M.,8S7 |
1 | ||
| 52119-28B80A0 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,WHITE PEARL CS.,070 |
1 | ||
| 52119-28B80J0 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,DK.BLUE MC.,8S6 |
1 | ||
| 52119-28B90A0 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ),WHITE PEARL CS.,070 |
1 | ||
| 52119-28B90B0 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),SILVER ME.,1F7 |
1 | ||
| 52119-28B80F0 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,SILKY GOLD M.M.,5A4 |
1 | ||
| 52119-28B70F0 |
ACR5#,GSR5#..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ),SILKY GOLD M.M.,5A4 |
1 | ||
| 52119-28B90B0 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ),SILVER ME.,1F7 |
1 | ||
| 52119-28B90A0 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),WHITE PEARL CS.,070 |
1 | ||
| 52119-28B80D0 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,DK. RED M.M.,3Q3 |
1 | ||
| 52119-28B80B0 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,SILVER ME.,1F7 |
1 | ||
| 52119-28B90D0 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ),DK. RED M.M.,3Q3 |
1 | ||
| 52119-28B90J1 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),LT.BLUE M.M.,8S7 |
1 | ||
| 52119-28B90J0 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ),DK.BLUE MC.,8S6 |
1 | ||
| 52119-28B90J1 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ),LT.BLUE M.M.,8S7 |
1 | ||
| 52119-28B80J1 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,LT.BLUE M.M.,8S7 |
1 | ||
| 52119-28B90F0 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ),SILKY GOLD M.M.,5A4 |
1 | ||
| 52119-28B90D0 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),DK. RED M.M.,3Q3 |
1 | ||
| 52119-28B90F0 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),SILKY GOLD M.M.,5A4 |
1 | ||
| 52119-28C20B0 |
ACR5#,GSR5#..AERAS..CBU SILVER ME.,1F7 |
1 | ||
| 52119-28C20A0 |
ACR5#,GSR5#..AERAS..CBU WHITE PEARL CS.,070 |
1 | ||
| 52119-28B90J0 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),DK.BLUE MC.,8S6 |
1 | ||
| 52119-28C20B1 |
ACR5#,GSR5#..AERAS..CBU MEDIUM SILVER ME.,1F8 |
1 | ||
| 52119-28C20C0 |
ACR5#,GSR5#..AERAS..CBU BLACK,202 |
1 | ||
| 52119-28E50A0 |
ACR5#,GSR5#..(G,X)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),WHITE PEARL CS.,070 |
1 | ||
| 52119-28F10A0 |
GSR5#..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),WHITE PEARL CS.,070 |
1 | ||
| 52119-28E50B0 |
ACR5#,GSR5#..(G,X)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),SILVER ME.,1F7 |
1 | ||
| 52119-28G10B0 |
ACR5#,GSR5#..AERAS..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),SILVER ME.,1F7 |
1 | ||
| 52119-28E50C0 |
ACR5#,GSR5#..(G,X)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),BLACK,202 |
1 | ||
| 52119-28E50D1 |
ACR5#,GSR5#..(G,X)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),DEEP RED M.M.,3R9 |
1 | ||
| 52119-28E50B2 |
ACR5#,GSR5#..(G,X)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),ICE TITANIUMM.M.,1H4 |
1 | ||
| 52119-28F10B2 |
GSR5#..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),ICE TITANIUM M.M.,1H4 |
1 | ||
| 52119-28F10D1 |
GSR5#..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),DEEP RED M.M.,3R9 |
1 | ||
| 52119-28E10B1 |
ACR5#,GSR5#..(G,X)..CBU SILVER ME.,1F7 |
1 | ||
| 52119-28E10A1 |
ACR5#,GSR5#..(G,X)..CBU WHITE PEARL CS.,070 |
1 | ||
| 52119-28G10B1 |
ACR5#,GSR5#..AERAS..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),ICE TITANIUMM.M.,1H4 |
1 | ||
| 52119-28G10C0 |
ACR5#,GSR5#..AERAS..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),BLACK,202 |
1 | ||
| 52119-28E10D1 |
ACR5#,GSR5#..(G,X)..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52119-28E80A0 |
GSR5#..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,WHITE PEARL CS.,070 |
1 | ||
| 52119-28G10A0 |
ACR5#,GSR5#..AERAS..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),WHITE PEARL CS.,070 |
1 | ||
| 52119-28E10B3 |
ACR5#,GSR5#..(G,X)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52119-28G00A0 |
ACR5#,GSR5#..AERAS..CBU WHITE PEARL CS.,070 |
1 | ||
| 52119-28F10B0 |
GSR5#..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),SILVER ME.,1F7 |
1 | ||
| 52119-28E10C0 |
ACR5#,GSR5#..(G,X)..CBU BLACK,202 |
1 | ||
| 52119-28G10D0 |
ACR5#,GSR5#..AERAS..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),DEEP RED M.M.,3R9 |
1 | ||
| 52119-28F10C0 |
GSR5#..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),BLACK,202 |
1 | ||
| 52119-28E80C0 |
GSR5#..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,BLACK,202 |
1 | ||
| 52119-28E80D1 |
GSR5#..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,DEEP RED M.M.,3R9 |
1 | ||
| 52119-28G00D0 |
ACR5#,GSR5#..AERAS..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52119-28E80B2 |
GSR5#..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,ICE TITANIUM M.M.,1H4 |
1 | ||
| 52119-28G30B0 |
ACR5#,GSR5#..(G,X)..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,SILVER ME.,1F7 |
1 | ||
| 52119-28G00C0 |
ACR5#,GSR5#..AERAS..CBU BLACK,202 |
1 | ||
| 52119-28E80B0 |
GSR5#..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,SILVER ME.,1F7 |
1 | ||
| 52119-28G30A1 |
ACR5#,GSR5#..(G,X)..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,WHITE PEARL CS.,070 |
1 | ||
| 52119-28G10J0 |
ACR5#,GSR5#..AERAS..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),GRAYISH BLUEM.M.,8V5 |
1 | ||
| 52119-28G00J0 |
ACR5#,GSR5#..AERAS..CBU GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-28G30C0 |
ACR5#,GSR5#..(G,X)..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,BLACK,202 |
1 | ||
| 52119-28G30B1 |
ACR5#,GSR5#..(G,X)..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,ICE TITANIUM M.M.,1H4 |
1 | ||
| 52119-28G30D0 |
ACR5#,GSR5#..(G,X)..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,DEEP RED M.M.,3R9 |
1 | ||
| 52119-28J30D0 |
GSR5#..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り,DEEP RED M.M.,3R9 |
1 | ||
| 52119-28G00B0 |
ACR5#,GSR5#..AERAS..CBU SILVER ME.,1F7 |
1 | ||
| 52119-28J30C0 |
GSR5#..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り,BLACK,202 |
1 | ||
| 52119-28J40B0 |
ACR5#,GSR5#..AERAS..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,SILVER ME.,1F7 |
1 | ||
| 52119-28G00B1 |
ACR5#,GSR5#..AERAS..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52119-28J30B1 |
GSR5#..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り,ICE TITANIUM M.M.,1H4 |
1 | ||
| 52119-28J40B1 |
ACR5#,GSR5#..AERAS..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,ICE TITANIUM M.M.,1H4 |
1 | ||
| 52119-28J30B0 |
GSR5#..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り,SILVER ME.,1F7 |
1 | ||
| 52119-28J40D0 |
ACR5#,GSR5#..AERAS..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,DEEP RED M.M.,3R9 |
1 | ||
| 52119-28J30A0 |
GSR5#..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り,WHITE PEARL CS.,070 |
1 | ||
| 52119-28J40J0 |
ACR5#,GSR5#..AERAS..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52119-28J40C0 |
ACR5#,GSR5#..AERAS..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,BLACK,202 |
1 | ||
| 52119-28J40A0 |
ACR5#,GSR5#..AERAS..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,WHITE PEARL CS.,070 |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60217 |
ACR5#,GSR5#..CBU |
2 | ||
| 90159-50353 |
ACR5#,GSR5#..CBU |
2 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-28200F0 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,SILKY GOLD M.M.,5A4 |
1 | ||
| 52127-28200A0 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ),WHITE PEARL CS.,070 |
1 | ||
| 52127-28200B0 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ),SILVER ME.,1F7 |
1 | ||
| 52127-28200J0 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),DK.BLUE MC.,8S6 |
1 | ||
| 52127-28200B0 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),SILVER ME.,1F7 |
1 | ||
| 52127-28200J1 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,LT.BLUE M.M.,8S7 |
1 | ||
| 52127-28200B0 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,SILVER ME.,1F7 |
1 | ||
| 52127-28200F0 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),SILKY GOLD M.M.,5A4 |
1 | ||
| 52127-28200D0 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,DK. RED M.M.,3Q3 |
1 | ||
| 52127-28200A0 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),WHITE PEARL CS.,070 |
1 | ||
| 52127-28200D0 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ),DK. RED M.M.,3Q3 |
1 | ||
| 52127-28200F0 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ),SILKY GOLD M.M.,5A4 |
1 | ||
| 52127-28200J0 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,DK.BLUE MC.,8S6 |
1 | ||
| 52127-28200J1 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),LT.BLUE M.M.,8S7 |
1 | ||
| 52127-28200J1 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ),LT.BLUE M.M.,8S7 |
1 | ||
| 52127-28200D0 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),DK. RED M.M.,3Q3 |
1 | ||
| 52127-28200J0 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り(ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ),DK.BLUE MC.,8S6 |
1 | ||
| 52127-28200A0 |
GSR5#..G..CBU ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,WHITE PEARL CS.,070 |
1 | ||
| 52127-28330A1 |
GSR5#..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),WHITE PEARL,070 |
1 | ||
| 52127-28330B4 |
GSR5#..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),ICE TITANIUM,1H4 |
1 | ||
| 52127-28330B2 |
GSR5#..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,SILVER,1F7 |
1 | ||
| 52127-28330B2 |
GSR5#..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),SILVER,1F7 |
1 | ||
| 52127-28330B4 |
GSR5#..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り,ICE TITANIUM,1H4 |
1 | ||
| 52127-28330D2 |
GSR5#..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,DEEP RED,3R9 |
1 | ||
| 52127-28440 |
ACR5#,GSR5#..AERAS..CBU |
1 | ||
| 52127-28330A1 |
GSR5#..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り,WHITE PEARL,070 |
1 | ||
| 52127-28330C0 |
GSR5#..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),BLACK,202 |
1 | ||
| 52127-28330D2 |
GSR5#..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),DEEP RED,3R9 |
1 | ||
| 52127-28330B4 |
GSR5#..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,ICE TITANIUM,1H4 |
1 | ||
| 52127-28330C0 |
GSR5#..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り,BLACK,202 |
1 | ||
| 52127-28330B2 |
GSR5#..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り,SILVER,1F7 |
1 | ||
| 52127-28330C0 |
GSR5#..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,BLACK,202 |
1 | ||
| 52127-28330A1 |
GSR5#..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式,WHITE PEARL,070 |
1 | ||
| 52127-28330D2 |
GSR5#..G ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−ﾐﾘ波ﾚｰﾀﾞ方式&ｸﾘｱﾗﾝｽｿﾅｰ−有り,DEEP RED,3R9 |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-28180A1 |
ACR5#,GSR5#..(G,X)..CBU WHITE PEARL CS.,070 |
1 | ||
| 52127-28180F0 |
ACR5#,GSR5#..(G,X)..CBU SILKY GOLD M.M.,5A4 |
1 | ||
| 52127-28180D0 |
ACR5#,GSR5#..(G,X)..CBU DK. RED M.M.,3Q3 |
1 | ||
| 52127-28190C0 |
ACR5#,GSR5#..AERAS..CBU BLACK,202 |
1 | ||
| 52127-28180J1 |
ACR5#,GSR5#..(G,X)..CBU LT.BLUE M.M.,8S7 |
1 | ||
| 52127-28190A0 |
ACR5#,GSR5#..AERAS..CBU WHITE PEARL CS.,070 |
1 | ||
| 52127-28190B0 |
ACR5#,GSR5#..AERAS..CBU SILVER ME.,1F7 |
1 | ||
| 52127-28190B1 |
ACR5#,GSR5#..AERAS..CBU MEDIUM SILVER ME.,1F8 |
1 | ||
| 52127-28180J0 |
ACR5#,GSR5#..(G,X)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 52127-28300B1 |
ACR5#,GSR5#..(G,X)..CBU SILVER ME.,1F7 |
1 | ||
| 52127-28300A1 |
ACR5#,GSR5#..(G,X)..CBU WHITE PEARL CS.,070 |
1 | ||
| 52127-28430A0 |
ACR5#,GSR5#..AERAS..CBU WHITE PEARL CS.,070 |
1 | ||
| 52127-28180B0 |
ACR5#,GSR5#..(G,X)..CBU SILVER ME.,1F7 |
1 | ||
| 52127-28430J0 |
ACR5#,GSR5#..AERAS..CBU GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52127-28300B3 |
ACR5#,GSR5#..(G,X)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52127-28300C0 |
ACR5#,GSR5#..(G,X)..CBU BLACK,202 |
1 | ||
| 52127-28430C0 |
ACR5#,GSR5#..AERAS..CBU BLACK,202 |
1 | ||
| 52127-28300D1 |
ACR5#,GSR5#..(G,X)..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52127-28430B1 |
ACR5#,GSR5#..AERAS..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52127-28430D0 |
ACR5#,GSR5#..AERAS..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52127-28430B0 |
ACR5#,GSR5#..AERAS..CBU SILVER ME.,1F7 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52127-28180A1 |
ACR5#,GSR5#..(G,X)..CBU WHITE PEARL CS.,070 |
1 | ||
| 52127-28180B0 |
ACR5#,GSR5#..(G,X)..CBU SILVER ME.,1F7 |
1 | ||
| 52127-28180J0 |
ACR5#,GSR5#..(G,X)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 52127-28190A0 |
ACR5#,GSR5#..AERAS..CBU WHITE PEARL CS.,070 |
1 | ||
| 52127-28180D0 |
ACR5#,GSR5#..(G,X)..CBU DK. RED M.M.,3Q3 |
1 | ||
| 52127-28180J1 |
ACR5#,GSR5#..(G,X)..CBU LT.BLUE M.M.,8S7 |
1 | ||
| 52127-28190B1 |
ACR5#,GSR5#..AERAS..CBU MEDIUM SILVER ME.,1F8 |
1 | ||
| 52127-28180F0 |
ACR5#,GSR5#..(G,X)..CBU SILKY GOLD M.M.,5A4 |
1 | ||
| 52127-28190B0 |
ACR5#,GSR5#..AERAS..CBU SILVER ME.,1F7 |
1 | ||
| 52127-28300A1 |
ACR5#,GSR5#..(G,X)..CBU WHITE PEARL CS.,070 |
1 | ||
| 52128-28430A0 |
ACR5#,GSR5#..AERAS..CBU WHITE PEARL CS.,070 |
1 | ||
| 52127-28300B3 |
ACR5#,GSR5#..(G,X)..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52128-28430B1 |
ACR5#,GSR5#..AERAS..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 52128-28430B0 |
ACR5#,GSR5#..AERAS..CBU SILVER ME.,1F7 |
1 | ||
| 52127-28300C0 |
ACR5#,GSR5#..(G,X)..CBU BLACK,202 |
1 | ||
| 52127-28190C0 |
ACR5#,GSR5#..AERAS..CBU BLACK,202 |
1 | ||
| 52128-28430J0 |
ACR5#,GSR5#..AERAS..CBU GRAYISH BLUE M.M.,8V5 |
1 | ||
| 52127-28300B1 |
ACR5#,GSR5#..(G,X)..CBU SILVER ME.,1F7 |
1 | ||
| 52128-28430C0 |
ACR5#,GSR5#..AERAS..CBU BLACK,202 |
1 | ||
| 52127-28300D1 |
ACR5#,GSR5#..(G,X)..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52128-28430D0 |
ACR5#,GSR5#..AERAS..CBU DEEP RED M.M.,3R9 |
1 | ||
| 52128C - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-28440 |
ACR5#,GSR5#..AERAS..CBU |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ACR5#,GSR5#..CBU |
3 | ||
| 52161-16010 |
ACR5#,GSR5#..CBU |
3 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ACR5#,GSR5#..(G,X)..CBU |
2 | ||
| 52161-16010 |
ACR5#,GSR5#..AERAS..CBU |
6 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ACR5#,GSR5#..(G,X)..CBU |
2 | ||
| 52161-16010 |
ACR5#,GSR5#..AERAS..CBU |
6 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ACR5#,GSR5#..(G,X)..CBU |
2 | ||
| 52161-16010 |
ACR5#,GSR5#..AERAS..CBU |
6 | ||
| 52543 - SEAL, FRONT BUMPER SIDE, RH | ||||
| 52545-28040 |
ACR5#,GSR5#..CBU |
1 | ||
| 52545-28051 |
ACR5#,GSR5#..CBU |
1 | ||
| 52544 - SEAL, FRONT BUMPER SIDE, LH | ||||
| 52546-28051 |
ACR5#,GSR5#..CBU |
1 | ||
| 52546-28030 |
ACR5#,GSR5#..CBU |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-28081 |
ACR5#,GSR5#..CBU |
1 | ||
| 52611-28080 |
ACR5#,GSR5#..CBU |
1 | ||
| 52611-28080 |
ACR5#,GSR5#..CBU |
1 | ||
| 52711 - MOULDING, FRONT BUMPER | ||||
| 52711-28150 |
ACR5#,GSR5#..AERAS..CBU ﾒｯｷ |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-28030 |
ACR5#,GSR5#..AERAS..CBU 塗装不要 |
1 | ||
| 53112-28010 |
ACR5#,GSR5#..(G,X)..CBU 塗装不要 |
1 | ||
| 53112-28210 |
ACR5#,GSR5#..AERAS..CBU 塗装不要 |
1 | ||
| 53112-28110 |
ACR5#,GSR5#..(G,X)..CBU 塗装不要 |
1 | ||
| 53155G - SEAL, RADIATOR GRILLE | ||||
| 53155-28051 |
ACR5#,GSR5#..AERAS..CBU |
2 | ||
| Common parts | ||||
| 52148-28080 | ||||
| 90109-06231 | ||||
| 90159-50311 | ||||
| 90179-06349 | ||||
| 91552-B1025 | ||||
| 91554-C1025 | ||||
| Linked diagrams | ||||
| 5152 | ||||
| 5353 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
