GSR50W-GFTQK (2012)
Toyota Estima

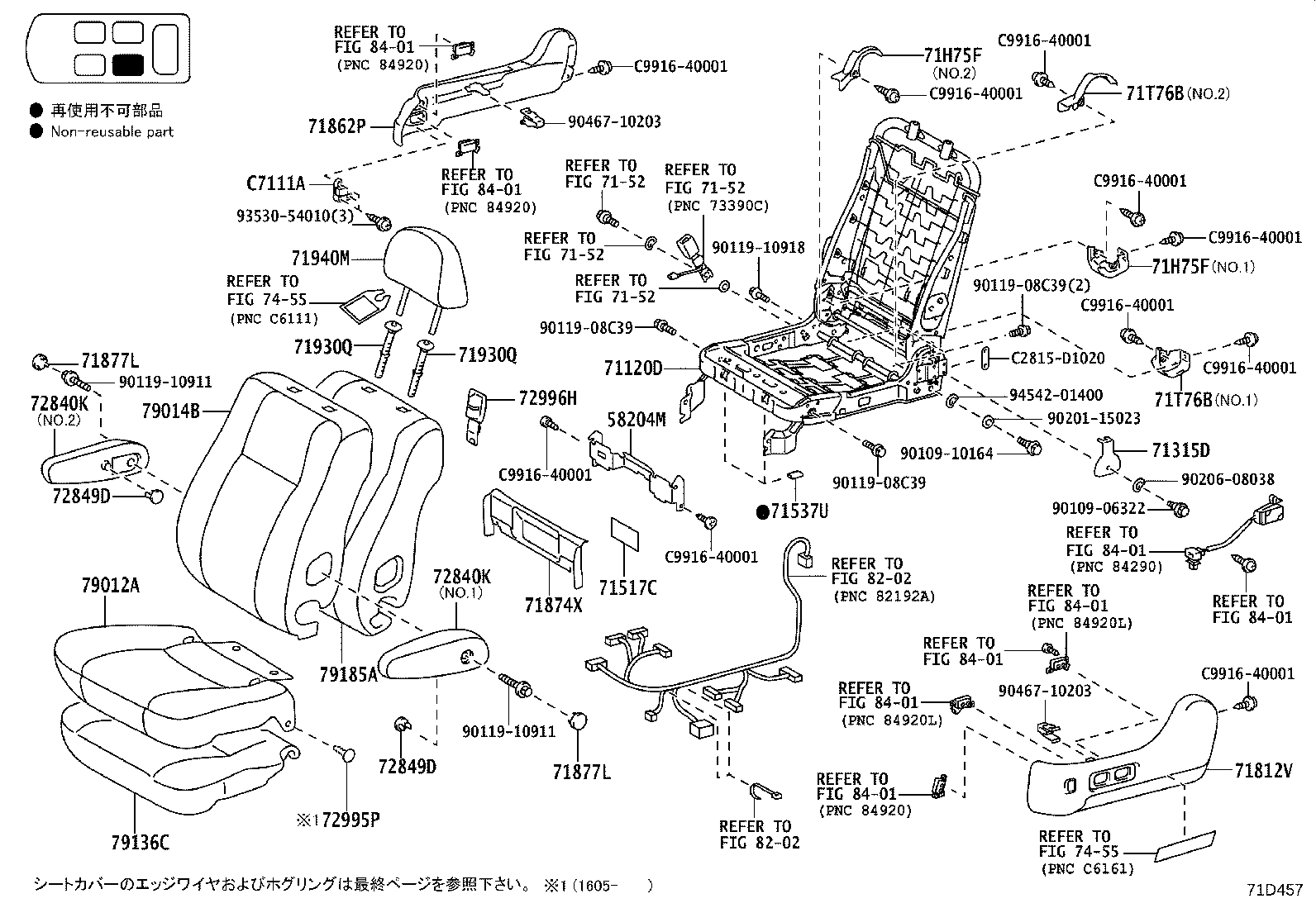

ILLUST NO. 1 OF 6(1204- )07S
ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ(ﾋｮｳｼﾞｭﾝﾀｲﾌﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71120D - FRAME ASSY, REAR SEAT W/ADJUSTER, LH | ||||
| 71120-28200 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 71315D - PLATE, REAR SEAT HINGE, LOWER | ||||
| 71315-D1010 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 71537U - PROTECTOR, REAR SEAT CUSHION, NO.2 | ||||
| 71537-26010 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
2 | ||
| 71877L - COVER, REAR SEAT ARMREST HOLE LH | ||||
| 72848-28030E1 |
ACR5#,GSR5#..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
2 | ||
| 72848-28030E1 |
ACR5#,GSR5#..07S..G..CBU GREGE,TRIM4# |
1 | ||
| 72848-28030A2 |
ACR5#,GSR5#..07S..CBU SHELL,TRIM0# |
2 | ||
| 71877L - COVER, REAR SEAT ARMREST HOLE LH | ||||
| 72848-28030E1 |
ACR5#,GSR5#..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
2 | ||
| 72848-28030E1 |
ACR5#,GSR5#..07S..G..CBU GREGE,TRIM4# |
1 | ||
| 72848-28030A2 |
ACR5#,GSR5#..07S..CBU SHELL,TRIM0# |
2 | ||
| 71930Q - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71930-42020E1 |
GSR5#..07S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/介護ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 71930-42020E1 |
GSR5#..07S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/自操ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 71930-42020E1 |
ACR5#..08S..X..CBU;ACR5#,GSR5#..07S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71930-42020E1 |
GSR5#..07S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 71931-42020E1 |
GSR5#..07S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/介護ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 71931-42020E1 |
GSR5#..07S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/自操ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 71931-42020E1 |
GSR5#..07S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 71931-42020E1 |
ACR5#,GSR5#..07S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 71931-42020E1 |
ACR5#..08S..X..CBU;ACR5#,GSR5#..07S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
2 | ||
| 71931-42020A5 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),SHELL,TRIM0# |
2 | ||
| 71930-52030A2 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),SHELL,TRIM0# |
2 | ||
| 71930Q - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71930-42020E1 |
GSR5#..07S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/介護ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 71930-42020E1 |
GSR5#..07S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/自操ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 71930-42020E1 |
ACR5#..08S..X..CBU;ACR5#,GSR5#..07S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71930-42020E1 |
GSR5#..07S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 71931-42020E1 |
GSR5#..07S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/介護ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 71931-42020E1 |
GSR5#..07S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/自操ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 71931-42020E1 |
GSR5#..07S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 71931-42020E1 |
ACR5#,GSR5#..07S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 71931-42020E1 |
ACR5#..08S..X..CBU;ACR5#,GSR5#..07S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
2 | ||
| 71931-42020A5 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),SHELL,TRIM0# |
2 | ||
| 71930-52030A2 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),SHELL,TRIM0# |
2 | ||
| 71940M - HEADREST ASSY, REAR SEAT | ||||
| 71910-28A90 |
ACR5#,GSR5#..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 71940-28A60E1 |
ACR5#,GSR5#..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 71940-28A60E1 |
GSR5#..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/自操ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 71940-28A60E1 |
GSR5#..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 71940-28A60E1 |
GSR5#..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/介護ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 71940-28A60E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
2 | ||
| 71940-28A70E0 |
GSR5#..07S..G..CBU ｺﾝｿｰﾙ ﾎﾞｯｸｽ−有り&ｼｰﾄ表皮−本革,GREGE,TRIM4# |
2 | ||
| 71940-28A70E0 |
GSR5#..07S..G..CBU ｼｰﾄ表皮−本革,GREGE,TRIM4# |
2 | ||
| 71960-28070E0 |
GSR5#..07S..G..CBU ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71960-28070E0 |
GSR5#..07S..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(ｾﾝﾀｱｰﾑﾚｽﾄ & 電動床下格納)&ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71960-28070E0 |
GSR5#..07S..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(ｾﾝﾀｱｰﾑﾚｽﾄ & 電動床下格納)&ｼｰﾄ表皮−本革,GREGE,TRIM4# |
1 | ||
| 71940-28A70A1 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
2 | ||
| 71940-28J90A0 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
2 | ||
| 71940-28E50A1 |
ACR5#,GSR5#..G SHELL,TRIM0# |
2 | ||
| 71H75F - COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.1 LH S | ||||
| 71875-28200E0 |
ACR5#,GSR5#..07S..G..CBU GREGE,TRIM4# |
1 | ||
| 71875-60140 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 71876-60170E2 |
ACR5#,GSR5#..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 71875-28200A0 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU SHELL,TRIM0# |
1 | ||
| 71H75F - COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.1 LH S | ||||
| 71875-28200E0 |
ACR5#,GSR5#..07S..G..CBU GREGE,TRIM4# |
1 | ||
| 71875-60140 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 71876-60170E2 |
ACR5#,GSR5#..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 71875-28200A0 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU SHELL,TRIM0# |
1 | ||
| 71T76B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-28190E0 |
ACR5#,GSR5#..07S..G..CBU GREGE,TRIM4#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 71876-28230E0 |
ACR5#,GSR5#..07S..G..CBU GREGE,TRIM4#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 71876-60140 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 71876-60150E1 |
ACR5#,GSR5#..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 71876-28230A0 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU SHELL,TRIM0#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 71876-28190A0 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU SHELL,TRIM0#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 71T76B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-28190E0 |
ACR5#,GSR5#..07S..G..CBU GREGE,TRIM4#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 71876-28230E0 |
ACR5#,GSR5#..07S..G..CBU GREGE,TRIM4#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 71876-60140 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 71876-60150E1 |
ACR5#,GSR5#..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 71876-28230A0 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU SHELL,TRIM0#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 71876-28190A0 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU SHELL,TRIM0#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 72840K - ARMREST ASSY, REAR NO.1 SEAT, LH | ||||
| 72880-28A50E1 |
ACR5#,GSR5#..07S..G..CBU GREGE,TRIM4#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 72880-28A80E0 |
GSR5#..07S..G..CBU ｼｰﾄ表皮−本革,GREGE,TRIM4#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 72880-28B30E1 |
ACR5#,GSR5#..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 72890-28A50E1 |
ACR5#,GSR5#..07S..G..CBU GREGE,TRIM4#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 72880-28A80E0 |
GSR5#..07S..G..CBU ｺﾝｿｰﾙ ﾎﾞｯｸｽ−有り&ｼｰﾄ表皮−本革,GREGE,TRIM4#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 72890-28A80E0 |
GSR5#..07S..G..CBU ｺﾝｿｰﾙ ﾎﾞｯｸｽ−有り&ｼｰﾄ表皮−本革,GREGE,TRIM4#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 72890-28A80E0 |
GSR5#..07S..G..CBU ｼｰﾄ表皮−本革,GREGE,TRIM4#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 72890-28B30E1 |
ACR5#,GSR5#..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 72880-28D40A0 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 72880-28E01A1 |
ACR5#,GSR5#..G SHELL,TRIM0#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 72890-28D40A0 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 72890-28E01A1 |
ACR5#,GSR5#..G SHELL,TRIM0#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 72840K - ARMREST ASSY, REAR NO.1 SEAT, LH | ||||
| 72880-28A50E1 |
ACR5#,GSR5#..07S..G..CBU GREGE,TRIM4#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 72880-28A80E0 |
GSR5#..07S..G..CBU ｼｰﾄ表皮−本革,GREGE,TRIM4#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 72880-28B30E1 |
ACR5#,GSR5#..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 72890-28A50E1 |
ACR5#,GSR5#..07S..G..CBU GREGE,TRIM4#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 72880-28A80E0 |
GSR5#..07S..G..CBU ｺﾝｿｰﾙ ﾎﾞｯｸｽ−有り&ｼｰﾄ表皮−本革,GREGE,TRIM4#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 72890-28A80E0 |
GSR5#..07S..G..CBU ｺﾝｿｰﾙ ﾎﾞｯｸｽ−有り&ｼｰﾄ表皮−本革,GREGE,TRIM4#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 72890-28A80E0 |
GSR5#..07S..G..CBU ｼｰﾄ表皮−本革,GREGE,TRIM4#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 72890-28B30E1 |
ACR5#,GSR5#..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 72880-28D40A0 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 72880-28E01A1 |
ACR5#,GSR5#..G SHELL,TRIM0#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 72890-28D40A0 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 72890-28E01A1 |
ACR5#,GSR5#..G SHELL,TRIM0#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 72849D - CAP, SEAT ARMREST, NO.2 | ||||
| 72849-D1010E0 |
ACR5#,GSR5#..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
2 | ||
| 72849D - CAP, SEAT ARMREST, NO.2 | ||||
| 72849-D1010E0 |
ACR5#,GSR5#..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
2 | ||
| 72995P - CLIP, REAR SEAT CUSHION COVER | ||||
| 71769-60010E3 |
ACR5#,GSR5#..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
2 | ||
| 79012A - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 71076-28050E1 |
GSR5#..07S..G..CBU ｺﾝｿｰﾙ ﾎﾞｯｸｽ−有り&ｼｰﾄ表皮−本革,GREGE,TRIM4# |
1 | ||
| 71076-28040E2 |
ACR5#,GSR5#..07S..G..CBU GREGE,TRIM4# |
1 | ||
| 71076-28050E1 |
GSR5#..07S..G..CBU ｼｰﾄ表皮−本革,GREGE,TRIM4# |
1 | ||
| 79012-28610E1 |
ACR5#,GSR5#..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 71076-28140A1 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71076-28120A2 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 79014B - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 71078-28530E1 |
ACR5#,GSR5#..07S..G..CBU GREGE,TRIM4# |
1 | ||
| 71078-28540E0 |
GSR5#..07S..G..CBU ｼｰﾄ表皮−本革,GREGE,TRIM4# |
1 | ||
| 79014-28B00E1 |
ACR5#,GSR5#..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 71078-28540E0 |
GSR5#..07S..G..CBU ｺﾝｿｰﾙ ﾎﾞｯｸｽ−有り&ｼｰﾄ表皮−本革,GREGE,TRIM4# |
1 | ||
| 71078-28620A1 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 71078-28630A0 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 79136C - PAD, NO.1 SEAT CUSHION, LH | ||||
| 71612-28090 |
ACR5#,GSR5#..07S..G..CBU |
1 | ||
| 79135-28390 |
ACR5#,GSR5#..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 71612-28120 |
ACR5#,GSR5#..G |
1 | ||
| 79185A - PAD, NO.1 SEAT BACK, LH | ||||
| 71652-28090 |
ACR5#,GSR5#..07S..G..CBU |
1 | ||
| 71551-28580 |
ACR5#,GSR5#..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 71652-28120 |
ACR5#,GSR5#..G |
1 | ||
| Common parts | ||||
| 90109-06322 | ||||
| 90109-10164 | ||||
| 90119-08C39 | ||||
| 90119-10911 | ||||
| 90119-10918 | ||||
| 90201-15023 | ||||
| 90206-08038 | ||||
| 90467-10203 | ||||
| 93530-54010 | ||||
| 94542-01400 | ||||
| C2815-D1020 | ||||
| C9916-40001 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7455 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 6(1204- )07S
ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ(ﾋｮｳｼﾞｭﾝﾀｲﾌﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71430E - CLIP | ||||
| 90467-0502022 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK |
2 | ||
| 90467-05020E9 |
ACR5#,GSR5#..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
2 | ||
| 71430E - CLIP | ||||
| 90467-0502022 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK |
2 | ||
| 90467-05020E9 |
ACR5#,GSR5#..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
2 | ||
| 71430E - CLIP | ||||
| 90467-0502022 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK |
2 | ||
| 90467-05020E9 |
ACR5#,GSR5#..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
2 | ||
| 71430E - CLIP | ||||
| 90467-0502022 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK |
2 | ||
| 90467-05020E9 |
ACR5#,GSR5#..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
2 | ||
| 71430E - CLIP | ||||
| 90467-0502022 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK |
2 | ||
| 90467-05020E9 |
ACR5#,GSR5#..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
2 | ||
| 71430E - CLIP | ||||
| 90467-0502022 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK |
2 | ||
| 90467-05020E9 |
ACR5#,GSR5#..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
2 | ||
| 71430E - CLIP | ||||
| 90467-0502022 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK |
2 | ||
| 90467-05020E9 |
ACR5#,GSR5#..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
2 | ||
| 71430E - CLIP | ||||
| 90467-0502022 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),BLACK |
2 | ||
| 90467-05020E9 |
ACR5#,GSR5#..07S..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
2 | ||

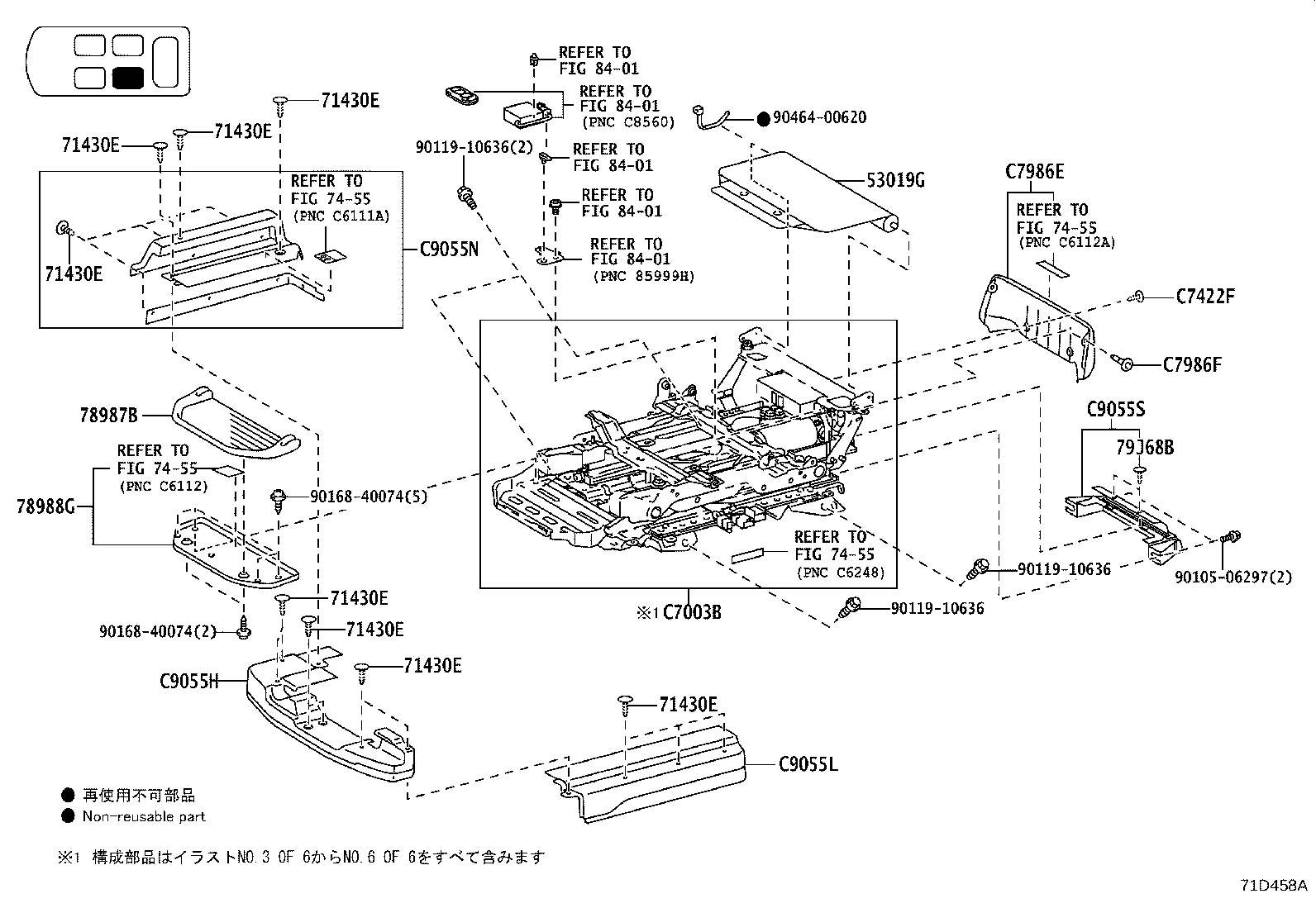

| C7003B - LIFT UNIT, REAR SEAT | ||||
| C7013-D1490 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| Common parts | ||||
| 90105-06297 | ||||
| 90119-10636 | ||||
| 90168-40074 | ||||
| 90464-00620 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8401 | ||||

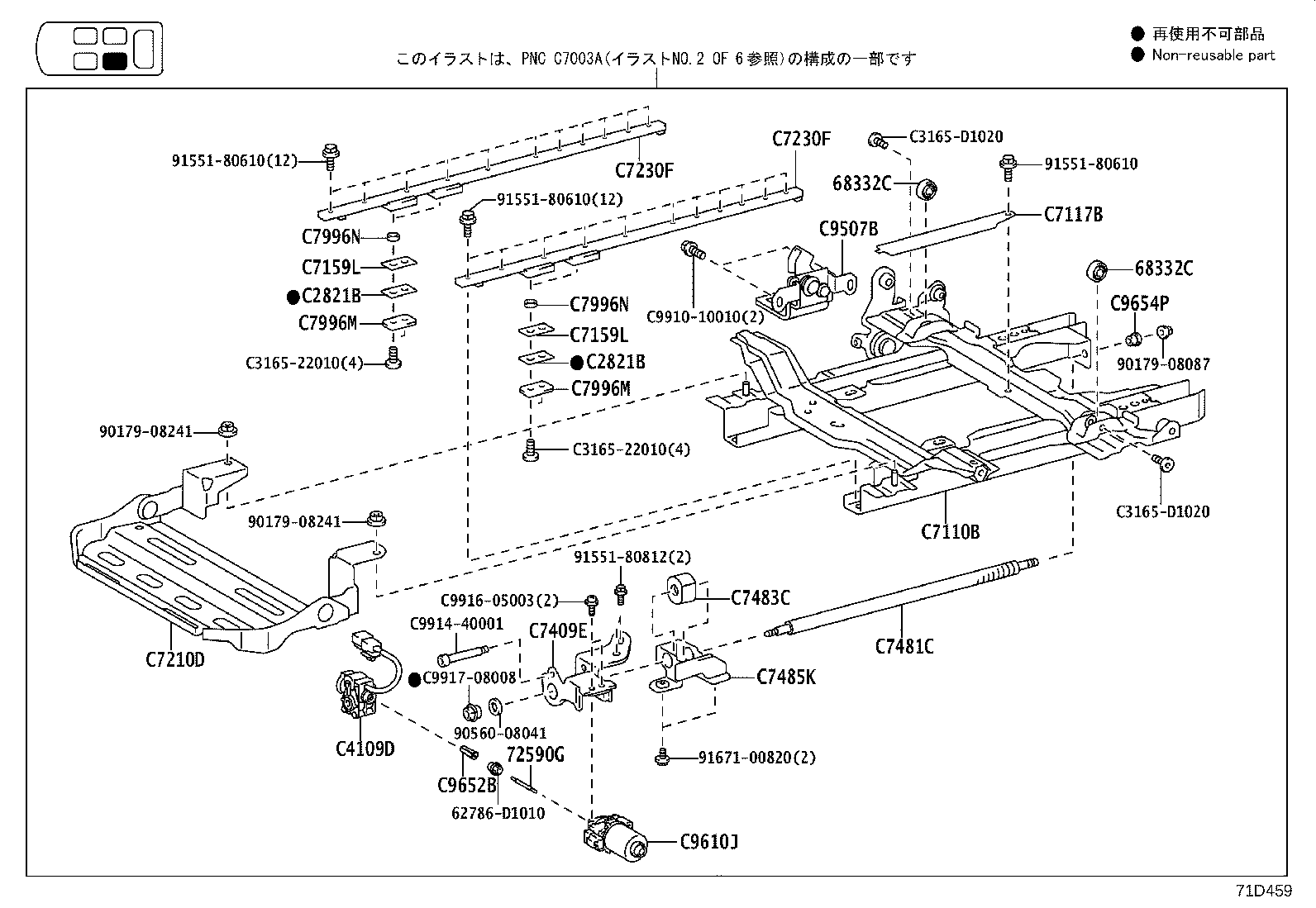

ILLUST NO. 3 OF 6(1204- )07S
ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ(ﾋｮｳｼﾞｭﾝﾀｲﾌﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 62786-D1010 | ||||
| 90179-08087 | ||||
| 90179-08241 | ||||
| 90560-08041 | ||||
| 91551-80610 | ||||
| 91551-80812 | ||||
| 91671-00820 | ||||
| C3165-22010 | ||||
| C3165-D1020 | ||||
| C9910-10010 | ||||
| C9914-40001 | ||||
| C9916-05003 | ||||
| C9917-08008 | ||||

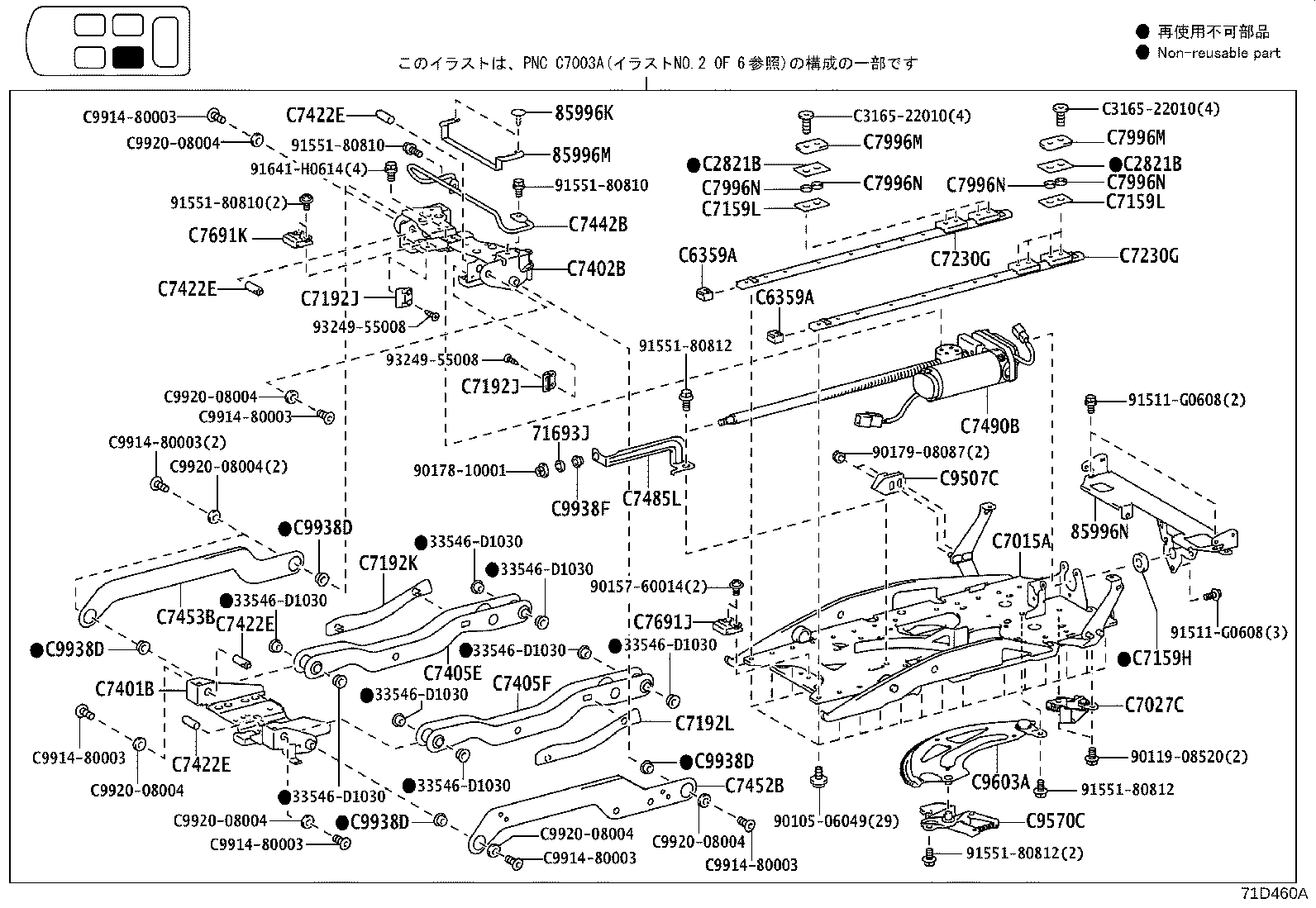

ILLUST NO. 4 OF 6(1204- )07S
ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ(ﾋｮｳｼﾞｭﾝﾀｲﾌﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| C7490B - CYLINDER ASSY, WELCAB SEAT | ||||
| C7490-D1030 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| C9938D - BUSH, NO.1 | ||||
| C9938-20017 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
5 | ||
| C9938D - BUSH, NO.1 | ||||
| C9938-20017 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
5 | ||
| C9938D - BUSH, NO.1 | ||||
| C9938-20017 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
5 | ||
| C9938D - BUSH, NO.1 | ||||
| C9938-20017 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
5 | ||
| Common parts | ||||
| 33546-D1030 | ||||
| 90105-06049 | ||||
| 90119-08520 | ||||
| 90157-60014 | ||||
| 90178-10001 | ||||
| 90179-08087 | ||||
| 91511-G0608 | ||||
| 91551-80810 | ||||
| 91551-80812 | ||||
| 91641-H0614 | ||||
| 93249-55008 | ||||
| C3165-22010 | ||||
| C9914-80003 | ||||
| C9920-08004 | ||||

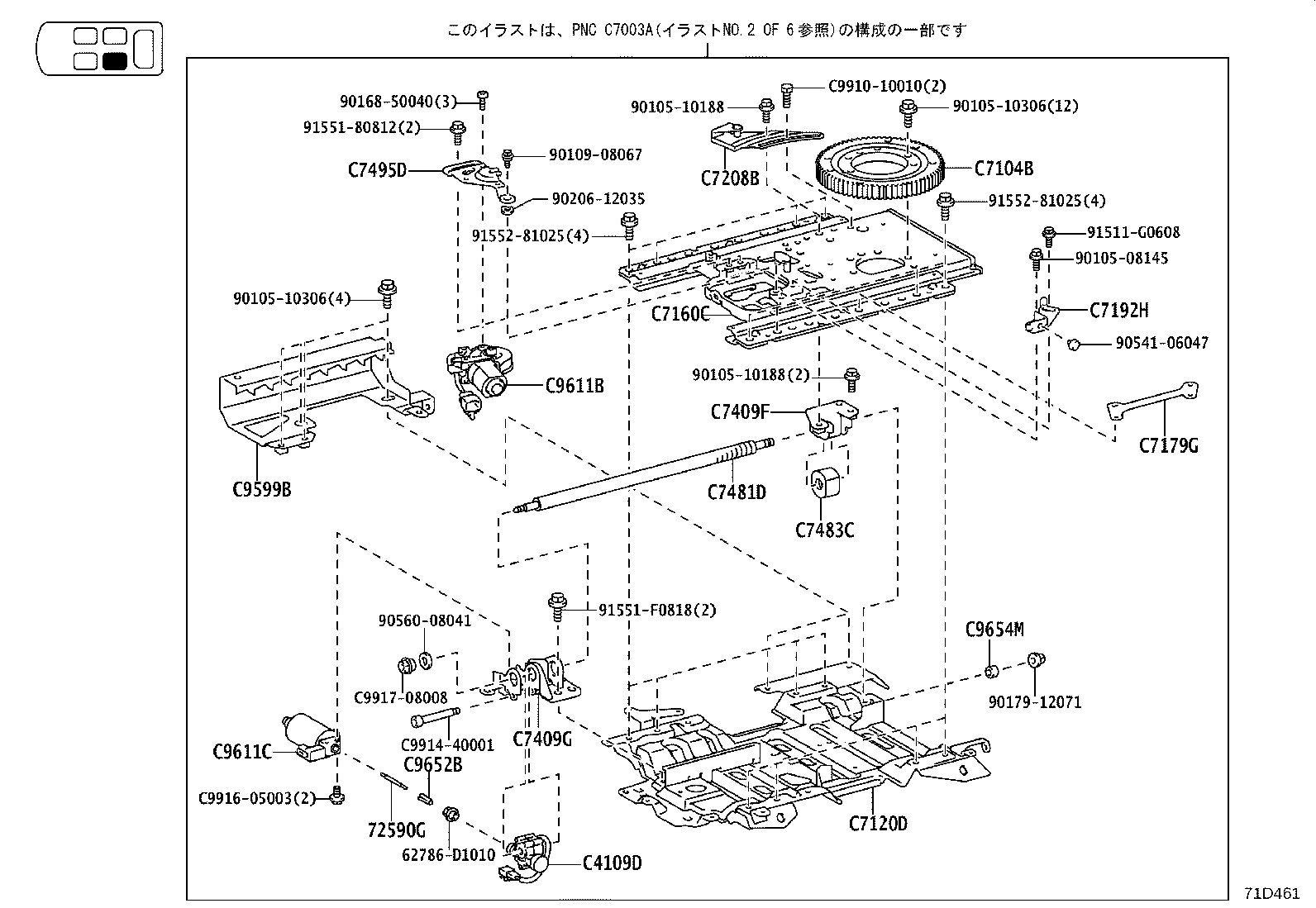

ILLUST NO. 5 OF 6(1204- )07S
ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ(ﾋｮｳｼﾞｭﾝﾀｲﾌﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| C9654M - COLLAR, POWER LIFT CYLINDER, NO.1 | ||||
| C9654-22030 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
4 | ||
| Common parts | ||||
| 62786-D1010 | ||||
| 90105-08145 | ||||
| 90105-10188 | ||||
| 90105-10306 | ||||
| 90109-08067 | ||||
| 90168-50040 | ||||
| 90179-12071 | ||||
| 90206-12035 | ||||
| 90541-06047 | ||||
| 90560-08041 | ||||
| 91511-G0608 | ||||
| 91551-80812 | ||||
| 91551-F0818 | ||||
| 91552-81025 | ||||
| C9910-10010 | ||||
| C9914-40001 | ||||
| C9916-05003 | ||||
| C9917-08008 | ||||

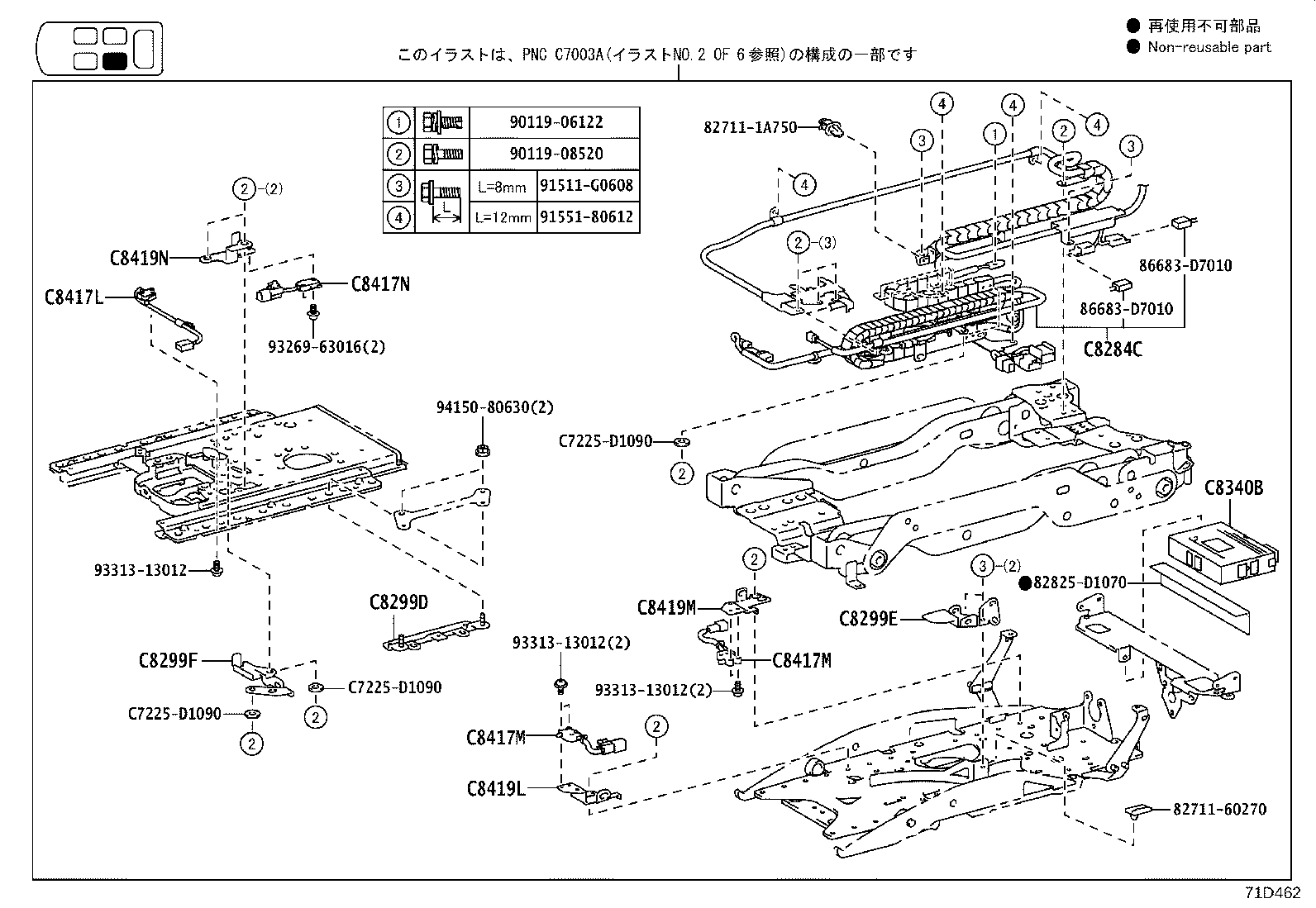

ILLUST NO. 6 OF 6(1204- )07S
ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ(ﾋｮｳｼﾞｭﾝﾀｲﾌﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| C8340B - COMPUTER ASSY, WELCAB DEVICE CONTROL | ||||
| C8340-D1280 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| C8417L - SWITCH, LIMIT, NO.1 | ||||
| C8417-22040 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| C8417M - SWITCH, LIMIT, NO.2 | ||||
| C8417-22080 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
2 | ||
| C8417M - SWITCH, LIMIT, NO.2 | ||||
| C8417-22080 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
2 | ||
| C8417N - SWITCH, LIMIT, NO.3 | ||||
| C8417-D1010 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| Common parts | ||||
| 82711-1A750 | ||||
| 82711-60270 | ||||
| 82825-D1070 | ||||
| 86683-D7010 | ||||
| 90119-06122 | ||||
| 90119-08520 | ||||
| 91511-G0608 | ||||
| 91551-80612 | ||||
| 93269-63016 | ||||
| 93313-13012 | ||||
| 94150-80630 | ||||
| C7225-D1090 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
