ACR55W-GRXEK (2006)
Toyota Estima

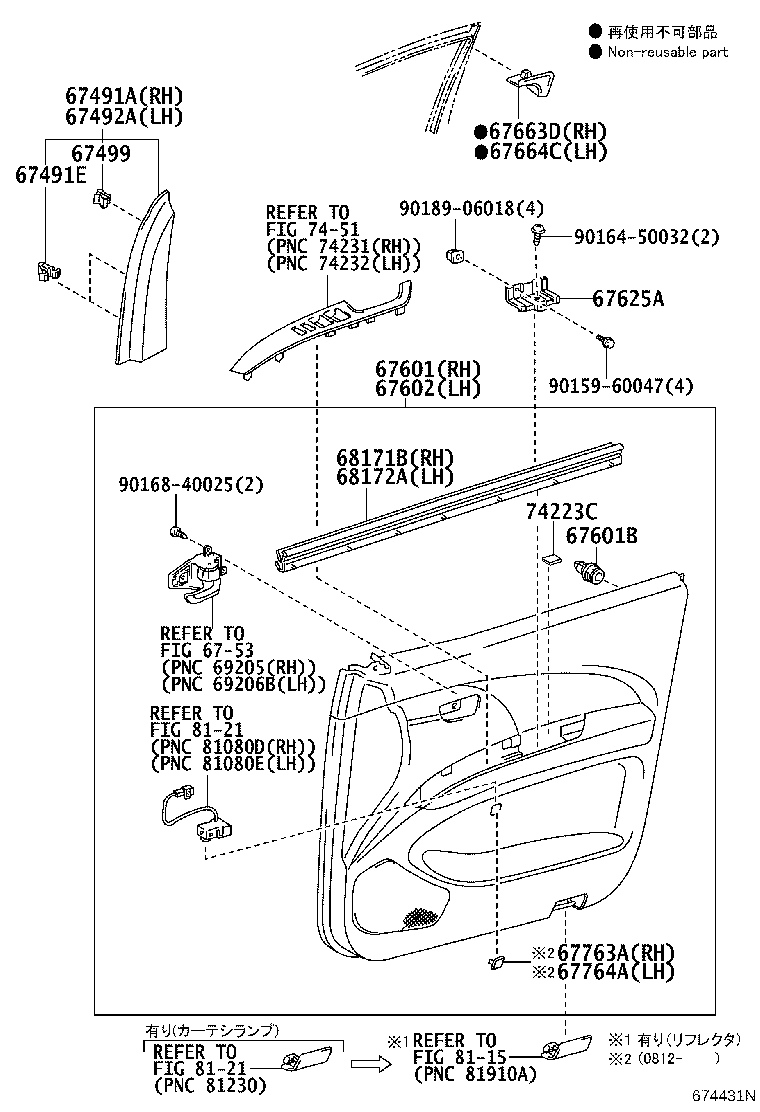

ILLUST NO. 2 OF 2(0601- )AEPR ; (0601- )AEPG,AERAS,AESM,G,X
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-28080 |
ACR5#,GSR5#..CBU |
1 | ||
| 67491E - RETAINER, DOOR TRIM | ||||
| 67771-58010 |
ACR5#,GSR5#..CBU |
4 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-28080 |
ACR5#,GSR5#..CBU |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-28140 |
ACR5#,GSR5#..CBU |
2 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-28B70E0 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 67610-28D00E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 67650-28110E0 |
ACR5#,GSR5#..G..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ,GREGE,TRIM4# |
1 | ||
| 67610-28B30E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 67610-28D10E1 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 67610-28D11E1 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 67610-28D30E1 |
ACR5#,GSR5#..G..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ,GREGE,TRIM4# |
1 | ||
| 67610-28D31E1 |
ACR5#,GSR5#..G..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ,GREGE,TRIM4# |
1 | ||
| 67610-28D01E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
ACR5#,GSR5#..CBU |
24 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-28B30E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 67620-28B40E0 |
ACR5#,GSR5#..G..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ,GREGE,TRIM4# |
1 | ||
| 67620-28D20E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 67620-28B90E0 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 67620-28D50E1 |
ACR5#,GSR5#..G..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ,GREGE,TRIM4# |
1 | ||
| 67620-28D30E1 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 67620-28D31E1 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 67620-28D21E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 67620-28D51E1 |
ACR5#,GSR5#..G..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ,GREGE,TRIM4# |
1 | ||
| 67625A - BRACKET, FRONT DOOR TRIM, NO.1 | ||||
| 67625-28060 |
ACR5#,GSR5#..CBU |
2 | ||
| 67663D - GARNISH, DOOR FRAME, RH | ||||
| 67663-48010 |
ACR5#,GSR5#..CBU |
1 | ||
| 67664C - GARNISH, DOOR FRAME, LH | ||||
| 67664-48010 |
ACR5#,GSR5#..CBU |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-28070 |
ACR5#,GSR5#..CBU |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-28060 |
ACR5#,GSR5#..CBU |
1 | ||
| 74223C - CAP, DOOR ARMREST | ||||
| 74223-28070E0 |
ACR5#,GSR5#..(G,X)..CBU GREGE,TRIM4# |
2 | ||
| Common parts | ||||
| 90159-60047 | ||||
| 90164-50032 | ||||
| 90168-40025 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 6753 | ||||
| 7451 | ||||
| 8115 | ||||
| 8121 | ||||

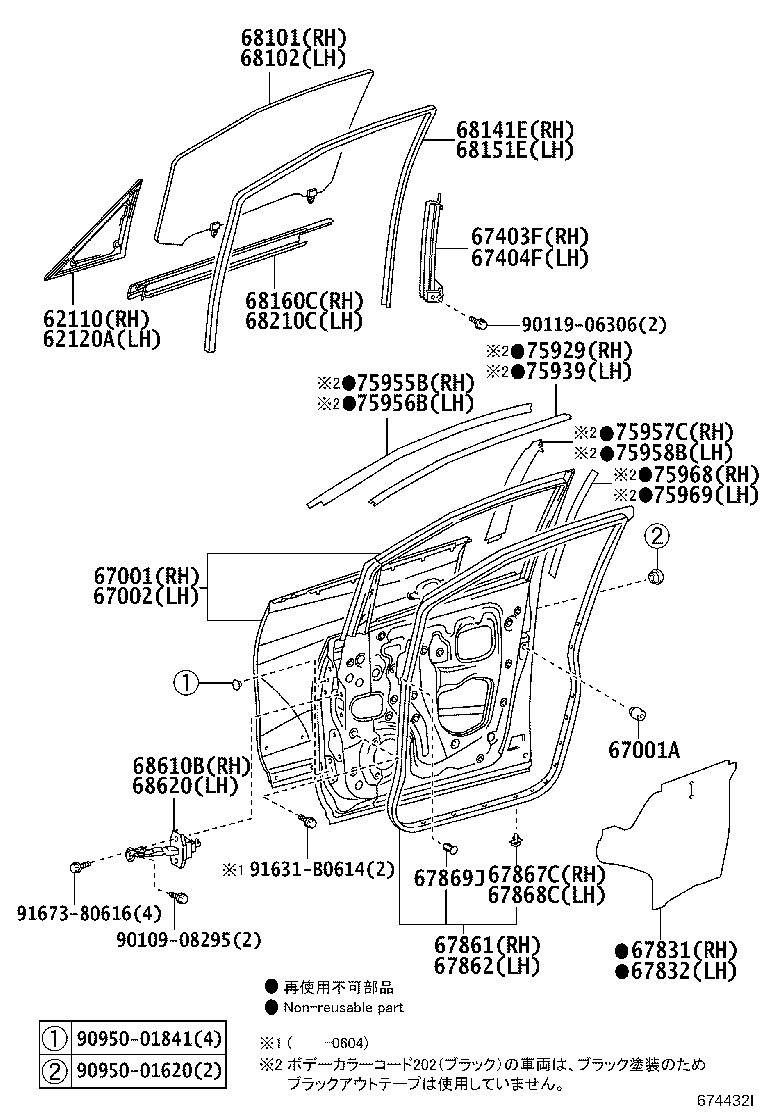

ILLUST NO. 1 OF 2(0601- )AEPR ; (0601- )AEPG,AERAS,AESM,G,X
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62110 - WINDOW ASSY, FRONT SIDE FIX, RH | ||||
| 62110-28052 |
ACR5#,GSR5#..CBU |
1 | ||
| 62110-28050 |
ACR5#,GSR5#..CBU |
1 | ||
| 62110-28051 |
ACR5#,GSR5#..CBU |
1 | ||
| 62120A - WINDOW ASSY, FRONT SIDE FIX, LH | ||||
| 62120-28180 |
ACR5#,GSR5#..CBU |
1 | ||
| 62120-28182 |
ACR5#,GSR5#..CBU |
1 | ||
| 62120-28181 |
ACR5#,GSR5#..CBU |
1 | ||
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-28200 |
ACR5#,GSR5#..(G,X)..CBU |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09069 |
ACR5#,GSR5#..CBU |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-28210 |
ACR5#,GSR5#..(G,X)..CBU |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-28090 |
ACR5#,GSR5#..CBU |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-28090 |
ACR5#,GSR5#..CBU |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-28160 |
ACR5#,GSR5#..CBU |
1 | ||
| 67801-28060 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-28160 |
ACR5#,GSR5#..CBU |
1 | ||
| 67802-28070 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-28080 |
ACR5#,GSR5#..CBU |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-28080 |
ACR5#,GSR5#..CBU |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ACR5#,GSR5#..CBU |
23 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
ACR5#,GSR5#..CBU |
23 | ||
| 67869J - CLIP, FRONT DOOR WEATHERSTRIP | ||||
| 67869-20030 |
ACR5#,GSR5#..CBU |
2 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-28240 |
ACR5#,GSR5#..CBU |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-28240 |
ACR5#,GSR5#..CBU |
1 | ||
| 68141E - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-28120 |
ACR5#,GSR5#..CBU |
1 | ||
| 68151E - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-28090 |
ACR5#,GSR5#..CBU |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68161-28060 |
ACR5#,GSR5#..CBU |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68162-28060 |
ACR5#,GSR5#..CBU |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-28060 |
ACR5#,GSR5#..CBU |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68610-28060 |
ACR5#,GSR5#..CBU |
1 | ||
| 75929 - TAPE, BLACK OUT FRONT DOOR, INNER UPPER RH | ||||
| 75929-28020 |
ACR5#,GSR5#..CBU |
1 | ||
| 75939 - TAPE, BLACK OUT FRONT DOOR, INNER UPPER LH | ||||
| 75939-28020 |
ACR5#,GSR5#..CBU |
1 | ||
| 75955B - TAPE, BLACK OUT FRONT DOOR, OUTER UPPER RH | ||||
| 75955-28030 |
ACR5#,GSR5#..CBU |
1 | ||
| 75956B - TAPE, BLACK OUT FRONT DOOR, OUTER UPPER LH | ||||
| 75956-28030 |
ACR5#,GSR5#..CBU |
1 | ||
| 75957C - TAPE, BLACK OUT FRONT DOOR, OUTER REAR RH | ||||
| 75957-28030 |
ACR5#,GSR5#..CBU |
1 | ||
| 75958B - TAPE, BLACK OUT FRONT DOOR, OUTER REAR LH | ||||
| 75958-28030 |
ACR5#,GSR5#..CBU |
1 | ||
| 75968 - TAPE, BLACK OUT FRONT DOOR, INNER REAR RH | ||||
| 75968-28020 |
ACR5#,GSR5#..CBU |
1 | ||
| 75969 - TAPE, BLACK OUT FRONT DOOR, INNER REAR LH | ||||
| 75969-28020 |
ACR5#,GSR5#..CBU |
1 | ||
| Common parts | ||||
| 90109-08295 | ||||
| 90119-06306 | ||||
| 90950-01620 | ||||
| 90950-01841 | ||||
| 91631-B0614 | ||||
| 91673-80616 | ||||
