ACR55W-GFXQK (2012)

Toyota Estima

Production Apr 2012 - May 2016
Engine 2AZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

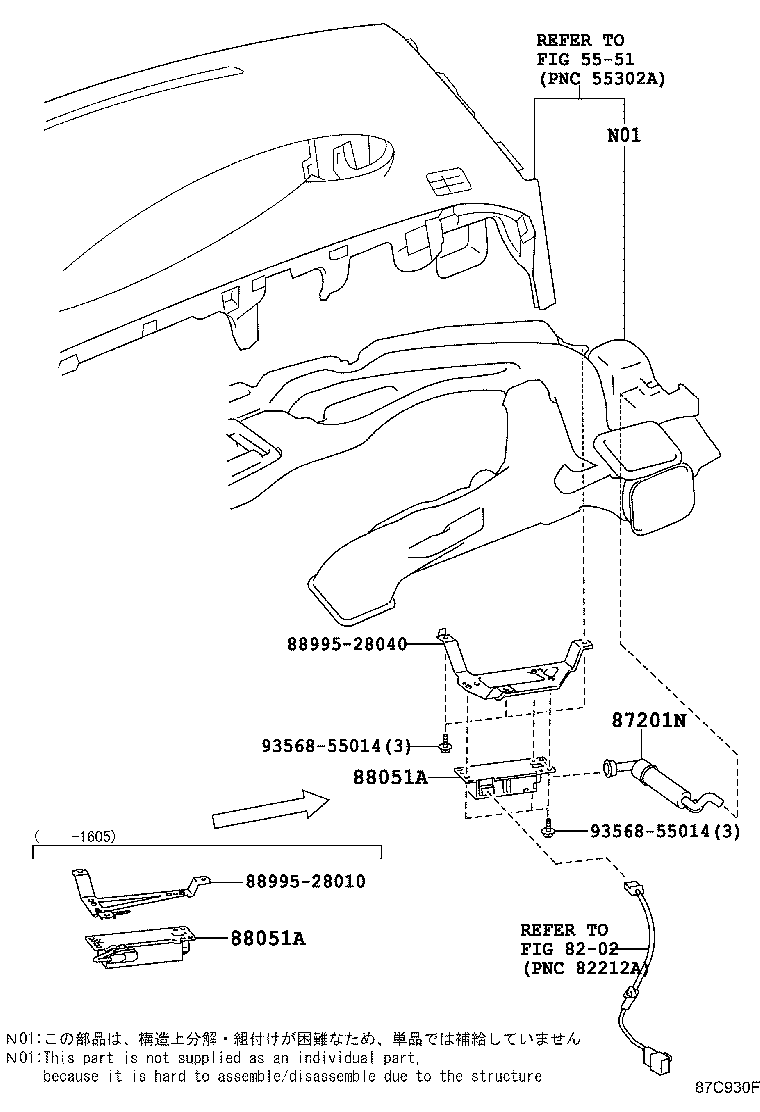

ILLUST NO. 1 OF 2(1204- )AEPG,AERAS,AESM,G,X

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 5551 8202 87201N 88051A 88051A 8899528010 8899528040 9356855014 9356855014
Part # Description Qty Price
87201N - DUCT SUB-ASSY, AIR
87201-28280

ACR5#,GSR5#..G

 1
88051A - GENERATOR SUB-ASSY,ION
88051-22010

ACR5#,GSR5#..G..CBU

 1
88051-58020

ACR5#,GSR5#..G

 1
88051A - GENERATOR SUB-ASSY,ION
88051-22010

ACR5#,GSR5#..G..CBU

 1
88051-58020

ACR5#,GSR5#..G

 1
Common parts
88995-28010
88995-28040
93568-55014
Linked diagrams
5551
8202
