ACR55W-GFXQK (2012)
Toyota Estima
(1304- )

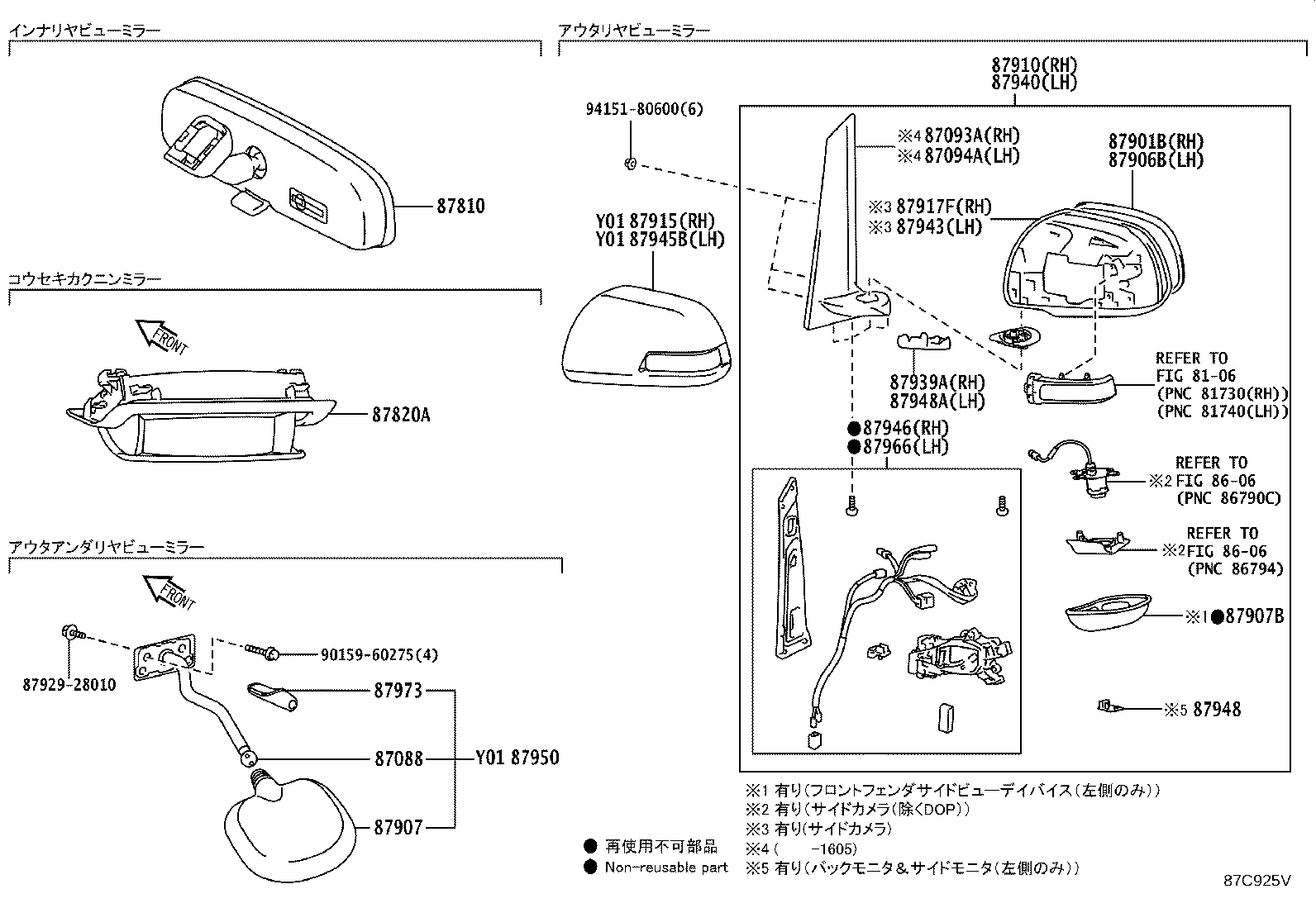

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87088 - ARM SUB-ASSY, OUTER UNDER REAR VIEW MIRROR | ||||
| 87088-28050 |
ACR5#,GSR5#..CBU ﾘﾔｱﾝﾀﾞﾐﾗｰ−有り |
1 | ||
| 87088-28040 |
ACR5#,GSR5#..CBU ﾘﾔｱﾝﾀﾞﾐﾗｰ−有り |
1 | ||
| 87093A - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, RH | ||||
| 8791B-28A20 |
ACR5#,GSR5#..CBU |
1 | ||
| 8791B-28A20 |
ACR5#,GSR5#..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 8791B-28A20 |
ACR5#,GSR5#..CBU 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87094A - STAY SUB-ASSY, OUTER REAR VIEW MIRROR, LH | ||||
| 8794B-28A20 |
ACR5#..G;GSR5#..CBU;ACR5#..08S..AERAS..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 8794B-28A20 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..08S..AERAS..CBU 寒冷地仕様&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 8794B-28A20 |
ACR5#..G;GSR5#..CBU;ACR5#..08S..AERAS..CBU 寒冷地仕様&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 8794B-28A20 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..08S..AERAS..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 8794B-28A20 |
ACR5#,GSR5#..CBU |
1 | ||
| 8794B-28A20 |
ACR5#,GSR5#..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 8794B-28A20 |
ACR5#,GSR5#..CBU 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-52040 |
ACR5#,GSR5#..CBU |
1 | ||
| 87810-52041 |
ACR5#,GSR5#..CBU |
1 | ||
| 87820A - MIRROR ASSY, INNER REAR CONVERSATION | ||||
| 87820-28020A0 |
ACR5#,GSR5#..CBU SHELL,TRIM0# |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87931-28A20 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..08S..AERAS..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 87931-28A20 |
ACR5#..G;GSR5#..CBU;ACR5#..08S..AERAS..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 87931-28A30 |
ACR5#..G;GSR5#..CBU;ACR5#..08S..AERAS..CBU 寒冷地仕様&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 87931-28A20 |
ACR5#,GSR5#..CBU |
1 | ||
| 87931-28B21 |
ACR5#,GSR5#..CBU 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87931-28B21 |
ACR5#,GSR5#..CBU 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87931-28A30 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..08S..AERAS..CBU 寒冷地仕様&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 87931-28A30 |
ACR5#,GSR5#..CBU 寒冷地仕様 |
1 | ||
| 87931-28B21 |
ACR5#,GSR5#..CBU 寒冷地仕様 |
1 | ||
| 87931-42A30 |
ACR5#,GSR5#..CBU |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87961-28A20 |
ACR5#,GSR5#..CBU |
1 | ||
| 87961-28A30 |
ACR5#..G;GSR5#..CBU;ACR5#..08S..AERAS..CBU 寒冷地仕様&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 87961-28A30 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..08S..AERAS..CBU 寒冷地仕様&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 87961-28A30 |
ACR5#,GSR5#..CBU 寒冷地仕様 |
1 | ||
| 87961-42870 |
ACR5#,GSR5#..CBU |
1 | ||
| 87961-28B31 |
ACR5#,GSR5#..CBU 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87961-28B31 |
ACR5#,GSR5#..CBU 寒冷地仕様 |
1 | ||
| 87961-28B31 |
ACR5#,GSR5#..CBU 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87907 - MIRROR SUB-ASSY, OUTER UNDER VIEW | ||||
| 87907-28010 |
ACR5#,GSR5#..CBU ﾘﾔｱﾝﾀﾞﾐﾗｰ−有り |
1 | ||
| 87907-28050 |
ACR5#,GSR5#..CBU ﾘﾔｱﾝﾀﾞﾐﾗｰ−有り |
1 | ||
| 87907B - DEVICE SUB-ASSY,FRONT FENDER SIDE VIEW,LH | ||||
| 87907-28030 |
ACR5#,GSR5#..CBU |
1 | ||
| 87907-28030 |
ACR5#,GSR5#..CBU |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-28A20 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..08S..AERAS..CBU 塗装不要,ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 87910-28A30 |
ACR5#,GSR5#..CBU 塗装不要,寒冷地仕様 |
1 | ||
| 87910-28A20 |
ACR5#,GSR5#..CBU 塗装不要 |
1 | ||
| 87910-28A30 |
ACR5#..G;GSR5#..CBU;ACR5#..08S..AERAS..CBU 塗装不要,寒冷地仕様&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 87910-28B40 |
ACR5#,GSR5#..CBU 塗装不要,寒冷地仕様 |
1 | ||
| 87910-28A30 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..08S..AERAS..CBU 塗装不要,寒冷地仕様&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 87910-28A20 |
ACR5#..G;GSR5#..CBU;ACR5#..08S..AERAS..CBU 塗装不要,ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 87910-28B90 |
ACR5#,GSR5#..CBU 塗装不要,ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87910-28C30 |
ACR5#,GSR5#..CBU 塗装不要,ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87910-28B30 |
ACR5#,GSR5#..CBU 塗装不要 |
1 | ||
| 87910-28B40 |
ACR5#,GSR5#..CBU 塗装不要,寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞcjﾀ) |
1 | ||
| 87910-28C00 |
ACR5#,GSR5#..CBU 塗装不要,寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87910-28C10 |
ACR5#,GSR5#..CBU 塗装不要 |
1 | ||
| 87910-28C40 |
ACR5#,GSR5#..CBU 塗装不要,寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87910-28C20 |
ACR5#,GSR5#..CBU 塗装不要,寒冷地仕様 |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-28060B0 |
ACR5#,GSR5#..CBU SILVER ME.,1F7 |
1 | ||
| 87915-28060D0 |
ACR5#,GSR5#..(G,X)..CBU DK. RED M.M.,3Q3 |
1 | ||
| 87915-28060J1 |
ACR5#,GSR5#..(G,X)..CBU LT.BLUE M.M.,8S7 |
1 | ||
| 87915-28060J0 |
ACR5#,GSR5#..(G,X)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 87915-28060A1 |
ACR5#,GSR5#..CBU WHITE PEARL CS.,070 |
1 | ||
| 87915-28060A1 |
ACR5#,GSR5#..CBU WHITE PEARL CS.,070 |
1 | ||
| 87915-28060F0 |
ACR5#,GSR5#..(G,X)..CBU SILKY GOLD M.M.,5A4 |
1 | ||
| 87915-28060B0 |
ACR5#,GSR5#..CBU SILVER ME.,1F7 |
1 | ||
| 87915-28060C0 |
ACR5#,GSR5#..CBU BLACK,202 |
1 | ||
| 87915-28060D2 |
ACR5#,GSR5#..CBU DEEP RED M.M.,3R9 |
1 | ||
| 87915-28060B7 |
ACR5#,GSR5#..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 87917F - BODY, OUTER MIRROR, RH | ||||
| 8791A-28B90 |
ACR5#,GSR5#..CBU 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 8791A-28B90 |
ACR5#,GSR5#..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87939A - COVER, OUTER MIRROR HOLE, RH | ||||
| 87939-28A20 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..08S..AERAS..CBU 寒冷地仕様&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 87939-28A20 |
ACR5#,GSR5#..CBU 寒冷地仕様 |
1 | ||
| 87939-28A20 |
ACR5#,GSR5#..CBU |
1 | ||
| 87939-28A20 |
ACR5#..G;GSR5#..CBU;ACR5#..08S..AERAS..CBU 寒冷地仕様&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-28A41 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..08S..AERAS..CBU 塗装不要,ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 87940-28A21 |
ACR5#,GSR5#..CBU 塗装不要 |
1 | ||
| 87940-28A41 |
ACR5#..G;GSR5#..CBU;ACR5#..08S..AERAS..CBU 塗装不要,ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 87940-28A51 |
ACR5#..G;GSR5#..CBU;ACR5#..08S..AERAS..CBU 塗装不要,寒冷地仕様&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 87940-28A31 |
ACR5#,GSR5#..CBU 塗装不要,寒冷地仕様 |
1 | ||
| 87940-28B60 |
ACR5#,GSR5#..CBU 塗装不要,寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞcjﾀ) |
1 | ||
| 87940-28890 |
ACR5#,GSR5#..CBU 塗装不要 |
1 | ||
| 87940-28A10 |
ACR5#,GSR5#..CBU 塗装不要,ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87940-28B90 |
ACR5#,GSR5#..CBU 塗装不要,ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87940-28C00 |
ACR5#,GSR5#..CBU 塗装不要,寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87940-28A00 |
ACR5#,GSR5#..CBU 塗装不要,寒冷地仕様 |
1 | ||
| 87940-28C20 |
ACR5#,GSR5#..CBU 塗装不要,寒冷地仕様 |
1 | ||
| 87940-28A51 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..08S..AERAS..CBU 塗装不要,寒冷地仕様&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 87940-28C40 |
ACR5#,GSR5#..CBU 塗装不要,寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87940-28C10 |
ACR5#,GSR5#..CBU 塗装不要 |
1 | ||
| 87940-28C30 |
ACR5#,GSR5#..CBU 塗装不要,ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87943 - BODY, OUTER MIRROR, LH | ||||
| 8794A-28B90 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..08S..AERAS..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 8794A-28B90 |
ACR5#,GSR5#..CBU 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 8794A-28B90 |
ACR5#..G;GSR5#..CBU;ACR5#..08S..AERAS..CBU 寒冷地仕様&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 8794A-28B90 |
ACR5#,GSR5#..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 8794A-28B90 |
ACR5#..G;GSR5#..CBU;ACR5#..08S..AERAS..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 8794A-28B90 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..08S..AERAS..CBU 寒冷地仕様&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 8794A-28B90 |
ACR5#,GSR5#..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 8794A-28B90 |
ACR5#,GSR5#..CBU 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87945B - COVER, OUTER MIRROR, LH | ||||
| 87945-28060A1 |
ACR5#,GSR5#..CBU WHITE PEARL CS.,070 |
1 | ||
| 87945-28060J1 |
ACR5#,GSR5#..(G,X)..CBU LT.BLUE M.M.,8S7 |
1 | ||
| 87945-28060B0 |
ACR5#,GSR5#..CBU SILVER ME.,1F7 |
1 | ||
| 87945-28060F0 |
ACR5#,GSR5#..(G,X)..CBU SILKY GOLD M.M.,5A4 |
1 | ||
| 87945-28060D0 |
ACR5#,GSR5#..(G,X)..CBU DK. RED M.M.,3Q3 |
1 | ||
| 87945-28060J0 |
ACR5#,GSR5#..(G,X)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 87945-28060B7 |
ACR5#,GSR5#..CBU ICE TITANIUM M.M.,1H4 |
1 | ||
| 87945-28060B0 |
ACR5#,GSR5#..CBU SILVER ME.,1F7 |
1 | ||
| 87945-28060D2 |
ACR5#,GSR5#..CBU DEEP RED M.M.,3R9 |
1 | ||
| 87945-28060A1 |
ACR5#,GSR5#..CBU WHITE PEARL CS.,070 |
1 | ||
| 87945-28060C0 |
ACR5#,GSR5#..CBU BLACK,202 |
1 | ||
| 87946 - RETRACTOR, OUTER MIRROR, RH | ||||
| 87946-28A20 |
ACR5#,GSR5#..CBU |
1 | ||
| 87946-28A30 |
ACR5#,GSR5#..CBU 寒冷地仕様 |
1 | ||
| 87946-28A30 |
ACR5#..G;GSR5#..CBU;ACR5#..08S..AERAS..CBU 寒冷地仕様&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 87946-28A30 |
ACR5#,GSR5#..CBU 寒冷地仕様 |
1 | ||
| 87946-28A30 |
ACR5#,GSR5#..CBU 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87946-28A21 |
ACR5#,GSR5#..CBU |
1 | ||
| 87946-28A30 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..08S..AERAS..CBU 寒冷地仕様&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 87946-28C30 |
ACR5#,GSR5#..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87946-28C00 |
ACR5#,GSR5#..CBU 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87946-28B90 |
ACR5#,GSR5#..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87946-28C10 |
ACR5#,GSR5#..CBU |
1 | ||
| 87946-28C20 |
ACR5#,GSR5#..CBU 寒冷地仕様 |
1 | ||
| 87946-28C40 |
ACR5#,GSR5#..CBU 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87948 - COVER, OUTER MIRROR HOLE, LH | ||||
| 87948-58150 |
ACR5#,GSR5#..CBU 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87948-58150 |
ACR5#,GSR5#..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87948A - COVER, OUTER MIRROR HOLE, LH | ||||
| 87948-28A20 |
ACR5#,GSR5#..CBU 寒冷地仕様 |
1 | ||
| 87948-28A20 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..08S..AERAS..CBU 寒冷地仕様&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 87948-28A20 |
ACR5#..G;GSR5#..CBU;ACR5#..08S..AERAS..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 87948-28A20 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..08S..AERAS..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 87948-28A20 |
ACR5#..G;GSR5#..CBU;ACR5#..08S..AERAS..CBU 寒冷地仕様&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 87948-28A20 |
ACR5#,GSR5#..CBU |
1 | ||
| 87950 - MIRROR ASSY, OUTER UNDER REAR VIEW | ||||
| 87950-28150 |
ACR5#,GSR5#..CBU ﾘﾔｱﾝﾀﾞﾐﾗｰ−有り |
1 | ||
| 87950-28180 |
ACR5#,GSR5#..CBU ﾘﾔｱﾝﾀﾞﾐﾗｰ−有り |
1 | ||
| 87966 - RETRACTOR, OUTER MIRROR, LH | ||||
| 87966-28A20 |
ACR5#,GSR5#..CBU |
1 | ||
| 87966-28A50 |
ACR5#..G;GSR5#..CBU;ACR5#..08S..AERAS..CBU 寒冷地仕様&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 87966-28A50 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..08S..AERAS..CBU 寒冷地仕様&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 87966-28A40 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..08S..AERAS..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 87966-28A30 |
ACR5#,GSR5#..CBU 寒冷地仕様 |
1 | ||
| 87966-28A40 |
ACR5#..G;GSR5#..CBU;ACR5#..08S..AERAS..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 87966-28A21 |
ACR5#,GSR5#..CBU |
1 | ||
| 87966-28A30 |
ACR5#,GSR5#..CBU 寒冷地仕様 |
1 | ||
| 87966-28B40 |
ACR5#,GSR5#..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87966-28B40 |
ACR5#,GSR5#..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87966-28C40 |
ACR5#,GSR5#..CBU 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87966-28B50 |
ACR5#,GSR5#..CBU 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87966-28C10 |
ACR5#,GSR5#..CBU |
1 | ||
| 87966-28C20 |
ACR5#,GSR5#..CBU 寒冷地仕様 |
1 | ||
| 87966-28B50 |
ACR5#,GSR5#..CBU 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87966-28C30 |
ACR5#,GSR5#..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 87973 - COVER, OUTER UNDER RR VIEW MIRROR | ||||
| 87973-28080 |
ACR5#,GSR5#..CBU ﾘﾔｱﾝﾀﾞﾐﾗｰ−有り |
1 | ||
| 87973-28070 |
ACR5#,GSR5#..CBU ﾘﾔｱﾝﾀﾞﾐﾗｰ−有り |
1 | ||
| Common parts | ||||
| 87929-28010 | ||||
| 90159-60275 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8106 | ||||
| 8606 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
