ACR55W-GFXQK (2012)
Toyota Estima
ILLUST NO. 1 OF 2(0601-1605)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86170B - SWITCH & VOLUME ASSY, TELEVISION | ||||
| 86170-28080 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き) |
1 | ||
| 86170-28110 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き) |
1 | ||
| 86170-58030 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 86174B - CASE, SWITCH & VOLUME | ||||
| 86174-58010 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き) |
1 | ||
| 86174-58010 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 86191A - TERMINAL, VIDEO(VIDEO ADAPTER) | ||||
| 86191-28070E0 |
ACR5#..X..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ,GREGE,TRIM4# |
1 | ||
| 86191-28070E0 |
GSR5#..CBU;ACR5#..08S..G;ACR5#..07S..(AERAS,G)..CBU VTR&VTR端子−有り(ﾜｲﾔﾚｽﾍｯﾄﾞﾎｰﾝ),GREGE,TRIM4# |
1 | ||
| 86191-28070E0 |
GSR5#..CBU;ACR5#..08S..G;ACR5#..07S..(AERAS,G)..CBU VTR&VTR端子−有り,GREGE,TRIM4# |
1 | ||
| 86191-28130A0 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き),SHELL,TRIM0# |
1 | ||
| 86191-28130A0 |
ACR5#,GSR5#..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 9ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き),SHELL,TRIM0# |
1 | ||
| 86191-28131A0 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き),SHELL,TRIM0# |
1 | ||
| 86191-28131A0 |
ACR5#,GSR5#..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 9ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き),SHELL,TRIM0# |
1 | ||
| 86291 - BRACKET, TELEVISION | ||||
| 86291-28120 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ,右側 |
1 | ||
| 86291-28130 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ,左側 |
1 | ||
| 86291-28140 |
ACR5#,GSR5#..(AERAS,G)..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 86291-28130 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き),左側 |
1 | ||
| 86291-28210 |
ACR5#,GSR5#..CBU 右側 |
1 | ||
| 86291-28120 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き),右側 |
1 | ||
| 86291-28220 |
ACR5#,GSR5#..CBU 左側 |
1 | ||
| 86291-28231 |
ACR55..08S..CBU;ACR50,GSR5#..CBU;ACR55..07S..(AERAS,G)..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 86291-28141 |
ACR5#,GSR5#..(AERAS,G)..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き) |
1 | ||
| 86291 - BRACKET, TELEVISION | ||||
| 86291-28120 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ,右側 |
1 | ||
| 86291-28130 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ,左側 |
1 | ||
| 86291-28140 |
ACR5#,GSR5#..(AERAS,G)..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 86291-28130 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き),左側 |
1 | ||
| 86291-28210 |
ACR5#,GSR5#..CBU 右側 |
1 | ||
| 86291-28120 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き),右側 |
1 | ||
| 86291-28220 |
ACR5#,GSR5#..CBU 左側 |
1 | ||
| 86291-28231 |
ACR55..08S..CBU;ACR50,GSR5#..CBU;ACR55..07S..(AERAS,G)..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 86291-28141 |
ACR5#,GSR5#..(AERAS,G)..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き) |
1 | ||
| 86291 - BRACKET, TELEVISION | ||||
| 86291-28120 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ,右側 |
1 | ||
| 86291-28130 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ,左側 |
1 | ||
| 86291-28140 |
ACR5#,GSR5#..(AERAS,G)..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 86291-28130 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き),左側 |
1 | ||
| 86291-28210 |
ACR5#,GSR5#..CBU 右側 |
1 | ||
| 86291-28120 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き),右側 |
1 | ||
| 86291-28220 |
ACR5#,GSR5#..CBU 左側 |
1 | ||
| 86291-28231 |
ACR55..08S..CBU;ACR50,GSR5#..CBU;ACR55..07S..(AERAS,G)..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 86291-28141 |
ACR5#,GSR5#..(AERAS,G)..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き) |
1 | ||
| 86295 - BASE, TELEVISION | ||||
| 86295-58020E0 |
GSR5#..CBU;ACR5#..08S..G;ACR5#..07S..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ,GREGE,TRIM4# |
1 | ||
| 86295-28060A0 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き),SHELL,TRIM0# |
1 | ||
| 86680A - DISPLAY ASSY, TELEVISION | ||||
| 86680-58030E0 |
GSR5#..CBU;ACR5#..08S..G;ACR5#..07S..(AERAS,G)..CBU MATSUSHITA,ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ,GREGE,TRIM4# |
1 | ||
| 86680-28150A0 |
ACR5#,GSR5#..(AERAS,G)..CBU PANASONIC,ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭ[ﾅ付き),SHELL,TRIM0# |
1 | ||
| 86680-28101A0 |
ACR5#,GSR5#..(AERAS,G)..CBU PANASONIC,ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭ[ﾅ付き),SHELL,TRIM0# |
1 | ||
| 86790B - CAMERA ASSY, TELEVISION, FR | ||||
| 86790-28230 |
ACR5#..G;GSR5#..CBU;ACR5#..08S..AERAS..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 86790-28230 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..08S..AERAS..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 86790-28420 |
ACR5#,GSR5#..(G,X)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 86790-28374 |
ACR5#,GSR5#..(G,X)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 86790-28373 |
ACR5#,GSR5#..(G,X)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 86790C - CAMERA ASSY, TELEVISION, SIDE | ||||
| 86790-28290 |
ACR5#..G;GSR5#..CBU;ACR5#..08S..AERAS..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 86790-28290 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..08S..AERAS..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 86790-28390 |
ACR5#,GSR5#..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),左側 |
1 | ||
| 86790-28390 |
ACR5#,GSR5#..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),左側 |
1 | ||
| 86790-58120 |
ACR5#,GSR5#..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),右側 |
1 | ||
| 86790C - CAMERA ASSY, TELEVISION, SIDE | ||||
| 86790-28290 |
ACR5#..G;GSR5#..CBU;ACR5#..08S..AERAS..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 86790-28290 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..08S..AERAS..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 86790-28390 |
ACR5#,GSR5#..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),左側 |
1 | ||
| 86790-28390 |
ACR5#,GSR5#..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),左側 |
1 | ||
| 86790-58120 |
ACR5#,GSR5#..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),右側 |
1 | ||
| 86790D - CAMERA ASSY, TELEVISION, RR | ||||
| 86790-28220 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..08S..AERAS..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 86790-28220 |
ACR5#..G;GSR5#..CBU;ACR5#..08S..AERAS..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 86790-28400 |
ACR5#,GSR5#..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 86790-28400 |
ACR5#,GSR5#..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀのみ) |
1 | ||
| 86790-28400 |
ACR5#,GSR5#..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 86794 - COVER, TELEVISION CAMERA WIRE | ||||
| 86794-28010 |
ACR5#,GSR5#..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),左側 |
1 | ||
| 86794-28010 |
ACR5#,GSR5#..CBU 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),左側 |
1 | ||
| 86794-28010 |
ACR5#,GSR5#..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 86794-28020 |
ACR5#,GSR5#..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),右側 |
1 | ||
| 86794-28010 |
ACR5#,GSR5#..CBU 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 86794-28020 |
ACR5#,GSR5#..CBU 寒冷地仕様&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ),右側 |
1 | ||
| Common parts | ||||
| 90109-06370 | ||||
| 90119-06915 | ||||
| 90159-50032 | ||||
| 90168-50035 | ||||
| 90179-06014 | ||||
| 90179-06274 | ||||
| 90189-05072 | ||||
| 90189-05175 | ||||
| 93540-54010 | ||||
| 93540-A4012 | ||||
| 93568-55014 | ||||

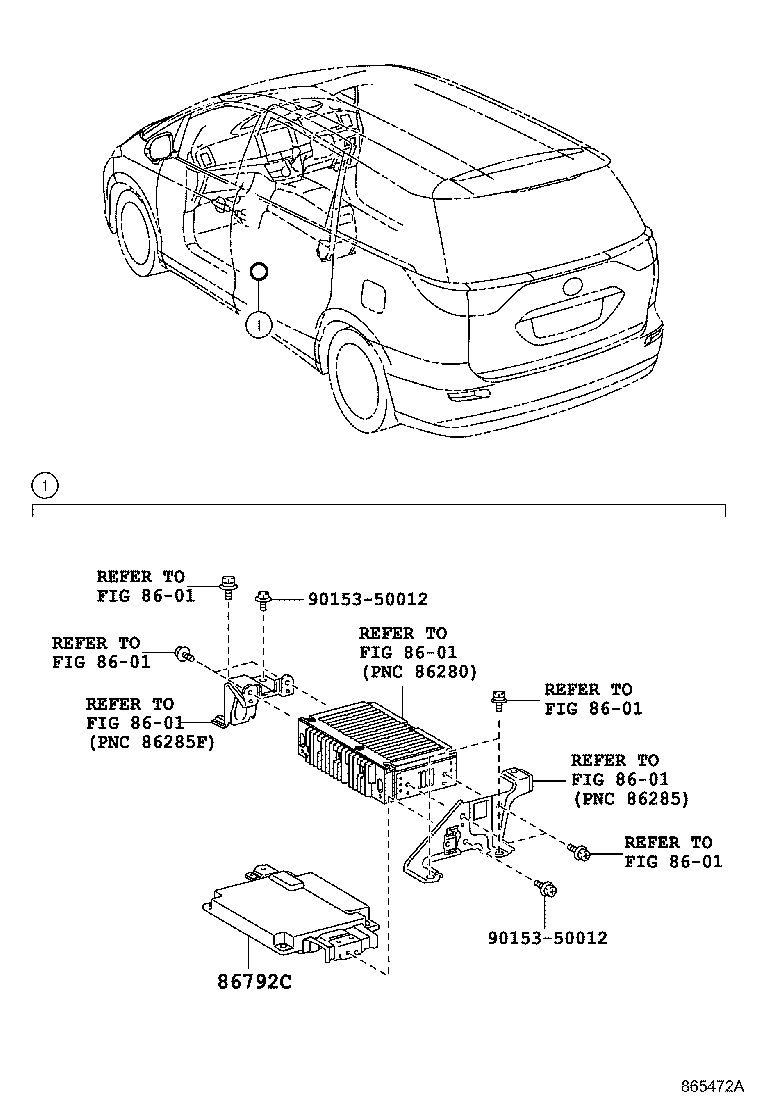

ILLUST NO. 2 OF 2(1304-1605)
ﾊﾟｰｷﾝｸﾞｱｼｽﾄ ｺﾝﾋﾟｭｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86792C - COMPUTER, PARKING ASSIST | ||||
| 86792-28210 |
ACR5#..G;GSR5#..CBU;ACR5#..08S..AERAS..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 86792-28210 |
ACR5#..G;GSR5#..CBU;ACR5#..08S..AERAS..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 86792-28250 |
ACR5#..X..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 86792-28110 |
ACR5#,GSR5#..(AERAS,G)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 86792-28300 |
ACR5#..X..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 86792-28320 |
ACR5#,GSR5#..(G,X)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| Common parts | ||||
| 90153-50012 | ||||
| Linked diagrams | ||||
| 8601 | ||||
