ACR55W-GFXQK (2012)
Toyota Estima
ILLUST NO. 2 OF 2(0601- )
ｺﾝﾃﾞﾝｻ & ｽﾃﾚｵｱﾀﾞﾌﾟﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-05314 |
ACR5#..CBU |
1 | ||
| 90980-05314 |
ACR5#..CBU |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-05314 |
ACR5#..CBU |
1 | ||
| 90980-05314 |
ACR5#..CBU |
1 | ||
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-05314 |
ACR5#..CBU |
1 | ||
| 90980-05314 |
ACR5#..CBU |
1 | ||
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04171 |
ACR5#,GSR5#..CBU |
1 | ||
| 90980-04171 |
ACR5#,GSR5#..CBU |
1 | ||
| 86011R - CONDENSER, RADIO SETTING | ||||
| 86516-28030 |
ACR5#,GSR5#..CBU |
1 | ||
| 86516-28030 |
ACR5#,GSR5#..CBU |
1 | ||
| 86011V - CONDENSER, RADIO SETTING | ||||
| 86516-28030 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き) |
1 | ||
| 86516-28030 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-30020 |
ACR5#,GSR5#..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 9ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き) |
1 | ||
| 86190-30020 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91621-J0612 | ||||

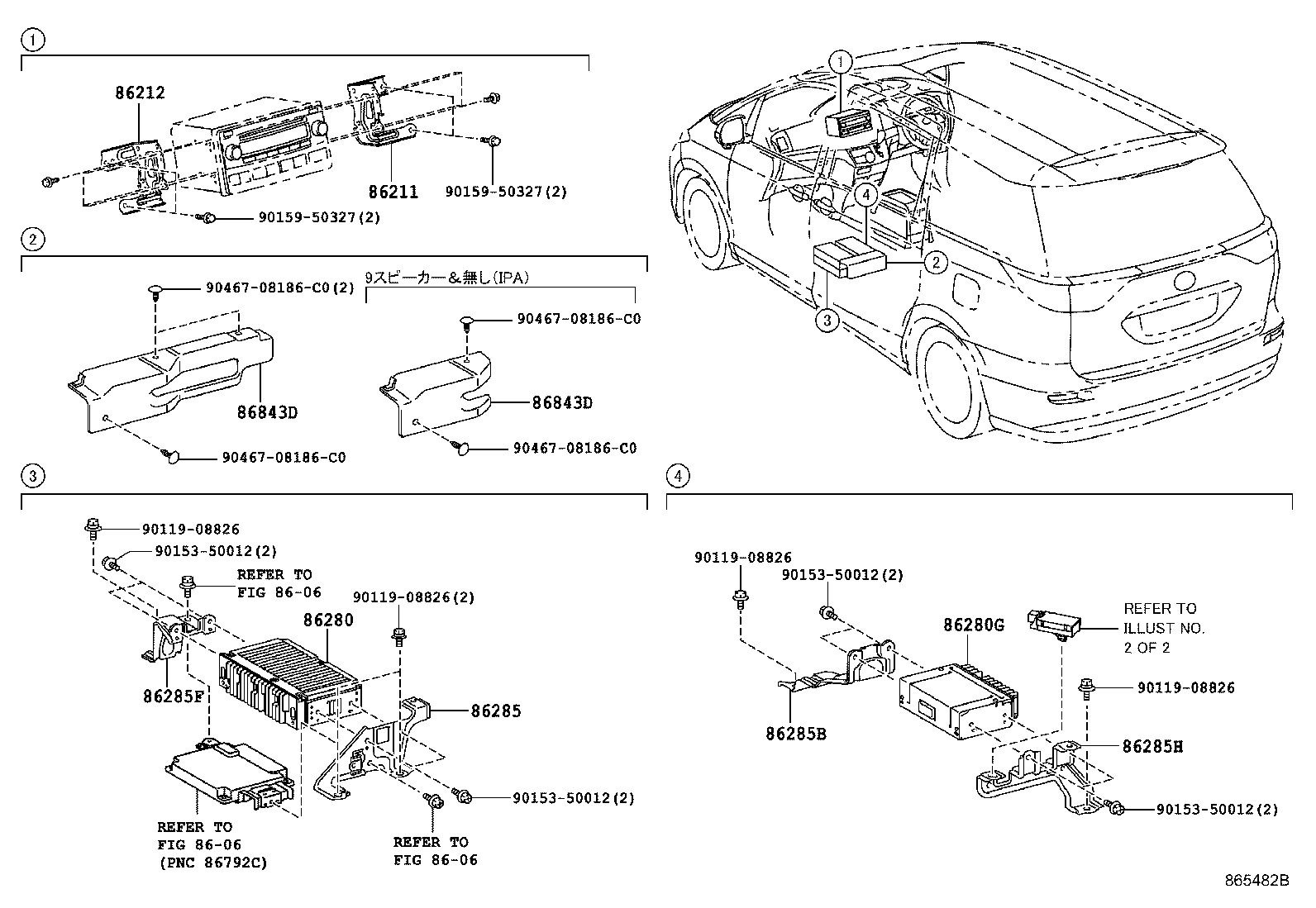

ILLUST NO. 1 OF 2(1304-1605)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-28160 |
ACR5#,GSR5#..CBU |
1 | ||
| 86211-28170 |
ACR5#,GSR5#..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 86211-28170 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 86211-28170 |
ACR5#,GSR5#..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 9ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き) |
1 | ||
| 86211-28160 |
ACR5#,GSR5#..CBU |
1 | ||
| 86211-28170 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き) |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-28170 |
ACR5#,GSR5#..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 86212-28170 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 86212-28170 |
ACR5#,GSR5#..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 9ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き) |
1 | ||
| 86212-28170 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き) |
1 | ||
| 86212-28160 |
ACR5#,GSR5#..CBU |
1 | ||
| 86212-28160 |
ACR5#,GSR5#..CBU |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-28220 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 86280-28240 |
ACR5#,GSR5#..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 9ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き) |
1 | ||
| 86280-28290 |
ACR5#,GSR5#..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 9ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き) |
1 | ||
| 86280-28250 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き) |
1 | ||
| 86280-28300 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き) |
1 | ||
| 86280G - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-28260 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き) |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-28170 |
ACR5#,GSR5#..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 9ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き)&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀのみ) |
1 | ||
| 86285-28170 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き)&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 86285-28170 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き) |
1 | ||
| 86285-28170 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き)&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀのみ) |
1 | ||
| 86285-28170 |
ACR5#,GSR5#..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 9ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き) |
1 | ||
| 86285-28170 |
ACR5#,GSR5#..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 9ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き)&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 86285B - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-28180 |
ACR5#,GSR5#..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 9ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き)&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 86285-28180 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き)&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 86285-28180 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き) |
1 | ||
| 86285-28180 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き)&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀのみ) |
1 | ||
| 86285F - BRACKET, AMPLIFIER, NO.2 | ||||
| 86285-28160 |
ACR5#,GSR5#..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 9ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き)&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀのみ) |
1 | ||
| 86285-28160 |
ACR5#,GSR5#..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 9ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き)&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 86285-28160 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き) |
1 | ||
| 86285-28160 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き)&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 86285-28160 |
ACR5#,GSR5#..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 9ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き) |
1 | ||
| 86285-28160 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き)&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀのみ) |
1 | ||
| 86285H - BRACKET, AMPLIFIER, NO.2 | ||||
| 86285-28190 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き)&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 86285-28190 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き)&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀのみ) |
1 | ||
| 86285-28190 |
ACR5#,GSR5#..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 9ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き)&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 86285-28190 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き) |
1 | ||
| 86843D - COVER,NAVIGATION COMPUTER | ||||
| 86843-28050 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き)&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀのみ) |
1 | ||
| 86843-28050 |
ACR5#,GSR5#..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 9ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き)&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 86843-28050 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き)&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 86843-28040 |
ACR5#,GSR5#..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 9ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き)&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀのみ) |
1 | ||
| 86843-28040 |
ACR5#,GSR5#..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 9ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き) |
1 | ||
| 86843-28050 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き) |
1 | ||
| 86843D - COVER,NAVIGATION COMPUTER | ||||
| 86843-28050 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き)&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀのみ) |
1 | ||
| 86843-28050 |
ACR5#,GSR5#..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 9ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き)&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 86843-28050 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き)&ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 86843-28040 |
ACR5#,GSR5#..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 9ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き)&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀのみ) |
1 | ||
| 86843-28040 |
ACR5#,GSR5#..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 9ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き) |
1 | ||
| 86843-28050 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ & 11ｽﾋﾟｰｶ(地ﾃﾞｼﾞﾁｭｰﾅ付き) |
1 | ||
| Common parts | ||||
| 90119-08826 | ||||
| 90153-50012 | ||||
| 90159-50327 | ||||
| 90467-08186C0 | ||||
| Linked diagrams | ||||
| 8606 | ||||
