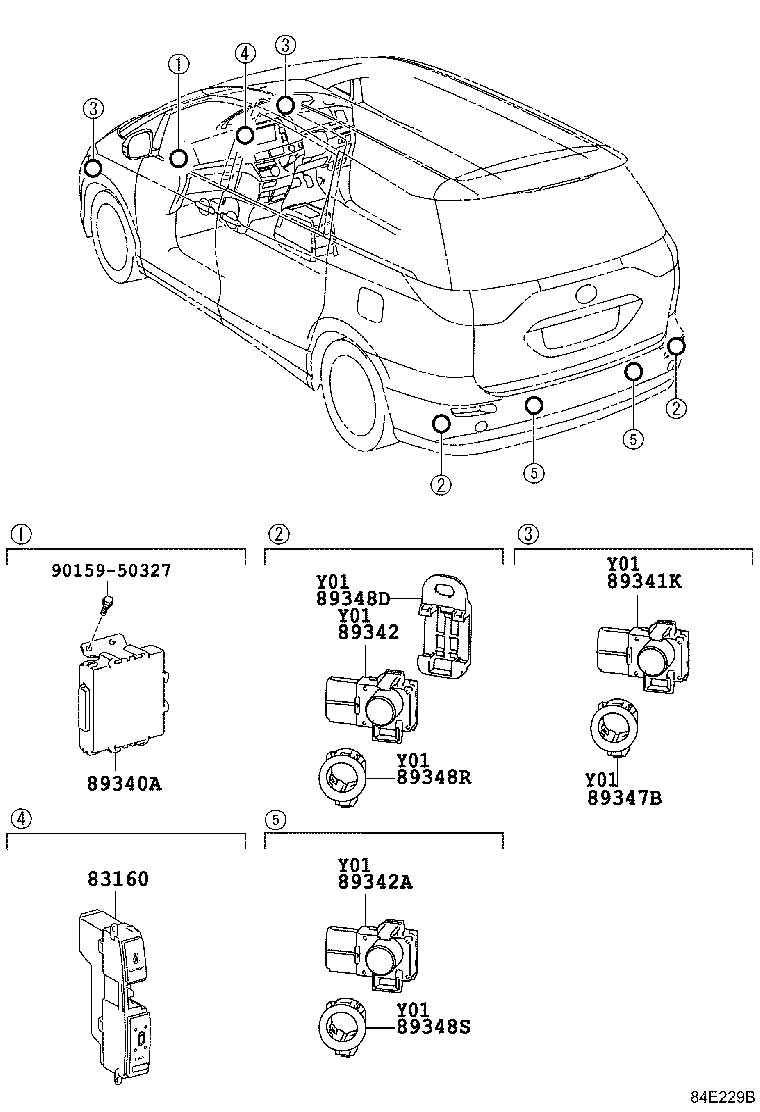

Toyota Estima ACR55 CLEARANCE & BACK SONAR

Part #	Description	Period	Qty
83160 - INDICATOR ASSY, CLEARANCE WARNING
83160-28052	ACR5#,GSR5#..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り	04/2013 - 05/2016	1
83160-28070	ACR5#,GSR5#..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ)	01/2006 - 12/2008	1
83160-28050	ACR5#,GSR5#..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ)	01/2006 - 12/2008	1
89340A - COMPUTER ASSY, CLEARANCE WARNING
89340-28190	ACR5#,GSR5#..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ)	01/2006 - 12/2008	1
89340-28230	ACR5#,GSR5#..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り	04/2013 - 05/2016	1
89340-28200	ACR5#,GSR5#..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ)	01/2006 - 12/2008	1
89341K - SENSOR, ULTRASONIC, FRONT CORNER
89341-33190C2	ACR5#,GSR5#..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,BLACK,202	04/2013 - 05/2016	2
89341-33190A1	ACR5#,GSR5#..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,WHITE PEARL CS.,070	04/2013 - 05/2016	2
89341-33190P0	ACR5#,GSR5#..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,ICE TITANIUM M.M.,1H4	04/2013 - 05/2016	2
89341-33190B0	ACR5#,GSR5#..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,SILVER ME.,1F7	04/2013 - 05/2016	2
89341-33190D4	ACR5#,GSR5#..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,DEEP RED M.M.,3R9	04/2013 - 05/2016	2
89342 - SENSOR, ULTRASONIC, REAR CORNER
89341-33190A1	ACR5#,GSR5#..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,WHITE PEARL CS.,070	04/2013 - 05/2016	2
89341-33190B0	ACR5#,GSR5#..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,SILVER ME.,1F7	04/2013 - 05/2016	2
89341-33190D4	ACR5#,GSR5#..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,DEEP RED M.M.,3R9	04/2013 - 05/2016	2
89341-33190P0	ACR5#,GSR5#..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,ICE TITANIUM M.M.,1H4	04/2013 - 05/2016	2
89341-33190C2	ACR5#,GSR5#..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,BLACK,202	04/2013 - 05/2016	2
89342A - SENSOR, ULTRASONIC, REAR CENTER
89341-33190B0	ACR5#,GSR5#..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,SILVER ME.,1F7	04/2013 - 05/2016	2
89341-33190D4	ACR5#,GSR5#..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,DEEP RED M.M.,3R9	04/2013 - 05/2016	2
89341-33190P0	ACR5#,GSR5#..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,ICE TITANIUM M.M.,1H4	04/2013 - 05/2016	2
89341-33190A1	ACR5#,GSR5#..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,WHITE PEARL CS.,070	04/2013 - 05/2016	2
89341-33190C2	ACR5#,GSR5#..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,BLACK,202	04/2013 - 05/2016	2
89347B - RETAINER, ULTRASONIC SENSOR, FRONT CORNER
89348-71010A1	ACR5#,GSR5#..(G,X)..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,WHITE PEARL CS.,070	04/2013 - 05/2016	2
89348-71010D5	ACR5#,GSR5#..(G,X)..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,DEEP RED M.M.,3R9	04/2013 - 05/2016	2
89348-71010B5	ACR5#,GSR5#..(G,X)..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,SILVER ME.,1F7	04/2013 - 05/2016	2
89348-71010P2	ACR5#,GSR5#..(G,X)..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,ICE TITANIUM M.M.,1H4	04/2013 - 05/2016	2
89348-71010C0	ACR5#,GSR5#..(G,X)..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,BLACK,202	04/2013 - 05/2016	2
89348D - CLIP, ULTRASONIC SENSOR
89348-33090	ACR5#,GSR5#..(G,X)..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り	04/2013 - 05/2016	2
89348-33090	ACR5#,GSR5#..(G,X)..CBU ﾊﾞｯｸﾓﾆﾀ−有り(*IPA & ﾌﾛﾝﾄﾓﾆﾀ & ｻｲﾄﾞﾓﾆﾀ)	04/2012 - 04/2013	2
89348R - RETAINER, ULTRASONIC SENSOR, REAR CORNER
89348-33100A1	ACR5#,GSR5#..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,WHITE PEARL CS.,070	04/2013 - 05/2016	2
89348-33100B0	ACR5#,GSR5#..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,SILVER ME.,1F7	04/2013 - 05/2016	2
89348-33100B9	ACR5#,GSR5#..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,ICE TITANIUM M.M.,1H4	04/2013 - 05/2016	2
89348-33100C4	ACR5#,GSR5#..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,BLACK,202	04/2013 - 05/2016	2
89348-33100D5	ACR5#,GSR5#..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,DEEP RED M.M.,3R9	04/2013 - 05/2016	2
89348S - RETAINER, ULTRASONIC SENSOR, REAR CENTER
89348-71010P2	ACR5#,GSR5#..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,ICE TITANIUM M.M.,1H4	04/2013 - 05/2016	2
89348-71010A1	ACR5#,GSR5#..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,WHITE PEARL CS.,070	04/2013 - 05/2016	2
89348-71010C0	ACR5#,GSR5#..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,BLACK,202	04/2013 - 05/2016	2
89348-71010D5	ACR5#,GSR5#..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,DEEP RED M.M.,3R9	04/2013 - 05/2016	2
89348-71010B5	ACR5#,GSR5#..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り,SILVER ME.,1F7	04/2013 - 05/2016	2
Common parts
90159-50327

ACR55W-GFXQK (2012)

(1304-1605)G,X
