ACR55W-GFXQK (2012)
Toyota Estima
(0601- )
ｼｰﾄｶﾊﾞｰｴｯｼﾞﾜｲﾔ & ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||

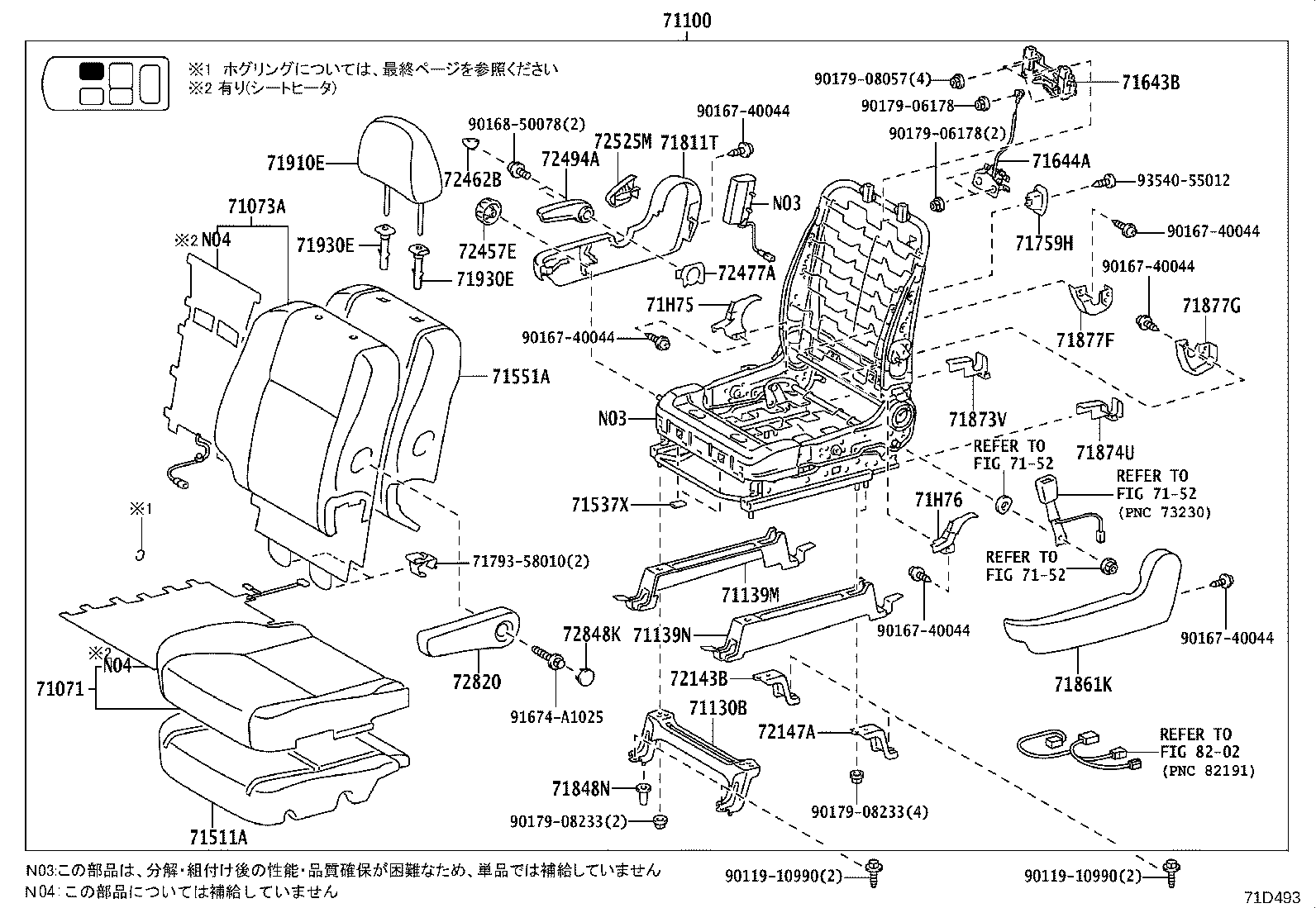

(0601- )
ｳﾝﾃﾝｾｷ ﾏﾆｭｱﾙｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071 - COVER SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71071-28B30E1 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71071-28B50E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71071-28G50A1 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71071-28E40A2 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 71071-28E40A2 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71071-28D71A0 |
ACR5#..X..CBU SHELL,TRIM0# |
1 | ||
| 71071-28E40A3 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 71071-28E40A3 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71071-28G50A2 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71073A - COVER SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71073-28B90E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71073-28B50E1 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71073-28B60E1 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71073-28C00E1 |
ACR5#,GSR5#..G..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71073-28A92A0 |
ACR5#..X..CBU SHELL,TRIM0# |
1 | ||
| 71073-28B02A0 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71073-28F81A1 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71073-28F71A1 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 71073-28K50A0 |
ACR5#,GSR5#..G SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71073-28K40A0 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71110 - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-28090 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71110-28110 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 71110-28272 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71110-28330 |
ACR5#,GSR5#..G |
1 | ||
| 71110-28331 |
ACR5#,GSR5#..G |
1 | ||
| 71110-28273 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71110-28271 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71130B - LEG ASSY, FRONT SEAT, RH | ||||
| 71130-28050 |
ACR5#,GSR5#..CBU |
1 | ||
| 71130-28050 |
ACR5#,GSR5#..CBU |
1 | ||
| 71139M - COVER, FRONT SEAT LEG, RH OUTER | ||||
| 71139-28120E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71139-28110E0 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71139-28120A0 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71139-28110A0 |
ACR5#,GSR5#..(AERAS,X)..CBU SHELL,TRIM0# |
1 | ||
| 71139N - COVER, FRONT SEAT LEG, RH INNER | ||||
| 71149-28100E0 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71149-28110E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71149-28110A0 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71149-28100A0 |
ACR5#,GSR5#..(AERAS,X)..CBU SHELL,TRIM0# |
1 | ||
| 71511A - PAD, FRONT SEAT CUSHION, RH | ||||
| 71511-28300 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 71511-28320 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71511-28300 |
ACR5#,GSR5#..G |
1 | ||
| 71511-28320 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71537X - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-26010 |
ACR5#,GSR5#..CBU |
2 | ||
| 71537-26010 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71551A - PAD, FRONT SEAT BACK, RH | ||||
| 71551-28470 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 71551-28590 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71551-28700 |
ACR5#,GSR5#..G |
1 | ||
| 71551-28680 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71551-28710 |
ACR5#,GSR5#..G SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71551-28710 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71551-28690 |
ACR5#,GSR5#..(AERAS,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71643B - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ACR5#,GSR5#..CBU |
2 | ||
| 71644A - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ACR5#,GSR5#..CBU |
2 | ||
| 71811T - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-28360E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71811-28340E0 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71811-28340A0 |
ACR5#,GSR5#..(AERAS,X)..CBU SHELL,TRIM0# |
1 | ||
| 71811-28360A0 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71848N - CAP, FRONT SEAT ADJUSTER COVER, RH NO.1 | ||||
| 71848-33010 |
ACR5#,GSR5#..CBU |
1 | ||
| 71848-33010 |
ACR5#,GSR5#..CBU |
2 | ||
| 71861K - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-28030E0 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71861-28040E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71861-28030A0 |
ACR5#,GSR5#..(AERAS,X)..CBU SHELL,TRIM0# |
1 | ||
| 71861-28040A0 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-28010 |
ACR5#,GSR5#..G..CBU 左側ｼｰﾄ用 |
1 | ||
| 71874-30020 |
ACR5#,GSR5#..G..CBU 右側ｼｰﾄ用 |
1 | ||
| 71873-28010 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71873-28010 |
ACR5#,GSR5#..G 左側ｼｰﾄ用 |
1 | ||
| 71874-30020 |
ACR5#,GSR5#..G 右側ｼｰﾄ用 |
1 | ||
| 71873-28010 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71873-28011 |
ACR5#,GSR5#..G 左側ｼｰﾄ用 |
1 | ||
| 71873-28011 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71874U - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-30070 |
ACR5#,GSR5#..G..CBU 右側ｼｰﾄ用 |
1 | ||
| 71874-28010 |
ACR5#,GSR5#..G..CBU 左側ｼｰﾄ用 |
1 | ||
| 71874-28010 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71873-30070 |
ACR5#,GSR5#..G 右側ｼｰﾄ用 |
1 | ||
| 71874-28010 |
ACR5#,GSR5#..G 左側ｼｰﾄ用 |
1 | ||
| 71874-28010 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71874-28011 |
ACR5#,GSR5#..G 左側ｼｰﾄ用 |
1 | ||
| 71874-28011 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71877F - COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT) | ||||
| 71875-58050 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 71875-58060 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71875-58060 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71875-58050 |
ACR5#,GSR5#..G |
1 | ||
| 71877G - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT) | ||||
| 71876-58050 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 71876-58060 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71876-58060 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71876-58050 |
ACR5#,GSR5#..G |
1 | ||
| 71910E - HEADREST ASSY, FRONT SEAT, RH | ||||
| 71910-28A90E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71910-28A70E1 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71910-28B00A1 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 71910-28C30A0 |
ACR5#..X..CBU SHELL,TRIM0# |
1 | ||
| 71910-28D10A1 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71910-28F10A0 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 71910-28F10A0 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71910-28B00A1 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71930-42020E1 |
GSR5#..CBU;ACR5#..(G,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
1 | ||
| 71931-42020E1 |
GSR5#..CBU;ACR5#..(G,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
1 | ||
| 71930-52030A2 |
ACR5#,GSR5#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),SHELL,TRIM0# |
1 | ||
| 71931-42020A5 |
ACR5#,GSR5#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),SHELL,TRIM0# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71930-42020E1 |
GSR5#..CBU;ACR5#..(G,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
1 | ||
| 71931-42020E1 |
GSR5#..CBU;ACR5#..(G,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
1 | ||
| 71930-52030A2 |
ACR5#,GSR5#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),SHELL,TRIM0# |
1 | ||
| 71931-42020A5 |
ACR5#,GSR5#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),SHELL,TRIM0# |
1 | ||
| 71H75 - COVER, RECLINING ADJUSTER INSIDE, RH OUTER(FOR RH SEAT) | ||||
| 71875-58030E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71875-58040E1 |
ACR5#..X..CBU;GSR5#..AERAS..CBU;ACR5#..07S..AERAS..CBU GREGE,TRIM4# |
1 | ||
| 71875-58040A2 |
ACR5#,GSR5#..(AERAS,X)..CBU SHELL,TRIM0# |
1 | ||
| 71875-58030A3 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71H76 - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT) | ||||
| 71875-48050E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71876-58040E1 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71875-48050A2 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71876-58040A2 |
ACR5#,GSR5#..(AERAS,X)..CBU SHELL,TRIM0# |
1 | ||
| 72143B - BRACKET, FRONT SEAT TRACK, LOWER REAR RH(FOR RH SEAT) | ||||
| 72143-28100 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 72143-28110 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 72143-28100 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 72143-28110 |
ACR5#,GSR5#..G |
1 | ||
| 72147A - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-28090 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 72147-28090 |
ACR5#,GSR5#..(AERAS,G)..CBU |
1 | ||
| 72143-28100 |
ACR5#..X..CBU |
1 | ||
| 72143-28100 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 72147-28090 |
ACR5#,GSR5#..G |
1 | ||
| 72457E - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-58010E2 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 72457-58010A2 |
ACR5#,GSR5#..(AERAS,X)..CBU SHELL,TRIM0# |
1 | ||
| 72462B - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-60010E2 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 72462-60010A1 |
ACR5#,GSR5#..(AERAS,X)..CBU SHELL,TRIM0# |
1 | ||
| 72477A - SPACER, VERTICAL ADJUSTER | ||||
| 72477-52010C0 |
ACR5#,GSR5#..(AERAS,X)..CBU BLACK |
1 | ||
| 72477-52010C0 |
ACR5#,GSR5#..(AERAS,X)..CBU BLACK |
1 | ||
| 72494A - HANDLE, FRONT SEAT VERTICAL ADJUSTER, RH | ||||
| 72494-60020E2 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 72494-60020A1 |
ACR5#,GSR5#..(AERAS,X)..CBU SHELL,TRIM0# |
1 | ||
| 72820 - ARMREST ASSY, FRONT SEAT, LH(FOR RH SEAT) | ||||
| 72880-28A30E1 |
ACR5#,GSR5#..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 72890-28B51A1 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 72890-28D20A0 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 72890-28D01A1 |
ACR5#..X..CBU SHELL,TRIM0# |
1 | ||
| 72890-28D20A0 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 72848K - CAP, SEAT ARMREST, NO.1(FOR RH SEAT) | ||||
| 72848-28030E1 |
ACR5#,GSR5#..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 72848-28030A2 |
ACR5#,GSR5#..CBU SHELL,TRIM0# |
1 | ||
| Common parts | ||||
| 71793-58010 | ||||
| 76519-42010 | ||||
| 90119-10911 | ||||
| 90119-10990 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 90179-08233 | ||||
| 91674-A1025 | ||||
| 93540-55012 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||

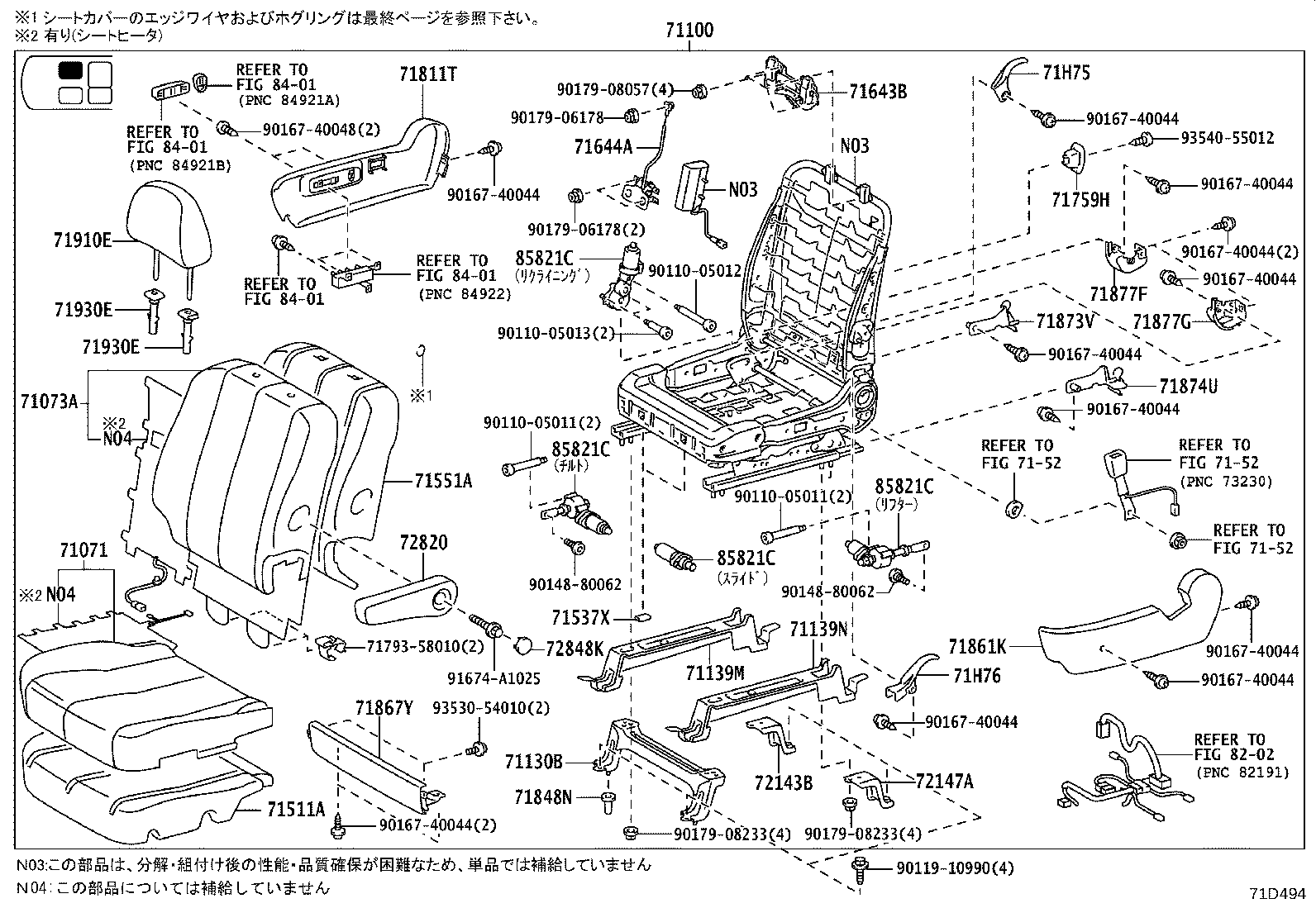

(0601- )
ｳﾝﾃﾝｾｷ ﾊﾟﾜｰｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071 - COVER SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71071-28B30E1 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71071-28B50E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71071-28G50A1 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71071-28E40A2 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 71071-28E40A2 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71071-28D71A0 |
ACR5#..X..CBU SHELL,TRIM0# |
1 | ||
| 71071-28E40A3 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 71071-28E40A3 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71071-28G50A2 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71073A - COVER SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71073-28B90E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71073-28B50E1 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71073-28B60E1 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71073-28C00E1 |
ACR5#,GSR5#..G..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71073-28A92A0 |
ACR5#..X..CBU SHELL,TRIM0# |
1 | ||
| 71073-28B02A0 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71073-28F81A1 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71073-28F71A1 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 71073-28K50A0 |
ACR5#,GSR5#..G SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71073-28K40A0 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71110 - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH | ||||
| 71110-28090 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71110-28110 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 71110-28272 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71110-28330 |
ACR5#,GSR5#..G |
1 | ||
| 71110-28331 |
ACR5#,GSR5#..G |
1 | ||
| 71110-28273 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71110-28271 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71130B - LEG ASSY, FRONT SEAT, RH | ||||
| 71130-28050 |
ACR5#,GSR5#..CBU |
1 | ||
| 71130-28050 |
ACR5#,GSR5#..CBU |
1 | ||
| 71139M - COVER, FRONT SEAT LEG, RH OUTER | ||||
| 71139-28120E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71139-28110E0 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71139-28120A0 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71139-28110A0 |
ACR5#,GSR5#..(AERAS,X)..CBU SHELL,TRIM0# |
1 | ||
| 71139N - COVER, FRONT SEAT LEG, RH INNER | ||||
| 71149-28100E0 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71149-28110E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71149-28110A0 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71149-28100A0 |
ACR5#,GSR5#..(AERAS,X)..CBU SHELL,TRIM0# |
1 | ||
| 71511A - PAD, FRONT SEAT CUSHION, RH | ||||
| 71511-28300 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 71511-28320 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71511-28300 |
ACR5#,GSR5#..G |
1 | ||
| 71511-28320 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71537X - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-26010 |
ACR5#,GSR5#..CBU |
2 | ||
| 71537-26010 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71551A - PAD, FRONT SEAT BACK, RH | ||||
| 71551-28470 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 71551-28590 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71551-28700 |
ACR5#,GSR5#..G |
1 | ||
| 71551-28680 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71551-28710 |
ACR5#,GSR5#..G SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71551-28710 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71551-28690 |
ACR5#,GSR5#..(AERAS,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71643B - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ACR5#,GSR5#..CBU |
2 | ||
| 71644A - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ACR5#,GSR5#..CBU |
2 | ||
| 71811T - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-28360E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71811-28340E0 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71811-28340A0 |
ACR5#,GSR5#..(AERAS,X)..CBU SHELL,TRIM0# |
1 | ||
| 71811-28360A0 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71848N - CAP, FRONT SEAT ADJUSTER COVER, RH NO.1 | ||||
| 71848-33010 |
ACR5#,GSR5#..CBU |
1 | ||
| 71848-33010 |
ACR5#,GSR5#..CBU |
2 | ||
| 71861K - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-28030E0 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71861-28040E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71861-28030A0 |
ACR5#,GSR5#..(AERAS,X)..CBU SHELL,TRIM0# |
1 | ||
| 71861-28040A0 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71867Y - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH(FOR RH SEAT) | ||||
| 71867-28030E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71867-28030A0 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-28010 |
ACR5#,GSR5#..G..CBU 左側ｼｰﾄ用 |
1 | ||
| 71874-30020 |
ACR5#,GSR5#..G..CBU 右側ｼｰﾄ用 |
1 | ||
| 71873-28010 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71873-28010 |
ACR5#,GSR5#..G 左側ｼｰﾄ用 |
1 | ||
| 71874-30020 |
ACR5#,GSR5#..G 右側ｼｰﾄ用 |
1 | ||
| 71873-28010 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71873-28011 |
ACR5#,GSR5#..G 左側ｼｰﾄ用 |
1 | ||
| 71873-28011 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71874U - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-30070 |
ACR5#,GSR5#..G..CBU 右側ｼｰﾄ用 |
1 | ||
| 71874-28010 |
ACR5#,GSR5#..G..CBU 左側ｼｰﾄ用 |
1 | ||
| 71874-28010 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71873-30070 |
ACR5#,GSR5#..G 右側ｼｰﾄ用 |
1 | ||
| 71874-28010 |
ACR5#,GSR5#..G 左側ｼｰﾄ用 |
1 | ||
| 71874-28010 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71874-28011 |
ACR5#,GSR5#..G 左側ｼｰﾄ用 |
1 | ||
| 71874-28011 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71877F - COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT) | ||||
| 71875-58050 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 71875-58060 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71875-58060 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71875-58050 |
ACR5#,GSR5#..G |
1 | ||
| 71877G - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT) | ||||
| 71876-58050 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 71876-58060 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71876-58060 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71876-58050 |
ACR5#,GSR5#..G |
1 | ||
| 71910E - HEADREST ASSY, FRONT SEAT, RH | ||||
| 71910-28A90E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71910-28A70E1 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71910-28B00A1 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 71910-28C30A0 |
ACR5#..X..CBU SHELL,TRIM0# |
1 | ||
| 71910-28D10A1 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71910-28F10A0 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 71910-28F10A0 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71910-28B00A1 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71930-42020E1 |
GSR5#..CBU;ACR5#..(G,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
1 | ||
| 71931-42020E1 |
GSR5#..CBU;ACR5#..(G,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
1 | ||
| 71930-52030A2 |
ACR5#,GSR5#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),SHELL,TRIM0# |
1 | ||
| 71931-42020A5 |
ACR5#,GSR5#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),SHELL,TRIM0# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71930-42020E1 |
GSR5#..CBU;ACR5#..(G,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
1 | ||
| 71931-42020E1 |
GSR5#..CBU;ACR5#..(G,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
1 | ||
| 71930-52030A2 |
ACR5#,GSR5#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),SHELL,TRIM0# |
1 | ||
| 71931-42020A5 |
ACR5#,GSR5#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),SHELL,TRIM0# |
1 | ||
| 71H75 - COVER, RECLINING ADJUSTER INSIDE, RH OUTER(FOR RH SEAT) | ||||
| 71875-58030E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71875-58040E1 |
ACR5#..X..CBU;GSR5#..AERAS..CBU;ACR5#..07S..AERAS..CBU GREGE,TRIM4# |
1 | ||
| 71875-58040A2 |
ACR5#,GSR5#..(AERAS,X)..CBU SHELL,TRIM0# |
1 | ||
| 71875-58030A3 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71H76 - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT) | ||||
| 71875-48050E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71876-58040E1 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71875-48050A2 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71876-58040A2 |
ACR5#,GSR5#..(AERAS,X)..CBU SHELL,TRIM0# |
1 | ||
| 72143B - BRACKET, FRONT SEAT TRACK, LOWER REAR RH(FOR RH SEAT) | ||||
| 72143-28100 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 72143-28110 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 72143-28100 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 72143-28110 |
ACR5#,GSR5#..G |
1 | ||
| 72147A - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-28090 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 72147-28090 |
ACR5#,GSR5#..(AERAS,G)..CBU |
1 | ||
| 72143-28100 |
ACR5#..X..CBU |
1 | ||
| 72143-28100 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 72147-28090 |
ACR5#,GSR5#..G |
1 | ||
| 72820 - ARMREST ASSY, FRONT SEAT, LH(FOR RH SEAT) | ||||
| 72880-28A30E1 |
ACR5#,GSR5#..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 72890-28B51A1 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 72890-28D20A0 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 72890-28D01A1 |
ACR5#..X..CBU SHELL,TRIM0# |
1 | ||
| 72890-28D20A0 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 72848K - CAP, SEAT ARMREST, NO.1(FOR RH SEAT) | ||||
| 72848-28030E1 |
ACR5#,GSR5#..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 72848-28030A2 |
ACR5#,GSR5#..CBU SHELL,TRIM0# |
1 | ||
| 85821C - MOTOR ASSY, POWER SEAT | ||||
| 85801-28010 |
ACR5#,GSR5#..G..CBU ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 85801-28020 |
ACR5#,GSR5#..G..CBU ｽﾗｲﾄﾞ用 |
1 | ||
| 85801-28030 |
ACR5#,GSR5#..G..CBU ﾘﾌﾄ用 |
1 | ||
| 85801-28040 |
ACR5#,GSR5#..G..CBU ﾁﾙﾄ用 |
1 | ||
| 85801-28100 |
ACR5#,GSR5#..G ｽﾗｲﾄﾞ用 |
1 | ||
| 85801-28090 |
ACR5#,GSR5#..G ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 85801-28120 |
ACR5#,GSR5#..G ﾁﾙﾄ用 |
1 | ||
| 85801-28110 |
ACR5#,GSR5#..G ﾘﾌﾄ用 |
1 | ||
| 85821C - MOTOR ASSY, POWER SEAT | ||||
| 85801-28010 |
ACR5#,GSR5#..G..CBU ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 85801-28020 |
ACR5#,GSR5#..G..CBU ｽﾗｲﾄﾞ用 |
1 | ||
| 85801-28030 |
ACR5#,GSR5#..G..CBU ﾘﾌﾄ用 |
1 | ||
| 85801-28040 |
ACR5#,GSR5#..G..CBU ﾁﾙﾄ用 |
1 | ||
| 85801-28100 |
ACR5#,GSR5#..G ｽﾗｲﾄﾞ用 |
1 | ||
| 85801-28090 |
ACR5#,GSR5#..G ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 85801-28120 |
ACR5#,GSR5#..G ﾁﾙﾄ用 |
1 | ||
| 85801-28110 |
ACR5#,GSR5#..G ﾘﾌﾄ用 |
1 | ||
| 85821C - MOTOR ASSY, POWER SEAT | ||||
| 85801-28010 |
ACR5#,GSR5#..G..CBU ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 85801-28020 |
ACR5#,GSR5#..G..CBU ｽﾗｲﾄﾞ用 |
1 | ||
| 85801-28030 |
ACR5#,GSR5#..G..CBU ﾘﾌﾄ用 |
1 | ||
| 85801-28040 |
ACR5#,GSR5#..G..CBU ﾁﾙﾄ用 |
1 | ||
| 85801-28100 |
ACR5#,GSR5#..G ｽﾗｲﾄﾞ用 |
1 | ||
| 85801-28090 |
ACR5#,GSR5#..G ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 85801-28120 |
ACR5#,GSR5#..G ﾁﾙﾄ用 |
1 | ||
| 85801-28110 |
ACR5#,GSR5#..G ﾘﾌﾄ用 |
1 | ||
| 85821C - MOTOR ASSY, POWER SEAT | ||||
| 85801-28010 |
ACR5#,GSR5#..G..CBU ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 85801-28020 |
ACR5#,GSR5#..G..CBU ｽﾗｲﾄﾞ用 |
1 | ||
| 85801-28030 |
ACR5#,GSR5#..G..CBU ﾘﾌﾄ用 |
1 | ||
| 85801-28040 |
ACR5#,GSR5#..G..CBU ﾁﾙﾄ用 |
1 | ||
| 85801-28100 |
ACR5#,GSR5#..G ｽﾗｲﾄﾞ用 |
1 | ||
| 85801-28090 |
ACR5#,GSR5#..G ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 85801-28120 |
ACR5#,GSR5#..G ﾁﾙﾄ用 |
1 | ||
| 85801-28110 |
ACR5#,GSR5#..G ﾘﾌﾄ用 |
1 | ||
| Common parts | ||||
| 71793-58010 | ||||
| 76519-42010 | ||||
| 90110-05011 | ||||
| 90110-05012 | ||||
| 90110-05013 | ||||
| 90119-10911 | ||||
| 90119-10990 | ||||
| 90148-80062 | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 90179-08233 | ||||
| 91674-A1025 | ||||
| 93530-54010 | ||||
| 93540-55012 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||

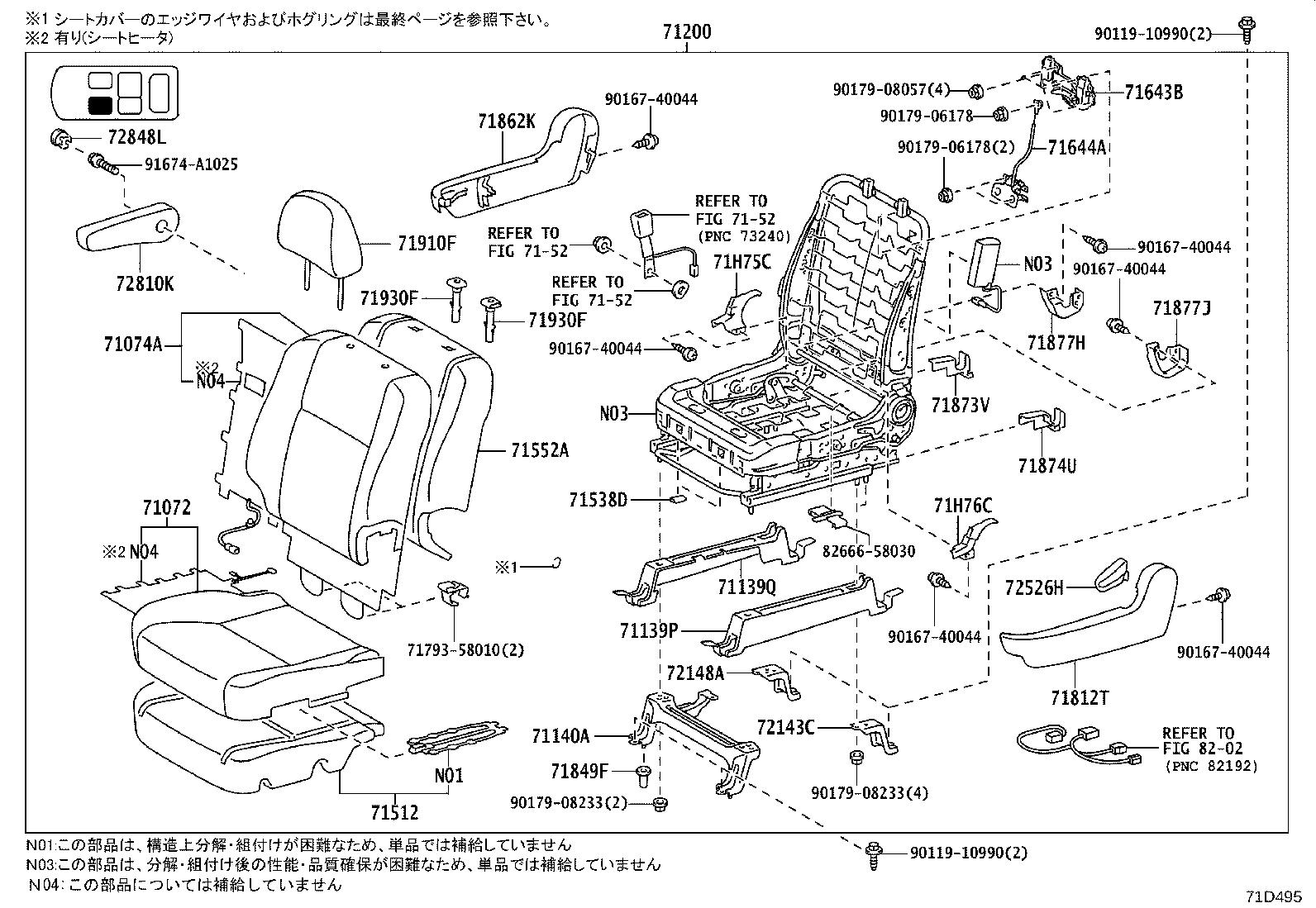

(0601- )
ｼﾞｮｼｭｾｷ ﾏﾆｭｱﾙｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072 - COVER SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71072-28B10E1 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71072-28B30E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71072-28E00A1 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71072-28G00A0 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71072-28E00A1 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 71072-28E00A2 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71072-28D41A0 |
ACR5#..X..CBU SHELL,TRIM0# |
1 | ||
| 71072-28E00A2 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 71072-28G00A1 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71074A - COVER SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71074-28C30E1 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71074-28C40E1 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71074-28C70E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71074-28C80E1 |
ACR5#,GSR5#..G..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71074-28F90A1 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 71074-28G00A1 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71074-28E91A0 |
ACR5#..X..CBU SHELL,TRIM0# |
1 | ||
| 71074-28K30A0 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71074-28K40A0 |
ACR5#,GSR5#..G SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71074-28F01A0 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71120E - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-28241 |
ACR5#,GSR5#..CBU |
1 | ||
| 71120-28240 |
ACR5#,GSR5#..CBU |
1 | ||
| 71120-28100 |
ACR5#,GSR5#..CBU |
1 | ||
| 71139P - COVER, FRONT SEAT LEG, LH OUTER | ||||
| 71149-28120E0 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU GREGE,TRIM4# |
1 | ||
| 71149-28120A0 |
ACR5#,GSR5#..CBU SHELL,TRIM0# |
1 | ||
| 71139Q - COVER, FRONT SEAT LEG, LH INNER | ||||
| 71139-28130E0 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU GREGE,TRIM4# |
1 | ||
| 71139-28130A0 |
ACR5#,GSR5#..CBU SHELL,TRIM0# |
1 | ||
| 71140A - LEG ASSY, FRONT SEAT, LH | ||||
| 71140-28050 |
ACR5#,GSR5#..CBU |
1 | ||
| 71140-28060 |
ACR5#,GSR5#..CBU |
1 | ||
| 71512 - PAD, FRONT SEAT CUSHION, LH | ||||
| 71502-28020 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71502-28010 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 71502-28020 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71502-28010 |
ACR5#,GSR5#..G |
1 | ||
| 71538D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71537-26010 |
ACR5#,GSR5#..CBU |
2 | ||
| 71537-26010 |
ACR5#,GSR5#..CBU |
2 | ||
| 71552A - PAD, FRONT SEAT BACK, LH | ||||
| 71552-28280 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 71552-28330 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71552-28390 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71552-28420 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71552-28420 |
ACR5#,GSR5#..G SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71552-28400 |
ACR5#,GSR5#..(AERAS,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71552-28410 |
ACR5#,GSR5#..G |
1 | ||
| 71643B - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ACR5#,GSR5#..CBU |
2 | ||
| 71644A - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ACR5#,GSR5#..CBU |
2 | ||
| 71812T - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-28340A0 |
ACR5#,GSR5#..CBU SHELL,TRIM0# |
1 | ||
| 71812-28340E0 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU GREGE,TRIM4# |
1 | ||
| 71849F - CAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT) | ||||
| 71848-33010 |
ACR5#,GSR5#..CBU |
1 | ||
| 71848-33010 |
ACR5#,GSR5#..CBU |
2 | ||
| 71862K - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-28020A0 |
ACR5#,GSR5#..CBU SHELL,TRIM0# |
1 | ||
| 71862-28020E0 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU GREGE,TRIM4# |
1 | ||
| 71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-28010 |
ACR5#,GSR5#..G..CBU 左側ｼｰﾄ用 |
1 | ||
| 71874-30020 |
ACR5#,GSR5#..G..CBU 右側ｼｰﾄ用 |
1 | ||
| 71873-28010 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71873-28010 |
ACR5#,GSR5#..G 左側ｼｰﾄ用 |
1 | ||
| 71874-30020 |
ACR5#,GSR5#..G 右側ｼｰﾄ用 |
1 | ||
| 71873-28010 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71873-28011 |
ACR5#,GSR5#..G 左側ｼｰﾄ用 |
1 | ||
| 71873-28011 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71874U - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-30070 |
ACR5#,GSR5#..G..CBU 右側ｼｰﾄ用 |
1 | ||
| 71874-28010 |
ACR5#,GSR5#..G..CBU 左側ｼｰﾄ用 |
1 | ||
| 71874-28010 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71873-30070 |
ACR5#,GSR5#..G 右側ｼｰﾄ用 |
1 | ||
| 71874-28010 |
ACR5#,GSR5#..G 左側ｼｰﾄ用 |
1 | ||
| 71874-28010 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71874-28011 |
ACR5#,GSR5#..G 左側ｼｰﾄ用 |
1 | ||
| 71874-28011 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71877H - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT) | ||||
| 71875-58060 |
ACR5#,GSR5#..CBU |
1 | ||
| 71875-58060 |
ACR5#,GSR5#..CBU |
1 | ||
| 71877J - COVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT) | ||||
| 71876-58060 |
ACR5#,GSR5#..CBU |
1 | ||
| 71876-58060 |
ACR5#,GSR5#..CBU |
1 | ||
| 71910F - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-28A70E1 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71910-28A90E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71910-28B00A1 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 71910-28B00A1 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71910-28C30A0 |
ACR5#..X..CBU SHELL,TRIM0# |
1 | ||
| 71910-28D10A1 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71910-28F10A0 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71910-28F10A0 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71931-42020E1 |
GSR5#..CBU;ACR5#..(G,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
1 | ||
| 71930-42020E1 |
GSR5#..CBU;ACR5#..(G,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
1 | ||
| 71931-42020A5 |
ACR5#,GSR5#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),SHELL,TRIM0# |
1 | ||
| 71930-52030A2 |
ACR5#,GSR5#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),SHELL,TRIM0# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71931-42020E1 |
GSR5#..CBU;ACR5#..(G,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
1 | ||
| 71930-42020E1 |
GSR5#..CBU;ACR5#..(G,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
1 | ||
| 71931-42020A5 |
ACR5#,GSR5#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),SHELL,TRIM0# |
1 | ||
| 71930-52030A2 |
ACR5#,GSR5#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),SHELL,TRIM0# |
1 | ||
| 71H75C - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT) | ||||
| 71875-58040E1 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU GREGE,TRIM4# |
1 | ||
| 71875-58040A2 |
ACR5#,GSR5#..CBU SHELL,TRIM0# |
1 | ||
| 71H76C - COVER, RECLINING ADJUSTER INSIDE, LH OUTER(FOR LH SEAT) | ||||
| 71876-58040E1 |
ACR5#,GSR5#..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 71876-58040E1 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,GREGE,TRIM4# |
2 | ||
| 71876-58040A2 |
ACR5#,GSR5#..CBU SHELL,TRIM0# |
1 | ||
| 72143C - BRACKET, FRONT SEAT TRACK, LOWER REAR(FOR LH SEAT) | ||||
| 72143-28100 |
ACR5#,GSR5#..CBU |
1 | ||
| 72143-28100 |
ACR5#,GSR5#..CBU |
1 | ||
| 72148A - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72143-28100 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 72147-28090 |
ACR5#,GSR5#..(G,X)..CBU |
1 | ||
| 72147-28090 |
ACR5#,GSR5#..CBU |
1 | ||
| 72526H - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58040E3 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU GREGE,TRIM4# |
1 | ||
| 72526-58040A2 |
ACR5#,GSR5#..CBU SHELL,TRIM0# |
1 | ||
| 72810K - ARMREST ASSY, FRONT SEAT, RH(FOR LH SEAT) | ||||
| 72890-28A30E1 |
ACR5#,GSR5#..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 72880-28B51A1 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 72880-28D30A0 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 72880-28D12A1 |
ACR5#..X..CBU SHELL,TRIM0# |
1 | ||
| 72880-28D30A0 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 72848L - CAP, SEAT ARMREST, NO.1(FOR LH SEAT) | ||||
| 72848-28030E1 |
ACR5#,GSR5#..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 72848-28030A2 |
ACR5#,GSR5#..CBU SHELL,TRIM0# |
1 | ||
| Common parts | ||||
| 71793-58010 | ||||
| 76519-42010 | ||||
| 82666-58030 | ||||
| 90119-10911 | ||||
| 90119-10990 | ||||
| 90167-40044 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 90179-08233 | ||||
| 91674-A1025 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
(1204- )
ｳﾝﾃﾝｾｷﾏﾆｭｱﾙｼｰﾄ & ｱﾘ(SRSｻｲﾄﾞｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071 - COVER SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71071-28B30E1 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71071-28B50E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71071-28G50A1 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71071-28E40A2 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 71071-28E40A2 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71071-28D71A0 |
ACR5#..X..CBU SHELL,TRIM0# |
1 | ||
| 71071-28E40A3 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 71071-28E40A3 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71071-28G50A2 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71073A - COVER SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71073-28B90E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71073-28B50E1 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71073-28B60E1 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71073-28C00E1 |
ACR5#,GSR5#..G..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71073-28A92A0 |
ACR5#..X..CBU SHELL,TRIM0# |
1 | ||
| 71073-28B02A0 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71073-28F81A1 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71073-28F71A1 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 71073-28K50A0 |
ACR5#,GSR5#..G SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71073-28K40A0 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71100 - SEAT ASSY, FRONT RH | ||||
| 71100-28E10E1 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71100-28E80E2 |
ACR5#,GSR5#..G..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71100-28S90A2 |
ACR5#,GSR5#..G SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71100-28S50A1 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71100-28S90A4 |
ACR5#,GSR5#..G SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71100-28T30A4 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71100-28T30A2 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71100-28S50A3 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71130B - LEG ASSY, FRONT SEAT, RH | ||||
| 71130-28050 |
ACR5#,GSR5#..CBU |
1 | ||
| 71130-28050 |
ACR5#,GSR5#..CBU |
1 | ||
| 71139M - COVER, FRONT SEAT LEG, RH OUTER | ||||
| 71139-28120E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71139-28110E0 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71139-28120A0 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71139-28110A0 |
ACR5#,GSR5#..(AERAS,X)..CBU SHELL,TRIM0# |
1 | ||
| 71139N - COVER, FRONT SEAT LEG, RH INNER | ||||
| 71149-28100E0 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71149-28110E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71149-28110A0 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71149-28100A0 |
ACR5#,GSR5#..(AERAS,X)..CBU SHELL,TRIM0# |
1 | ||
| 71511A - PAD, FRONT SEAT CUSHION, RH | ||||
| 71511-28300 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 71511-28320 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71511-28300 |
ACR5#,GSR5#..G |
1 | ||
| 71511-28320 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71537X - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-26010 |
ACR5#,GSR5#..CBU |
2 | ||
| 71537-26010 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71551A - PAD, FRONT SEAT BACK, RH | ||||
| 71551-28470 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 71551-28590 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71551-28700 |
ACR5#,GSR5#..G |
1 | ||
| 71551-28680 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71551-28710 |
ACR5#,GSR5#..G SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71551-28710 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71551-28690 |
ACR5#,GSR5#..(AERAS,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71643B - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ACR5#,GSR5#..CBU |
2 | ||
| 71644A - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ACR5#,GSR5#..CBU |
2 | ||
| 71811T - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-28360E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71811-28340E0 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71811-28340A0 |
ACR5#,GSR5#..(AERAS,X)..CBU SHELL,TRIM0# |
1 | ||
| 71811-28360A0 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71848N - CAP, FRONT SEAT ADJUSTER COVER, RH NO.1 | ||||
| 71848-33010 |
ACR5#,GSR5#..CBU |
1 | ||
| 71848-33010 |
ACR5#,GSR5#..CBU |
2 | ||
| 71861K - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-28030E0 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71861-28040E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71861-28030A0 |
ACR5#,GSR5#..(AERAS,X)..CBU SHELL,TRIM0# |
1 | ||
| 71861-28040A0 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-28010 |
ACR5#,GSR5#..G..CBU 左側ｼｰﾄ用 |
1 | ||
| 71874-30020 |
ACR5#,GSR5#..G..CBU 右側ｼｰﾄ用 |
1 | ||
| 71873-28010 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71873-28010 |
ACR5#,GSR5#..G 左側ｼｰﾄ用 |
1 | ||
| 71874-30020 |
ACR5#,GSR5#..G 右側ｼｰﾄ用 |
1 | ||
| 71873-28010 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71873-28011 |
ACR5#,GSR5#..G 左側ｼｰﾄ用 |
1 | ||
| 71873-28011 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71874U - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-30070 |
ACR5#,GSR5#..G..CBU 右側ｼｰﾄ用 |
1 | ||
| 71874-28010 |
ACR5#,GSR5#..G..CBU 左側ｼｰﾄ用 |
1 | ||
| 71874-28010 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71873-30070 |
ACR5#,GSR5#..G 右側ｼｰﾄ用 |
1 | ||
| 71874-28010 |
ACR5#,GSR5#..G 左側ｼｰﾄ用 |
1 | ||
| 71874-28010 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71874-28011 |
ACR5#,GSR5#..G 左側ｼｰﾄ用 |
1 | ||
| 71874-28011 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71877F - COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT) | ||||
| 71875-58050 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 71875-58060 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71875-58060 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71875-58050 |
ACR5#,GSR5#..G |
1 | ||
| 71877G - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT) | ||||
| 71876-58050 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 71876-58060 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71876-58060 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71876-58050 |
ACR5#,GSR5#..G |
1 | ||
| 71910E - HEADREST ASSY, FRONT SEAT, RH | ||||
| 71910-28A90E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71910-28A70E1 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71910-28B00A1 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 71910-28C30A0 |
ACR5#..X..CBU SHELL,TRIM0# |
1 | ||
| 71910-28D10A1 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71910-28F10A0 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 71910-28F10A0 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71910-28B00A1 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71930-42020E1 |
GSR5#..CBU;ACR5#..(G,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
1 | ||
| 71931-42020E1 |
GSR5#..CBU;ACR5#..(G,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
1 | ||
| 71930-52030A2 |
ACR5#,GSR5#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),SHELL,TRIM0# |
1 | ||
| 71931-42020A5 |
ACR5#,GSR5#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),SHELL,TRIM0# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71930-42020E1 |
GSR5#..CBU;ACR5#..(G,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
1 | ||
| 71931-42020E1 |
GSR5#..CBU;ACR5#..(G,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
1 | ||
| 71930-52030A2 |
ACR5#,GSR5#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),SHELL,TRIM0# |
1 | ||
| 71931-42020A5 |
ACR5#,GSR5#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),SHELL,TRIM0# |
1 | ||
| 71H75 - COVER, RECLINING ADJUSTER INSIDE, RH OUTER(FOR RH SEAT) | ||||
| 71875-58030E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71875-58040E1 |
ACR5#..X..CBU;GSR5#..AERAS..CBU;ACR5#..07S..AERAS..CBU GREGE,TRIM4# |
1 | ||
| 71875-58040A2 |
ACR5#,GSR5#..(AERAS,X)..CBU SHELL,TRIM0# |
1 | ||
| 71875-58030A3 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71H76 - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT) | ||||
| 71875-48050E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71876-58040E1 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71875-48050A2 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71876-58040A2 |
ACR5#,GSR5#..(AERAS,X)..CBU SHELL,TRIM0# |
1 | ||
| 72143B - BRACKET, FRONT SEAT TRACK, LOWER REAR RH(FOR RH SEAT) | ||||
| 72143-28100 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 72143-28110 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 72143-28100 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 72143-28110 |
ACR5#,GSR5#..G |
1 | ||
| 72147A - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-28090 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 72147-28090 |
ACR5#,GSR5#..(AERAS,G)..CBU |
1 | ||
| 72143-28100 |
ACR5#..X..CBU |
1 | ||
| 72143-28100 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 72147-28090 |
ACR5#,GSR5#..G |
1 | ||
| 72457E - KNOB, VERTICAL SEAT ADJUSTER, RH | ||||
| 72457-58010E2 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 72457-58010A2 |
ACR5#,GSR5#..(AERAS,X)..CBU SHELL,TRIM0# |
1 | ||
| 72462B - COVER, VERTICAL ADJUSTER RH | ||||
| 72462-60010E2 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 72462-60010A1 |
ACR5#,GSR5#..(AERAS,X)..CBU SHELL,TRIM0# |
1 | ||
| 72477A - SPACER, VERTICAL ADJUSTER | ||||
| 72477-52010C0 |
ACR5#,GSR5#..(AERAS,X)..CBU BLACK |
1 | ||
| 72477-52010C0 |
ACR5#,GSR5#..(AERAS,X)..CBU BLACK |
1 | ||
| 72494A - HANDLE, FRONT SEAT VERTICAL ADJUSTER, RH | ||||
| 72494-60020E2 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 72494-60020A1 |
ACR5#,GSR5#..(AERAS,X)..CBU SHELL,TRIM0# |
1 | ||
| 72525M - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-58030E3 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 72525-58030A2 |
ACR5#,GSR5#..(AERAS,X)..CBU SHELL,TRIM0# |
1 | ||
| 72820 - ARMREST ASSY, FRONT SEAT, LH(FOR RH SEAT) | ||||
| 72880-28A30E1 |
ACR5#,GSR5#..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 72890-28B51A1 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 72890-28D20A0 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 72890-28D01A1 |
ACR5#..X..CBU SHELL,TRIM0# |
1 | ||
| 72890-28D20A0 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 72848K - CAP, SEAT ARMREST, NO.1(FOR RH SEAT) | ||||
| 72848-28030E1 |
ACR5#,GSR5#..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 72848-28030A2 |
ACR5#,GSR5#..CBU SHELL,TRIM0# |
1 | ||
| Common parts | ||||
| 71793-58010 | ||||
| 90119-10990 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 90179-08233 | ||||
| 91674-A1025 | ||||
| 93540-55012 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
(1204- )
ｳﾝﾃﾝｾｷ ﾊﾟﾜｰｼｰﾄ & ｱﾘ(SRSｻｲﾄﾞｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071 - COVER SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71071-28B30E1 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71071-28B50E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71071-28G50A1 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71071-28E40A2 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 71071-28E40A2 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71071-28D71A0 |
ACR5#..X..CBU SHELL,TRIM0# |
1 | ||
| 71071-28E40A3 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 71071-28E40A3 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71071-28G50A2 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71073A - COVER SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71073-28B90E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71073-28B50E1 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71073-28B60E1 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71073-28C00E1 |
ACR5#,GSR5#..G..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71073-28A92A0 |
ACR5#..X..CBU SHELL,TRIM0# |
1 | ||
| 71073-28B02A0 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71073-28F81A1 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71073-28F71A1 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 71073-28K50A0 |
ACR5#,GSR5#..G SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71073-28K40A0 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71100 - SEAT ASSY, FRONT RH | ||||
| 71100-28E10E1 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71100-28E80E2 |
ACR5#,GSR5#..G..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71100-28S90A2 |
ACR5#,GSR5#..G SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71100-28S50A1 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71100-28S90A4 |
ACR5#,GSR5#..G SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71100-28T30A4 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71100-28T30A2 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71100-28S50A3 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71130B - LEG ASSY, FRONT SEAT, RH | ||||
| 71130-28050 |
ACR5#,GSR5#..CBU |
1 | ||
| 71130-28050 |
ACR5#,GSR5#..CBU |
1 | ||
| 71139M - COVER, FRONT SEAT LEG, RH OUTER | ||||
| 71139-28120E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71139-28110E0 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71139-28120A0 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71139-28110A0 |
ACR5#,GSR5#..(AERAS,X)..CBU SHELL,TRIM0# |
1 | ||
| 71139N - COVER, FRONT SEAT LEG, RH INNER | ||||
| 71149-28100E0 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71149-28110E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71149-28110A0 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71149-28100A0 |
ACR5#,GSR5#..(AERAS,X)..CBU SHELL,TRIM0# |
1 | ||
| 71511A - PAD, FRONT SEAT CUSHION, RH | ||||
| 71511-28300 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 71511-28320 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71511-28300 |
ACR5#,GSR5#..G |
1 | ||
| 71511-28320 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71537X - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-26010 |
ACR5#,GSR5#..CBU |
2 | ||
| 71537-26010 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71551A - PAD, FRONT SEAT BACK, RH | ||||
| 71551-28470 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 71551-28590 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71551-28700 |
ACR5#,GSR5#..G |
1 | ||
| 71551-28680 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71551-28710 |
ACR5#,GSR5#..G SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71551-28710 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71551-28690 |
ACR5#,GSR5#..(AERAS,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71643B - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ACR5#,GSR5#..CBU |
2 | ||
| 71644A - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ACR5#,GSR5#..CBU |
2 | ||
| 71811T - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-28360E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71811-28340E0 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71811-28340A0 |
ACR5#,GSR5#..(AERAS,X)..CBU SHELL,TRIM0# |
1 | ||
| 71811-28360A0 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71848N - CAP, FRONT SEAT ADJUSTER COVER, RH NO.1 | ||||
| 71848-33010 |
ACR5#,GSR5#..CBU |
1 | ||
| 71848-33010 |
ACR5#,GSR5#..CBU |
2 | ||
| 71861K - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-28030E0 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71861-28040E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71861-28030A0 |
ACR5#,GSR5#..(AERAS,X)..CBU SHELL,TRIM0# |
1 | ||
| 71861-28040A0 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71867Y - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH(FOR RH SEAT) | ||||
| 71867-28030E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71867-28030A0 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-28010 |
ACR5#,GSR5#..G..CBU 左側ｼｰﾄ用 |
1 | ||
| 71874-30020 |
ACR5#,GSR5#..G..CBU 右側ｼｰﾄ用 |
1 | ||
| 71873-28010 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71873-28010 |
ACR5#,GSR5#..G 左側ｼｰﾄ用 |
1 | ||
| 71874-30020 |
ACR5#,GSR5#..G 右側ｼｰﾄ用 |
1 | ||
| 71873-28010 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71873-28011 |
ACR5#,GSR5#..G 左側ｼｰﾄ用 |
1 | ||
| 71873-28011 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71874U - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-30070 |
ACR5#,GSR5#..G..CBU 右側ｼｰﾄ用 |
1 | ||
| 71874-28010 |
ACR5#,GSR5#..G..CBU 左側ｼｰﾄ用 |
1 | ||
| 71874-28010 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71873-30070 |
ACR5#,GSR5#..G 右側ｼｰﾄ用 |
1 | ||
| 71874-28010 |
ACR5#,GSR5#..G 左側ｼｰﾄ用 |
1 | ||
| 71874-28010 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71874-28011 |
ACR5#,GSR5#..G 左側ｼｰﾄ用 |
1 | ||
| 71874-28011 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71877F - COVER, RECLINING ADJUSTER INSIDE, RH(FOR RH SEAT) | ||||
| 71875-58050 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 71875-58060 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71875-58060 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71875-58050 |
ACR5#,GSR5#..G |
1 | ||
| 71877G - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT) | ||||
| 71876-58050 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 71876-58060 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71876-58060 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71876-58050 |
ACR5#,GSR5#..G |
1 | ||
| 71910E - HEADREST ASSY, FRONT SEAT, RH | ||||
| 71910-28A90E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71910-28A70E1 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71910-28B00A1 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 71910-28C30A0 |
ACR5#..X..CBU SHELL,TRIM0# |
1 | ||
| 71910-28D10A1 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71910-28F10A0 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 71910-28F10A0 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71910-28B00A1 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71930-42020E1 |
GSR5#..CBU;ACR5#..(G,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
1 | ||
| 71931-42020E1 |
GSR5#..CBU;ACR5#..(G,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
1 | ||
| 71930-52030A2 |
ACR5#,GSR5#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),SHELL,TRIM0# |
1 | ||
| 71931-42020A5 |
ACR5#,GSR5#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),SHELL,TRIM0# |
1 | ||
| 71930E - SUPPORT ASSY, FRONT SEAT HEADREST, RH | ||||
| 71930-42020E1 |
GSR5#..CBU;ACR5#..(G,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
1 | ||
| 71931-42020E1 |
GSR5#..CBU;ACR5#..(G,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
1 | ||
| 71930-52030A2 |
ACR5#,GSR5#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),SHELL,TRIM0# |
1 | ||
| 71931-42020A5 |
ACR5#,GSR5#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),SHELL,TRIM0# |
1 | ||
| 71H75 - COVER, RECLINING ADJUSTER INSIDE, RH OUTER(FOR RH SEAT) | ||||
| 71875-58030E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71875-58040E1 |
ACR5#..X..CBU;GSR5#..AERAS..CBU;ACR5#..07S..AERAS..CBU GREGE,TRIM4# |
1 | ||
| 71875-58040A2 |
ACR5#,GSR5#..(AERAS,X)..CBU SHELL,TRIM0# |
1 | ||
| 71875-58030A3 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71H76 - COVER, RECLINING ADJUSTER INSIDE, LH(FOR RH SEAT) | ||||
| 71875-48050E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71876-58040E1 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71875-48050A2 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71876-58040A2 |
ACR5#,GSR5#..(AERAS,X)..CBU SHELL,TRIM0# |
1 | ||
| 72143B - BRACKET, FRONT SEAT TRACK, LOWER REAR RH(FOR RH SEAT) | ||||
| 72143-28100 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 72143-28110 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 72143-28100 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 72143-28110 |
ACR5#,GSR5#..G |
1 | ||
| 72147A - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-28090 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 72147-28090 |
ACR5#,GSR5#..(AERAS,G)..CBU |
1 | ||
| 72143-28100 |
ACR5#..X..CBU |
1 | ||
| 72143-28100 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 72147-28090 |
ACR5#,GSR5#..G |
1 | ||
| 72820 - ARMREST ASSY, FRONT SEAT, LH(FOR RH SEAT) | ||||
| 72880-28A30E1 |
ACR5#,GSR5#..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 72890-28B51A1 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 72890-28D20A0 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 72890-28D01A1 |
ACR5#..X..CBU SHELL,TRIM0# |
1 | ||
| 72890-28D20A0 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 72848K - CAP, SEAT ARMREST, NO.1(FOR RH SEAT) | ||||
| 72848-28030E1 |
ACR5#,GSR5#..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 72848-28030A2 |
ACR5#,GSR5#..CBU SHELL,TRIM0# |
1 | ||
| 85821C - MOTOR ASSY, POWER SEAT | ||||
| 85801-28010 |
ACR5#,GSR5#..G..CBU ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 85801-28020 |
ACR5#,GSR5#..G..CBU ｽﾗｲﾄﾞ用 |
1 | ||
| 85801-28030 |
ACR5#,GSR5#..G..CBU ﾘﾌﾄ用 |
1 | ||
| 85801-28040 |
ACR5#,GSR5#..G..CBU ﾁﾙﾄ用 |
1 | ||
| 85801-28100 |
ACR5#,GSR5#..G ｽﾗｲﾄﾞ用 |
1 | ||
| 85801-28090 |
ACR5#,GSR5#..G ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 85801-28120 |
ACR5#,GSR5#..G ﾁﾙﾄ用 |
1 | ||
| 85801-28110 |
ACR5#,GSR5#..G ﾘﾌﾄ用 |
1 | ||
| 85821C - MOTOR ASSY, POWER SEAT | ||||
| 85801-28010 |
ACR5#,GSR5#..G..CBU ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 85801-28020 |
ACR5#,GSR5#..G..CBU ｽﾗｲﾄﾞ用 |
1 | ||
| 85801-28030 |
ACR5#,GSR5#..G..CBU ﾘﾌﾄ用 |
1 | ||
| 85801-28040 |
ACR5#,GSR5#..G..CBU ﾁﾙﾄ用 |
1 | ||
| 85801-28100 |
ACR5#,GSR5#..G ｽﾗｲﾄﾞ用 |
1 | ||
| 85801-28090 |
ACR5#,GSR5#..G ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 85801-28120 |
ACR5#,GSR5#..G ﾁﾙﾄ用 |
1 | ||
| 85801-28110 |
ACR5#,GSR5#..G ﾘﾌﾄ用 |
1 | ||
| 85821C - MOTOR ASSY, POWER SEAT | ||||
| 85801-28010 |
ACR5#,GSR5#..G..CBU ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 85801-28020 |
ACR5#,GSR5#..G..CBU ｽﾗｲﾄﾞ用 |
1 | ||
| 85801-28030 |
ACR5#,GSR5#..G..CBU ﾘﾌﾄ用 |
1 | ||
| 85801-28040 |
ACR5#,GSR5#..G..CBU ﾁﾙﾄ用 |
1 | ||
| 85801-28100 |
ACR5#,GSR5#..G ｽﾗｲﾄﾞ用 |
1 | ||
| 85801-28090 |
ACR5#,GSR5#..G ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 85801-28120 |
ACR5#,GSR5#..G ﾁﾙﾄ用 |
1 | ||
| 85801-28110 |
ACR5#,GSR5#..G ﾘﾌﾄ用 |
1 | ||
| 85821C - MOTOR ASSY, POWER SEAT | ||||
| 85801-28010 |
ACR5#,GSR5#..G..CBU ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 85801-28020 |
ACR5#,GSR5#..G..CBU ｽﾗｲﾄﾞ用 |
1 | ||
| 85801-28030 |
ACR5#,GSR5#..G..CBU ﾘﾌﾄ用 |
1 | ||
| 85801-28040 |
ACR5#,GSR5#..G..CBU ﾁﾙﾄ用 |
1 | ||
| 85801-28100 |
ACR5#,GSR5#..G ｽﾗｲﾄﾞ用 |
1 | ||
| 85801-28090 |
ACR5#,GSR5#..G ﾘｸﾗｲﾆﾝｸﾞ用 |
1 | ||
| 85801-28120 |
ACR5#,GSR5#..G ﾁﾙﾄ用 |
1 | ||
| 85801-28110 |
ACR5#,GSR5#..G ﾘﾌﾄ用 |
1 | ||
| Common parts | ||||
| 71793-58010 | ||||
| 90110-05011 | ||||
| 90110-05012 | ||||
| 90110-05013 | ||||
| 90119-10990 | ||||
| 90148-80062 | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 90179-08233 | ||||
| 91674-A1025 | ||||
| 93530-54010 | ||||
| 93540-55012 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
(1204- )
ｼﾞｮｼｭｾｷ ﾏﾆｭｱﾙｼｰﾄ&ｱﾘ(SRSｻｲﾄﾞｴｱﾊﾞｯｸ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072 - COVER SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71072-28B10E1 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71072-28B30E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71072-28E00A1 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71072-28G00A0 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71072-28E00A1 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 71072-28E00A2 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71072-28D41A0 |
ACR5#..X..CBU SHELL,TRIM0# |
1 | ||
| 71072-28E00A2 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 71072-28G00A1 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71074A - COVER SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71074-28C30E1 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71074-28C40E1 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71074-28C70E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71074-28C80E1 |
ACR5#,GSR5#..G..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71074-28F90A1 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 71074-28G00A1 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71074-28E91A0 |
ACR5#..X..CBU SHELL,TRIM0# |
1 | ||
| 71074-28K30A0 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71074-28K40A0 |
ACR5#,GSR5#..G SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71074-28F01A0 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71139P - COVER, FRONT SEAT LEG, LH OUTER | ||||
| 71149-28120E0 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU GREGE,TRIM4# |
1 | ||
| 71149-28120A0 |
ACR5#,GSR5#..CBU SHELL,TRIM0# |
1 | ||
| 71139Q - COVER, FRONT SEAT LEG, LH INNER | ||||
| 71139-28130E0 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU GREGE,TRIM4# |
1 | ||
| 71139-28130A0 |
ACR5#,GSR5#..CBU SHELL,TRIM0# |
1 | ||
| 71140A - LEG ASSY, FRONT SEAT, LH | ||||
| 71140-28050 |
ACR5#,GSR5#..CBU |
1 | ||
| 71140-28060 |
ACR5#,GSR5#..CBU |
1 | ||
| 71200 - SEAT ASSY, FRONT LH | ||||
| 71200-28E70E1 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71200-28F40E1 |
ACR5#,GSR5#..G..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71200-28S00A1 |
ACR5#,GSR5#..G SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71200-28R60A1 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71200-28R60A3 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71200-28S40A1 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71200-28S00A3 |
ACR5#,GSR5#..G SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71200-28S40A3 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71512 - PAD, FRONT SEAT CUSHION, LH | ||||
| 71502-28020 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71502-28010 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 71502-28020 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71502-28010 |
ACR5#,GSR5#..G |
1 | ||
| 71538D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71537-26010 |
ACR5#,GSR5#..CBU |
2 | ||
| 71537-26010 |
ACR5#,GSR5#..CBU |
2 | ||
| 71552A - PAD, FRONT SEAT BACK, LH | ||||
| 71552-28280 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 71552-28330 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71552-28390 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 71552-28420 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71552-28420 |
ACR5#,GSR5#..G SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71552-28400 |
ACR5#,GSR5#..(AERAS,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71552-28410 |
ACR5#,GSR5#..G |
1 | ||
| 71643B - UNIT, ACTIVE HEADREST, UPR | ||||
| 71643-12011 |
ACR5#,GSR5#..CBU |
2 | ||
| 71644A - UNIT, ACTIVE HEADREST, LWR | ||||
| 71644-12030 |
ACR5#,GSR5#..CBU |
2 | ||
| 71812T - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-28340A0 |
ACR5#,GSR5#..CBU SHELL,TRIM0# |
1 | ||
| 71812-28340E0 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU GREGE,TRIM4# |
1 | ||
| 71849F - CAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT) | ||||
| 71848-33010 |
ACR5#,GSR5#..CBU |
1 | ||
| 71848-33010 |
ACR5#,GSR5#..CBU |
2 | ||
| 71862K - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-28020A0 |
ACR5#,GSR5#..CBU SHELL,TRIM0# |
1 | ||
| 71862-28020E0 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU GREGE,TRIM4# |
1 | ||
| 71873V - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-28010 |
ACR5#,GSR5#..G..CBU 左側ｼｰﾄ用 |
1 | ||
| 71874-30020 |
ACR5#,GSR5#..G..CBU 右側ｼｰﾄ用 |
1 | ||
| 71873-28010 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71873-28010 |
ACR5#,GSR5#..G 左側ｼｰﾄ用 |
1 | ||
| 71874-30020 |
ACR5#,GSR5#..G 右側ｼｰﾄ用 |
1 | ||
| 71873-28010 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71873-28011 |
ACR5#,GSR5#..G 左側ｼｰﾄ用 |
1 | ||
| 71873-28011 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71874U - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-30070 |
ACR5#,GSR5#..G..CBU 右側ｼｰﾄ用 |
1 | ||
| 71874-28010 |
ACR5#,GSR5#..G..CBU 左側ｼｰﾄ用 |
1 | ||
| 71874-28010 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71873-30070 |
ACR5#,GSR5#..G 右側ｼｰﾄ用 |
1 | ||
| 71874-28010 |
ACR5#,GSR5#..G 左側ｼｰﾄ用 |
1 | ||
| 71874-28010 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71874-28011 |
ACR5#,GSR5#..G 左側ｼｰﾄ用 |
1 | ||
| 71874-28011 |
ACR5#,GSR5#..(AERAS,X)..CBU |
2 | ||
| 71877H - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT) | ||||
| 71875-58060 |
ACR5#,GSR5#..CBU |
1 | ||
| 71875-58060 |
ACR5#,GSR5#..CBU |
1 | ||
| 71877J - COVER, RECLINING ADJUSTER INSIDE, LH(FOR LH SEAT) | ||||
| 71876-58060 |
ACR5#,GSR5#..CBU |
1 | ||
| 71876-58060 |
ACR5#,GSR5#..CBU |
1 | ||
| 71910F - HEADREST ASSY, FRONT SEAT, LH | ||||
| 71910-28A70E1 |
ACR5#..X..CBU GREGE,TRIM4# |
1 | ||
| 71910-28A90E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71910-28B00A1 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 71910-28B00A1 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71910-28C30A0 |
ACR5#..X..CBU SHELL,TRIM0# |
1 | ||
| 71910-28D10A1 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 71910-28F10A0 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 71910-28F10A0 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71931-42020E1 |
GSR5#..CBU;ACR5#..(G,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
1 | ||
| 71930-42020E1 |
GSR5#..CBU;ACR5#..(G,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
1 | ||
| 71931-42020A5 |
ACR5#,GSR5#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),SHELL,TRIM0# |
1 | ||
| 71930-52030A2 |
ACR5#,GSR5#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),SHELL,TRIM0# |
1 | ||
| 71930F - SUPPORT ASSY, FRONT SEAT HEADREST, LH | ||||
| 71931-42020E1 |
GSR5#..CBU;ACR5#..(G,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
1 | ||
| 71930-42020E1 |
GSR5#..CBU;ACR5#..(G,X)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
1 | ||
| 71931-42020A5 |
ACR5#,GSR5#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),SHELL,TRIM0# |
1 | ||
| 71930-52030A2 |
ACR5#,GSR5#..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),SHELL,TRIM0# |
1 | ||
| 71H75C - COVER, RECLINING ADJUSTER INSIDE, RH(FOR LH SEAT) | ||||
| 71875-58040E1 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU GREGE,TRIM4# |
1 | ||
| 71875-58040A2 |
ACR5#,GSR5#..CBU SHELL,TRIM0# |
1 | ||
| 71H76C - COVER, RECLINING ADJUSTER INSIDE, LH OUTER(FOR LH SEAT) | ||||
| 71876-58040E1 |
ACR5#,GSR5#..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 71876-58040E1 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,GREGE,TRIM4# |
2 | ||
| 71876-58040A2 |
ACR5#,GSR5#..CBU SHELL,TRIM0# |
1 | ||
| 72143C - BRACKET, FRONT SEAT TRACK, LOWER REAR(FOR LH SEAT) | ||||
| 72143-28100 |
ACR5#,GSR5#..CBU |
1 | ||
| 72143-28100 |
ACR5#,GSR5#..CBU |
1 | ||
| 72148A - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72143-28100 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 72147-28090 |
ACR5#,GSR5#..(G,X)..CBU |
1 | ||
| 72147-28090 |
ACR5#,GSR5#..CBU |
1 | ||
| 72526H - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58040E3 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU GREGE,TRIM4# |
1 | ||
| 72526-58040A2 |
ACR5#,GSR5#..CBU SHELL,TRIM0# |
1 | ||
| 72810K - ARMREST ASSY, FRONT SEAT, RH(FOR LH SEAT) | ||||
| 72890-28A30E1 |
ACR5#,GSR5#..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 72880-28B51A1 |
ACR5#,GSR5#..G SHELL,TRIM0# |
1 | ||
| 72880-28D30A0 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革,SHELL,TRIM0# |
1 | ||
| 72880-28D12A1 |
ACR5#..X..CBU SHELL,TRIM0# |
1 | ||
| 72880-28D30A0 |
ACR5#,GSR5#..G ｼｰﾄ表皮−本革&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,SHELL,TRIM0# |
1 | ||
| 72848L - CAP, SEAT ARMREST, NO.1(FOR LH SEAT) | ||||
| 72848-28030E1 |
ACR5#,GSR5#..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 72848-28030A2 |
ACR5#,GSR5#..CBU SHELL,TRIM0# |
1 | ||
| Common parts | ||||
| 71793-58010 | ||||
| 82666-58030 | ||||
| 90119-10990 | ||||
| 90167-40044 | ||||
| 90179-06178 | ||||
| 90179-08057 | ||||
| 90179-08233 | ||||
| 91674-A1025 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
