ACR55W-GFXQK (2012)

Toyota Estima

Production Apr 2012 - May 2016
Engine 2AZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )ACR55

Click highlighted areas on diagram

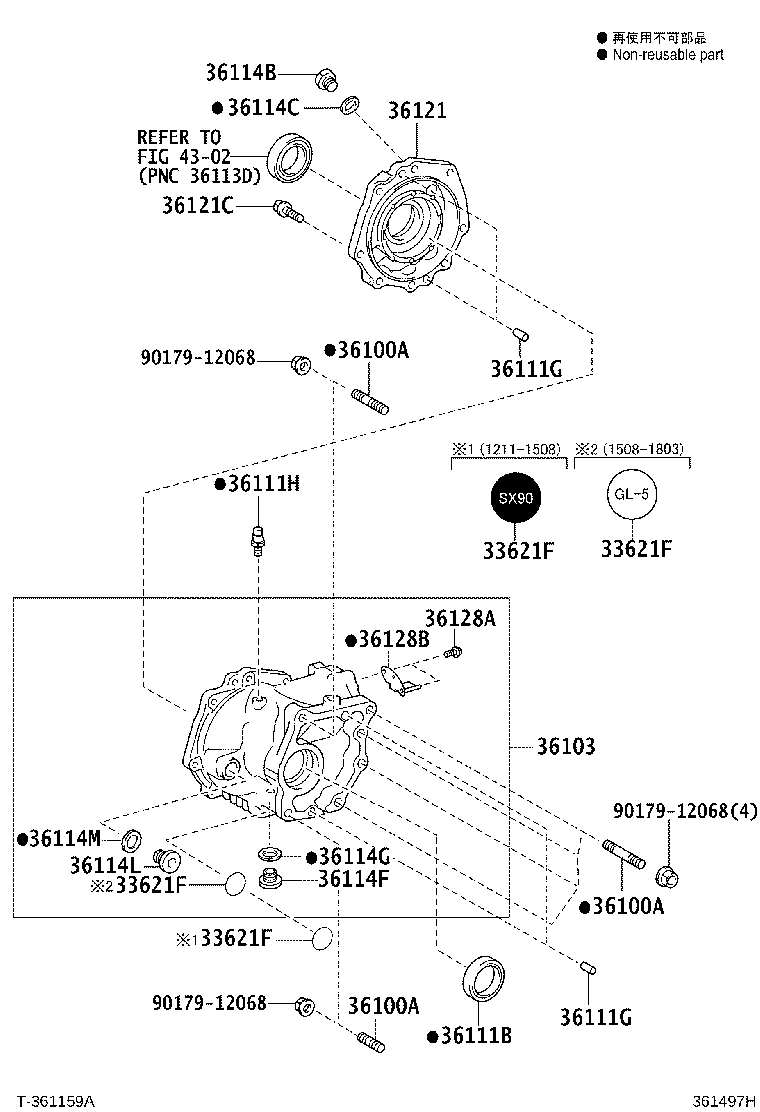

diagram 33621F 33621F 33621F 33621F 36100A 36100A 36100A 36103 36111B 36111G 36111G 36111H 36114B 36114C 36114F 36114G 36114L 36114M 36121 36121C 36128A 36128B 4302 9017912068 9017912068 9017912068
Part # Description Qty Price
33621F - LABEL, TRANSAXLE OIL INFORMATION
33621-42040

ACR55,GSR55..CBU

 1
33621-48020

ACR55,GSR55..CBU

 1
33621F - LABEL, TRANSAXLE OIL INFORMATION
33621-42040

ACR55,GSR55..CBU

 1
33621-48020

ACR55,GSR55..CBU

 1
33621F - LABEL, TRANSAXLE OIL INFORMATION
33621-42040

ACR55,GSR55..CBU

 1
33621-48020

ACR55,GSR55..CBU

 1
33621F - LABEL, TRANSAXLE OIL INFORMATION
33621-42040

ACR55,GSR55..CBU

 1
33621-48020

ACR55,GSR55..CBU

 1
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12028

ACR55,GSR55..CBU

ﾈｼﾞ部長さ=22 & 22,長さ=69

 1
90116-12041

ACR55,GSR55..CBU

ﾈｼﾞ部長さ=30 & 22,長さ=64

 4
90116-12028

ACR55,GSR55..CBU

ﾈｼﾞ部長さ=22 & 22,長さ=69

 1
90116-12034

ACR55,GSR55..CBU

ﾈｼﾞ部長さ=19 & 19,長さ=47

 1
90116-12034

ACR55,GSR55..CBU

ﾈｼﾞ部長さ=19 & 19,長さ=47

 1
90116-12041

ACR55,GSR55..CBU

ﾈｼﾞ部長さ=30 & 22,長さ=64

 4
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12028

ACR55,GSR55..CBU

ﾈｼﾞ部長さ=22 & 22,長さ=69

 1
90116-12041

ACR55,GSR55..CBU

ﾈｼﾞ部長さ=30 & 22,長さ=64

 4
90116-12028

ACR55,GSR55..CBU

ﾈｼﾞ部長さ=22 & 22,長さ=69

 1
90116-12034

ACR55,GSR55..CBU

ﾈｼﾞ部長さ=19 & 19,長さ=47

 1
90116-12034

ACR55,GSR55..CBU

ﾈｼﾞ部長さ=19 & 19,長さ=47

 1
90116-12041

ACR55,GSR55..CBU

ﾈｼﾞ部長さ=30 & 22,長さ=64

 4
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12028

ACR55,GSR55..CBU

ﾈｼﾞ部長さ=22 & 22,長さ=69

 1
90116-12041

ACR55,GSR55..CBU

ﾈｼﾞ部長さ=30 & 22,長さ=64

 4
90116-12028

ACR55,GSR55..CBU

ﾈｼﾞ部長さ=22 & 22,長さ=69

 1
90116-12034

ACR55,GSR55..CBU

ﾈｼﾞ部長さ=19 & 19,長さ=47

 1
90116-12034

ACR55,GSR55..CBU

ﾈｼﾞ部長さ=19 & 19,長さ=47

 1
90116-12041

ACR55,GSR55..CBU

ﾈｼﾞ部長さ=30 & 22,長さ=64

 4
36103 - CASE SUB-ASSY, TRANSFER
36103-52010

ACR55..CBU

 1
36103-42050

ACR55..CBU

 1
36103-52010

ACR55..CBU

 1
36103-42051

ACR55..CBU

 1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-49001

ACR55..CBU

 1
90311-49001

ACR55..CBU

 1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10017

ACR55,GSR55..CBU

長さ=20,外径=10

 4
90250-10017

ACR55,GSR55..CBU

長さ=20,外径=10

 4
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10017

ACR55,GSR55..CBU

長さ=20,外径=10

 4
90250-10017

ACR55,GSR55..CBU

長さ=20,外径=10

 4
36111H - PLUG, BREATHER (FOR TRANSFER CASE)
90930-03133

ACR55,GSR55..CBU

 1
90930-03133

ACR55,GSR55..CBU

 1
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18006

ACR55,GSR55..CBU

 1
90341-18006

ACR55,GSR55..CBU

 1
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
12157-10010

ACR55,GSR55..CBU

 1
12157-10010

ACR55,GSR55..CBU

 1
36114F - PLUG (FOR TRANSFER DRAIN)
90341-18051

ACR55,GSR55..CBU

 1
90341-18051

ACR55,GSR55..CBU

 1
36114G - GASKET (FOR TRANSFER DRAIN PLUG)
12157-10010

ACR55,GSR55..CBU

 1
12157-10010

ACR55,GSR55..CBU

 1
36114L - PLUG, FILLER(FOR TRANSFER)
90341-18023

ACR55,GSR55..CBU

 1
90341-18023

ACR55,GSR55..CBU

 1
36114M - GASKET (FOR TRANSFER FILLER PLUG)
12157-10010

ACR55,GSR55..CBU

 1
12157-10010

ACR55,GSR55..CBU

 1
36121 - COVER, TRANSFER CASE, NO.1
36121-52020

ACR55..CBU

 1
36121-52020

ACR55..CBU

 1
36121C - BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVE
91552-81030

ACR55,GSR55..CBU

 8
91552-81030

ACR55,GSR55..CBU

 8
36128A - BOLT (FOR BREATHER OIL DEFLECTOR)
91621-60614

ACR55,GSR55..CBU

 2
91621-60614

ACR55,GSR55..CBU

 2
36128B - DEFLECTOR, BREATHER OIL
36128-52010

ACR55..CBU

 1
36128-52010

ACR55..CBU

 1
Common parts
90179-12068
Linked diagrams
4302
