ACR55W-GFXPK (2016)
Toyota Estima

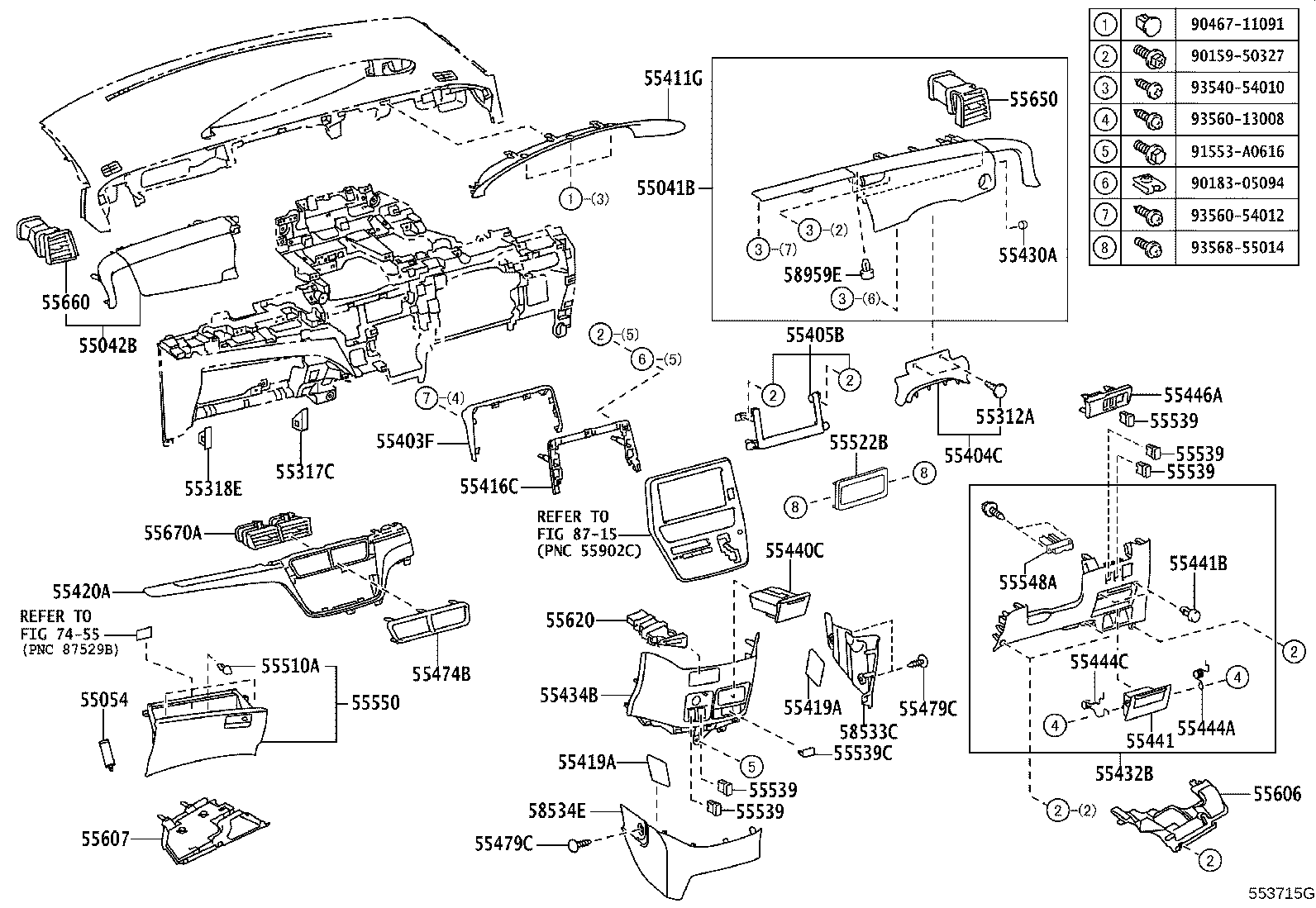

ILLUST NO. 2 OF 2(1605- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55041B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.1 | ||||
| 55041-28040E0 |
GSR5#..CBU;ACR5#..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 55041-28100C3 |
ACR5#..(AEPR,AERAS)..CBU BLACK,TRIM2# |
1 | ||
| 55042B - DOOR SUB-ASSY, INSTRUMENT PANEL BOX, NO.2 | ||||
| 55042-28040E0 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU GREGE,TRIM4# |
1 | ||
| 55042-28090C3 |
ACR5#..(AEPR,AERAS)..CBU BLACK,TRIM2# |
1 | ||
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-12010 |
ACR5#,GSR5#..CBU |
1 | ||
| 55054-12010 |
ACR5#..CBU |
1 | ||
| 55312A - CLIP, INSTRUMENT PANEL | ||||
| 90467-07090E3 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU GREGE,TRIM4# |
2 | ||
| 90467-08186C3 |
ACR5#..CBU BLACK |
2 | ||
| 90467-08186C0 |
ACR5#..CBU BLACK |
2 | ||
| 55317C - PATCH, INSTRUMENT SIDE, LOWER RH | ||||
| 55317-28060E0 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU GREGE,TRIM4# |
1 | ||
| 55317-28060C0 |
ACR5#..(AEPR,AERAS)..CBU BLACK,TRIM2# |
1 | ||
| 55318E - PATCH, INSTRUMENT SIDE, LOWER LH | ||||
| 55318-28050C0 |
ACR5#..(AEPR,AERAS)..CBU BLACK,TRIM2# |
1 | ||
| 55318-28050E0 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU GREGE,TRIM4# |
1 | ||
| 55403F - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH | ||||
| 55403-28050C0 |
ACR5#..(AEPR,AERAS)..CBU BLACK,TRIM2# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-28270 |
ACR5#,GSR5#..CBU |
1 | ||
| 55404-28270 |
ACR5#..CBU |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-28A40 |
ACR5#..CBU ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ｶﾊﾞｰ(DOP)) |
1 | ||
| 55405-28A40 |
ACR5#..CBU ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ｾﾝﾀｸﾗｽﾀ−7ｲﾝﾁ AVN用 |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55411-28220 |
ACR5#,GSR5#..CBU |
1 | ||
| 55411-28220 |
ACR5#..CBU |
1 | ||
| 55416C - RETAINER, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55416-28040 |
ACR5#..CBU |
1 | ||
| 55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-28020 |
ACR5#,GSR5#..CBU |
1 | ||
| 55419-28020 |
ACR5#..CBU |
2 | ||
| 55419A - CUSHION, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55419-28020 |
ACR5#,GSR5#..CBU |
1 | ||
| 55419-28020 |
ACR5#..CBU |
2 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-28270 |
ACR5#,GSR5#..CBU |
1 | ||
| 55420-28370 |
ACR5#..CBU |
1 | ||
| 55430A - DAMPER ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55430-28030 |
ACR5#,GSR5#..CBU NO.1 & NO.2 |
2 | ||
| 55430-28030 |
ACR5#..CBU |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55480-28060E0 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU GREGE,TRIM4# |
1 | ||
| 55480-28080E0 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 55480-28140C2 |
ACR5#..(AEPR,AERAS)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ & 膝,BLACK,TRIM2# |
1 | ||
| 55480-28130C2 |
ACR5#..(AEPR,AERAS)..CBU BLACK,TRIM2# |
1 | ||
| 55434B - PANEL, INSTRUMENT PANEL FINISH, LOWER CENTER | ||||
| 55434-28040E0 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU GREGE,TRIM4# |
1 | ||
| 55434-28100C0 |
ACR5#..(AEPR,AERAS)..CBU BLACK,TRIM2# |
1 | ||
| 55440C - BOX ASSY, INSTRUMENT PANEL | ||||
| 55440-28080C0 |
ACR5#..(AEPR,AERAS)..CBU BLACK,TRIM2# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55441-28110E0 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU GREGE,TRIM4# |
1 | ||
| 55441-28130C0 |
ACR5#..(AEPR,AERAS)..CBU BLACK,TRIM2# |
1 | ||
| 55441B - CUSHION, INSTRUMENT PANEL BOX | ||||
| 58959-60060 |
ACR5#..CBU |
2 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-52220 |
ACR5#,GSR5#..CBU |
1 | ||
| 55444-28210 |
ACR5#..CBU |
1 | ||
| 55444C - SPRING, INSTRUMENT PANEL BOX | ||||
| 55445-28130 |
ACR5#..CBU |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-28410 |
ACR5#..CBU |
1 | ||
| 55474B - GARNISH, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55470-28020 |
ACR5#..X..CBU |
1 | ||
| 55470-28040 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 55474-28070 |
ACR5#..CBU |
1 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-07090C4 |
ACR5#..(AEPR,AERAS)..CBU BLACK,TRIM2# |
3 | ||
| 90467-07090E3 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU GREGE,TRIM4# |
3 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-07090C4 |
ACR5#..(AEPR,AERAS)..CBU BLACK,TRIM2# |
3 | ||
| 90467-07090E3 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU GREGE,TRIM4# |
3 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-05026 |
ACR5#,GSR5#..CBU |
3 | ||
| 90541-05026 |
ACR5#..CBU |
3 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-52020 |
ACR5#,GSR5#..CBU |
1 | ||
| 55522-52020 |
ACR5#..CBU ｵｰﾃﾞｨｵ−ﾗｼﾞｵﾚｽ & 6ｽﾋﾟｰｶ & 有り(ｶﾊﾞｰ(DOP)) |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-28160C0 |
ACR5#,GSR5#..(G,X)..CBU BLACK,TRIM4# |
1 | ||
| 55539-28160C0 |
ACR5#,GSR5#..G..CBU ｱｸｾｻﾘｰ ｺﾈｸﾀｰ(NO.1)−DC12V + AC100V(ｺﾝｾﾝﾄ1個),BLACK,TRIM4# |
1 | ||
| 55539-28160C0 |
ACR5#,GSR5#..G..CBU 寒冷地仕様&ｱｸｾｻﾘｰ ｺﾈｸﾀｰ(NO.1)−DC12V + AC100V(ｺﾝｾﾝﾄ1個),BLACK,TRIM4# |
1 | ||
| 55539-28160C0 |
ACR5#,GSR5#..(G,X)..CBU 寒冷地仕様,BLACK,TRIM4# |
1 | ||
| 55539-28160C0 |
ACR5#..(AEPR,AERAS)..CBU BLACK,TRIM2# |
1 | ||
| 55539-28160C0 |
ACR5#..(AEPR,AERAS)..CBU 寒冷地仕様,BLACK,TRIM2# |
1 | ||
| 55539-28160C1 |
ACR5#..(AEPR,AERAS)..CBU BLACK,TRIM2# |
1 | ||
| 55539-28160C1 |
ACR5#..(AEPR,AERAS)..CBU 寒冷地仕様,BLACK,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-28160C0 |
ACR5#,GSR5#..(G,X)..CBU BLACK,TRIM4# |
1 | ||
| 55539-28160C0 |
ACR5#,GSR5#..G..CBU ｱｸｾｻﾘｰ ｺﾈｸﾀｰ(NO.1)−DC12V + AC100V(ｺﾝｾﾝﾄ1個),BLACK,TRIM4# |
1 | ||
| 55539-28160C0 |
ACR5#,GSR5#..G..CBU 寒冷地仕様&ｱｸｾｻﾘｰ ｺﾈｸﾀｰ(NO.1)−DC12V + AC100V(ｺﾝｾﾝﾄ1個),BLACK,TRIM4# |
1 | ||
| 55539-28160C0 |
ACR5#,GSR5#..(G,X)..CBU 寒冷地仕様,BLACK,TRIM4# |
1 | ||
| 55539-28160C0 |
ACR5#..(AEPR,AERAS)..CBU BLACK,TRIM2# |
1 | ||
| 55539-28160C0 |
ACR5#..(AEPR,AERAS)..CBU 寒冷地仕様,BLACK,TRIM2# |
1 | ||
| 55539-28160C1 |
ACR5#..(AEPR,AERAS)..CBU BLACK,TRIM2# |
1 | ||
| 55539-28160C1 |
ACR5#..(AEPR,AERAS)..CBU 寒冷地仕様,BLACK,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-28160C0 |
ACR5#,GSR5#..(G,X)..CBU BLACK,TRIM4# |
1 | ||
| 55539-28160C0 |
ACR5#,GSR5#..G..CBU ｱｸｾｻﾘｰ ｺﾈｸﾀｰ(NO.1)−DC12V + AC100V(ｺﾝｾﾝﾄ1個),BLACK,TRIM4# |
1 | ||
| 55539-28160C0 |
ACR5#,GSR5#..G..CBU 寒冷地仕様&ｱｸｾｻﾘｰ ｺﾈｸﾀｰ(NO.1)−DC12V + AC100V(ｺﾝｾﾝﾄ1個),BLACK,TRIM4# |
1 | ||
| 55539-28160C0 |
ACR5#,GSR5#..(G,X)..CBU 寒冷地仕様,BLACK,TRIM4# |
1 | ||
| 55539-28160C0 |
ACR5#..(AEPR,AERAS)..CBU BLACK,TRIM2# |
1 | ||
| 55539-28160C0 |
ACR5#..(AEPR,AERAS)..CBU 寒冷地仕様,BLACK,TRIM2# |
1 | ||
| 55539-28160C1 |
ACR5#..(AEPR,AERAS)..CBU BLACK,TRIM2# |
1 | ||
| 55539-28160C1 |
ACR5#..(AEPR,AERAS)..CBU 寒冷地仕様,BLACK,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-28160C0 |
ACR5#,GSR5#..(G,X)..CBU BLACK,TRIM4# |
1 | ||
| 55539-28160C0 |
ACR5#,GSR5#..G..CBU ｱｸｾｻﾘｰ ｺﾈｸﾀｰ(NO.1)−DC12V + AC100V(ｺﾝｾﾝﾄ1個),BLACK,TRIM4# |
1 | ||
| 55539-28160C0 |
ACR5#,GSR5#..G..CBU 寒冷地仕様&ｱｸｾｻﾘｰ ｺﾈｸﾀｰ(NO.1)−DC12V + AC100V(ｺﾝｾﾝﾄ1個),BLACK,TRIM4# |
1 | ||
| 55539-28160C0 |
ACR5#,GSR5#..(G,X)..CBU 寒冷地仕様,BLACK,TRIM4# |
1 | ||
| 55539-28160C0 |
ACR5#..(AEPR,AERAS)..CBU BLACK,TRIM2# |
1 | ||
| 55539-28160C0 |
ACR5#..(AEPR,AERAS)..CBU 寒冷地仕様,BLACK,TRIM2# |
1 | ||
| 55539-28160C1 |
ACR5#..(AEPR,AERAS)..CBU BLACK,TRIM2# |
1 | ||
| 55539-28160C1 |
ACR5#..(AEPR,AERAS)..CBU 寒冷地仕様,BLACK,TRIM2# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-28160C0 |
ACR5#,GSR5#..(G,X)..CBU BLACK,TRIM4# |
1 | ||
| 55539-28160C0 |
ACR5#,GSR5#..G..CBU ｱｸｾｻﾘｰ ｺﾈｸﾀｰ(NO.1)−DC12V + AC100V(ｺﾝｾﾝﾄ1個),BLACK,TRIM4# |
1 | ||
| 55539-28160C0 |
ACR5#,GSR5#..G..CBU 寒冷地仕様&ｱｸｾｻﾘｰ ｺﾈｸﾀｰ(NO.1)−DC12V + AC100V(ｺﾝｾﾝﾄ1個),BLACK,TRIM4# |
1 | ||
| 55539-28160C0 |
ACR5#,GSR5#..(G,X)..CBU 寒冷地仕様,BLACK,TRIM4# |
1 | ||
| 55539-28160C0 |
ACR5#..(AEPR,AERAS)..CBU BLACK,TRIM2# |
1 | ||
| 55539-28160C0 |
ACR5#..(AEPR,AERAS)..CBU 寒冷地仕様,BLACK,TRIM2# |
1 | ||
| 55539-28160C1 |
ACR5#..(AEPR,AERAS)..CBU BLACK,TRIM2# |
1 | ||
| 55539-28160C1 |
ACR5#..(AEPR,AERAS)..CBU 寒冷地仕様,BLACK,TRIM2# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-44010E3 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU GREGE,TRIM4# |
1 | ||
| 55539-28180C0 |
ACR5#..(AEPR,AERAS)..CBU BLACK,TRIM2# |
1 | ||
| 55539-28180C0 |
ACR5#..(AEPR,AERAS)..CBU ｱｸｾｻﾘｺﾈｸﾀ−DC12V & AC100V 100W,BLACK,TRIM2# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-52030E0 |
GSR5#..CBU;ACR5#..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 55548-52030C0 |
ACR5#..CBU BLACK |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-28080E0 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU GREGE,TRIM4# |
1 | ||
| 55550-28080C0 |
ACR5#..(AEPR,AERAS)..CBU BLACK,TRIM2# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-28030C0 |
ACR5#,GSR5#..(G,X)..CBU BLACK,TRIM4# |
1 | ||
| 55606-28030C0 |
ACR5#..(AEPR,AERAS)..CBU BLACK,TRIM2# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-28010C0 |
ACR5#,GSR5#..(G,X)..CBU BLACK,TRIM4# |
1 | ||
| 55607-28010C0 |
ACR5#..(AEPR,AERAS)..CBU BLACK,TRIM2# |
1 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-28080E0 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU GREGE,TRIM4# |
1 | ||
| 55620-28110C0 |
ACR5#..(AEPR,AERAS)..CBU BLACK,TRIM2# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-28240E0 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU GREGE,TRIM4# |
1 | ||
| 55650-28310 |
ACR5#..CBU |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-28260E0 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU GREGE,TRIM4# |
1 | ||
| 55660-28320 |
ACR5#..CBU |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-28140 |
ACR5#,GSR5#..CBU |
1 | ||
| 55670-28170 |
ACR5#..CBU |
1 | ||
| 58533C - COVER, FLOOR CARPET, CENTER RH | ||||
| 58533-28020C0 |
ACR5#..(AEPR,AERAS)..CBU BLACK,TRIM2# |
1 | ||
| 58533-28020E0 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU GREGE,TRIM4# |
1 | ||
| 58534E - COVER, FLOOR CARPET, CENTER LH | ||||
| 58534-28020E0 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..07S..AERAS..CBU GREGE,TRIM4# |
1 | ||
| 58534-28020C0 |
ACR5#..(AEPR,AERAS)..CBU BLACK,TRIM2# |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-35010 |
ACR5#..CBU |
2 | ||
| Common parts | ||||
| 90159-50327 | ||||
| 90183-05094 | ||||
| 90467-11091 | ||||
| 91553-A0616 | ||||
| 93540-54010 | ||||
| 93560-13008 | ||||
| 93560-54012 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8715 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
