ACR55W-GFXEK (2006)
Toyota Estima
ILLUST NO. 2 OF11(0601- )ACR5#
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-28A40 |
ACR5#..CBU *195 |
1 | ||
| 82121-28A50 |
ACR5#..CBU *194 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-28550 |
ACR5#..CBU |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-28440 |
ACR5#..CBU |
1 | ||
| 82666X - HOLDER, CONNECTOR NO.17 | ||||
| 82666-42250 |
ACR5#..CBU |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91553-A0612 | ||||
| 91621-J0612 | ||||
| 91671-A0612 | ||||

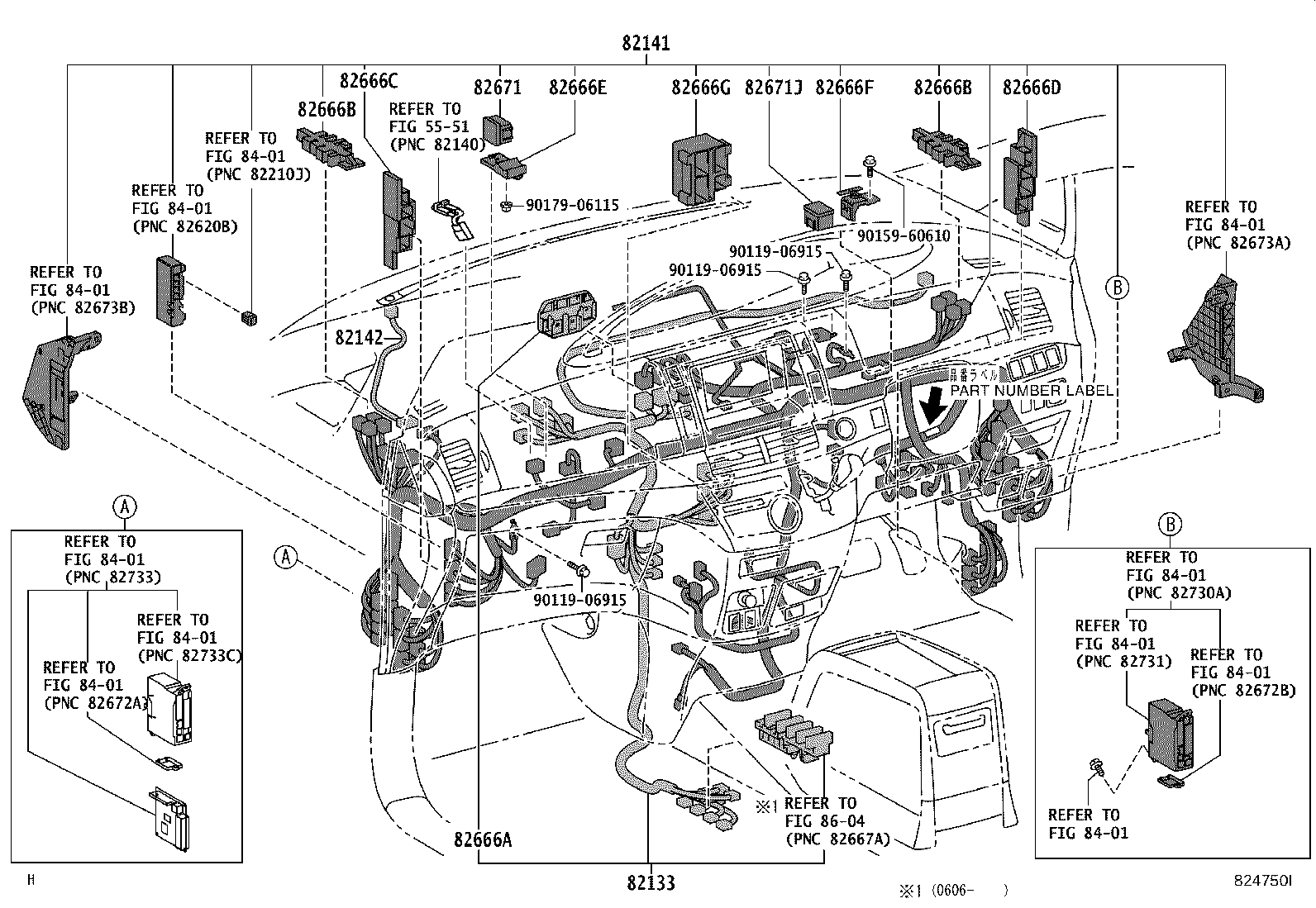

ILLUST NO. 3 OF11(0601-0812)
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-28660 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ&ｱﾝﾃﾅ−ｶﾞﾗｽ(ﾀﾞｲﾊﾞｰｼﾃｨ:ｱﾅﾛｸﾞTV) |
1 | ||
| 82133-28670 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ&ｱﾝﾃﾅ−ｶﾞﾗｽ(ﾀﾞｲﾊﾞｼﾃｨ:ﾃﾞｼﾞﾀﾙTV) |
1 | ||
| 82133-28671 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ&ｱﾝﾃﾅ−ｶﾞﾗｽ(ﾀﾞｲﾊﾞｼﾃｨ:ﾃﾞｼﾞﾀﾙTV) |
1 | ||
| 82133-28650 |
ACR5#,GSR5#..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ&ｱﾝﾃﾅ−ｶﾞﾗｽ(ﾀﾞｲﾊﾞｼﾃｨ:ﾃﾞｼﾞﾀﾙTV) |
1 | ||
| 82133-28640 |
ACR5#,GSR5#..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ&ｱﾝﾃﾅ−ｶﾞﾗｽ(ﾀﾞｲﾊﾞｰｼﾃｨ:ｱﾅﾛｸﾞTV) |
1 | ||
| 82133-28651 |
ACR5#,GSR5#..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ&ｱﾝﾃﾅ−ｶﾞﾗｽ(ﾀﾞｲﾊﾞｼﾃｨ:ﾃﾞｼﾞﾀﾙTV) |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-28G10 |
ACR5#..X..CBU;GSR5#..AERAS..CBU;ACR5#..08S..AERAS..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82141-28G40 |
ACR5#,GSR5#..G..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 82141-28G30 |
ACR5#,GSR5#..G..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 82141-28G20 |
ACR5#..X..CBU;GSR5#..AERAS..CBU;ACR5#..08S..AERAS..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82141-28G40 |
ACR5#,GSR5#..G..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82141-28G30 |
ACR5#,GSR5#..G..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82141-28F20 |
ACR5#,GSR5#..(AERAS,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82141-28F30 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 82141-28F10 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 82141-28G10 |
ACR5#..X..CBU;GSR5#..AERAS..CBU;ACR5#..08S..AERAS..CBU ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82141-28G20 |
ACR5#..X..CBU;GSR5#..AERAS..CBU;ACR5#..08S..AERAS..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82141-28G30 |
ACR5#,GSR5#..G..CBU ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82141-28G40 |
ACR5#,GSR5#..G..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82141-28G30 |
ACR5#,GSR5#..G..CBU ﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀのみ) |
1 | ||
| 82141-28F40 |
ACR5#,GSR5#..G..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82141-28G40 |
ACR5#,GSR5#..G..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀのみ) |
1 | ||
| 82141-28G30 |
ACR5#,GSR5#..G..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ;ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝC11ｽﾋﾟｰｶ |
1 | ||
| 82141-28F30 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 82141-28G40 |
ACR5#,GSR5#..G..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ;SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ普@ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 82141-28F20 |
ACR5#,GSR5#..(AERAS,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82141-28G20 |
ACR5#..X..CBU;GSR5#..AERAS..CBU;ACR5#..08S..AERAS..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82141-28G10 |
ACR5#..X..CBU;GSR5#..AERAS..CBU;ACR5#..08S..AERAS..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82141-28F10 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 82141-28G30 |
ACR5#,GSR5#..G..CBU ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ);ﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞcjﾀのみ) |
1 | ||
| 82141-28G20 |
ACR5#..X..CBU;GSR5#..AERAS..CBU;ACR5#..08S..AERAS..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82141-28G10 |
ACR5#..X..CBU;GSR5#..AERAS..CBU;ACR5#..08S..AERAS..CBU ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82141-28F40 |
ACR5#,GSR5#..G..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82141-28G40 |
ACR5#,GSR5#..G..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ);SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶ[ﾃﾝ & ｻｲﾄﾞ&ﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀのみ) |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-28040 |
ACR5#,GSR5#..CBU |
1 | ||
| 82142-28041 |
ACR5#,GSR5#..CBU |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-28460 |
ACR5#,GSR5#..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ&ｱﾝﾃﾅ−ｶﾞﾗｽ(ﾀﾞｲﾊﾞｼﾃｨ:ﾃﾞｼﾞﾀﾙTV) |
1 | ||
| 82666-28460 |
ACR5#,GSR5#..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ&ｱﾝﾃﾅ−ｶﾞﾗｽ(ﾀﾞｲﾊﾞｰｼﾃｨ:ｱﾅﾛｸﾞTV) |
1 | ||
| 82666-28460 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ&ｱﾝﾃﾅ−ｶﾞﾗｽ(ﾀﾞｲﾊﾞｼﾃｨ:ﾃﾞｼﾞﾀﾙTV) |
1 | ||
| 82666-28460 |
ACR5#,GSR5#..(AERAS,G)..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ&ｱﾝﾃﾅ−ｶﾞﾗｽ(ﾀﾞｲﾊﾞｰｼﾃｨ:ｱﾅﾛｸﾞTV) |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-28390 |
ACR5#,GSR5#..CBU |
2 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-28390 |
ACR5#,GSR5#..CBU |
2 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-28400 |
ACR5#,GSR5#..CBU |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-28410 |
ACR5#,GSR5#..CBU |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-28420 |
ACR5#,GSR5#..CBU |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-28430 |
ACR5#,GSR5#..CBU |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-28440 |
ACR5#,GSR5#..CBU |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-28050 |
ACR5#,GSR5#..CBU |
1 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-28060 |
ACR5#,GSR5#..CBU |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-60610 | ||||
| 90179-06115 | ||||
| Linked diagrams | ||||
| 5551 | ||||
| 8401 | ||||
| 8604 | ||||
ILLUST NO. 4 OF11(0601- )
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-28A30 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 82151-28A50 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 82151-28A40 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様 |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-28A80 |
ACR5#,GSR5#..G..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 82152-28A60 |
ACR5#..X..CBU;GSR5#..AERAS..CBU;ACR5#..08S..AERAS..CBU 寒冷地仕様&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82152-28A40 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 82152-28A80 |
ACR5#,GSR5#..G..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82152-28A60 |
ACR5#..X..CBU;GSR5#..AERAS..CBU;ACR5#..08S..AERAS..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82152-28A50 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様 |
1 | ||
| 82152-28A70 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 82152-28A80 |
ACR5#,GSR5#..G..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ&ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82152-28A80 |
ACR5#,GSR5#..G..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ&ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82152-28A60 |
ACR5#..X..CBU;GSR5#..AERAS..CBU;ACR5#..08S..AERAS..CBU 寒冷地仕様&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ&ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82152-28A60 |
ACR5#..X..CBU;GSR5#..AERAS..CBU;ACR5#..08S..AERAS..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ&ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82053-28060 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 82053-28080 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ) |
1 | ||
| 82053-28140 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&SRSｴｱﾊﾞｯｸﾞ−運転席& 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82053-28090 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 82053-28110 |
ACR5#,GSR5#..(AERAS,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82053-28150 |
ACR5#,GSR5#..G..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82053-28100 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 82053-28130 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82054-28120 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 82054-28110 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 82054-28090 |
ACR5#,GSR5#..(AERAS,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82054-28070 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 82054-28130 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&SRSｴｱﾊﾞｯｸﾞ−運転席& 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82054-28130 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82054-28110 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ) |
1 | ||
| 82054-28140 |
ACR5#,GSR5#..G..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-28460 |
ACR5#,GSR5#..CBU |
1 | ||
| 82184-28480 |
ACR5#..G;GSR5#..CBU;ACR5#..08S..AERAS..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ&ｱﾝﾃﾅ−ｶﾞﾗｽ(ﾀﾞｲﾊﾞｼﾃｨ:ﾃﾞｼﾞﾀﾙTV) |
1 | ||
| 82184-28470 |
ACR5#..G;GSR5#..CBU;ACR5#..08S..AERAS..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ&ｱﾝﾃﾅ−ｶﾞﾗｽ(ﾀﾞｲﾊﾞｰｼﾃｨ:ｱﾅﾛｸﾞTV) |
1 | ||
| 82184-28480 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..08S..AERAS..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ&ｱﾝﾃﾅ−ｶﾞﾗｽ(ﾀﾞｲﾊﾞｼﾃｨ:ﾃﾞｼﾞﾀﾙTV) |
1 | ||
| 82184-28490 |
ACR5#,GSR5#..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(ｾﾝﾀｱｰﾑﾚｽﾄ & 電動床下格納) |
1 | ||
| 82184-28470 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..08S..AERAS..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ&ｱﾝﾃﾅ−ｶﾞﾗｽ(ﾀﾞｲﾊﾞｰｼﾃｨ:ｱﾅﾛｸﾞTV) |
1 | ||
| 82184-28510 |
ACR5#,GSR5#..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(ｾﾝﾀｱｰﾑﾚｽﾄ & 電動床下格納)&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ&ｱﾝﾃﾅ−ｶﾞﾗｽ(ﾀﾞｲﾊﾞｼﾃｨ:ﾃﾞｼﾞﾀﾙTV) |
1 | ||
| 82184-28510 |
ACR5#,GSR5#..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(ｾﾝﾀｱｰﾑﾚｽﾄ & 電動床下格納)&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ&ｱﾝﾃﾅ−ｶﾞﾗｽ(ﾀﾞｲﾊﾞｼﾃｨ:ﾃﾞｼﾞﾀﾙTV) |
1 | ||
| 82184-28461 |
ACR5#,GSR5#..CBU |
1 | ||
| 82184-28500 |
ACR5#,GSR5#..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(ｾﾝﾀｱｰﾑﾚｽﾄ & 電動床下格納)&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ&ｱﾝﾃﾅ−ｶﾞﾗｽ(ﾀﾞｲﾊﾞｰｼﾃｨ:ｱﾅﾛｸﾞTV) |
1 | ||
| 82184-28480 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..08S..AERAS..CBU ｱﾝﾃﾅ−ｶﾞﾗｽ(ﾀﾞｲﾊﾞｼﾃｨ:ﾃﾞｼﾞﾀﾙTV)&ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82184-28480 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..08S..AERAS..CBU ｱﾝﾃﾅ−ｶﾞﾗｽ(ﾀﾞｲﾊﾞｼﾃｨ:ﾃﾞｼﾞﾀﾙTV)&ﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀのみ) |
1 | ||
| 82184-28470 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..08S..AERAS..CBU ｱﾝﾃﾅ−ｶﾞﾗｽ(ﾀﾞｲﾊﾞｰｼﾃｨ:ｱﾅﾛｸﾞTV)&ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82184-28500 |
ACR5#,GSR5#..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(ｾﾝﾀｱｰﾑﾚｽﾄ & 電動床下格納)&ｱﾝﾃﾅ−ｶﾞﾗｽ(ﾀﾞｲﾊﾞｰｼﾃｨ:ｱﾅﾛｸﾞTV)&ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82184-28470 |
GSR5#..CBU;ACR5#..(G,X)..CBU;ACR5#..08S..AERAS..CBU ｱﾝﾃﾅ−ｶﾞﾗｽ(ﾀﾞｲﾊﾞｰｼﾃｨ:ｱﾅﾛｸﾞTV)&ﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀのみ) |
1 | ||
| 82184-28510 |
ACR5#,GSR5#..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(ｾﾝﾀｱｰﾑﾚｽﾄ & 電動床下格納)&ｱﾝﾃﾅ−ｶﾞﾗｽ(ﾀﾞｲﾊﾞｼﾃｨ:ﾃﾞｼﾞﾀﾙTV)&ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82184-28491 |
ACR5#,GSR5#..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(ｾﾝﾀｱｰﾑﾚｽﾄ & 電動床下格納) |
1 | ||
| 82184-28500 |
ACR5#,GSR5#..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(ｾﾝﾀｱｰﾑﾚｽﾄ & 電動床下格納)&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ&ｱﾝﾃﾅ−ｶﾞﾗｽ(ﾀﾞｲﾊﾞｰｼﾃｨ:ｱﾅﾛｸﾞTV) |
1 | ||
| 82184-28500 |
ACR5#,GSR5#..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(ｾﾝﾀｱｰﾑﾚｽﾄ & 電動床下格納)&ｱﾝﾃﾅ−ｶﾞﾗｽ(ﾀﾞｲﾊﾞｰｼﾃｨ:ｱﾅﾛｸﾞTV)&ﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀのみ) |
1 | ||
| 82184-28510 |
ACR5#,GSR5#..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(ｾﾝﾀｱｰﾑﾚｽﾄ & 電動床下格納)&ｱﾝﾃﾅ−ｶﾞﾗｽ(ﾀﾞｲﾊﾞｼﾃｨ:ﾃﾞｼﾞﾀﾙTV)&ﾓﾆﾀ−有り(ﾊﾞｯｸｶﾞｲﾄﾞﾓﾆﾀのみ) |
1 | ||
| Common parts | ||||
| 90109-06196 | ||||
| 90119-06915 | ||||
| 91553-80612 | ||||
| 91553-80616 | ||||
ILLUST NO. 5 OF11(0601- )
ﾌﾛｱ,ﾌﾚｰﾑ & ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-28F40 |
ACR5#..X..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82161-28F40 |
ACR5#..X..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82161-28F80 |
ACR5#..X..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82161-28G70 |
ACR5#..X..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&SRSｴｱﾊﾞｯｸﾞ−運転席& 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82161-28G70 |
ACR5#..X..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82161-28J10 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82161-28F40 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 82161-28G40 |
ACR5#..X..CBU |
1 | ||
| 82161-28G10 |
ACR5#..X..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 82161-28G10 |
ACR5#..X..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ) |
1 | ||
| 82161-28F70 |
ACR5#,GSR5#..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(ｾﾝﾀｱｰﾑﾚｽﾄ & 電動床下格納) |
1 | ||
| 82161-28J40 |
ACR5#..X..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&SRSｴｱﾊﾞｯｸﾞ−運転席& 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82161-28G70 |
ACR5#,GSR5#..G..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82161-28J40 |
ACR5#..X..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82161-28J00 |
ACR5#,GSR5#..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(ｾﾝﾀｱｰﾑﾚｽﾄ & 電動床下格納)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82161-28J70 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82161-28F40 |
ACR5#..X..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ&ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82161-28F80 |
ACR5#..X..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ&ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82161-28G70 |
ACR5#..X..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ&ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82161-28F40 |
ACR5#..X..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ&ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82161-28J10 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ&ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82161-28G70 |
ACR5#..X..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&SRSｴｱﾊﾞｯｸﾞ−運転席& 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ&ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-28C40 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 82162-28B00 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ) |
1 | ||
| 82162-28A80 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ) |
1 | ||
| 82162-28C70 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様 |
1 | ||
| 82162-28C60 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 82162-28C50 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 82162-28C50 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 82162-28C90 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82162-28D00 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&SRSｴｱﾊﾞｯｸﾞ−運転席& 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82162-28D10 |
ACR5#,GSR5#..G..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82162-28C80 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82162-28D10 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82162-28D20 |
ACR5#,GSR5#..(AERAS,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82162-28D30 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82162-28E50 |
ACR5#,GSR5#..(AERAS,X)..CBU ﾑｰﾝﾙｰﾌ−有り&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ) |
1 | ||
| 82162-28E70 |
ACR5#,GSR5#..(AERAS,X)..CBU ﾑｰﾝﾙｰﾌ−有り&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 82162-28E60 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ) |
1 | ||
| 82162-28E80 |
ACR5#,GSR5#..G..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82162-28F00 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82162-28E80 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 82162-28F10 |
ACR5#,GSR5#..(AERAS,X)..CBU ﾑｰﾝﾙｰﾌ−有り&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82162-28E90 |
ACR5#,GSR5#..(AERAS,X)..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82162-28F30 |
ACR5#,GSR5#..(AERAS,X)..CBU ﾑｰﾝﾙｰﾌ−有り&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82162-28F20 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82162-28F60 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82162-28F40 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82162-28F40 |
ACR5#,GSR5#..G..CBU ﾑｰﾝﾙｰﾌ−有り&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82162-28F50 |
ACR5#,GSR5#..(AERAS,X)..CBU ﾑｰﾝﾙｰﾌ−有り&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-28160 |
ACR5#,GSR5#..CBU |
1 | ||
| 82163B - WIRE, FLOOR NO.5 | ||||
| 82165-28130 |
ACR5#..G;GSR5#..CBU ﾘﾔNO.2ｼｰﾄ−有り(ｾﾝﾀｱｰﾑﾚｽﾄ & 電動床下格納) |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-28100 |
ACR55,GSR55..CBU |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-28A70 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 82171-28A70 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82171-28A70 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82171-28A70 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様 |
1 | ||
| 82171-28C90 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82171-28B50 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 82171-28C30 |
ACR5#,GSR5#..(AERAS,X)..CBU ﾑｰﾝﾙｰﾌ−有り&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 82171-28C30 |
ACR5#,GSR5#..(AERAS,X)..CBU ﾑｰﾝﾙｰﾌ−有り&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82171-28C30 |
ACR5#,GSR5#..(AERAS,X)..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82171-28C90 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82171-28D70 |
ACR5#,GSR5#..G..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82171-28C90 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82171-28C30 |
ACR5#,GSR5#..(AERAS,X)..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82171-28E50 |
ACR5#,GSR5#..(AERAS,X)..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82171-28E50 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 82171-28C90 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 82171-28E50 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82171-2J840 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 82171-28F30 |
ACR5#,GSR5#..G..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 82171-28G60 |
ACR5#,GSR5#..G..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 82171-28A71 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 82171-28A71 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様 |
1 | ||
| 82171-28A71 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82171-28C31 |
ACR5#,GSR5#..(AERAS,X)..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82171-28C31 |
ACR5#,GSR5#..(AERAS,X)..CBU ﾑｰﾝﾙｰﾌ−有り&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82171-28C31 |
ACR5#,GSR5#..(AERAS,X)..CBU ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82171-28C91 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 82171-28C31 |
ACR5#,GSR5#..(AERAS,X)..CBU ﾑｰﾝﾙｰﾌ−有り&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 82171-28B51 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 82171-28C91 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82171-28A71 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82171-28C91 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82171-28E51 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 82171-2J841 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 82171-28E51 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82171-28C91 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82171-28D71 |
ACR5#,GSR5#..G..CBU ﾑｰﾝﾙｰﾌ−有り |
1 | ||
| 82171-28E51 |
ACR5#,GSR5#..(AERAS,X)..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-28260 |
ACR5#,GSR5#..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ) |
1 | ||
| 82182-28280 |
ACR5#,GSR5#..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ) |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-28370 |
ACR5#,GSR5#..CBU |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-28340 |
ACR5#..X..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82666-28340 |
ACR5#..X..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&SRSｴｱﾊﾞｯｸﾞ−運転席& 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82666-28340 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82666-28340 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82666-28340 |
ACR5#,GSR5#..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(ｾﾝﾀｱｰﾑﾚｽﾄ & 電動床下格納)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82666-28340 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&SRSｴｱﾊﾞｯｸﾞ−運転席& 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82666-28340 |
ACR5#,GSR5#..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82666-28340 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ&ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82666-28340 |
ACR5#..X..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ&ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82666-28340 |
ACR5#..X..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&SRSｴｱﾊﾞｯｸﾞ−運転席& 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ&ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-28360 |
ACR5#,GSR5#..CBU |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-28330 |
ACR5#..X..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82666-28330 |
ACR5#..X..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82666-28330 |
ACR5#..X..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&SRSｴｱﾊﾞｯｸﾞ−運転席& 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82666-28330 |
ACR5#..X..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82666-28330 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 82666-28330 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82666-28330 |
ACR50..X..CBU;ACR55,GSR55..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 82666-28330 |
ACR50..X..CBU;ACR55,GSR55..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ) |
1 | ||
| 82666-28470 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 82666-28330 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&SRSｴｱﾊﾞｯｸﾞ−運転席& 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82666-28330 |
ACR5#..X..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ&ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82666-28330 |
ACR5#..X..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ&ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82666-28330 |
ACR5#..X..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ&ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82666-28330 |
ACR5#..X..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&SRSｴｱﾊﾞｯｸﾞ−運転席& 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ&ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-28330 |
ACR5#..X..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82666-28330 |
ACR5#..X..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82666-28330 |
ACR5#..X..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&SRSｴｱﾊﾞｯｸﾞ−運転席& 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82666-28330 |
ACR5#..X..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82666-28330 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 82666-28330 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82666-28330 |
ACR50..X..CBU;ACR55,GSR55..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 82666-28330 |
ACR50..X..CBU;ACR55,GSR55..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ) |
1 | ||
| 82666-28470 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 82666-28330 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&SRSｴｱﾊﾞｯｸﾞ−運転席& 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82666-28330 |
ACR5#..X..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ&ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82666-28330 |
ACR5#..X..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ)&ｵｰﾃﾞｨｵ−HDDﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ&ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82666-28330 |
ACR5#..X..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ&ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82666-28330 |
ACR5#..X..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&SRSｴｱﾊﾞｯｸﾞ−運転席& 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ&ﾓﾆﾀ−有り(*IPA&ﾌﾛﾝﾄﾓﾆﾀ&ｻｲﾄﾞﾓﾆﾀ) |
1 | ||
| 82666S - HOLDER, CONNECTOR NO.13 | ||||
| 82666-28350 |
ACR5#,GSR5#..CBU |
1 | ||
| 82666T - HOLDER, CONNECTOR NO.14 | ||||
| 82666-28360 |
ACR5#,GSR5#..CBU |
1 | ||
| 82666W - HOLDER, CONNECTOR NO.16 | ||||
| 82666-28380 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 82666-28380 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 82666-28380 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82666-28380 |
ACR5#,GSR5#..(AERAS,X)..CBU ﾑｰﾝﾙｰﾌ−有り&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82666-28380 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&SRSｴｱﾊﾞｯｸﾞ−運転席& 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82666-28380 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82666-28380 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 82666-28380 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 82666-28380 |
ACR5#,GSR5#..(AERAS,X)..CBU ﾑｰﾝﾙｰﾌ−有り&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 82666-28490 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 82666W - HOLDER, CONNECTOR NO.16 | ||||
| 82666-28380 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 82666-28380 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 82666-28380 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ﾑｰﾝﾙｰﾌ−有り&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82666-28380 |
ACR5#,GSR5#..(AERAS,X)..CBU ﾑｰﾝﾙｰﾌ−有り&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82666-28380 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&SRSｴｱﾊﾞｯｸﾞ−運転席& 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82666-28380 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82666-28380 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 82666-28380 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 82666-28380 |
ACR5#,GSR5#..(AERAS,X)..CBU ﾑｰﾝﾙｰﾌ−有り&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 82666-28490 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| C8213 - WIRE, POWER LIFT MOTOR TO BODY | ||||
| C8213-28030 |
GSR5#..07S..G..CBU;ACR5#..07S..(AERAS,X)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ) |
1 | ||
| C8213-28030 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| C8213-28030 |
ACR5#..07S..X..CBU |
1 | ||
| C8213-28031 |
ACR5#..07S..X..CBU |
1 | ||
| C8213-28031 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| C8213-28031 |
GSR5#..07S..G..CBU;ACR5#..07S..(AERAS,X)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90980-09717 | ||||
| 90980-12257 | ||||
| Linked diagrams | ||||
| 4101 | ||||
| 8121 | ||||
| 8417 | ||||
ILLUST NO. 8 OF11(0601- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-28A50 | ||||
| 82715-28B50 | ||||
| 82715-28B60 | ||||
| 82715-28B70 | ||||
| 82715-28B80 | ||||
| 82715-28B90 | ||||
| 82715-28C00 | ||||
| 82715-28C90 | ||||
| 82715-28M30 | ||||
| 82715-2J050 | ||||
| 82715-2J060 | ||||
| 82715-2J070 | ||||
| 82715-2J080 | ||||
| 82715-41100 | ||||
| 82715-42800 | ||||
| 82715-42870 | ||||
| 82715-42A00 | ||||
| 82715-42A10 | ||||
| 82715-42A20 | ||||
| 82715-42A40 | ||||
| 82715-42A50 | ||||
| 82715-42A70 | ||||
| 82715-42A80 | ||||
| 82715-42B10 | ||||
| 82715-42B20 | ||||
| 82729-20070 | ||||
| 90105-08391 | ||||
| 91551-80612 | ||||
| 91553-A0612 | ||||
| 91553-A0812 | ||||
| 91621-J0612 | ||||
| 91651-B0814 | ||||
| 91671-80816 | ||||
ILLUST NO.10 OF11(0601- )
ｹｰﾌﾞﾙﾎﾞﾝﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07205 |
ACR5#..CBU |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07205 |
ACR5#..CBU |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07445 |
ACR5#..CBU |
1 | ||
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07445 |
ACR5#..CBU |
1 | ||
| 82001D - CABLE, BOND, NO.3 | ||||
| 90980-07451 |
ACR5#..CBU |
1 | ||
| 82001D - CABLE, BOND, NO.3 | ||||
| 90980-07451 |
ACR5#..CBU |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91553-A0812 | ||||
| 91622-61016 | ||||
| 91671-A0612 | ||||
ILLUST NO.11 OF11(0601- )
ｺﾈｸﾀ(1/3)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10795 | ||||
| 90980-10825 | ||||
| 90980-10897 | ||||
| 90980-10942 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11148 | ||||
| 90980-11162 | ||||
| 90980-11245 | ||||
| 90980-11255 | ||||
| 90980-11292 | ||||
| 90980-11659 | ||||
| 90980-11660 | ||||
| 90980-12353 | ||||
ILLUST NO. 1 OF11(0601-1605)
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-28E20 |
ACR5#..G |
1 | ||
| 82111-28E10 |
ACR50..X..CBU;ACR55..(AERAS,X)..CBU |
1 | ||
| 82111-28E30 |
ACR5#..(AERAS,X)..CBU 寒冷地仕様 |
1 | ||
| 82111-28E40 |
ACR5#..G 寒冷地仕様 |
1 | ||
| 82111-28E11 |
ACR50..X..CBU;ACR55..(AERAS,X)..CBU |
1 | ||
| 82111-28E21 |
ACR5#..G |
1 | ||
| 82111-28E41 |
ACR5#..G 寒冷地仕様 |
1 | ||
| 82111-28E31 |
ACR5#..(AERAS,X)..CBU 寒冷地仕様 |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-28090 |
ACR5#..G |
1 | ||
| 82113-28100 |
ACR5#..X..CBU |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-28140 |
ACR5#,GSR5#..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ) |
1 | ||
| 82114-28130 |
ACR5#,GSR5#..(G,X)..CBU |
1 | ||
| 82114-28140 |
ACR5#,GSR5#..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06952 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8417 | ||||
ILLUST NO.11 OF11(0601- )
ｺﾈｸﾀ(3/3)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10801 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11909 | ||||
| 90980-12038 | ||||
| 90980-12209 | ||||
| 90980-12211 | ||||
| 90980-12259 | ||||
| 90980-12404 | ||||
| 90980-12444 | ||||
| 90980-12460 | ||||
| 90980-12495 | ||||
| 90980-12551 | ||||
| 90980-12552 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12721 | ||||
ILLUST NO. 9 OF11(0601- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E300 | ||||
| 82711-1E340 | ||||
| 82711-60270 | ||||
| 82712-28290 | ||||
| 82715-28C40 | ||||
| 82715-28E60 | ||||
| 82715-28E70 | ||||
| 82715-28E80 | ||||
| 82715-28E90 | ||||
| 862A2-28030 | ||||
| 88995-28020 | ||||
| 88995-28021 | ||||
| 90119-06915 | ||||
| 90179-06115 | ||||
| 90179-06314 | ||||
| 90463-13003 | ||||
| 90464-00620 | ||||
| 91553-80616 | ||||
| 91641-80818 | ||||
| 93568-55014 | ||||
ILLUST NO. 7 OF11(0601-1204)
ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-28050 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 82191-28060 |
ACR5#,GSR5#..(AERAS,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-28050 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 82191-28060 |
ACR5#,GSR5#..(AERAS,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-28030 |
ACR5#,GSR5#..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82192A - WIRE, REAR SEAT, LH | ||||
| 82192-D1040 |
ACR5#..07S..X..CBU |
1 | ||
| 82192-D1040 |
ACR5#..07S..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ) |
1 | ||
| 82192-D1040 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 82192-D1040 |
ACR5#..07S..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/介護ﾀｲﾌﾟ) |
1 | ||
| 82192-D1040 |
ACR5#..07S..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/自操ﾀｲﾌﾟ) |
1 | ||
| 82192A - WIRE, REAR SEAT, LH | ||||
| 82192-D1040 |
ACR5#..07S..X..CBU |
1 | ||
| 82192-D1040 |
ACR5#..07S..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ) |
1 | ||
| 82192-D1040 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 82192-D1040 |
ACR5#..07S..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/介護ﾀｲﾌﾟ) |
1 | ||
| 82192-D1040 |
ACR5#..07S..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/自操ﾀｲﾌﾟ) |
1 | ||
| 82193 - WIRE, REAR SEAT, RH | ||||
| 82193-28010 |
ACR5#,GSR5#..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(ｾﾝﾀｱｰﾑﾚｽﾄ & 電動床下格納) |
1 | ||
| 82193-28010 |
ACR5#,GSR5#..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(ｾﾝﾀｱｰﾑﾚｽﾄ & 電動床下格納)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82194 - WIRE, REAR SEAT, LH | ||||
| 82194-28010 |
ACR5#,GSR5#..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(ｾﾝﾀｱｰﾑﾚｽﾄ & 電動床下格納)&SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82194-28010 |
ACR5#,GSR5#..G..CBU ﾘﾔNO.2ｼｰﾄ−有り(ｾﾝﾀｱｰﾑﾚｽﾄ & 電動床下格納) |
1 | ||
| 82219C - WIRE, SENSOR | ||||
| 82219-D1050 |
ACR5#..07S..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ) |
1 | ||
| 82219-D1050 |
ACR5#..07S..X..CBU |
1 | ||
| 82219-D1050 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 82219-D1050 |
ACR5#..07S..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/自操ﾀｲﾌﾟ) |
1 | ||
| 82219-D1050 |
ACR5#..07S..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/介護ﾀｲﾌﾟ) |
1 | ||
| 82219C - WIRE, SENSOR | ||||
| 82219-D1050 |
ACR5#..07S..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着ﾀｲﾌﾟ) |
1 | ||
| 82219-D1050 |
ACR5#..07S..X..CBU |
1 | ||
| 82219-D1050 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 82219-D1050 |
ACR5#..07S..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/自操ﾀｲﾌﾟ) |
1 | ||
| 82219-D1050 |
ACR5#..07S..X..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(脱着/介護ﾀｲﾌﾟ) |
1 | ||
| Common parts | ||||
| C6565-18010 | ||||
| C8737-22030 | ||||
ILLUST NO.11 OF11(0601- )
ｺﾈｸﾀ(2/3)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-11070 | ||||
| 90980-11856 | ||||
| 90980-12225 | ||||
| 90980-12303 | ||||
| 90980-12379 | ||||
| 90980-12382 | ||||
| 90980-12490 | ||||
| 90980-12699 | ||||
| 90980-12831 | ||||
| 90980-WA063 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
