ACR50W-GRXSK (2006)

Toyota Estima

Production Jan 2006 - Dec 2008
Engine 2AZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(0601- )AEPR ; (0601- )AEPG,AERAS,AESM,G,X

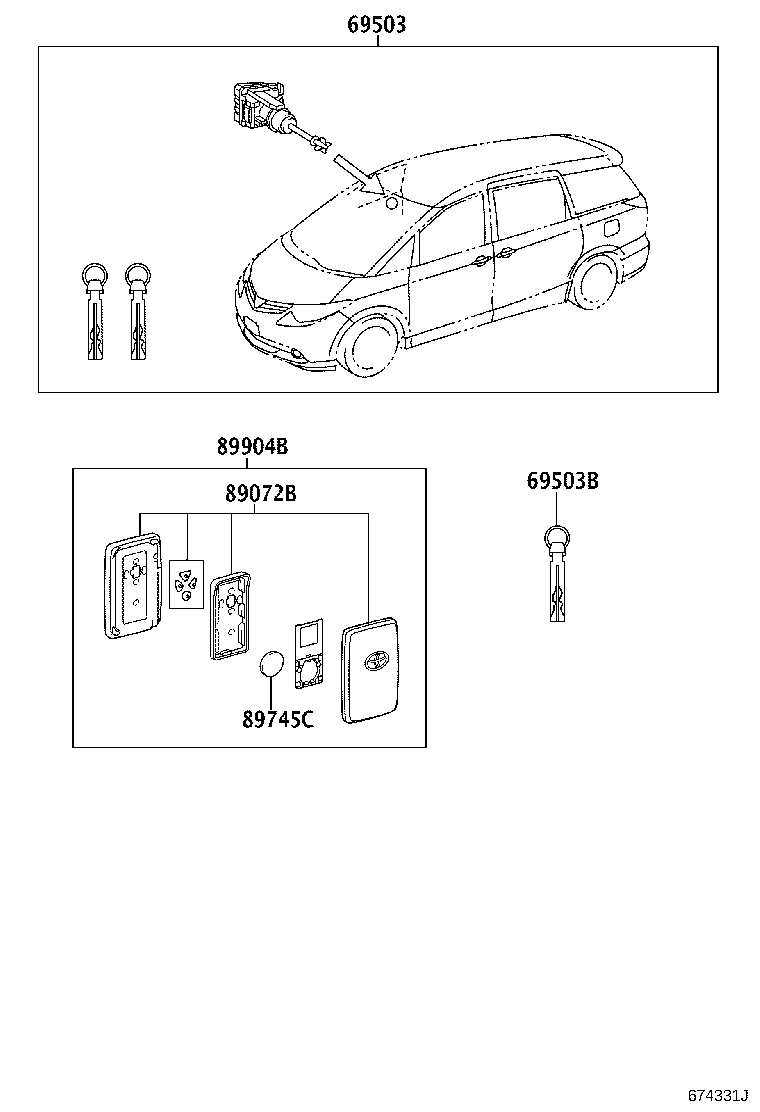

Click highlighted areas on diagram

diagram 69503 69503B 89072B 89745C 89904B
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-28B60

ACR5#,GSR5#..CBU

 1
69503B - KEY, CUT
69515-52110

ACR5#,GSR5#..CBU

ﾏｽﾀｰｷｰ,W(*68)

 2
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-28560

ACR5#,GSR5#..(AERAS,X)..CBU

ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ)

 1
89072-28550

ACR5#,GSR5#..(AERAS,X)..CBU

 1
89072-28570

ACR5#,GSR5#..G..CBU

 1
89072-58080

ACR5#,GSR5#..G..CBU

ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) & 有り(*PBD)&ﾘﾔNO.2ｼｰﾄ−有り(ｾﾝﾀｱｰﾑﾚｽﾄ & 電動床下格納)

 1
89072-28570

ACR5#,GSR5#..(AERAS,X)..CBU

ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)

 1
89745C - BATTERY, TRANSMITTER
89745-52020

ACR5#,GSR5#..CBU

CR1632

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-42040

ACR5#,GSR5#..(AERAS,X)..CBU

 1
89904-28081

ACR5#,GSR5#..G..CBU

ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) & 有り(*PBD)&ﾘﾔNO.2ｼｰﾄ−有り(ｾﾝﾀｱｰﾑﾚｽﾄ & 電動床下格納)

 1
89904-28091

ACR5#,GSR5#..(AERAS,X)..CBU

ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)

 1
89904-28080

ACR5#,GSR5#..G..CBU

ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) & 有り(*PBD)&ﾘﾔNO.2ｼｰﾄ−有り(ｾﾝﾀｱｰﾑﾚｽﾄ & 電動床下格納)

 1
89904-28100

ACR5#,GSR5#..(AERAS,X)..CBU

ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ)

 1
89904-28101

ACR5#,GSR5#..(AERAS,X)..CBU

ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ)

 1
89904-28090

ACR5#,GSR5#..(AERAS,X)..CBU

ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側)

 1
89904-28091

ACR5#,GSR5#..G..CBU

 1
89904-42041

ACR5#,GSR5#..(AERAS,X)..CBU

 1
89904-28090

ACR5#,GSR5#..G..CBU

 1
