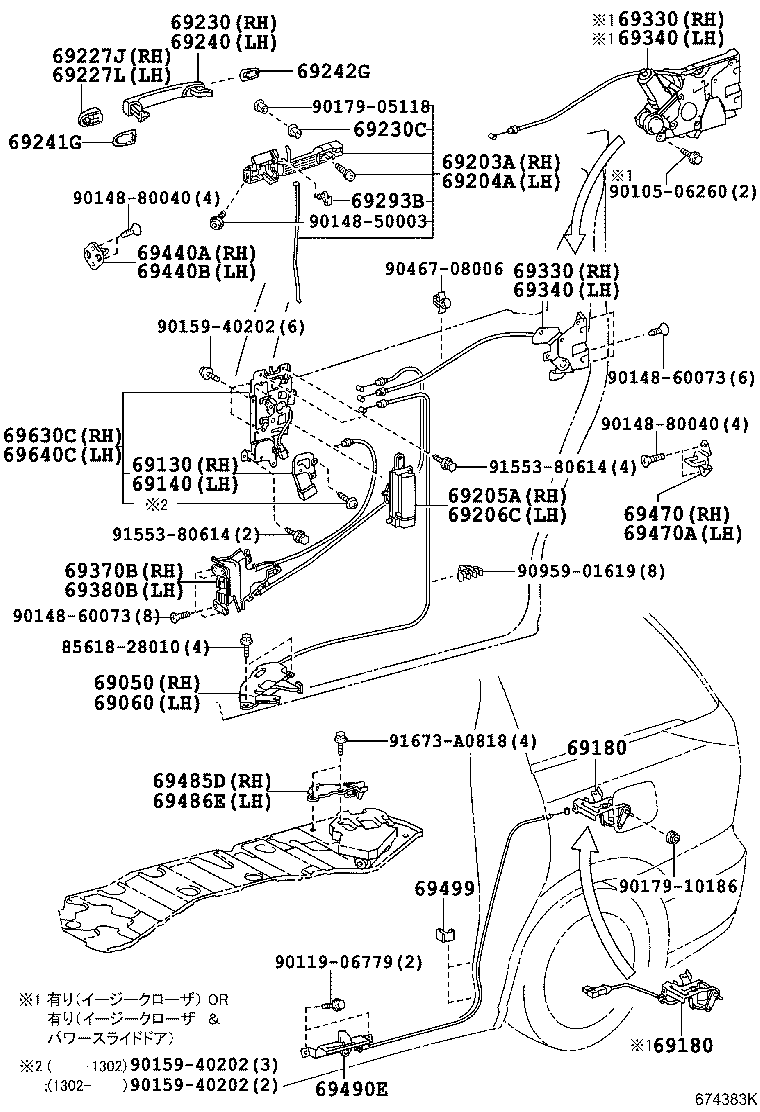

ACR50W-GRXQK (2006)
Toyota Estima
(0601- )AEPR ; (0601- )AEPG,AERAS,AESM,G,X
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69050 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH | ||||
| 69050-28061 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 69050-28061 |
ACR5#,GSR5#..CBU 寒冷地仕様 |
1 | ||
| 69050-28061 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ) |
1 | ||
| 69050-28040 |
ACR5#,GSR5#..CBU |
1 | ||
| 69050-28062 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 69050-28062 |
ACR5#,GSR5#..CBU 寒冷地仕様 |
1 | ||
| 69050-28062 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ) |
1 | ||
| 69050-28041 |
ACR5#,GSR5#..CBU |
1 | ||
| 69060 - LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH | ||||
| 69060-28101 |
ACR5#,GSR5#..CBU 寒冷地仕様 |
1 | ||
| 69060-28070 |
ACR5#,GSR5#..CBU |
1 | ||
| 69060-28101 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 69060-28101 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ) |
1 | ||
| 69060-28102 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 69060-28102 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ) |
1 | ||
| 69060-28071 |
ACR5#,GSR5#..CBU |
1 | ||
| 69060-28102 |
ACR5#,GSR5#..CBU 寒冷地仕様 |
1 | ||
| 69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH | ||||
| 69130-58020 |
ACR5#,GSR5#..CBU |
1 | ||
| 69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH | ||||
| 69140-58020 |
ACR5#,GSR5#..CBU |
1 | ||
| 69180 - CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER | ||||
| 69180-28080 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ) |
1 | ||
| 69180-28080 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 69180-28080 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 69180-28090 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 69180 - CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER | ||||
| 69180-28080 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ) |
1 | ||
| 69180-28080 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 69180-28080 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 69180-28090 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69203-28020 |
ACR5#,GSR5#..CBU |
1 | ||
| 69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69204-28020 |
ACR5#,GSR5#..CBU |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69207-58010E2 |
ACR5#,GSR5#..(G,X)..CBU ASH BROWN,TRIM4# |
1 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69208-58010E2 |
ACR5#,GSR5#..(G,X)..CBU ASH BROWN,TRIM4# |
1 | ||
| 69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH | ||||
| 69227-28050A5 |
ACR5#,GSR5#..CBU WHITE PEARL CS.,070 |
1 | ||
| 69227-28050B8 |
ACR5#,GSR5#..CBU SILVER ME.,1F7 |
1 | ||
| 69227-28050R1 |
ACR5#,GSR5#..(G,X)..CBU LT.BLUE M.M.,8S7 |
1 | ||
| 69227-28050D7 |
ACR5#,GSR5#..(G,X)..CBU DK. RED M.M.,3Q3 |
1 | ||
| 69227-28050J9 |
ACR5#,GSR5#..(G,X)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 69227-28050F4 |
ACR5#,GSR5#..(G,X)..CBU SILKY GOLD M.M.,5A4 |
1 | ||
| 69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH | ||||
| 69227-28050B8 |
ACR5#,GSR5#..CBU SILVER ME.,1F7 |
1 | ||
| 69227-28050F4 |
ACR5#,GSR5#..(G,X)..CBU SILKY GOLD M.M.,5A4 |
1 | ||
| 69227-28050D7 |
ACR5#,GSR5#..(G,X)..CBU DK. RED M.M.,3Q3 |
1 | ||
| 69227-28050A5 |
ACR5#,GSR5#..CBU WHITE PEARL CS.,070 |
1 | ||
| 69227-28050J9 |
ACR5#,GSR5#..(G,X)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 69227-28050R1 |
ACR5#,GSR5#..(G,X)..CBU LT.BLUE M.M.,8S7 |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69213-28010R1 |
ACR5#,GSR5#..(G,X)..CBU LT.BLUE M.M.,8S7 |
1 | ||
| 69213-28010J9 |
ACR5#,GSR5#..(G,X)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 69213-28010A5 |
ACR5#,GSR5#..CBU WHITE PEARL CS.,070 |
1 | ||
| 69213-28010F4 |
ACR5#,GSR5#..(G,X)..CBU SILKY GOLD M.M.,5A4 |
1 | ||
| 69213-28010D7 |
ACR5#,GSR5#..(G,X)..CBU DK. RED M.M.,3Q3 |
1 | ||
| 69213-28010B8 |
ACR5#,GSR5#..CBU SILVER ME.,1F7 |
1 | ||
| 69230C - BUSH(FOR REAR DOOR OUTSIDE HANDLE) | ||||
| 90386-08066 |
ACR5#,GSR5#..CBU |
2 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69213-28010F4 |
ACR5#,GSR5#..(G,X)..CBU SILKY GOLD M.M.,5A4 |
1 | ||
| 69213-28010D7 |
ACR5#,GSR5#..(G,X)..CBU DK. RED M.M.,3Q3 |
1 | ||
| 69213-28010R1 |
ACR5#,GSR5#..(G,X)..CBU LT.BLUE M.M.,8S7 |
1 | ||
| 69213-28010A5 |
ACR5#,GSR5#..CBU WHITE PEARL CS.,070 |
1 | ||
| 69213-28010B8 |
ACR5#,GSR5#..CBU SILVER ME.,1F7 |
1 | ||
| 69213-28010J9 |
ACR5#,GSR5#..(G,X)..CBU DK.BLUE MC.,8S6 |
1 | ||
| 69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT | ||||
| 69242-60030 |
ACR5#,GSR5#..CBU |
2 | ||
| 69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR | ||||
| 69241-28060 |
ACR5#,GSR5#..CBU |
2 | ||
| 69293B - SNAP, REAR DOOR OUTSIDE HANDLE | ||||
| 69293-12040 |
ACR5#,GSR5#..CBU 右側 |
1 | ||
| 69293-12030 |
ACR5#,GSR5#..CBU 左側 |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69200-28040 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 69200-28040 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ) |
1 | ||
| 69200-28041 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 69330-28091 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 69200-28040 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 69200-28041 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 69200-28041 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ) |
1 | ||
| 69200-28041 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 69330-28090 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 69200-28041 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ) |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69200-28040 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 69200-28040 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ) |
1 | ||
| 69200-28041 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 69330-28091 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 69200-28040 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 69200-28041 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 69200-28041 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ) |
1 | ||
| 69200-28041 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 69330-28090 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 69200-28041 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ) |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69300-28081 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ) |
1 | ||
| 69300-28080 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 69340-28180 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 69300-28080 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 69300-28080 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ) |
1 | ||
| 69300-28081 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 69340-28181 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 69300-28081 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 69300-28081 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 69300-28081 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ) |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69300-28081 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ) |
1 | ||
| 69300-28080 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 69340-28180 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 69300-28080 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 69300-28080 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ) |
1 | ||
| 69300-28081 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 69340-28181 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 69300-28081 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 69300-28081 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 69300-28081 |
ACR5#,GSR5#..(AERAS,X)..CBU 寒冷地仕様&ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ) |
1 | ||
| 69370B - LOCK ASSY, SLIDE DOOR, FRONT RH | ||||
| 69370-28100 |
ACR5#,GSR5#..CBU |
1 | ||
| 69370-28101 |
ACR5#,GSR5#..CBU |
1 | ||
| 69380B - LOCK ASSY, SLIDE DOOR, FRONT LH | ||||
| 69380-28111 |
ACR5#,GSR5#..CBU |
1 | ||
| 69380-28110 |
ACR5#,GSR5#..CBU |
1 | ||
| 69440A - PLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER | ||||
| 69440-58011 |
ACR5#,GSR5#..CBU |
1 | ||
| 69440B - PLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER | ||||
| 69440-58011 |
ACR5#,GSR5#..CBU |
1 | ||
| 69470 - PLATE ASSY, SLIDE DOOR LOCK STRIKER | ||||
| 69470-28120 |
ACR5#,GSR5#..CBU |
1 | ||
| 69470A - PLATE ASSY, SLIDE DOOR LOCK STRIKER, LH | ||||
| 69470-28120 |
ACR5#,GSR5#..CBU |
1 | ||
| 69485D - STRIKER, SLIDE DOOR OPEN, RH | ||||
| 69485-28040 |
ACR5#,GSR5#..CBU |
1 | ||
| 69486E - STRIKER, SLIDE DOOR OPEN, LH | ||||
| 69486-28060 |
ACR5#,GSR5#..CBU |
1 | ||
| 69490E - STOPPER ASSY, SLIDE DOOR HALF OPEN | ||||
| 69490-28040 |
ACR5#,GSR5#..CBU |
1 | ||
| 69499 - CLIP, SLIDE DOOR HALF OPEN STOPPER CABLE | ||||
| 69499-28020 |
ACR5#,GSR5#..CBU |
2 | ||
| 69630C - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, RH | ||||
| 69630-28150 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 69630-28160 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 69630-28160 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 69640C - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH | ||||
| 69640-28240 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(両側) |
1 | ||
| 69640-28240 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 69640-28230 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 69640-28240 |
ACR5#,GSR5#..(AERAS,X)..CBU ｽﾗｲﾄﾞﾄﾞｱ−*ECS(両側) & *POSD(LH側のみ) |
1 | ||
| Common parts | ||||
| 85618-28010 | ||||
| 90105-06260 | ||||
| 90119-06779 | ||||
| 90148-50003 | ||||
| 90148-60073 | ||||
| 90148-80040 | ||||
| 90159-40202 | ||||
| 90179-05118 | ||||
| 90179-10186 | ||||
| 90467-08006 | ||||
| 90959-01619 | ||||
| 91553-80614 | ||||
| 91673-A0818 | ||||
