ACR50W-GRXEK (2008)
Toyota Estima
(0601-1204)08S

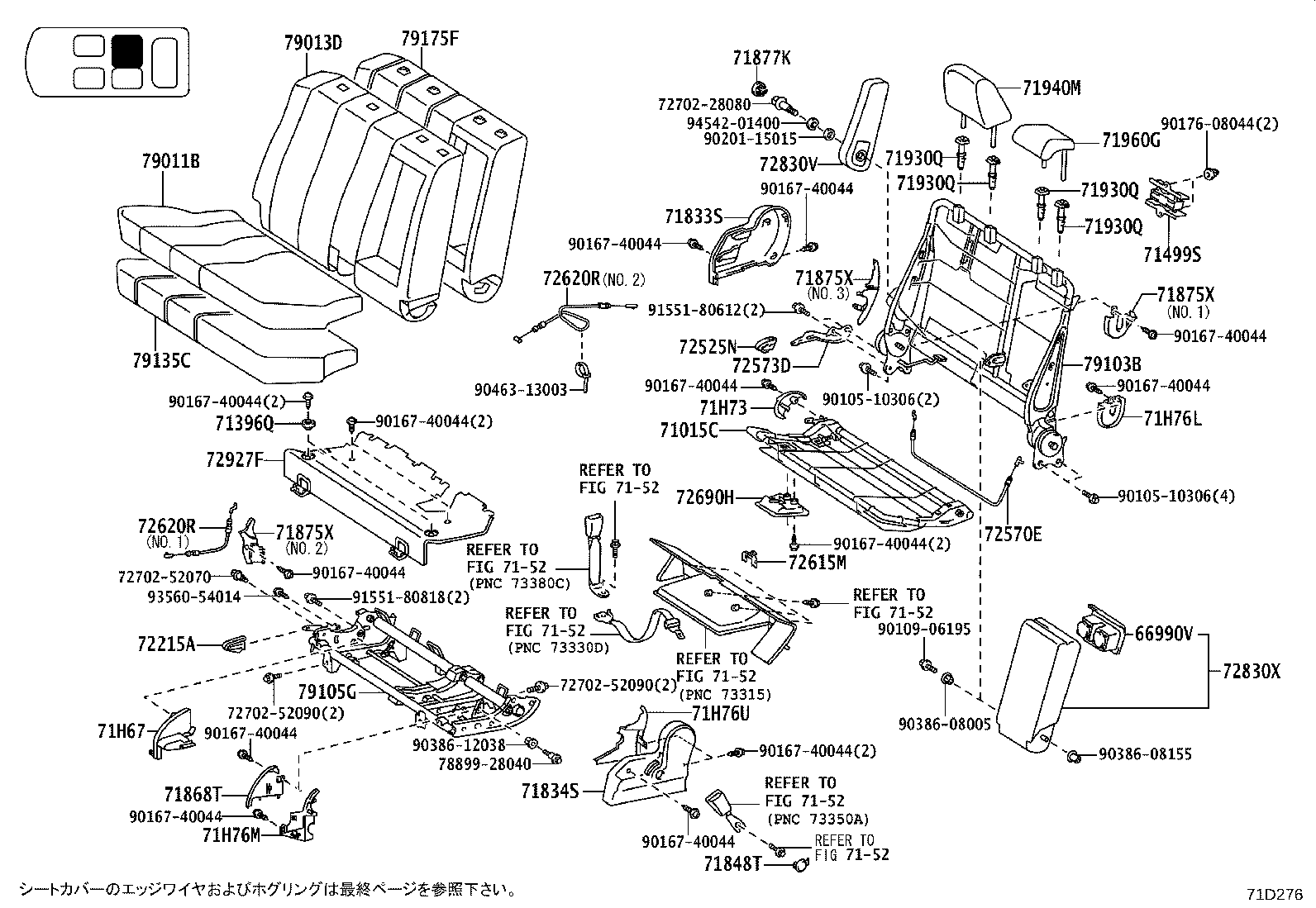

ﾘﾔ NO.1ｼｰﾄ(RH) ｱﾘ(ｾﾝﾀ2ﾃﾝｼｷｼｰﾄﾍﾞﾙﾄ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66990V - HOLDER ASSY, CUP | ||||
| 66991-28040E3 |
ACR5#,GSR5#..08S..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 66991-28040E3 |
ACR5#,GSR5#..08S..CBU GREGE,TRIM4# |
1 | ||
| 71015C - FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79101-28180 |
ACR5#,GSR5#..08S..CBU |
1 | ||
| 79101-28180 |
ACR5#,GSR5#..08S..CBU |
1 | ||
| 71396Q - CUSHION, NO.1 SEAT SUPPORT, CENTER | ||||
| 71396-28030E1 |
GSR5#..08S..CBU;ACR5#..08S..(G,X)..CBU GREGE,TRIM4# |
4 | ||
| 71396-28030B0 |
ACR5#,GSR5#..08S..CBU DK.GRAY |
4 | ||
| 71396-28030B0 |
ACR5#,GSR5#..08S..(G,X)..CBU DK.GRAY |
4 | ||
| 71499S - DAMPER, SEAT CUSHION SPRING | ||||
| 71499-28050 |
ACR5#..X..CBU;ACR5#,GSR5#..08S..AERAS..CBU |
1 | ||
| 71499-46020 |
ACR5#,GSR5#..08S..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71499-28050 |
ACR5#,GSR5#..08S..CBU |
1 | ||
| 71499-46020 |
ACR5#,GSR5#..08S..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 71499-28050 |
ACR5#,GSR5#..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 71499-28050 |
ACR5#,GSR5#..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ｺﾝｿｰﾙﾎﾞｯｸｽ−無し |
1 | ||
| 71833S - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-28130E0 |
ACR5#,GSR5#..08S..CBU GREGE,TRIM4# |
1 | ||
| 71833-28130E0 |
GSR5#..08S..CBU;ACR5#..08S..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 71834S - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-28130E0 |
GSR5#..08S..CBU;ACR5#..08S..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 71834-28130E0 |
ACR5#,GSR5#..08S..CBU GREGE,TRIM4# |
1 | ||
| 71848T - CAP, NO.1 SEAT ADJUSTER COVER, RH | ||||
| 71848-28020E0 |
ACR5#,GSR5#..08S..CBU GREGE,TRIM4# |
1 | ||
| 71848-28020E0 |
GSR5#..08S..CBU;ACR5#..08S..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 71868T - SHIELD, REAR SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-28010E0 |
ACR5#,GSR5#..08S..CBU GREGE,TRIM4# |
1 | ||
| 71868-28010E0 |
GSR5#..08S..CBU;ACR5#..08S..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 71875X - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-28180 |
ACR5#,GSR5#..08S..CBU NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 71875-28170E0 |
GSR5#..08S..CBU;ACR5#..08S..(G,X)..CBU GREGE,TRIM4#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 71875-28220E0 |
GSR5#..08S..CBU;ACR5#..08S..(G,X)..CBU GREGE,TRIM4#,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 71875-28170E0 |
ACR5#,GSR5#..08S..CBU GREGE,TRIM4#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 71875-28180 |
ACR5#,GSR5#..08S..CBU NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 71875-28220E0 |
ACR5#,GSR5#..08S..CBU GREGE,TRIM4#,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 71875X - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-28180 |
ACR5#,GSR5#..08S..CBU NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 71875-28170E0 |
GSR5#..08S..CBU;ACR5#..08S..(G,X)..CBU GREGE,TRIM4#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 71875-28220E0 |
GSR5#..08S..CBU;ACR5#..08S..(G,X)..CBU GREGE,TRIM4#,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 71875-28170E0 |
ACR5#,GSR5#..08S..CBU GREGE,TRIM4#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 71875-28180 |
ACR5#,GSR5#..08S..CBU NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 71875-28220E0 |
ACR5#,GSR5#..08S..CBU GREGE,TRIM4#,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 71875X - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-28180 |
ACR5#,GSR5#..08S..CBU NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 71875-28170E0 |
GSR5#..08S..CBU;ACR5#..08S..(G,X)..CBU GREGE,TRIM4#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 71875-28220E0 |
GSR5#..08S..CBU;ACR5#..08S..(G,X)..CBU GREGE,TRIM4#,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 71875-28170E0 |
ACR5#,GSR5#..08S..CBU GREGE,TRIM4#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 71875-28180 |
ACR5#,GSR5#..08S..CBU NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 71875-28220E0 |
ACR5#,GSR5#..08S..CBU GREGE,TRIM4#,NO.3:ｲﾗｽﾄ参照 |
1 | ||
| 71877K - COVER, REAR SEAT ARMREST HOLE RH | ||||
| 71877-26020E2 |
ACR5#,GSR5#..08S..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 71877-26020E2 |
ACR5#..08S..X..CBU GREGE,TRIM4# |
1 | ||
| 71930Q - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71930-42020E1 |
ACR5#..08S..X..CBU;ACR5#,GSR5#..07S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71930-42020E1 |
ACR5#,GSR5#..08S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
3 | ||
| 71930-42020E1 |
ACR5#..08S..X..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,GREGE,TRIM4# |
3 | ||
| 71931-42020E1 |
ACR5#,GSR5#..08S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
3 | ||
| 71931-42020E1 |
ACR5#..08S..X..CBU;ACR5#,GSR5#..07S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
2 | ||
| 71931-42020E1 |
ACR5#..08S..X..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,GREGE,TRIM4# |
3 | ||
| 71931-42020E1 |
ACR5#,GSR5#..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ｺﾝｿｰﾙﾎﾞｯｸX−無し,GREGE,TRIM4# |
1 | ||
| 71930-52030E0 |
ACR5#,GSR5#..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ｺﾝｿｰﾙﾎﾞｯｸX−無し,GREGE,TRIM4# |
1 | ||
| 71930-52030E0 |
GSR5#..CBU;ACR5#..08S..CBU;ACR5#..07S..(AERAS,G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71931-42020E1 |
ACR5#,GSR5#..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 71931-42020E1 |
ACR5#..08S..X..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
3 | ||
| 71930-52030E0 |
ACR5#..08S..X..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
3 | ||
| 71931-42020E1 |
GSR5#..CBU;ACR5#..08S..CBU;ACR5#..07S..(AERAS,G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
2 | ||
| 71930-52030E0 |
ACR5#,GSR5#..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 71930Q - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71930-42020E1 |
ACR5#..08S..X..CBU;ACR5#,GSR5#..07S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71930-42020E1 |
ACR5#,GSR5#..08S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
3 | ||
| 71930-42020E1 |
ACR5#..08S..X..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,GREGE,TRIM4# |
3 | ||
| 71931-42020E1 |
ACR5#,GSR5#..08S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
3 | ||
| 71931-42020E1 |
ACR5#..08S..X..CBU;ACR5#,GSR5#..07S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
2 | ||
| 71931-42020E1 |
ACR5#..08S..X..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,GREGE,TRIM4# |
3 | ||
| 71931-42020E1 |
ACR5#,GSR5#..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ｺﾝｿｰﾙﾎﾞｯｸX−無し,GREGE,TRIM4# |
1 | ||
| 71930-52030E0 |
ACR5#,GSR5#..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ｺﾝｿｰﾙﾎﾞｯｸX−無し,GREGE,TRIM4# |
1 | ||
| 71930-52030E0 |
GSR5#..CBU;ACR5#..08S..CBU;ACR5#..07S..(AERAS,G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71931-42020E1 |
ACR5#,GSR5#..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 71931-42020E1 |
ACR5#..08S..X..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
3 | ||
| 71930-52030E0 |
ACR5#..08S..X..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
3 | ||
| 71931-42020E1 |
GSR5#..CBU;ACR5#..08S..CBU;ACR5#..07S..(AERAS,G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
2 | ||
| 71930-52030E0 |
ACR5#,GSR5#..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 71930Q - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71930-42020E1 |
ACR5#..08S..X..CBU;ACR5#,GSR5#..07S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71930-42020E1 |
ACR5#,GSR5#..08S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
3 | ||
| 71930-42020E1 |
ACR5#..08S..X..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,GREGE,TRIM4# |
3 | ||
| 71931-42020E1 |
ACR5#,GSR5#..08S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
3 | ||
| 71931-42020E1 |
ACR5#..08S..X..CBU;ACR5#,GSR5#..07S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
2 | ||
| 71931-42020E1 |
ACR5#..08S..X..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,GREGE,TRIM4# |
3 | ||
| 71931-42020E1 |
ACR5#,GSR5#..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ｺﾝｿｰﾙﾎﾞｯｸX−無し,GREGE,TRIM4# |
1 | ||
| 71930-52030E0 |
ACR5#,GSR5#..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ｺﾝｿｰﾙﾎﾞｯｸX−無し,GREGE,TRIM4# |
1 | ||
| 71930-52030E0 |
GSR5#..CBU;ACR5#..08S..CBU;ACR5#..07S..(AERAS,G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71931-42020E1 |
ACR5#,GSR5#..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 71931-42020E1 |
ACR5#..08S..X..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
3 | ||
| 71930-52030E0 |
ACR5#..08S..X..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
3 | ||
| 71931-42020E1 |
GSR5#..CBU;ACR5#..08S..CBU;ACR5#..07S..(AERAS,G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
2 | ||
| 71930-52030E0 |
ACR5#,GSR5#..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 71930Q - SUPPORT ASSY, REAR SEAT HEADREST | ||||
| 71930-42020E1 |
ACR5#..08S..X..CBU;ACR5#,GSR5#..07S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71930-42020E1 |
ACR5#,GSR5#..08S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
3 | ||
| 71930-42020E1 |
ACR5#..08S..X..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,GREGE,TRIM4# |
3 | ||
| 71931-42020E1 |
ACR5#,GSR5#..08S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
3 | ||
| 71931-42020E1 |
ACR5#..08S..X..CBU;ACR5#,GSR5#..07S..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
2 | ||
| 71931-42020E1 |
ACR5#..08S..X..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻCﾄﾞ,GREGE,TRIM4# |
3 | ||
| 71930-52030E0 |
ACR5#,GSR5#..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ｺﾝｿｰﾙﾎﾞｯｸX−無し,GREGE,TRIM4# |
1 | ||
| 71931-42020E1 |
ACR5#,GSR5#..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ｺﾝｿｰﾙﾎﾞｯｸX−無し,GREGE,TRIM4# |
1 | ||
| 71930-52030E0 |
GSR5#..CBU;ACR5#..08S..CBU;ACR5#..07S..(AERAS,G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),GREGE,TRIM4# |
2 | ||
| 71931-42020E1 |
ACR5#,GSR5#..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 71931-42020E1 |
ACR5#..08S..X..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
3 | ||
| 71930-52030E0 |
ACR5#..08S..X..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
3 | ||
| 71931-42020E1 |
GSR5#..CBU;ACR5#..08S..CBU;ACR5#..07S..(AERAS,G)..CBU ﾛｯｸ付(ﾎﾞﾀﾝ無し),GREGE,TRIM4# |
2 | ||
| 71930-52030E0 |
ACR5#,GSR5#..G..CBU ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 71940M - HEADREST ASSY, REAR SEAT | ||||
| 71940-28A40E1 |
ACR5#..08S..X..CBU GREGE,TRIM4# |
2 | ||
| 71940-28A60E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
2 | ||
| 71960-28040E0 |
ACR5#..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71940-28C70E1 |
ACR5#,GSR5#..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ｺﾝｿｰﾙﾎﾞｯｸｽ−無し,GREGE,TRIM4#,右側ｼｰﾄ用 |
1 | ||
| 71910-28C50E1 |
ACR5#,GSR5#..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 71940-28C70E1 |
ACR5#,GSR5#..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4#,右側ｼｰﾄ用 |
1 | ||
| 71940-28C70E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
2 | ||
| 71940-28C50E0 |
ACR5#..08S..X..CBU GREGE,TRIM4# |
2 | ||
| 71910-28C50E1 |
ACR5#,GSR5#..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ｺﾝｿｰﾙﾎﾞｯｸｽ−無し,GREGE,TRIM4# |
1 | ||
| 71940-28A70E0 |
ACR5#,GSR5#..G..CBU ｼｰﾄ表皮−本革,GREGE,TRIM4# |
2 | ||
| 71940-28C71E1 |
ACR5#,GSR5#..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4#,右側ｼｰﾄ用 |
1 | ||
| 71940-28C71E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
2 | ||
| 71910-28C51E1 |
ACR5#,GSR5#..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 71960G - HEADREST ASSY, REAR NO.1 SEAT, CENTER | ||||
| 71960-28010E1 |
ACR5#..08S..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71960-28030E1 |
ACR5#,GSR5#..08S..G..CBU GREGE,TRIM4# |
1 | ||
| 71960-28180E0 |
ACR5#..08S..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 71H67 - SHIELD, REAR SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-28010E0 |
GSR5#..08S..CBU;ACR5#..08S..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 71867-28010E0 |
ACR5#,GSR5#..08S..CBU GREGE,TRIM4# |
1 | ||
| 71H73 - SHIELD, REAR SEAT CUSHION, LOWER RH | ||||
| 71873-28020E0 |
GSR5#..08S..CBU;ACR5#..08S..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 71873-28020E0 |
ACR5#,GSR5#..08S..CBU GREGE,TRIM4# |
1 | ||
| 71H76L - COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR RH SEAT) | ||||
| 71876-28170 |
ACR5#,GSR5#..08S..(AERAS,X)..CBU |
1 | ||
| 71876-28170 |
ACR5#,GSR5#..08S..CBU |
1 | ||
| 71H76M - COVER, RECLINING ADJUSTER INSIDE, LH NO.2(FOR RH SEAT) | ||||
| 71876-28200E0 |
GSR5#..08S..CBU;ACR5#..08S..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 71876-28200E0 |
ACR5#,GSR5#..08S..CBU GREGE,TRIM4# |
1 | ||
| 71H76U - COVER, RECLINING ADJUSTER INSIDE, LH NO.3(FOR RH SEAT) | ||||
| 71876-28210E0 |
GSR5#..08S..CBU;ACR5#..08S..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 71876-28210E0 |
ACR5#,GSR5#..08S..CBU GREGE,TRIM4# |
1 | ||
| 72215A - LEVER, NO.1 SEAT TRACK HANDLE CONTROL, RH | ||||
| 72215-28010E0 |
GSR5#..08S..CBU;ACR5#..08S..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 72215-28010E0 |
ACR5#,GSR5#..08S..CBU GREGE,TRIM4# |
1 | ||
| 72525N - HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-28110E0 |
ACR5#,GSR5#..08S..CBU GREGE,TRIM4# |
1 | ||
| 72525-28110E0 |
GSR5#..08S..CBU;ACR5#..08S..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 72570E - CABLE ASSY, NO.1 SEAT RECLINING ADJUSTING, RH | ||||
| 72570-28020 |
ACR5#,GSR5#..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ)&ｺﾝｿｰﾙﾎﾞｯｸｽ−無し |
1 | ||
| 72570-28050 |
ACR5#,GSR5#..08S..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 72570-28010 |
ACR5#,GSR5#..08S..CBU |
1 | ||
| 72570-28020 |
ACR5#,GSR5#..G..CBU ｼｰﾄ表皮−本革 |
1 | ||
| 72570-28020 |
ACR5#,GSR5#..G..CBU |
2 | ||
| 72570-28050 |
ACR5#,GSR5#..08S..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 72570-28020 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 72570-28020 |
ACR5#,GSR5#..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 72570-28010 |
ACR5#,GSR5#..08S..CBU |
1 | ||
| 72570-28020 |
ACR5#,GSR5#..G..CBU |
2 | ||
| 72573D - LEVER, NO.1 SEAT RECLINING CONTROL, RH | ||||
| 72573-28010 |
ACR5#,GSR5#..08S..CBU |
1 | ||
| 72573-28010 |
ACR5#,GSR5#..08S..CBU |
1 | ||
| 72615M - COVER, NO.1 SEAT BACK LOCK STRIKER(FOR RH SEAT) | ||||
| 72615-28020E0 |
GSR5#..08S..CBU;ACR5#..08S..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 72615-28020E0 |
ACR5#,GSR5#..08S..CBU GREGE,TRIM4# |
1 | ||
| 72620R - CABLE ASSY, REAR NO.1 SEAT LOCK(FOR RH SEAT) | ||||
| 72620-28050 |
ACR5#..08S..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,NO.1:ｲﾗｽﾄQ照 |
1 | ||
| 72620-28060 |
ACR5#,GSR5#..08S..CBU NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 72620-28050 |
ACR5#,GSR5#..08S..CBU |
2 | ||
| 72620-28050 |
ACR5#,GSR5#..08S..(AERAS,G)..CBU NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 72620R - CABLE ASSY, REAR NO.1 SEAT LOCK(FOR RH SEAT) | ||||
| 72620-28050 |
ACR5#..08S..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,NO.1:ｲﾗｽﾄQ照 |
1 | ||
| 72620-28060 |
ACR5#,GSR5#..08S..CBU NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 72620-28050 |
ACR5#,GSR5#..08S..CBU |
2 | ||
| 72620-28050 |
ACR5#,GSR5#..08S..(AERAS,G)..CBU NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 72690H - LEVER ASSY, NO.1 SEAT CUSHION LOCK RELEASE, RH | ||||
| 72690-28050E0 |
ACR5#,GSR5#..08S..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 72690-28050E0 |
ACR5#,GSR5#..08S..CBU GREGE,TRIM4# |
1 | ||
| 72830V - ARMREST ASSY, REAR NO.1 SEAT, RH | ||||
| 72810-28290E1 |
ACR5#,GSR5#..08S..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 72810-28290E1 |
ACR5#..08S..X..CBU GREGE,TRIM4# |
1 | ||
| 72880-28E00E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 72810-28290E1 |
ACR5#..08S..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 72890-28E00E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 72880-28D40E0 |
ACR5#,GSR5#..G..CBU ｼｰﾄ表皮−本革,GREGE,TRIM4#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 72880-28E01E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4#,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 72810-28291E1 |
ACR5#..08S..X..CBU GREGE,TRIM4# |
1 | ||
| 72890-28D40E0 |
ACR5#,GSR5#..G..CBU ｼｰﾄ表皮−本革,GREGE,TRIM4#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 72890-28E01E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4#,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 72830X - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-28B20E2 |
ACR5#..08S..X..CBU GREGE,TRIM4# |
1 | ||
| 72830-28B40E2 |
ACR5#,GSR5#..08S..G..CBU GREGE,TRIM4# |
1 | ||
| 72830-28A90E0 |
ACR5#..08S..X..CBU GREGE,TRIM4# |
1 | ||
| 72927F - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-28060E0 |
GSR5#..08S..CBU;ACR5#..08S..(G,X)..CBU GREGE,TRIM4# |
1 | ||
| 72927-28060E0 |
ACR5#,GSR5#..08S..CBU GREGE,TRIM4# |
1 | ||
| 72927-28070E0 |
GSR5#..08S..CBU;ACR5#..08S..(G,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 72927-28070E0 |
ACR5#,GSR5#..08S..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 79011B - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-28D80E1 |
ACR5#,GSR5#..08S..G..CBU GREGE,TRIM4# |
1 | ||
| 79011-28D90E1 |
ACR5#,GSR5#..08S..G..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 79011-28D50E1 |
ACR5#..08S..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 79011-28D40E1 |
ACR5#..08S..X..CBU GREGE,TRIM4# |
1 | ||
| 79011-28D00E0 |
ACR5#..08S..X..CBU GREGE,TRIM4# |
1 | ||
| 71075-28880E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 71075-28890E0 |
ACR5#,GSR5#..G..CBU ｼｰﾄ表皮−本革,GREGE,TRIM4# |
1 | ||
| 79011-28D10E0 |
ACR5#..08S..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 79011-28D11E0 |
ACR5#..08S..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 79011-28D01E0 |
ACR5#..08S..X..CBU GREGE,TRIM4# |
1 | ||
| 71075-28881E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 79013D - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-28E60E1 |
ACR5#,GSR5#..08S..G..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 79013-28E20E1 |
ACR5#..08S..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 79013-28E50E1 |
ACR5#,GSR5#..08S..G..CBU GREGE,TRIM4# |
1 | ||
| 79013-28E10E1 |
ACR5#..08S..X..CBU GREGE,TRIM4# |
1 | ||
| 71077-28A10E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 79013-28D70E0 |
ACR5#..08S..X..CBU GREGE,TRIM4# |
1 | ||
| 71077-28A30E0 |
ACR5#,GSR5#..G..CBU ｼｰﾄ表皮−本革,GREGE,TRIM4# |
1 | ||
| 71077-28A11E1 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 79013-28D80E0 |
ACR5#..08S..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 79013-28D71E0 |
ACR5#..08S..X..CBU GREGE,TRIM4# |
1 | ||
| 79013-28D81E0 |
ACR5#..08S..X..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ,GREGE,TRIM4# |
1 | ||
| 79103B - FRAME SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79103-28350 |
ACR5#,GSR5#..08S..G..CBU |
1 | ||
| 79103-28360 |
ACR5#,GSR5#..08S..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 79103-28340 |
ACR5#,GSR5#..08S..(AERAS,X)..CBU |
1 | ||
| 79103-28360 |
ACR5#,GSR5#..08S..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 79103-28340 |
ACR5#,GSR5#..08S..CBU |
1 | ||
| 79105G - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-28290 |
ACR5#,GSR5#..08S..CBU |
1 | ||
| 79105-28290 |
ACR5#,GSR5#..08S..CBU |
1 | ||
| 79105-28300 |
ACR5#,GSR5#..08S..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 79105-28300 |
ACR5#,GSR5#..08S..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 79135C - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79135-28410 |
ACR5#,GSR5#..08S..(AERAS,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 79135-28400 |
ACR5#,GSR5#..08S..(AERAS,X)..CBU |
1 | ||
| 79135-28370 |
ACR5#,GSR5#..08S..G..CBU |
1 | ||
| 79135-28380 |
ACR5#,GSR5#..08S..G..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 79135-28400 |
ACR5#,GSR5#..08S..CBU |
1 | ||
| 79135-28410 |
ACR5#,GSR5#..08S..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 71611-28210 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 79175F - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-28360 |
ACR5#,GSR5#..08S..G..CBU |
1 | ||
| 79175-28380 |
ACR5#,GSR5#..08S..(AERAS,X)..CBU |
1 | ||
| 79175-28370 |
ACR5#,GSR5#..08S..G..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 79175-28480 |
ACR5#,GSR5#..08S..CBU SRSｴｱﾊﾞｯｸﾞ−運転席&助手席&ｶｰﾃﾝ&ｻｲﾄﾞ |
1 | ||
| 79175-28390 |
ACR5#,GSR5#..08S..(AERAS,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 71651-28210 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 79175-28470 |
ACR5#,GSR5#..08S..CBU |
1 | ||
| Common parts | ||||
| 72702-28080 | ||||
| 72702-52070 | ||||
| 72702-52090 | ||||
| 78899-28040 | ||||
| 90105-10306 | ||||
| 90109-06195 | ||||
| 90167-40044 | ||||
| 90176-08044 | ||||
| 90201-15015 | ||||
| 90386-08005 | ||||
| 90386-08155 | ||||
| 90386-12038 | ||||
| 90463-13003 | ||||
| 91551-80612 | ||||
| 91551-80818 | ||||
| 93560-54014 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7152 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
