ACR50W-GFXZK (2016)
Toyota Estima

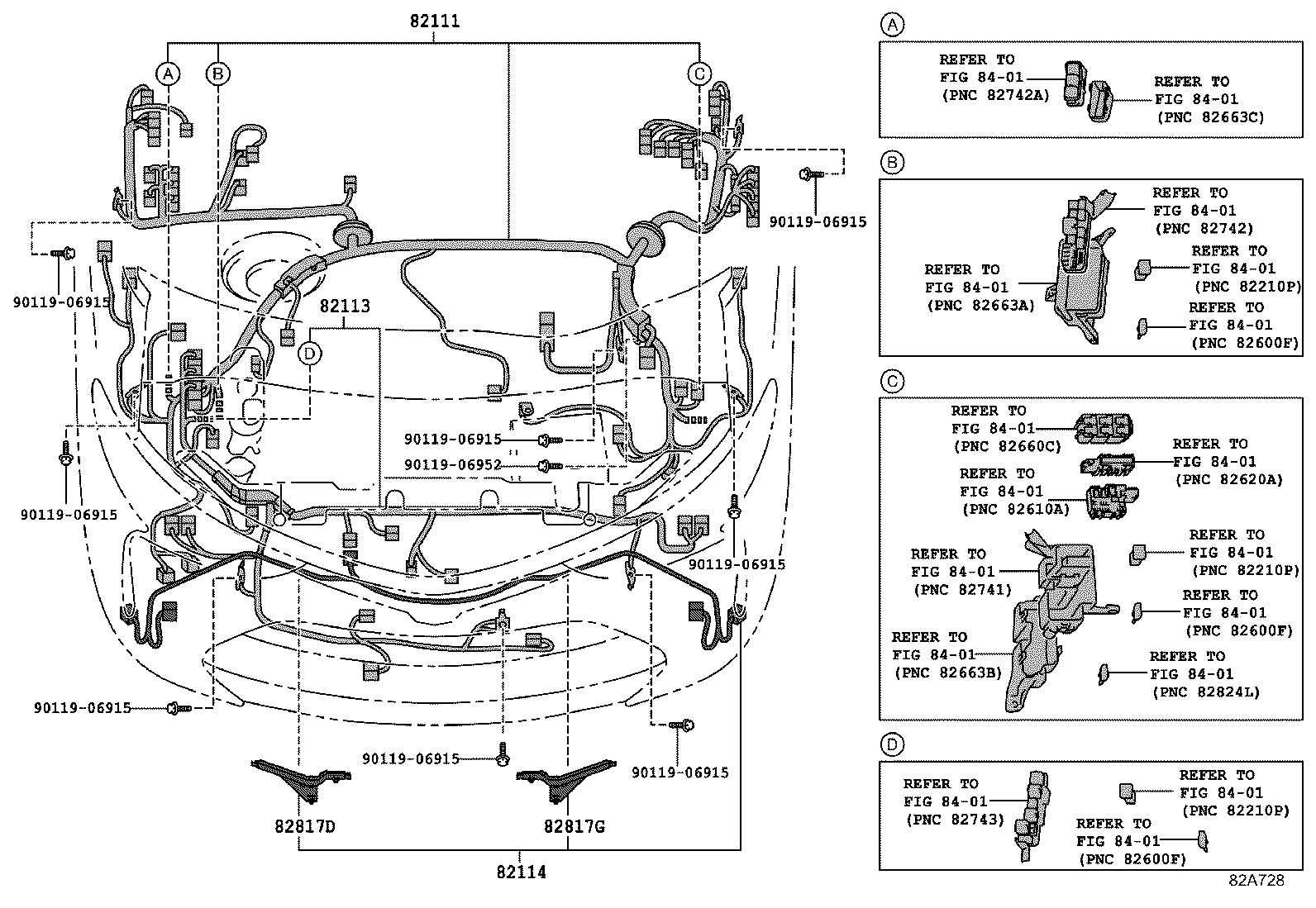

ILLUST NO. 1 OF11(1605- )
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-28E20 |
ACR5#..G |
1 | ||
| 82111-28E10 |
ACR50..X..CBU;ACR55..(AERAS,X)..CBU |
1 | ||
| 82111-28E30 |
ACR5#..(AERAS,X)..CBU 寒冷地仕様 |
1 | ||
| 82111-28E40 |
ACR5#..G 寒冷地仕様 |
1 | ||
| 82111-28N14 |
ACR50..CBU 盗難防止ｼｽﾃﾑ−有り(ｲﾓﾋﾞﾗｲｻﾞ & ｱﾗｰﾑ) |
1 | ||
| 82111-28N24 |
ACR5#..CBU 寒冷地仕様 |
1 | ||
| 82111-28T10 |
ACR50..CBU |
1 | ||
| 82111-28N24 |
ACR50..CBU 寒冷地仕様&盗難防止ｼｽﾃﾑ−有り(ｲﾓﾋﾞﾗｲｻﾞ & ｱﾗｰﾑ) |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-28090 |
ACR5#..G |
1 | ||
| 82113-28100 |
ACR5#..X..CBU |
1 | ||
| 82113-28510 |
ACR5#..CBU |
1 | ||
| 82113-28520 |
ACR5#..CBU 盗難防止ｼｽﾃﾑ−有り(ｲﾓﾋﾞﾗｲｻﾞ & ｱﾗｰﾑ)&ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82113-28520 |
ACR5#..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82113-28520 |
ACR5#..CBU 盗難防止ｼｽﾃﾑ−有り(ｲﾓﾋﾞﾗｲｻﾞ & ｱﾗｰﾑ) |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-28140 |
ACR5#,GSR5#..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ) |
1 | ||
| 82114-28130 |
ACR5#,GSR5#..(G,X)..CBU |
1 | ||
| 82114-28140 |
ACR5#,GSR5#..G..CBU ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ) |
1 | ||
| 82114-28260 |
ACR5#..CBU |
1 | ||
| 82114-28270 |
ACR5#..CBU ｸﾘｱﾗﾝｽ & ﾊﾞｯｸｿﾅｰ−有り |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-28U80 |
ACR5#..CBU |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-28U90 |
ACR5#..CBU |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06952 | ||||
| Linked diagrams | ||||
| 8401 | ||||

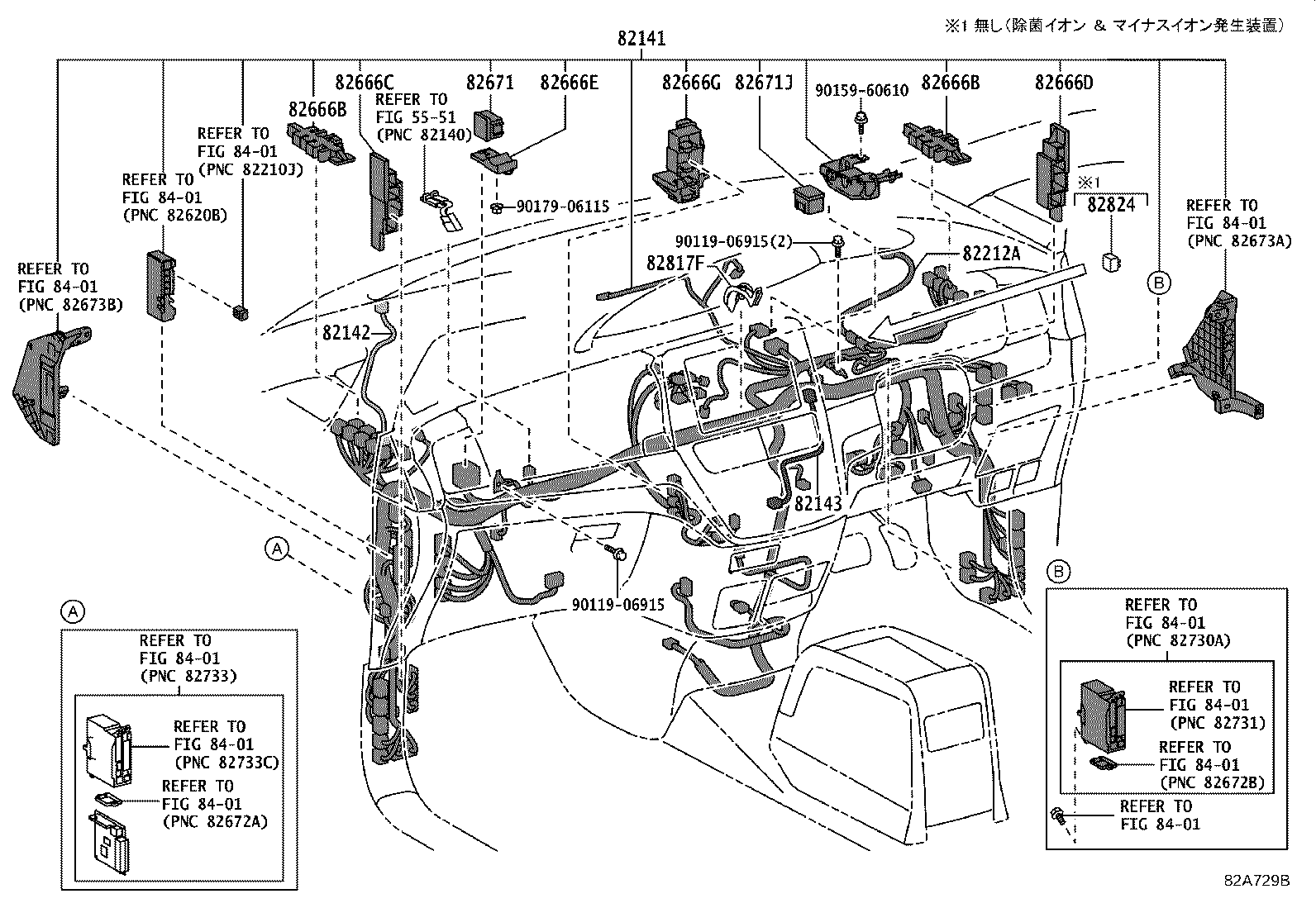

ILLUST NO. 3 OF11(1605- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-28G10 |
ACR5#..X..CBU;GSR5#..AERAS..CBU;ACR5#..08S..AERAS..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82141-28G40 |
ACR5#,GSR5#..G..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 82141-28G30 |
ACR5#,GSR5#..G..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 82141-28G20 |
ACR5#..X..CBU;GSR5#..AERAS..CBU;ACR5#..08S..AERAS..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82141-28G40 |
ACR5#,GSR5#..G..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82141-28G30 |
ACR5#,GSR5#..G..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82141-28F20 |
ACR5#,GSR5#..(AERAS,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82141-28F30 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 82141-28F10 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 82141-28F40 |
ACR5#,GSR5#..G..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82141-28G30 |
ACR5#,GSR5#..G..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ;ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝC11ｽﾋﾟｰｶ |
1 | ||
| 82141-28F25 |
ACR5#..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ & 膝 |
1 | ||
| 82141-28F15 |
ACR5#..CBU |
1 | ||
| 82141-28F30 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 82141-28G40 |
ACR5#,GSR5#..G..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ;SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ普@ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,11ｽﾋﾟｰｶ |
1 | ||
| 82141-28F20 |
ACR5#,GSR5#..(AERAS,X)..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82141-28G20 |
ACR5#..X..CBU;GSR5#..AERAS..CBU;ACR5#..08S..AERAS..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ&ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82141-28G10 |
ACR5#..X..CBU;GSR5#..AERAS..CBU;ACR5#..08S..AERAS..CBU ｵｰﾃﾞｨｵ−HDD ﾅﾋﾞｹﾞｰｼｮﾝ,6ｽﾋﾟｰｶ |
1 | ||
| 82141-28F10 |
ACR5#,GSR5#..(AERAS,X)..CBU |
1 | ||
| 82141-28F40 |
ACR5#,GSR5#..G..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ |
1 | ||
| 82141-28F15 |
ACR5#..CBU |
1 | ||
| 82141-28F25 |
ACR5#..CBU SRSｴｱﾊﾞｯｸﾞ−運転席 & 助手席 & ｶｰﾃﾝ & ｻｲﾄﾞ & 膝 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-28040 |
ACR5#,GSR5#..CBU |
1 | ||
| 82142-28042 |
ACR5#..CBU |
1 | ||
| 82143 - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-28030 |
ACR5#..CBU |
1 | ||
| 82212A - HARNESS, AIR CONDITIONER | ||||
| 82212-28100 |
ACR5#..AEPG,AESM |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-28390 |
ACR5#,GSR5#..CBU |
2 | ||
| 82666-28390 |
ACR5#..CBU |
2 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-28390 |
ACR5#,GSR5#..CBU |
2 | ||
| 82666-28390 |
ACR5#..CBU |
2 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-28400 |
ACR5#..CBU |
1 | ||
| 82666-28400 |
ACR5#,GSR5#..CBU |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-28410 |
ACR5#..CBU |
1 | ||
| 82666-28410 |
ACR5#,GSR5#..CBU |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-28420 |
ACR5#..CBU |
1 | ||
| 82666-28420 |
ACR5#,GSR5#..CBU |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-28440 |
ACR5#,GSR5#..CBU |
1 | ||
| 82666-28B30 |
ACR5#..CBU |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-28050 |
ACR5#..CBU |
1 | ||
| 82671-28050 |
ACR5#,GSR5#..CBU |
1 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-28060 |
ACR5#..CBU |
1 | ||
| 82671-28060 |
ACR5#,GSR5#..CBU |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-28V10 |
ACR5#..CBU |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-60610 | ||||
| 90179-06115 | ||||
| Linked diagrams | ||||
| 5551 | ||||
| 8401 | ||||
