ACR50W-GFXQK (2006)

Toyota Estima

Production Jan 2006 - Dec 2008
Engine 2AZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(0601-0812)G,X

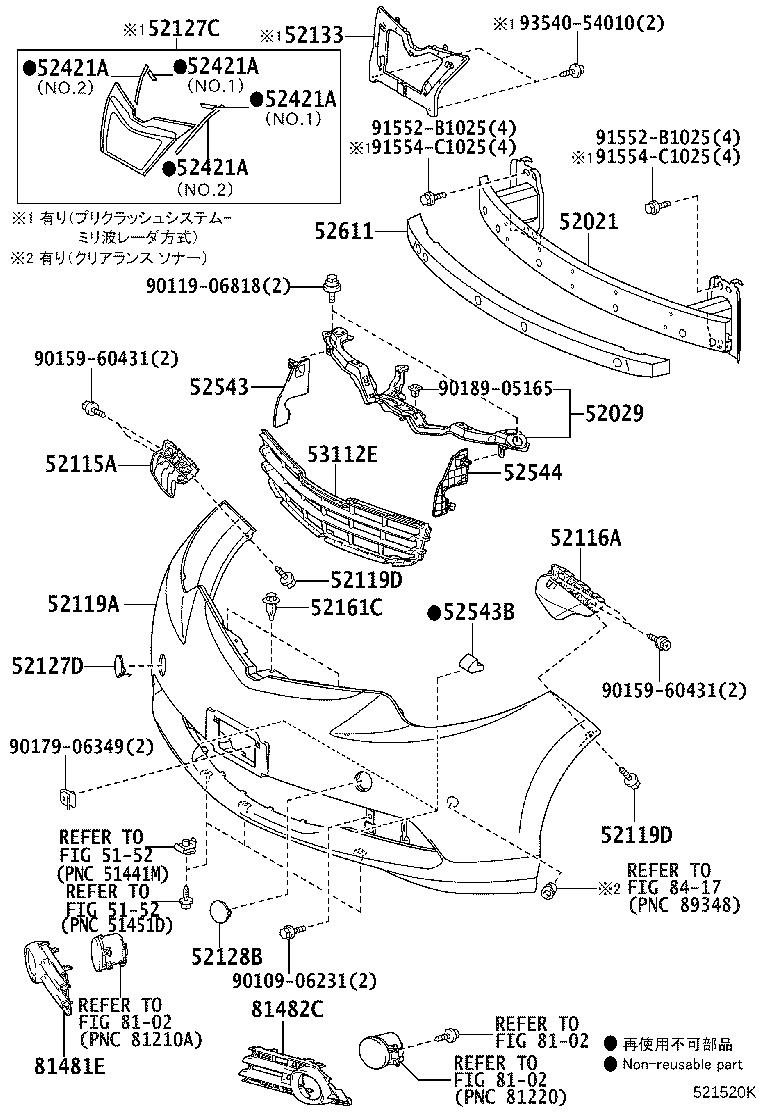

Click highlighted areas on diagram

diagram 5152 5152 52021 52029 52115A 52116A 52119A 52119D 52119D 52127C 52127D 52128B 52133 52161C 52421A 52421A 52421A 52421A 52543 52543B 52544 52611 53112E 8102 8102 8102 81481E 81482C 8417 9010906231 9011906818 9015960431 9015960431 9017906349 9018905165 91552B1025 91552B1025 91554C1025 91554C1025 9354054010
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-28220

ACR5#,GSR5#..CBU

 1
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-28040

ACR5#,GSR5#..CBU

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-28120

ACR5#,GSR5#..CBU

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-28060

ACR5#,GSR5#..CBU

 1
52119A - COVER, FRONT BUMPER
52119-28B60J0

ACR5#,GSR5#..(G,X)..CBU

DK.BLUE MC.,8S6

 1
52119-28B60B0

ACR5#,GSR5#..(G,X)..CBU

SILVER ME.,1F7

 1
52119-28B60A1

ACR5#,GSR5#..(G,X)..CBU

WHITE PEARL CS.,070

 1
52119-28B70D0

ACR5#,GSR5#..G..CBU

ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),DK. RED M.M.,3Q3

 1
52119-28B60F0

ACR5#,GSR5#..(G,X)..CBU

SILKY GOLD M.M.,5A4

 1
52119-28B70J0

ACR5#,GSR5#..G..CBU

ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),DK.BLUE MC.,8S6

 1
52119-28B60D0

ACR5#,GSR5#..(G,X)..CBU

DK. RED M.M.,3Q3

 1
52119-28B70A1

ACR5#,GSR5#..G..CBU

ｸﾘｱﾗﾝｽｿﾅｰ−有り(ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ),WHITE PEARL CS.,070

 1
52119-28B70B0

ACR5#,GSR5#..G..CBU

ｸﾘｱﾗﾝｽｿﾅｰ−有り(ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ),SILVER ME.,1F7

 1
52119-28B70A1

ACR5#,GSR5#..G..CBU

ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),WHITE PEARL CS.,070

 1
52119-28B70D0

ACR5#,GSR5#..G..CBU

ｸﾘｱﾗﾝｽｿﾅｰ−有り(ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ),DK. RED M.M.,3Q3

 1
52119-28B60J1

ACR5#,GSR5#..(G,X)..CBU

LT.BLUE M.M.,8S7

 1
52119-28B70J1

ACR5#,GSR5#..G..CBU

ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),LT.BLUE M.M.,8S7

 1
52119-28B70B0

ACR5#,GSR5#..G..CBU

ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),SILVER ME.,1F7

 1
52119-28B70J0

ACR5#,GSR5#..G..CBU

ｸﾘｱﾗﾝｽｿﾅｰ−有り(ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ),DK.BLUE MC.,8S6

 1
52119-28B70F0

ACR5#,GSR5#..G..CBU

ｸﾘｱﾗﾝｽｿﾅｰ−有り(音声案内ﾀｲﾌﾟ),SILKY GOLD M.M.,5A4

 1
52119-28B70J1

ACR5#,GSR5#..G..CBU

ｸﾘｱﾗﾝｽｿﾅｰ−有り(ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ),LT.BLUE M.M.,8S7

 1
52119-28B70F0

ACR5#,GSR5#..G..CBU

ｸﾘｱﾗﾝｽｿﾅｰ−有り(ｸﾘｱﾗﾝｽ&ﾊﾞｯｸｿﾅｰ),SILKY GOLD M.M.,5A4

 1
52119D - SCREW, NO.1
90159-60217

ACR5#,GSR5#..CBU

 2
52119D - SCREW, NO.1
90159-60217

ACR5#,GSR5#..CBU

 2
52127D - COVER, FRONT BUMPER HOLE, RH
52127-28180A1

ACR5#,GSR5#..(G,X)..CBU

WHITE PEARL CS.,070

 1
52127-28180F0

ACR5#,GSR5#..(G,X)..CBU

SILKY GOLD M.M.,5A4

 1
52127-28180D0

ACR5#,GSR5#..(G,X)..CBU

DK. RED M.M.,3Q3

 1
52127-28180J1

ACR5#,GSR5#..(G,X)..CBU

LT.BLUE M.M.,8S7

 1
52127-28180J0

ACR5#,GSR5#..(G,X)..CBU

DK.BLUE MC.,8S6

 1
52127-28180B0

ACR5#,GSR5#..(G,X)..CBU

SILVER ME.,1F7

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52127-28180A1

ACR5#,GSR5#..(G,X)..CBU

WHITE PEARL CS.,070

 1
52127-28180B0

ACR5#,GSR5#..(G,X)..CBU

SILVER ME.,1F7

 1
52127-28180J0

ACR5#,GSR5#..(G,X)..CBU

DK.BLUE MC.,8S6

 1
52127-28180D0

ACR5#,GSR5#..(G,X)..CBU

DK. RED M.M.,3Q3

 1
52127-28180J1

ACR5#,GSR5#..(G,X)..CBU

LT.BLUE M.M.,8S7

 1
52127-28180F0

ACR5#,GSR5#..(G,X)..CBU

SILKY GOLD M.M.,5A4

 1
52161C - PIECE, FRONT BUMPER
52161-16010

ACR5#,GSR5#..CBU

 3
52543 - SEAL, FRONT BUMPER SIDE, RH
52545-28040

ACR5#,GSR5#..CBU

 1
52543B - SEAL, FRONT BUMPER
52543-28090

ACR5#,GSR5#..(G,X)..CBU

 2
52544 - SEAL, FRONT BUMPER SIDE, LH
52546-28030

ACR5#,GSR5#..CBU

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-28080

ACR5#,GSR5#..CBU

 1
53112E - GRILLE, RADIATOR, LOWER NO.1
53112-28010

ACR5#,GSR5#..(G,X)..CBU

塗装不要

 1
81481E - COVER, FOG LAMP, RH
81481-28160

ACR5#,GSR5#..(G,X)..CBU

 1
81482C - COVER, FOG LAMP, LH
81482-28100

ACR5#,GSR5#..(G,X)..CBU

 1
Common parts
90109-06231
90119-06818
90159-60431
90179-06349
90189-05165
91552-B1025
91554-C1025
93540-54010
