ACR50W-GFXQK (2008)

Toyota Estima

Production Dec 2008 - Apr 2012
Engine 2AZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

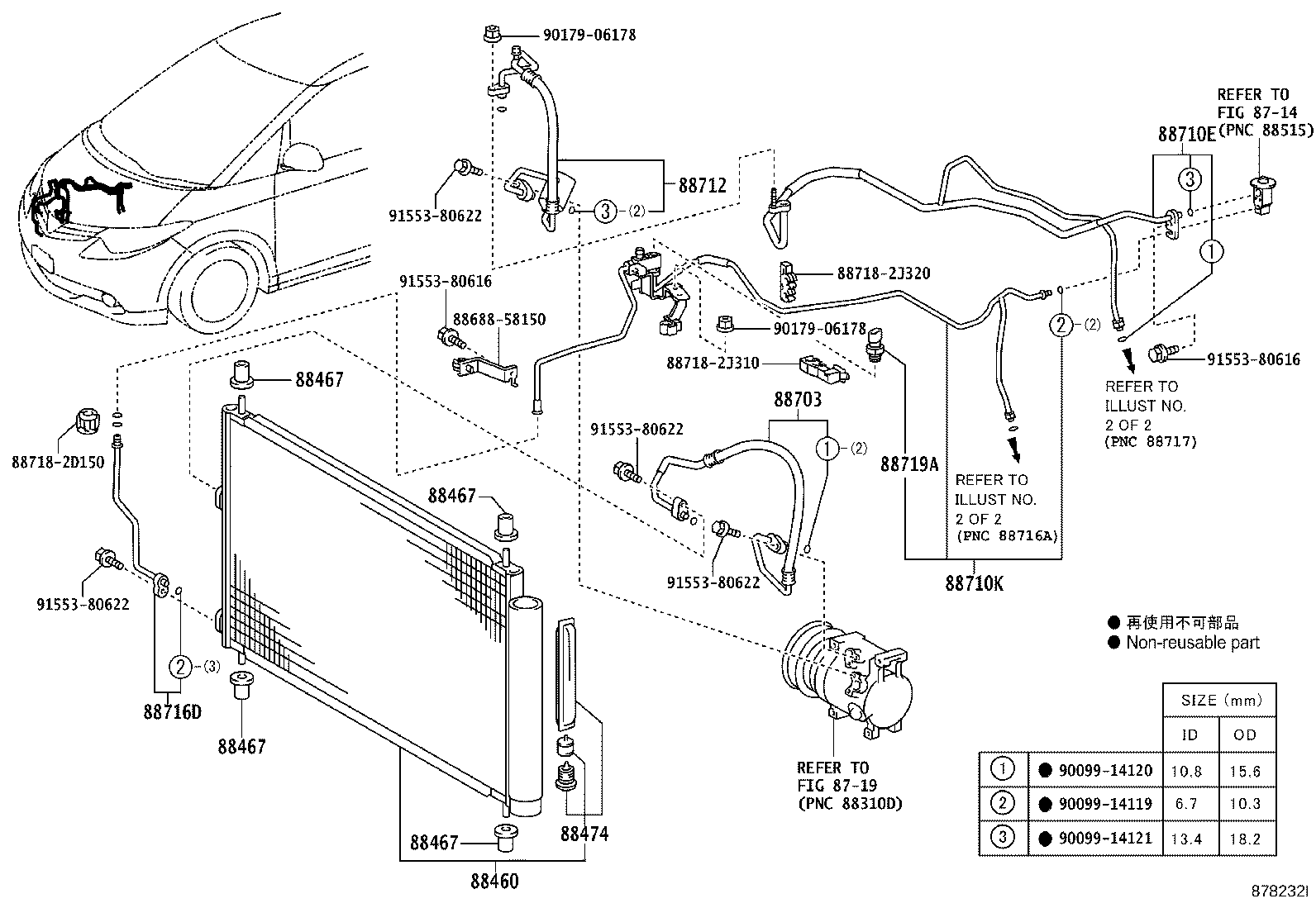

ILLUST NO. 1 OF 2(0601- )ACR5#

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 8714 8719 88460 88467 88467 88467 88467 88474 8868858150 88703 88710E 88710K 88712 88716D 887182D150 887182J310 887182J320 88719A 9009914119 9009914120 9009914121 9017906178 9017906178 9155380616 9155380616 9155380622 9155380622 9155380622 9155380622
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-42100

ACR5#,GSR5#..CBU

 1
88460-42100

ACR5#,GSR5#..CBU

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

ACR5#,GSR5#..CBU

 4
16716-28010

ACR5#,GSR5#..CBU

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

ACR5#,GSR5#..CBU

 4
16716-28010

ACR5#,GSR5#..CBU

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

ACR5#,GSR5#..CBU

 4
16716-28010

ACR5#,GSR5#..CBU

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

ACR5#,GSR5#..CBU

 4
16716-28010

ACR5#,GSR5#..CBU

 4
88474 - DRYER, COOLER
88474-12030

ACR5#,GSR5#..CBU

 1
88474-12030

ACR5#,GSR5#..CBU

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88711-2J340

ACR5#..CBU

 1
88711-2J270

ACR5#..CBU

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-2X180

ACR5#,GSR5#..CBU

 1
88710-2X180

ACR5#,GSR5#..CBU

 1
88710K - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.3
88710-2X240

ACR5#,GSR5#..CBU

 1
88710-2X240

ACR5#,GSR5#..CBU

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-28880

ACR5#..CBU

 1
88712-28880

ACR5#..CBU

 1
88716D - PIPE, COOLER REFRIGERANT LIQUID, D
88716-2X680

ACR5#,GSR5#..CBU

 1
88716-2X510

ACR5#,GSR5#..CBU

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-40020

ACR5#,GSR5#..CBU

 1
88719-33020

ACR5#,GSR5#..CBU

 1
Common parts
88688-58150
88718-2D150
88718-2J310
88718-2J320
90099-14119
90099-14120
90099-14121
90179-06178
91553-80616
91553-80622
Linked diagrams
8714
8719

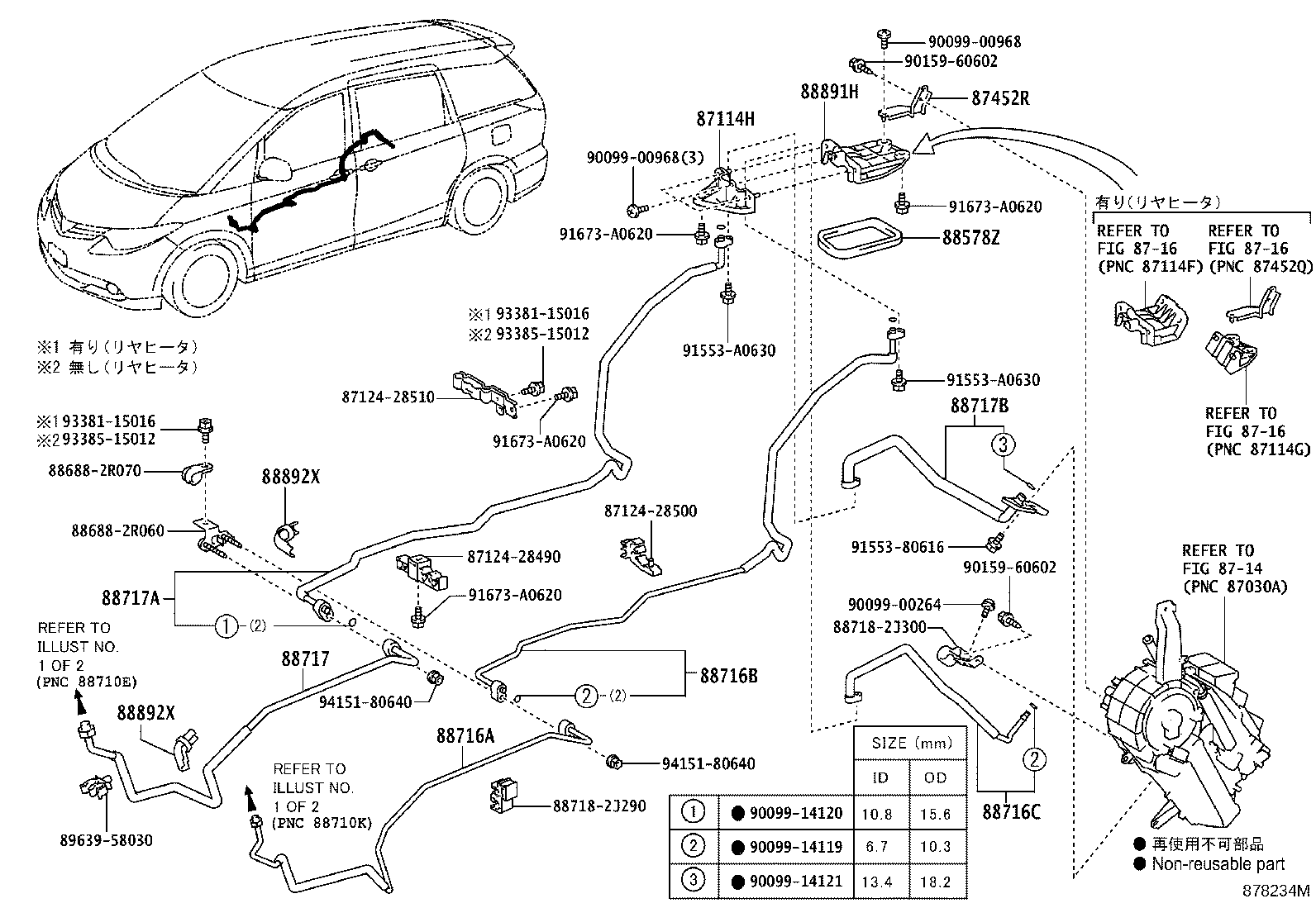

ILLUST NO. 2 OF 2(0601- )

Click highlighted areas on diagram

ﾘﾔ

diagram 87114H 8712428490 8712428500 8712428510 8714 8716 8716 8716 87452R 88578Z 886882R060 886882R070 88716A 88716B 88716C 88717 88717A 88717B 887182J290 887182J300 88891H 88892X 88892X 8963958030 9009900264 9009900968 9009900968 9009914119 9009914120 9009914121 9015960602 9015960602 9155380616 91553A0630 91553A0630 91673A0620 91673A0620 91673A0620 91673A0620 9338115016 9338115016 9338515012 9338515012 9415180640 9415180640
Part # Description Qty Price
87114H - COVER, HEATER
87114-28090

ACR5#,GSR5#..CBU

 1
87114-28090

ACR5#,GSR5#..CBU

 1
87452R - BRACKET, HEATER, NO.1
87452-28150

ACR5#,GSR5#..(AERAS,X)..CBU

 1
87452-28150

ACR5#,GSR5#..(AERAS,X)..CBU

 1
88578Z - PACKING, COOLER, NO.1
88578-2X030

ACR5#,GSR5#..CBU

 1
88578-2X030

ACR5#,GSR5#..CBU

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-2X480

ACR5#,GSR5#..CBU

 1
88716-2X480

ACR5#,GSR5#..CBU

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-2X490

ACR5#,GSR5#..CBU

 1
88716-2X490

ACR5#,GSR5#..CBU

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-2X500

ACR5#,GSR5#..CBU

 1
88716-2X500

ACR5#,GSR5#..CBU

 1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88717-2R500

ACR5#,GSR5#..CBU

 1
88717-2R500

ACR5#,GSR5#..CBU

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-2R510

ACR5#,GSR5#..CBU

 1
88717-2R510

ACR5#,GSR5#..CBU

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-2R520

ACR5#,GSR5#..CBU

 1
88717-2R520

ACR5#,GSR5#..CBU

 1
88891H - COVER, COOLER, NO.1
88891-28150

ACR5#,GSR5#..(AERAS,X)..CBU

 1
88891-28150

ACR5#,GSR5#..(AERAS,X)..CBU

 1
88892X - COVER, COOLER, NO.2
88892-28030

ACR5#,GSR5#..CBU

 2
88892-28030

ACR5#,GSR5#..CBU

 2
88892X - COVER, COOLER, NO.2
88892-28030

ACR5#,GSR5#..CBU

 2
88892-28030

ACR5#,GSR5#..CBU

 2
Common parts
87124-28490
87124-28500
87124-28510
88688-2R060
88688-2R070
88718-2J290
88718-2J300
89639-58030
90099-00264
90099-00968
90099-14119
90099-14120
90099-14121
90159-60602
91553-80616
91553-A0630
91673-A0620
93381-15016
93385-15012
94151-80640
Linked diagrams
8714
8716
