ACR50W-GFXQK (2008)
Toyota Estima
(0601- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58629B - MAT, CENTER CONSOLE | ||||
| 58629-28010E0 |
ACR5#,GSR5#..07S..G..CBU ｺﾝｿｰﾙ ﾎﾞｯｸｽ−有り,GREGE,TRIM4# |
1 | ||
| 58629-28010 |
ACR5#,GSR5#..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 58629-28010 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-28360E0 |
ACR5#,GSR5#..07S..G..CBU ｺﾝｿｰﾙ ﾎﾞｯｸｽ−有り,GREGE,TRIM4# |
1 | ||
| 58810-28400E0 |
ACR5#,GSR5#..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 58810-28400E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 58820A - BOX ASSY, CONSOLE COMPARTMENT | ||||
| 58820-28030E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 58820-28030E0 |
ACR5#,GSR5#..07S..G..CBU ｺﾝｿｰﾙ ﾎﾞｯｸｽ−有り,GREGE,TRIM4# |
1 | ||
| 58820-28030E0 |
ACR5#,GSR5#..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 58822A - PANEL, CONSOLE, UPPER REAR | ||||
| 58822-28020E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 58822-28020E0 |
ACR5#,GSR5#..07S..G..CBU ｺﾝｿｰﾙ ﾎﾞｯｸｽ−有り,GREGE,TRIM4# |
1 | ||
| 58822-28020E0 |
ACR5#,GSR5#..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 58833A - COVER, CONSOLE, UPPER | ||||
| 58833-28040 |
ACR5#,GSR5#..07S..G..CBU ｺﾝｿｰﾙ ﾎﾞｯｸｽ−有り |
1 | ||
| 58833-28070 |
ACR5#,GSR5#..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| 58833-28070 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-28050E0 |
ACR5#,GSR5#..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 58839-28050E0 |
ACR5#,GSR5#..07S..G..CBU ｺﾝｿｰﾙ ﾎﾞｯｸｽ−有り,GREGE,TRIM4# |
1 | ||
| 58839-28050E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 58839B - COVER, CONSOLE BOX HOLE, NO.2 | ||||
| 58839-28060E0 |
ACR5#,GSR5#..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 58839-28060E0 |
ACR5#,GSR5#..07S..G..CBU ｺﾝｿｰﾙ ﾎﾞｯｸｽ−有り,GREGE,TRIM4# |
1 | ||
| 58839-28060E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-28030E0 |
ACR5#,GSR5#..07S..G..CBU ｺﾝｿｰﾙ ﾎﾞｯｸｽ−有り,GREGE,TRIM4# |
1 | ||
| 58903-28030E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 58903-28030E0 |
ACR5#,GSR5#..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 58911B - PANEL, BOX, NO.1 | ||||
| 58911-28120E0 |
ACR5#,GSR5#..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 58911-28120E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 58911-28120E0 |
ACR5#,GSR5#..07S..G..CBU ｺﾝｿｰﾙ ﾎﾞｯｸｽ−有り,GREGE,TRIM4# |
1 | ||
| 58912D - PANEL, BOX, NO.2 | ||||
| 58912-28010E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 58912-28010E0 |
ACR5#,GSR5#..07S..G..CBU ｺﾝｿｰﾙ ﾎﾞｯｸｽ−有り,GREGE,TRIM4# |
1 | ||
| 58912-28010E0 |
ACR5#,GSR5#..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｺﾝｿｰﾙ ﾎﾞｯｸｽ−有り |
2 | ||
| 58959-60060 |
ACR5#,GSR5#..G..CBU |
2 | ||
| 58959-60060 |
ACR5#,GSR5#..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
2 | ||
| 58967A - SPRING, CONSOLE DOOR STOPPER | ||||
| 58967-28020 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｺﾝｿｰﾙ ﾎﾞｯｸｽ−有り,NO.1 |
2 | ||
| 58967-28020 |
ACR5#,GSR5#..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),NO.1 |
2 | ||
| 58967-28020 |
ACR5#,GSR5#..G..CBU NO.1 |
2 | ||
| 58967-28030 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｺﾝｿｰﾙ ﾎﾞｯｸｽ−有り,NO.2 |
1 | ||
| 58967-28030 |
ACR5#,GSR5#..G..CBU NO.2 |
1 | ||
| 58967A - SPRING, CONSOLE DOOR STOPPER | ||||
| 58967-28020 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｺﾝｿｰﾙ ﾎﾞｯｸｽ−有り,NO.1 |
2 | ||
| 58967-28020 |
ACR5#,GSR5#..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),NO.1 |
2 | ||
| 58967-28020 |
ACR5#,GSR5#..G..CBU NO.1 |
2 | ||
| 58967-28030 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｺﾝｿｰﾙ ﾎﾞｯｸｽ−有り,NO.2 |
1 | ||
| 58967-28030 |
ACR5#,GSR5#..G..CBU NO.2 |
1 | ||
| 58967A - SPRING, CONSOLE DOOR STOPPER | ||||
| 58967-28020 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｺﾝｿｰﾙ ﾎﾞｯｸｽ−有り,NO.1 |
2 | ||
| 58967-28020 |
ACR5#,GSR5#..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),NO.1 |
2 | ||
| 58967-28020 |
ACR5#,GSR5#..G..CBU NO.1 |
2 | ||
| 58967-28030 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｺﾝｿｰﾙ ﾎﾞｯｸｽ−有り,NO.2 |
1 | ||
| 58967-28030 |
ACR5#,GSR5#..G..CBU NO.2 |
1 | ||
| 58971 - LOCK, CONSOLE COMPARTMENT DOOR | ||||
| 58992-28040E0 |
ACR5#,GSR5#..07S..G..CBU ｺﾝｿｰﾙ ﾎﾞｯｸｽ−有り,GREGE,TRIM4# |
1 | ||
| 58992-28040E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
1 | ||
| 58992-28040E0 |
ACR5#,GSR5#..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
1 | ||
| 58971D - LEVER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58971-28010E0 |
ACR5#,GSR5#..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
2 | ||
| 58971-28010E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
2 | ||
| 58971-28010E0 |
ACR5#,GSR5#..07S..G..CBU ｺﾝｿｰﾙ ﾎﾞｯｸｽ−有り,GREGE,TRIM4# |
2 | ||
| 58971D - LEVER, CONSOLE COMPARTMENT DOOR LOCK | ||||
| 58971-28010E0 |
ACR5#,GSR5#..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ),GREGE,TRIM4# |
2 | ||
| 58971-28010E0 |
ACR5#,GSR5#..G..CBU GREGE,TRIM4# |
2 | ||
| 58971-28010E0 |
ACR5#,GSR5#..07S..G..CBU ｺﾝｿｰﾙ ﾎﾞｯｸｽ−有り,GREGE,TRIM4# |
2 | ||
| 58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER | ||||
| 58991-28030 |
ACR5#,GSR5#..07S..(AERAS,G)..CBU ｺﾝｿｰﾙ ﾎﾞｯｸｽ−有り |
1 | ||
| 58991-28030 |
ACR5#,GSR5#..G..CBU |
1 | ||
| 58991-28030 |
ACR5#,GSR5#..G..CBU ｻｲﾄﾞﾘﾌﾄｱｯﾌﾟｼｰﾄ車(標準ﾀｲﾌﾟ) |
1 | ||
| Common parts | ||||
| 55574-10010 | ||||
| 58788-28020 | ||||
| 90167-30010 | ||||
| 91553-80616 | ||||
| 93560-14010 | ||||
| 93568-55012 | ||||

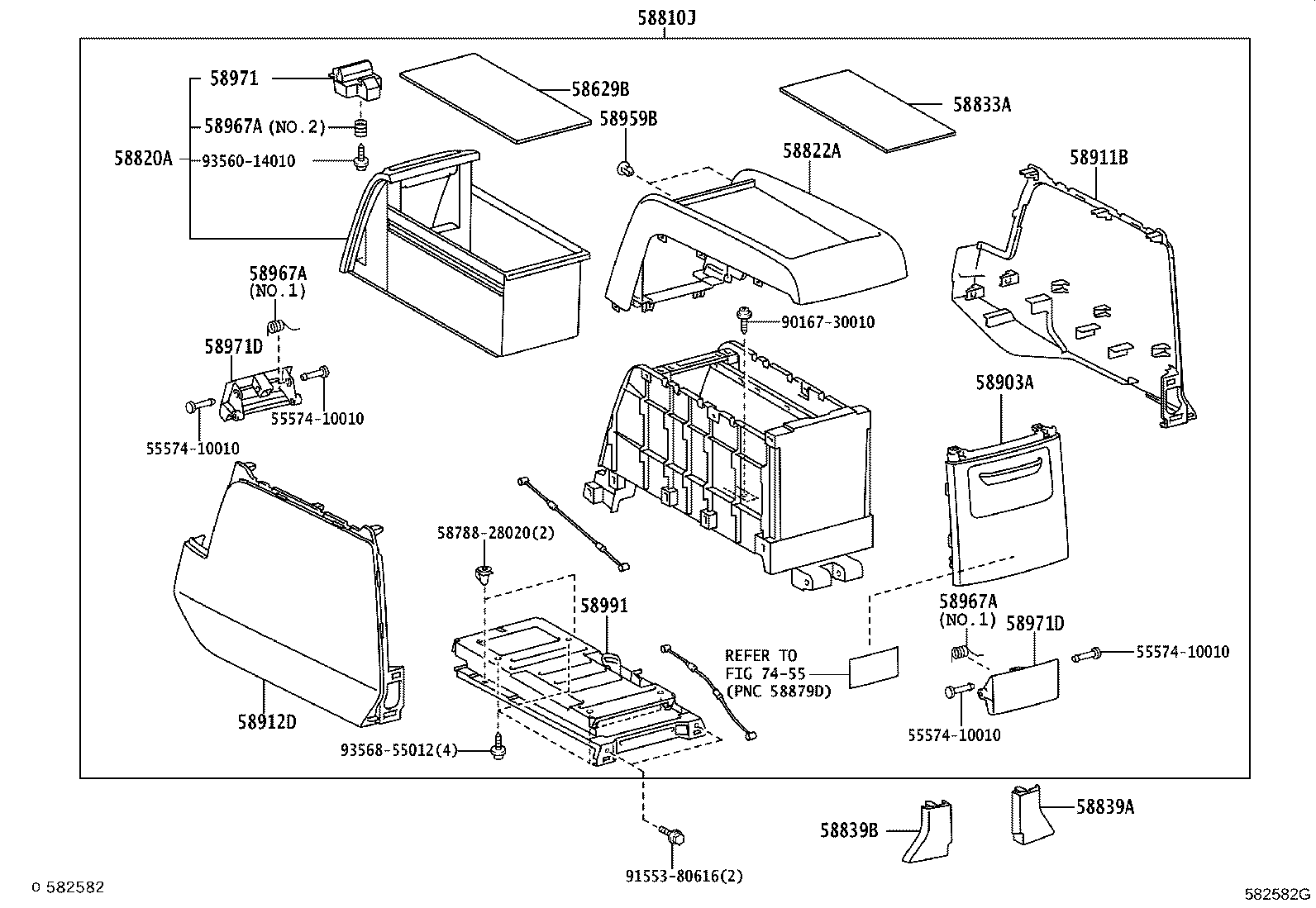

| Linked diagrams | ||||
| 7455 | ||||
