ACR50W-GFXPK (2016)

Toyota Estima

Production May 2016 - Oct 2019
Engine 2AZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

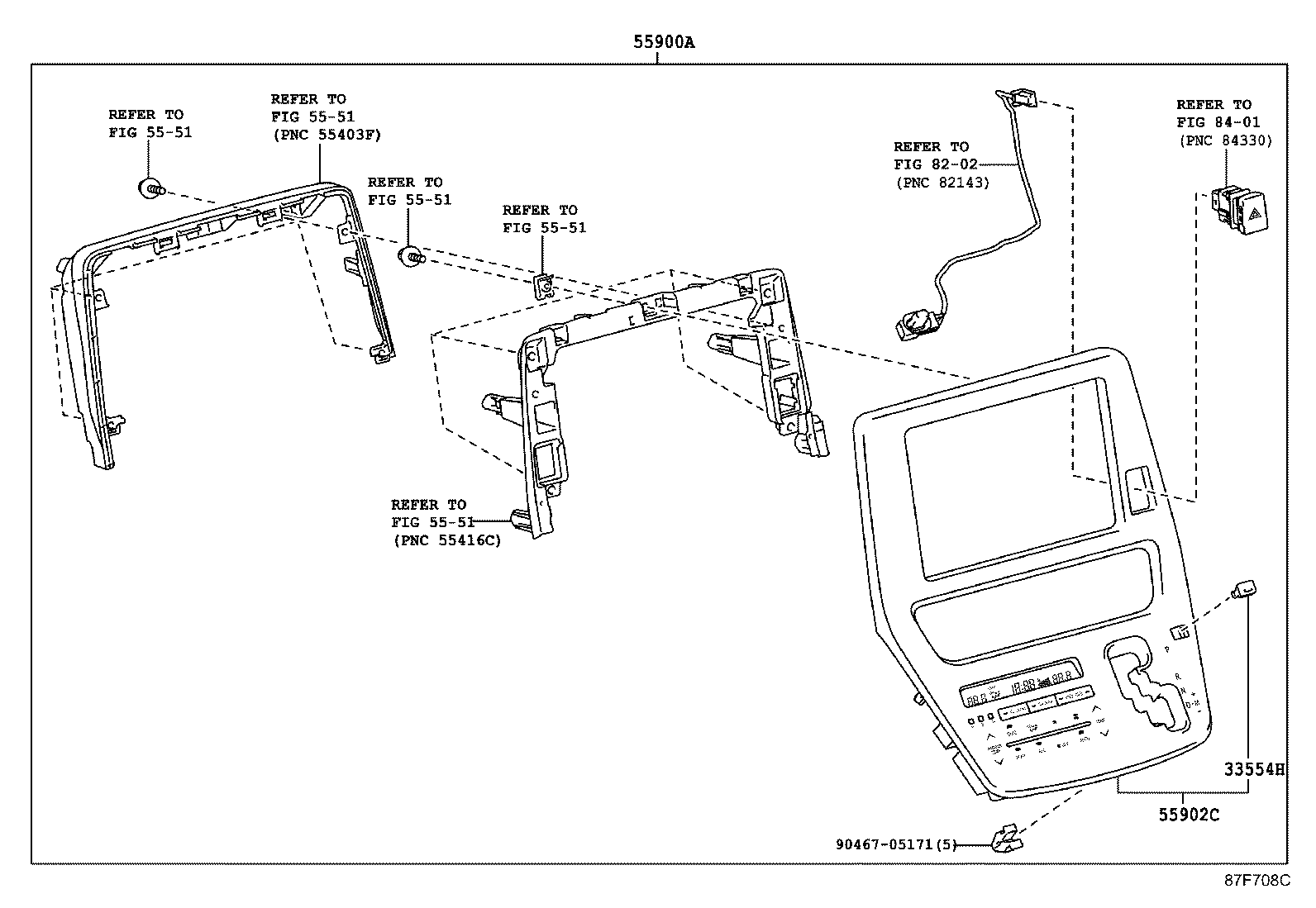

ILLUST NO. 1 OF 5(1605- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ ﾋｰﾀｺﾝﾄﾛｰﾙ

diagram 33554H 5551 5551 5551 5551 5551 55900A 55902C 8202 8401 9046705171
Part # Description Qty Price
33554H - COVER, SHIFT LOCK RELEASE BUTTON
33554-28090

ACR5#..CBU

 1
55900A - CONTROL & ACCESSORY ASSY, HEATER
55900-28B70

ACR5#..(AERAS,X)..CBU

 1
55900-28B80

ACR5#..(AERAS,X)..CBU

寒冷地仕様

 1
55900-28B90

ACR5#..G

 1
55900-28F50C0

ACR5#..(AEPR,AERAS)..CBU

BLACK,TRIM2#

 1
55900-28F60C0

ACR5#..(AEPR,AERAS)..CBU

ﾘﾔﾋｰﾀ−有り,BLACK,TRIM2#

 1
55902C - PANEL SUB-ASSY, AIR CONDITIONER
55902-28460

ACR5#,GSR5#..(AERAS,X)..CBU

 1
55902-28440

ACR5#,GSR5#..G..CBU

 1
55902-28570

ACR5#..(AEPR,AERAS)..CBU

 1
55902-28580

ACR5#..(AEPR,AERAS)..CBU

ﾘﾔﾋｰﾀ−有り

 1
Common parts
90467-05171
Linked diagrams
5551
8202
8401
