XKU655-TQVMY3 (2021)

Toyota Dyna Hv

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )

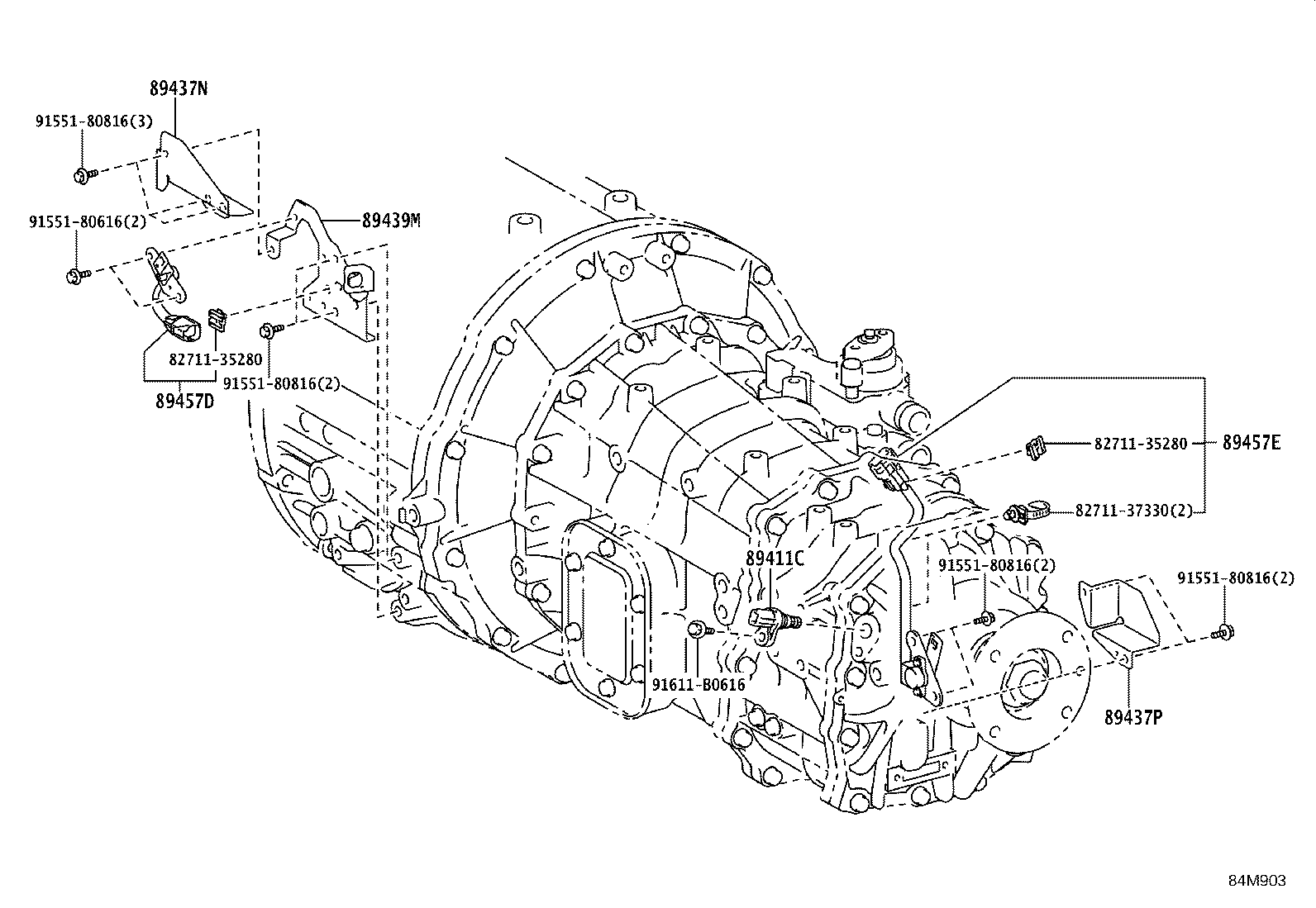

Click highlighted areas on diagram

RE62

diagram 8271135280 8271137330 89411C 89437N 89437P 89439M 89457D 89457E 9155180616 9155180816 9155180816 9155180816 9155180816 91611B0616
Part # Description Qty Price
89411C - SENSOR, SPEED
89411-37020

XKC605,XKU605,645,655

 1
89437N - COVER, SENSOR, NO.1
89437-37030

XKC605,XKU605,645,655

 1
89437P - COVER, SENSOR, NO.2
89437-37040

XKC605,XKU605,645,655

 1
89439M - BRACKET, SENSOR, NO.1
89439-37500

XKC605,XKU605,645,655

 1
89457D - SENSOR, TRANSMISSION STROKE, NO.1
89457-37020

XKC605,XKU605,645,655

 1
89457E - SENSOR, TRANSMISSION STROKE, NO.2
89457-37030

XKC605,XKU605,645,655

 1
Common parts
82711-35280
82711-37330
91551-80616
91551-80816
91611-B0616
