XKU655-TKVQY3 (2021)
Toyota Dyna Hv
(2103- )XKU655
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-37110 |
XKU655 |
3 | ||
| 37110B - GUARD, PROPELLER SHAFT | ||||
| 37231-37020 |
XKU655 |
1 | ||
| 37110C - BRACKET, PROPELLER SHAFT GUARD | ||||
| 51241-37360 |
XKU655 |
1 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XKC605,XKU605,645,655 |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90170-12005 |
XKC605,XKU605,645,655 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XKC605,XKU605,645,655 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 94512-01200 |
XKC605,XKU605,645,655 |
8 | ||
| 37110F - SHAFT ASSY, PROPELLER, REAR | ||||
| 37110-37J40 |
XKU655 |
1 | ||
| 37120 - SHAFT ASSY, PROPELLER INTERMEDIATE | ||||
| 37120-37A40 |
XKU655 |
1 | ||
| 37207 - CUSHION SUB-ASSY, CENTER SUPPORT BEARING, NO.1 | ||||
| 37235-37030 |
XKU655 |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37201-37020 |
XKU655 |
1 | ||
| 37236C - SPACER (FOR CENTER SUPPORT BEARING HOUSING) | ||||
| 90035-60057 |
XKU655 |
4 | ||
| 37237 - PLATE, CENTER SUPPORT BEARING, NO.1 | ||||
| 37237-37020 |
XKU655 厚さ=3.0 |
2 | ||
| 37237 - PLATE, CENTER SUPPORT BEARING, NO.1 | ||||
| 37237-37020 |
XKU655 厚さ=3.0 |
2 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-37040 |
XKU655 |
1 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-37070 |
XKU655 |
1 | ||
| 37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37070 |
XKC605,XKU605,645,655 |
1 | ||
| 37315D - YOKE, NO.2, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE | ||||
| 37315-37070 |
XKC605,XKU605,645,655 |
1 | ||
| 37341B - DEFLECTOR, PROPELLER SHAFT DUST, NO.5 | ||||
| 37341-37030 |
XKU655 |
2 | ||
| 37341B - DEFLECTOR, PROPELLER SHAFT DUST, NO.5 | ||||
| 37341-37030 |
XKU655 |
2 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XKC605,XKU605,645,655 厚さ=1.65 |
8 | ||
| 90035-21040 |
XKC605,XKU605,645,655 厚さ=1.62 |
8 | ||
| 90035-21041 |
XKC605,XKU605,645,655 厚さ=1.59 |
8 | ||
| 90035-21038 |
XKC605,XKU605,645,655 厚さ=1.68 |
8 | ||
| 90035-21043 |
XKC605,XKU605,645,655 厚さ=1.53 |
8 | ||
| 90035-21042 |
XKC605,XKU605,645,655 厚さ=1.56 |
8 | ||
| 90035-21044 |
XKC605,XKU605,645,655 厚さ=1.50 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XKC605,XKU605,645,655 厚さ=1.65 |
8 | ||
| 90035-21040 |
XKC605,XKU605,645,655 厚さ=1.62 |
8 | ||
| 90035-21041 |
XKC605,XKU605,645,655 厚さ=1.59 |
8 | ||
| 90035-21038 |
XKC605,XKU605,645,655 厚さ=1.68 |
8 | ||
| 90035-21043 |
XKC605,XKU605,645,655 厚さ=1.53 |
8 | ||
| 90035-21042 |
XKC605,XKU605,645,655 厚さ=1.56 |
8 | ||
| 90035-21044 |
XKC605,XKU605,645,655 厚さ=1.50 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XKC605,XKU605,645,655 厚さ=1.65 |
8 | ||
| 90035-21040 |
XKC605,XKU605,645,655 厚さ=1.62 |
8 | ||
| 90035-21041 |
XKC605,XKU605,645,655 厚さ=1.59 |
8 | ||
| 90035-21038 |
XKC605,XKU605,645,655 厚さ=1.68 |
8 | ||
| 90035-21043 |
XKC605,XKU605,645,655 厚さ=1.53 |
8 | ||
| 90035-21042 |
XKC605,XKU605,645,655 厚さ=1.56 |
8 | ||
| 90035-21044 |
XKC605,XKU605,645,655 厚さ=1.50 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XKC605,XKU605,645,655 厚さ=1.65 |
8 | ||
| 90035-21040 |
XKC605,XKU605,645,655 厚さ=1.62 |
8 | ||
| 90035-21041 |
XKC605,XKU605,645,655 厚さ=1.59 |
8 | ||
| 90035-21038 |
XKC605,XKU605,645,655 厚さ=1.68 |
8 | ||
| 90035-21043 |
XKC605,XKU605,645,655 厚さ=1.53 |
8 | ||
| 90035-21042 |
XKC605,XKU605,645,655 厚さ=1.56 |
8 | ||
| 90035-21044 |
XKC605,XKU605,645,655 厚さ=1.50 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XKC605,XKU605,645,655 厚さ=1.65 |
8 | ||
| 90035-21040 |
XKC605,XKU605,645,655 厚さ=1.62 |
8 | ||
| 90035-21041 |
XKC605,XKU605,645,655 厚さ=1.59 |
8 | ||
| 90035-21038 |
XKC605,XKU605,645,655 厚さ=1.68 |
8 | ||
| 90035-21043 |
XKC605,XKU605,645,655 厚さ=1.53 |
8 | ||
| 90035-21042 |
XKC605,XKU605,645,655 厚さ=1.56 |
8 | ||
| 90035-21044 |
XKC605,XKU605,645,655 厚さ=1.50 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XKC605,XKU605,645,655 厚さ=1.65 |
8 | ||
| 90035-21040 |
XKC605,XKU605,645,655 厚さ=1.62 |
8 | ||
| 90035-21041 |
XKC605,XKU605,645,655 厚さ=1.59 |
8 | ||
| 90035-21038 |
XKC605,XKU605,645,655 厚さ=1.68 |
8 | ||
| 90035-21043 |
XKC605,XKU605,645,655 厚さ=1.53 |
8 | ||
| 90035-21042 |
XKC605,XKU605,645,655 厚さ=1.56 |
8 | ||
| 90035-21044 |
XKC605,XKU605,645,655 厚さ=1.50 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XKC605,XKU605,645,655 厚さ=1.65 |
8 | ||
| 90035-21040 |
XKC605,XKU605,645,655 厚さ=1.62 |
8 | ||
| 90035-21041 |
XKC605,XKU605,645,655 厚さ=1.59 |
8 | ||
| 90035-21038 |
XKC605,XKU605,645,655 厚さ=1.68 |
8 | ||
| 90035-21043 |
XKC605,XKU605,645,655 厚さ=1.53 |
8 | ||
| 90035-21042 |
XKC605,XKU605,645,655 厚さ=1.56 |
8 | ||
| 90035-21044 |
XKC605,XKU605,645,655 厚さ=1.50 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XKC605,XKU605,645,655 厚さ=1.65 |
8 | ||
| 90035-21040 |
XKC605,XKU605,645,655 厚さ=1.62 |
8 | ||
| 90035-21041 |
XKC605,XKU605,645,655 厚さ=1.59 |
8 | ||
| 90035-21038 |
XKC605,XKU605,645,655 厚さ=1.68 |
8 | ||
| 90035-21043 |
XKC605,XKU605,645,655 厚さ=1.53 |
8 | ||
| 90035-21042 |
XKC605,XKU605,645,655 厚さ=1.56 |
8 | ||
| 90035-21044 |
XKC605,XKU605,645,655 厚さ=1.50 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XKC605,XKU605,645,655 厚さ=1.65 |
8 | ||
| 90035-21040 |
XKC605,XKU605,645,655 厚さ=1.62 |
8 | ||
| 90035-21041 |
XKC605,XKU605,645,655 厚さ=1.59 |
8 | ||
| 90035-21038 |
XKC605,XKU605,645,655 厚さ=1.68 |
8 | ||
| 90035-21043 |
XKC605,XKU605,645,655 厚さ=1.53 |
8 | ||
| 90035-21042 |
XKC605,XKU605,645,655 厚さ=1.56 |
8 | ||
| 90035-21044 |
XKC605,XKU605,645,655 厚さ=1.50 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XKC605,XKU605,645,655 厚さ=1.65 |
8 | ||
| 90035-21040 |
XKC605,XKU605,645,655 厚さ=1.62 |
8 | ||
| 90035-21041 |
XKC605,XKU605,645,655 厚さ=1.59 |
8 | ||
| 90035-21038 |
XKC605,XKU605,645,655 厚さ=1.68 |
8 | ||
| 90035-21043 |
XKC605,XKU605,645,655 厚さ=1.53 |
8 | ||
| 90035-21042 |
XKC605,XKU605,645,655 厚さ=1.56 |
8 | ||
| 90035-21044 |
XKC605,XKU605,645,655 厚さ=1.50 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XKC605,XKU605,645,655 厚さ=1.65 |
8 | ||
| 90035-21040 |
XKC605,XKU605,645,655 厚さ=1.62 |
8 | ||
| 90035-21041 |
XKC605,XKU605,645,655 厚さ=1.59 |
8 | ||
| 90035-21038 |
XKC605,XKU605,645,655 厚さ=1.68 |
8 | ||
| 90035-21043 |
XKC605,XKU605,645,655 厚さ=1.53 |
8 | ||
| 90035-21042 |
XKC605,XKU605,645,655 厚さ=1.56 |
8 | ||
| 90035-21044 |
XKC605,XKU605,645,655 厚さ=1.50 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90035-21039 |
XKC605,XKU605,645,655 厚さ=1.65 |
8 | ||
| 90035-21040 |
XKC605,XKU605,645,655 厚さ=1.62 |
8 | ||
| 90035-21041 |
XKC605,XKU605,645,655 厚さ=1.59 |
8 | ||
| 90035-21038 |
XKC605,XKU605,645,655 厚さ=1.68 |
8 | ||
| 90035-21043 |
XKC605,XKU605,645,655 厚さ=1.53 |
8 | ||
| 90035-21042 |
XKC605,XKU605,645,655 厚さ=1.56 |
8 | ||
| 90035-21044 |
XKC605,XKU605,645,655 厚さ=1.50 |
8 | ||
| Common parts | ||||
| 90031-01165 | ||||
| 90031-01191 | ||||
| 90031-70075 | ||||
| 90031-75011 | ||||
| 90033-03011 | ||||
| 90033-39008 | ||||
| 90034-08007 | ||||
| 90105-10558 | ||||
| 90170-12005 | ||||
| 90416-06007 | ||||
| 90416-51002 | ||||
| 94151-21001 | ||||
| 94512-01200 | ||||

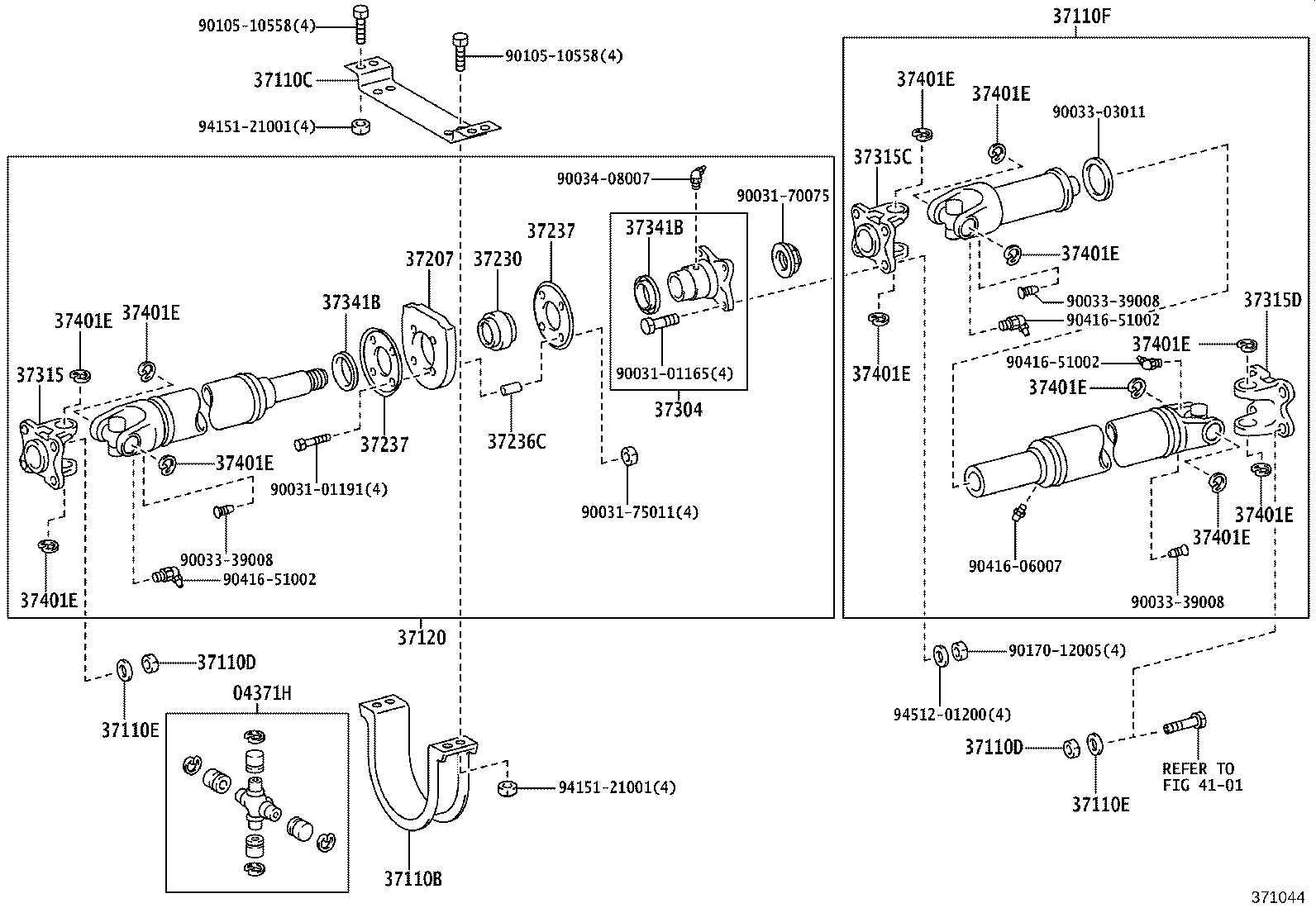

| Linked diagrams | ||||
| 4101 | ||||
