XKU655-TKVMY3 (2021)

Toyota Dyna Hv

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )

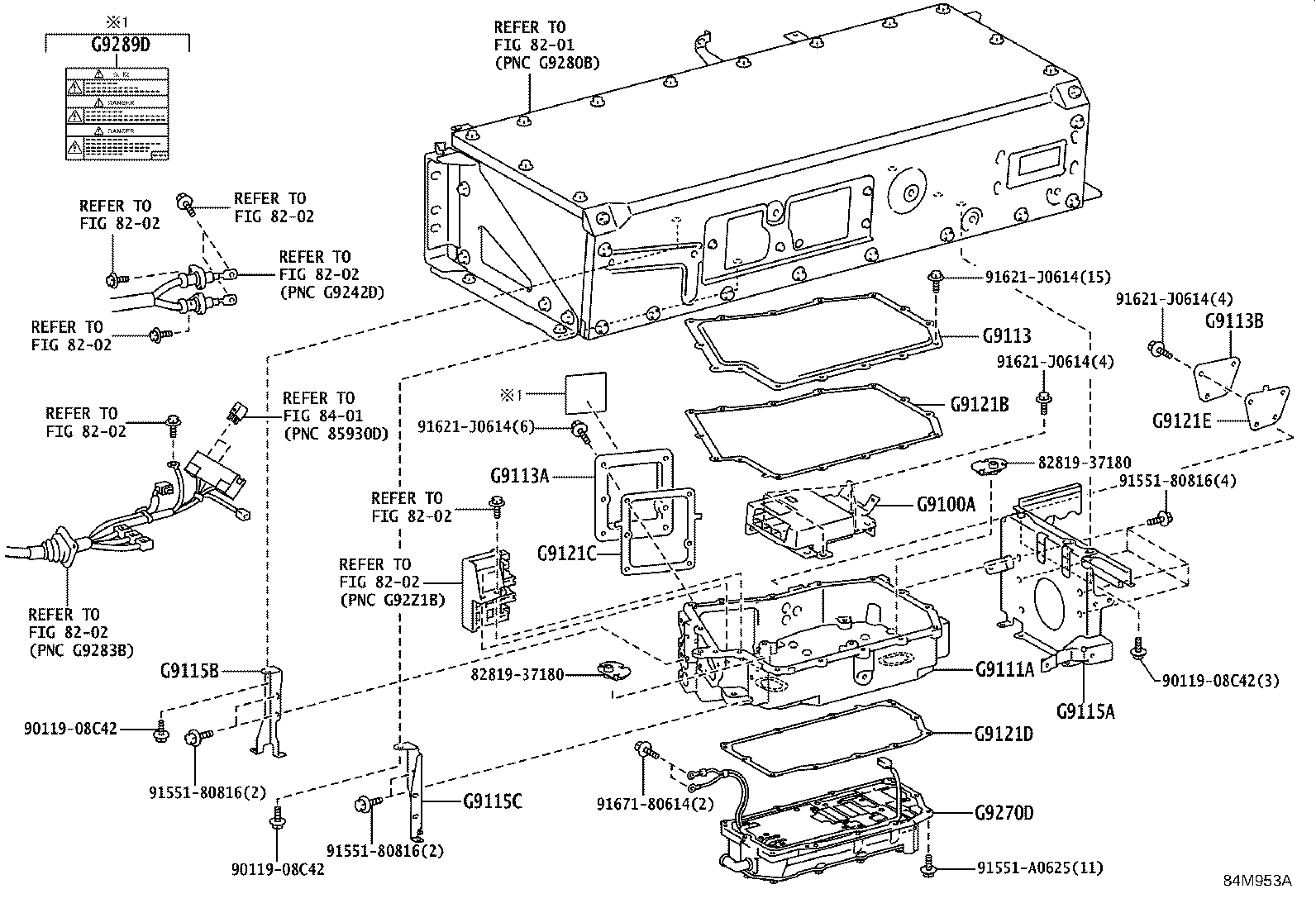

Click highlighted areas on diagram

diagram 8201 8202 8202 8202 8202 8202 8202 8202 8202 8281937180 8281937180 8401 9011908C42 9011908C42 9011908C42 9155180816 9155180816 9155180816 91551A0625 91621J0614 91621J0614 91621J0614 91621J0614 9167180614 G9100A G9111A G9113 G9113A G9113B G9115A G9115B G9115C G9121B G9121C G9121D G9121E G9270D G9289D
Part # Description Qty Price
G9100A - CONTROLLER ASSY, EV UNIT
G9100-37135

XKC605,XKU605,645,655

 1
G9111A - CASE, EV UNIT CONTROLLER
G9111-37021

XKC605,XKU605,645,655

 1
G9113 - COVER, ELECTRIC VEHICLE UNIT CONTROLLER, UPPER
G9113-37011

XKC605,XKU605,645,655

 1
G9113A - COVER, ELECTRIC VEHICLE UNIT CONTROLLER, UPPER, NO.2
G9113-37021

XKC605,XKU605,645,655

 1
G9113B - COVER, ELECTRIC VEHICLE UNIT CONTROLLER, UPPER, NO.3
G9113-37030

XKC605,XKU605,645,655

 1
G9115A - BRACKET, ELECTRIC VEHICLE UNIT CONTROLLER
G9115-37050

XKC605,XKU605,645,655

 1
G9115B - BRACKET, ELECTRIC VEHICLE UNIT CONTROLLER, NO.2
G9115-37070

XKC605,XKU605,645,655

 1
G9115C - BRACKET, ELECTRIC VEHICLE UNIT CONTROLLER, NO.3
G9115-37060

XKC605,XKU605,645,655

 1
G9121B - GASKET, ELECTRIC VEHICLE UNIT CONTROLLER COVER
G9121-37010

XKC605,XKU605,645,655

 1
G9121C - GASKET, ELECTRIC VEHICLE UNIT CONTROLLER COVER, NO.2
G9121-37020

XKC605,XKU605,645,655

 1
G9121D - GASKET, ELECTRIC VEHICLE UNIT CONTROLLER COVER, NO.3
G9121-37040

XKC605,XKU605,645,655

 1
G9121E - GASKET, ELECTRIC VEHICLE UNIT CONTROLLER COVER, NO.4
G9121-37030

XKC605,XKU605,645,655

 1
G9270D - CONVERTER ASSY, EV
G9270-37010

XKC605,XKU605,645,655

 1
G9289D - LABEL, BATTERY CAUTION
G9289-37040

XKC605,XKU605,645,655

 1
Common parts
82819-37180
90119-08C42
91551-80816
91551-A0625
91621-J0614
91671-80614
Linked diagrams
8201
8202
8401
