XKU655-TKVMY3 (2021)
Toyota Dyna Hv
Production
Mar 2021
-
Sep 9999
Engine
N04C
Transmission
6F AMT
Displacement
2500cc
Power
168 HP (125 kW)
(2103- )

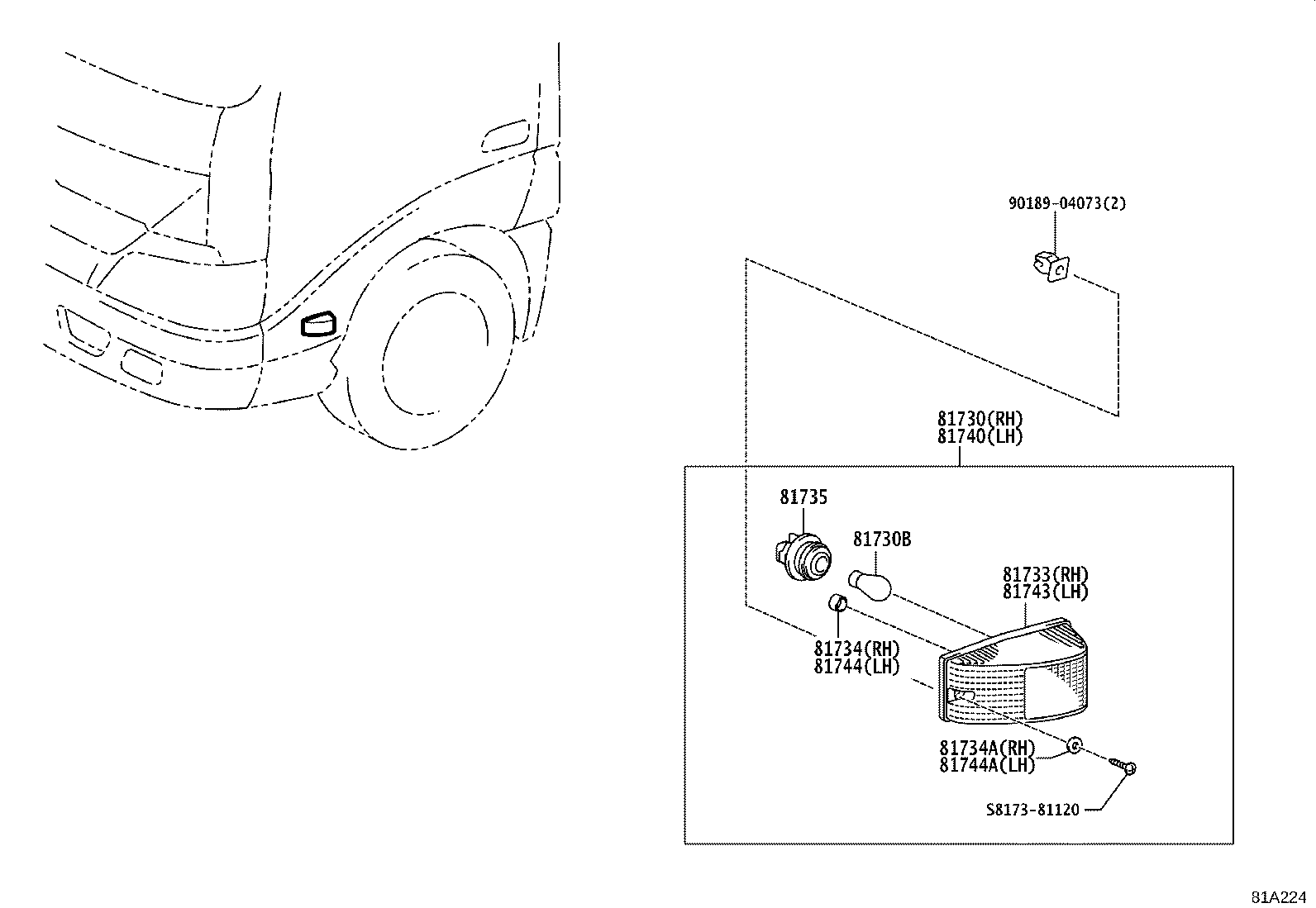

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81730 - LAMP ASSY, SIDE TURN SIGNAL, RH | ||||
| 81730-E0081 |
XKC605,XKU605,645,655 |
1 | ||
| 81730B - BULB (FOR SIDE TURN SIGNAL LAMP) | ||||
| 90981-16014 |
XKC605,XKU605,645,655 24V 21W |
2 | ||
| 81733 - BODY, SIDE TURN SIGNAL LAMP, RH | ||||
| S8167-31061 |
XKC605,XKU605,645,655 |
1 | ||
| 81734 - GASKET, SIDE TURN SIGNAL LAMP BODY, RH | ||||
| S9007-55107 |
XKC605,XKU605,645,655 |
1 | ||
| 81734A - PROTECTOR, SIDE TURN SIGNAL LAMP, RH | ||||
| S9007-52103 |
XKC605,XKU605,645,655 |
1 | ||
| 81735 - SOCKET AND WIRE, SIDE TURN SIGNAL LAMP | ||||
| S8170-11060 |
XKC605,XKU605,645,655 |
2 | ||
| 81740 - LAMP ASSY, SIDE TURN SIGNAL, LH | ||||
| 81730-E0081 |
XKC605,XKU605,645,655 |
1 | ||
| 81743 - BODY, SIDE TURN SIGNAL LAMP, LH | ||||
| S8167-31061 |
XKC605,XKU605,645,655 |
1 | ||
| 81744 - GASKET, SIDE TURN SIGNAL LAMP BODY, LH | ||||
| S9007-55107 |
XKC605,XKU605,645,655 |
1 | ||
| 81744A - PROTECTOR, SIDE TURN SIGNAL LAMP, LH | ||||
| S9007-52103 |
XKC605,XKU605,645,655 |
1 | ||
| Common parts | ||||
| 90189-04073 | ||||
| S8173-81120 | ||||
