XKU655-TKVMY3 (2021)

Toyota Dyna Hv

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )

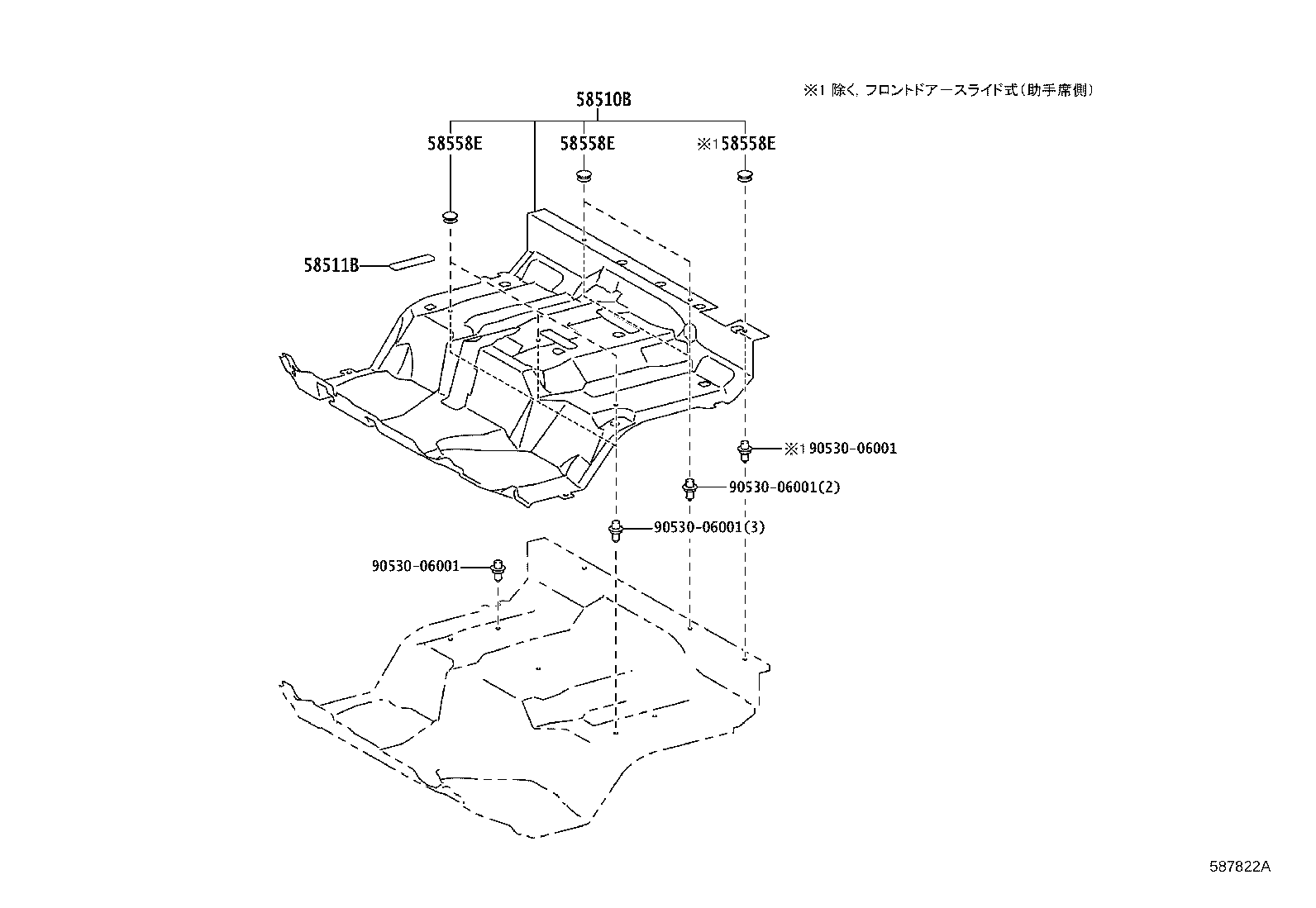

Click highlighted areas on diagram

diagram 58510B 58511B 58558E 58558E 58558E 9053006001 9053006001 9053006001 9053006001
Part # Description Qty Price
58510B - MAT, FRONT FLOOR, FRONT
58510-37Q41B0

XKC605,XKU605,645,655

GRAY,TRIM1#

 1
58510-37M02B1

XKC605,XKU605,645,655..CBU,IV3

ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ),GRAY,TRIM1#

 1
58510-37M32B1

XKC605,XKU605,645,655..CBU,IV3

ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け,GRAY,TRIM1#

 1
58510-37Q61B0

XKC605,XKU605,645,655..CBU,IV3

ﾌﾛﾝﾄｼｰﾄ−助手席1人掛け,GRAY,TRIM1#

 1
58510-37Q91B0

XKC605,XKU605,645,655..CBU,IV3

ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1#

 1
58510-37Q41B0

XKC605,XKU605,645,655..CBU,IV3

ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1#

 1
58511B - MAT, FLOOR, FRONT SIDE
58515-37080C0

XKC605,XKU605,645,655

BLACK,TRIM1#

 1
58558E - FASTENER, PILE
90530-04005S6

XKC605,XKU605,645,655

GRAY,TRIM1#

 6
90530-04005S3

XKC605,XKU605,645,655..CBU,IV3

ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1#

 6
58558E - FASTENER, PILE
90530-04005S6

XKC605,XKU605,645,655

GRAY,TRIM1#

 6
90530-04005S3

XKC605,XKU605,645,655..CBU,IV3

ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1#

 6
58558E - FASTENER, PILE
90530-04005S6

XKC605,XKU605,645,655

GRAY,TRIM1#

 6
90530-04005S3

XKC605,XKU605,645,655..CBU,IV3

ﾌﾛﾝﾄｼｰﾄ−助手席2人掛け(分割式ｼｰﾄ)&ｼｰﾄ表皮−ﾌﾟﾘﾝﾄﾄﾘｺｯﾄ,GRAY,TRIM1#

 6
Common parts
90530-06001
