XKU655-TKVMY3 (2021)
Toyota Dyna Hv

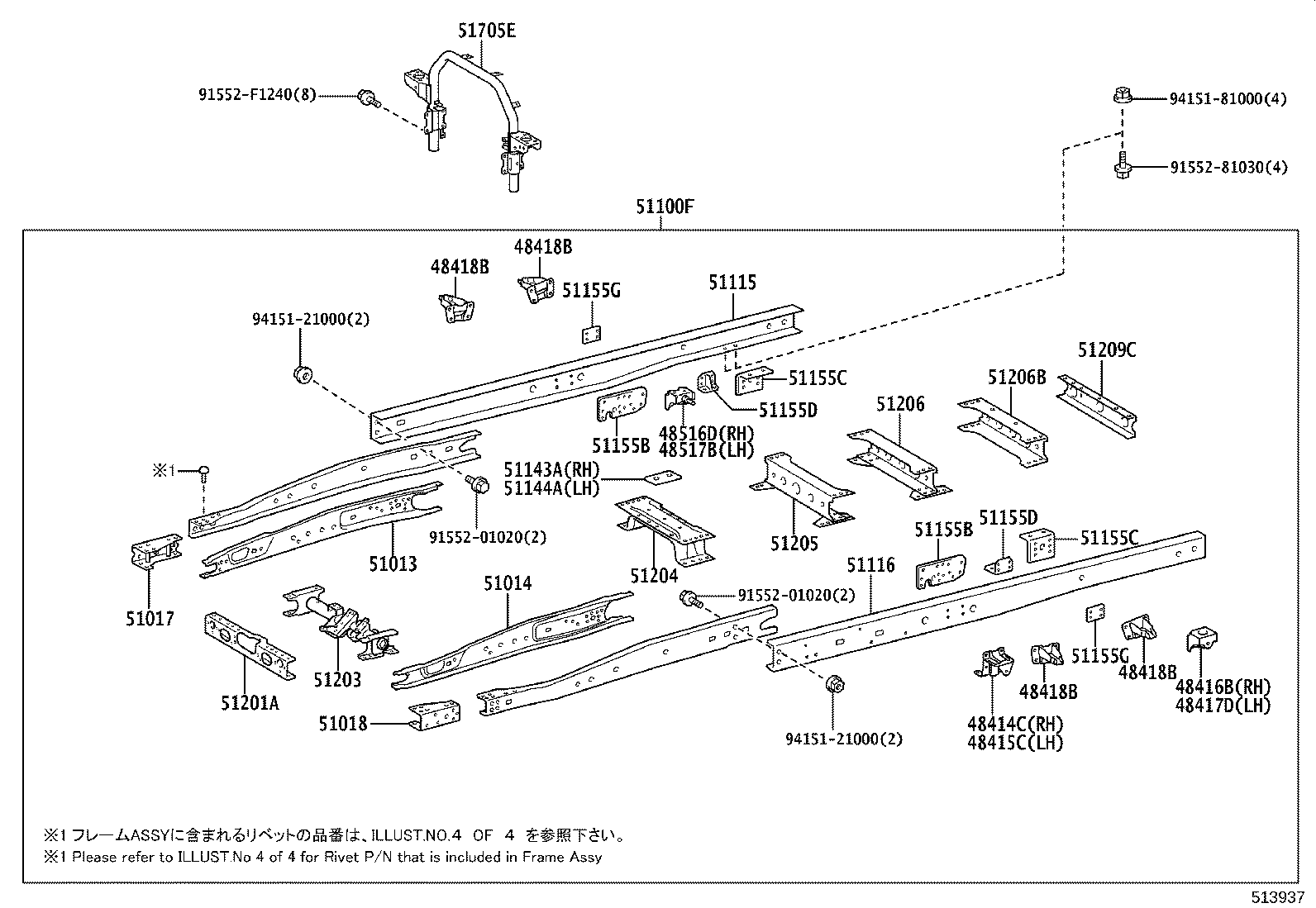

ILLUST NO. 1 OF 4(2103- )XKU655
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48414C - BRACKET, SPRING, NO.3 RH | ||||
| 48414-37100 |
XKU645,655 |
1 | ||
| 48415C - BRACKET, SPRING, NO.3 LH | ||||
| 48415-37020 |
XKU645,655 |
1 | ||
| 48416B - BRACKET, SPRING, NO.4 RH | ||||
| 48416-37100 |
XKU645,655 |
1 | ||
| 48417D - BRACKET, SPRING, NO.4 LH | ||||
| 48416-37100 |
XKU645,655 |
1 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-36090 |
XKU645,655 |
4 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-36090 |
XKU645,655 |
4 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-36090 |
XKU645,655 |
4 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-36090 |
XKU645,655 |
4 | ||
| 48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37130 |
XKC605,XKU605,645,655 |
1 | ||
| 48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH | ||||
| 48505-37130 |
XKC605,XKU605,645,655 |
1 | ||
| 51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH | ||||
| 51013-37560 |
XKC605,XKU605,645,655 |
1 | ||
| 51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH | ||||
| 51014-37530 |
XKC605,XKU605,645,655 |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-37170 |
XKC605,XKU605,645,655 |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-37230 |
XKC605,XKU605,645,655 |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51002-3VG60 |
XKU655 |
1 | ||
| 51115 - RAIL, FRAME SIDE, REAR RH | ||||
| 51115-37680 |
XKU655 |
1 | ||
| 51116 - RAIL, FRAME SIDE, REAR LH | ||||
| 51108-37520 |
XKU655 |
1 | ||
| 51143A - REINFORCEMENT, SIDE RAIL, FRONT RH | ||||
| 51141-37350 |
XKC605,XKU605,645,655 |
2 | ||
| 51144A - REINFORCEMENT, SIDE RAIL, FRONT LH | ||||
| 51141-37350 |
XKC605,XKU605,645,655 |
2 | ||
| 51155B - STIFFENER, FRAME SIDE RAIL, REAR NO.2 | ||||
| 51155-37080 |
XKU645,655 |
2 | ||
| 51155B - STIFFENER, FRAME SIDE RAIL, REAR NO.2 | ||||
| 51155-37080 |
XKU645,655 |
2 | ||
| 51155C - STIFFENER, FRAME SIDE RAIL, REAR NO.3 | ||||
| 51155-37260 |
XKU645,655 |
2 | ||
| 51155C - STIFFENER, FRAME SIDE RAIL, REAR NO.3 | ||||
| 51155-37260 |
XKU645,655 |
2 | ||
| 51155D - STIFFENER, FRAME SIDE RAIL, REAR NO.1 | ||||
| 51155-37060 |
XKC605,XKU605,645,655 |
2 | ||
| 51155D - STIFFENER, FRAME SIDE RAIL, REAR NO.1 | ||||
| 51155-37060 |
XKC605,XKU605,645,655 |
2 | ||
| 51155G - STIFFENER, FRAME SIDE RAIL, REAR NO.4 | ||||
| 51155-37250 |
XKU645,655 |
2 | ||
| 51155G - STIFFENER, FRAME SIDE RAIL, REAR NO.4 | ||||
| 51155-37250 |
XKU645,655 |
2 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51211-37280 |
XKC605,XKU605,645,655 |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-37280 |
XKC605,XKU605,645,655 |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-37390 |
XKC605,XKU605,645,655 |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-37170 |
XKU655 |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51205-37190 |
XKU655 |
1 | ||
| 51206B - CROSSMEMBER SUB-ASSY, FRAME, NO.6 | ||||
| 51261-37190 |
XKU655 |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51291-37040 |
XKU645,655 |
1 | ||
| 51705E - BRACKET SUB-ASSY, CAB REAR MOUNTING | ||||
| 51705-37B40 |
XKC605,XKU605,645,655 |
1 | ||
| Common parts | ||||
| 91552-01020 | ||||
| 91552-81030 | ||||
| 91552-F1240 | ||||
| 94151-21000 | ||||
| 94151-81000 | ||||
ILLUST NO. 2 OF 4(2103- )
ｻｽﾍﾟﾝｼｮﾝﾒﾝﾊﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51065 - SUPPORT SUB-ASSY, STEERING GEAR BOX | ||||
| 51065-37030 |
XKC605,XKU605,645,655 |
1 | ||
| 51101A - RAIL SUB-ASSY, FRONT FRAME SIDE, RH | ||||
| 51101-37100 |
XKC605,XKU605,645,655 |
1 | ||
| 51102A - RAIL SUB-ASSY, FRONT FRAME SIDE, LH | ||||
| 51102-37100 |
XKC605,XKU605,645,655 |
1 | ||
| 51107A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH | ||||
| 51107-37160 |
XKC605,XKU605,645,655 |
1 | ||
| 51108A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH | ||||
| 51108-37210 |
XKC605,XKU605,645,655 |
1 | ||
| 51210A - MEMBER ASSY, FRONT SUSPENSION | ||||
| 51210-37050 |
XKC605,XKU605,645,655 |
1 | ||
| 51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH | ||||
| 51501-37040 |
XKC605,XKU605,645,655 |
1 | ||
| 51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH | ||||
| 51502-37050 |
XKC605,XKU605,645,655 |
1 | ||
| 51508A - BRACKET SUB-ASSY, LOWER ARM, RH | ||||
| 51508-37100 |
XKC605,XKU605,645,655 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 51508-37080 |
XKC605,XKU605,645,655 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 51508A - BRACKET SUB-ASSY, LOWER ARM, RH | ||||
| 51508-37100 |
XKC605,XKU605,645,655 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 51508-37080 |
XKC605,XKU605,645,655 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 51508D - SUPPORT SUB-ASSY, STABILIZER, RH | ||||
| 51508-37090 |
XKC605,XKU605,645,655 |
1 | ||
| 51509 - SUPPORT SUB-ASSY, STABILIZER | ||||
| 51509-37090 |
XKC605,XKU605,645,655 |
1 | ||
| 51509A - BRACKET SUB-ASSY, LOWER ARM, LH | ||||
| 51509-37100 |
XKC605,XKU605,645,655 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 51509-37080 |
XKC605,XKU605,645,655 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 51509A - BRACKET SUB-ASSY, LOWER ARM, LH | ||||
| 51509-37100 |
XKC605,XKU605,645,655 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 51509-37080 |
XKC605,XKU605,645,655 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 51677 - BRACKET, STEERING GEAR BOX | ||||
| 51607-37010 |
XKC605,XKU605,645,655 |
1 | ||
| Common parts | ||||
| 51751-37150 | ||||
| 90119-14133 | ||||
| 91672-L1470 | ||||
| 91672-L1495 | ||||

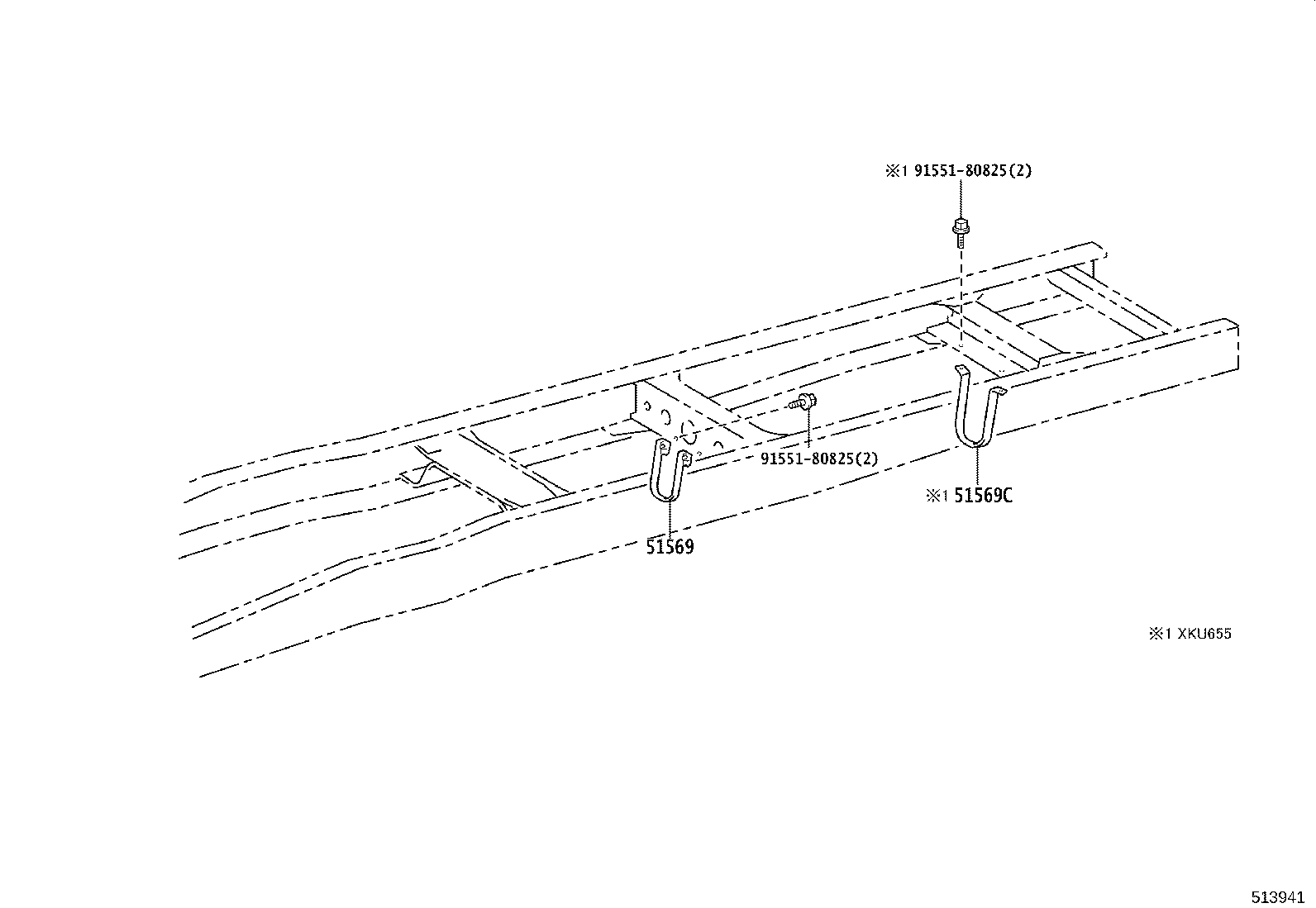

ILLUST NO. 3 OF 4(2103- )
ﾌﾟﾛﾍﾟﾗｼｬﾌﾄｶﾞｰﾄﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51569 - GUARD, PROPELLER SHAFT | ||||
| 51569-37450 |
XKU655 |
1 | ||
| 51569C - GUARD, PROPELLER SHAFT | ||||
| 51569-37420 |
XKU655 |
1 | ||
| Common parts | ||||
| 91551-80825 | ||||
ILLUST NO. 4 OF 4(2103- )
ﾘﾍﾞｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 95121-01026 | ||||
| 95121-01028 | ||||
| 95121-01032 | ||||
| 95121-01038 | ||||
