XKU655-TKVMY3 (2021)
Toyota Dyna Hv

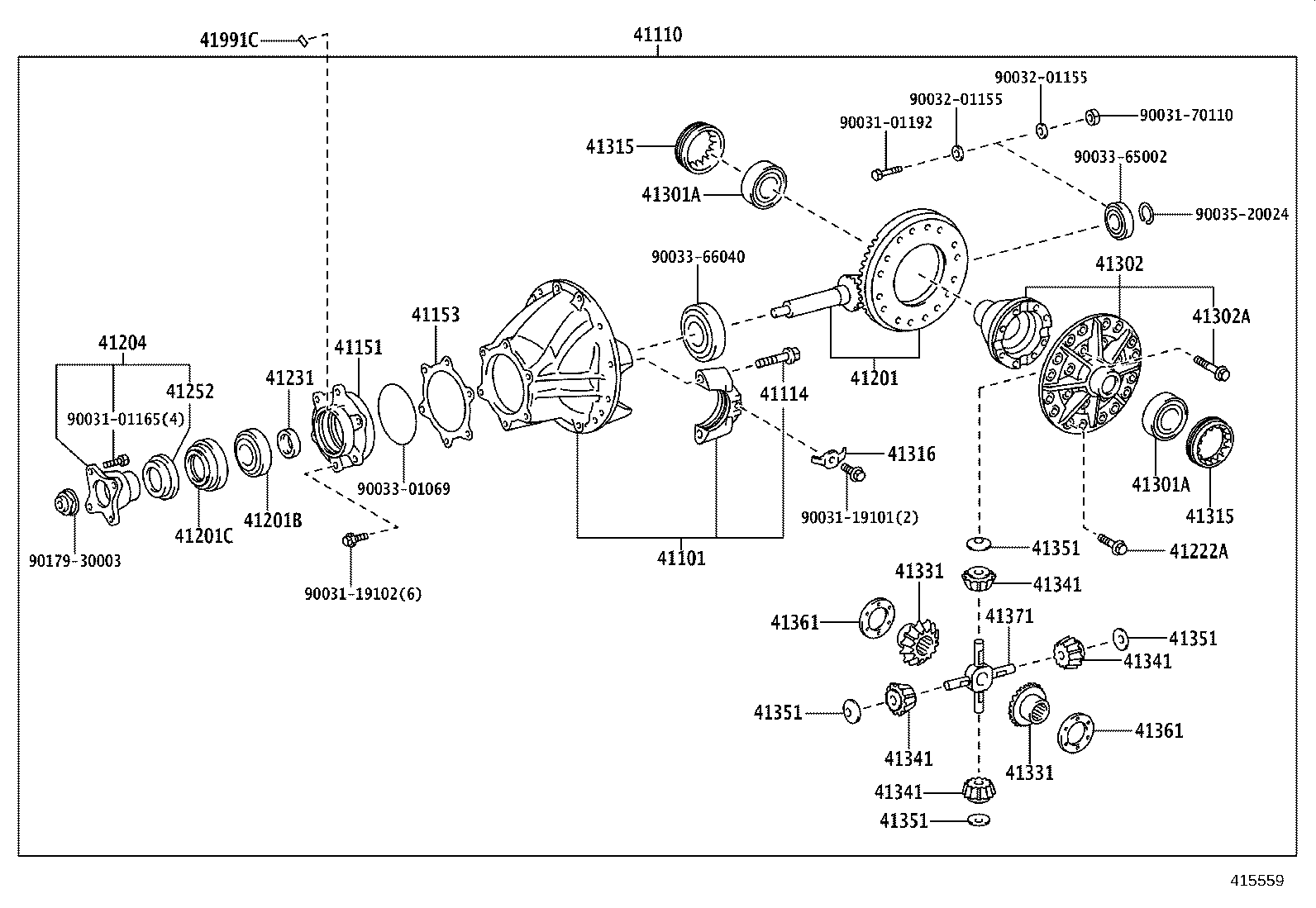

ILLUST NO. 1 OF 2(2103- )
ｻｲｼｭｳｹﾞﾝｿｸﾋ=4.333 OR 4.625 OR 4.875
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-37080 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 41101-37080 |
XKC605,XKU605,655..20T..(CBU,IV3) |
1 | ||
| 41101-37061 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-37800 |
XKU655..T3..20T *FGR=39:10=3.900,ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=S.333 |
1 | ||
| 41110-37330 |
XKU645;XKU655..T3..20T *FGR=39:9=4.333,ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4D333 |
1 | ||
| 41110-37800 |
XKC605,XKU605,655..20T..(CBU,IV3) *FGR=39:10=3.900 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| SZ105-16030 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
4 | ||
| 41151 - CAGE, DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41151-37031 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 41153 - SHIM, DIFFERENTIAL DRIVE PINION CAGE | ||||
| 41153-37110 |
XKU655..T3..20T 厚さ=0.45,ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 41153-37100 |
XKU655..T3..20T 厚さ=0.40,ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 41153-37090 |
XKU655..T3..20T 厚さ=0.30,ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 41153-37120 |
XKU655..T3..20T 厚さ=0.50,ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-37470 |
XKU655..T3..20T *FGR=39:10=3.900,ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=S.333 |
1 | ||
| 41201-37201 |
XKU645;XKU655..T3..20T *FGR=39:9=4.333,ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4D333 |
1 | ||
| 41201-37470 |
XKC605,XKU605,655..20T..(CBU,IV3) *FGR=39:10=3.900 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-45065 |
XKC605,XKU605,655..20T..(CBU,IV3) |
1 | ||
| 90366-45065 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| SZ366-45013 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-65005 |
XKC605,XKU605,655..20T..(CBU,IV3) |
1 | ||
| 90311-65005 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 90033-11039 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-37130 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 41204-37130 |
XKC605,XKU605,655..20T..(CBU,IV3) |
1 | ||
| 41204-37080 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90031-01203 |
XKC605,XKU605,645,655 |
16 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-37420 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.400 |
1 | ||
| 41231-37450 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.475 |
1 | ||
| 41231-37470 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.525 |
1 | ||
| 41231-37460 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.500 |
1 | ||
| 41231-37480 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.550 |
1 | ||
| 41231-37440 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.450 |
1 | ||
| 41231-37490 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.575 |
1 | ||
| 41231-37430 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.425 |
1 | ||
| 41231-37500 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.600 |
1 | ||
| 41231-37510 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.625 |
1 | ||
| 41231-37520 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.650 |
1 | ||
| 41231-37540 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.700 |
1 | ||
| 41231-37560 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.750 |
1 | ||
| 41231-37530 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.675 |
1 | ||
| 41231-37590 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.825 |
1 | ||
| 41231-37600 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.850 |
1 | ||
| 41231-37570 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.775 |
1 | ||
| 41231-37610 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.875 |
1 | ||
| 41231-37550 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.725 |
1 | ||
| 41231-37640 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 41231-37640 |
XKC605,XKU605,655..20T..(CBU,IV3) |
1 | ||
| 41231-37580 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.800 |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-37060 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 41252-37060 |
XKC605,XKU605,655..20T..(CBU,IV3) |
1 | ||
| S3734-11560 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-55089 |
XKC605,XKU605,645,655 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-55089 |
XKC605,XKU605,645,655 |
2 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-37030 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90031-05098 |
XKC605,XKU605,645,655 |
8 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-37020 |
XKC605,XKU605,645,655 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-37020 |
XKC605,XKU605,645,655 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-37010 |
XKC605,XKU605,645,655 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-37040 |
XKC605,XKU605,645,655 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-37040 |
XKC605,XKU605,645,655 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
XKC605,XKU605,645,655 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
XKC605,XKU605,645,655 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
XKC605,XKU605,645,655 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
XKC605,XKU605,645,655 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
XKC605,XKU605,645,655 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
XKC605,XKU605,645,655 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
XKC605,XKU605,645,655 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
XKC605,XKU605,645,655 |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-37030 |
XKC605,XKU605,645,655 厚さ=2.0 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-37030 |
XKC605,XKU605,645,655 厚さ=2.0 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-37030 |
XKC605,XKU605,645,655 |
1 | ||
| 41991C - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| S7655-31350 |
XKU645;XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,ﾏｰｸ 4.33 |
1 | ||
| S7655-33370 |
XKC605,XKU605,655..20T..(CBU,IV3) |
1 | ||
| Common parts | ||||
| 90031-01165 | ||||
| 90031-01192 | ||||
| 90031-19101 | ||||
| 90031-19102 | ||||
| 90031-70110 | ||||
| 90032-01155 | ||||
| 90033-01069 | ||||
| 90033-65002 | ||||
| 90033-66040 | ||||
| 90035-20024 | ||||
| 90179-30003 | ||||

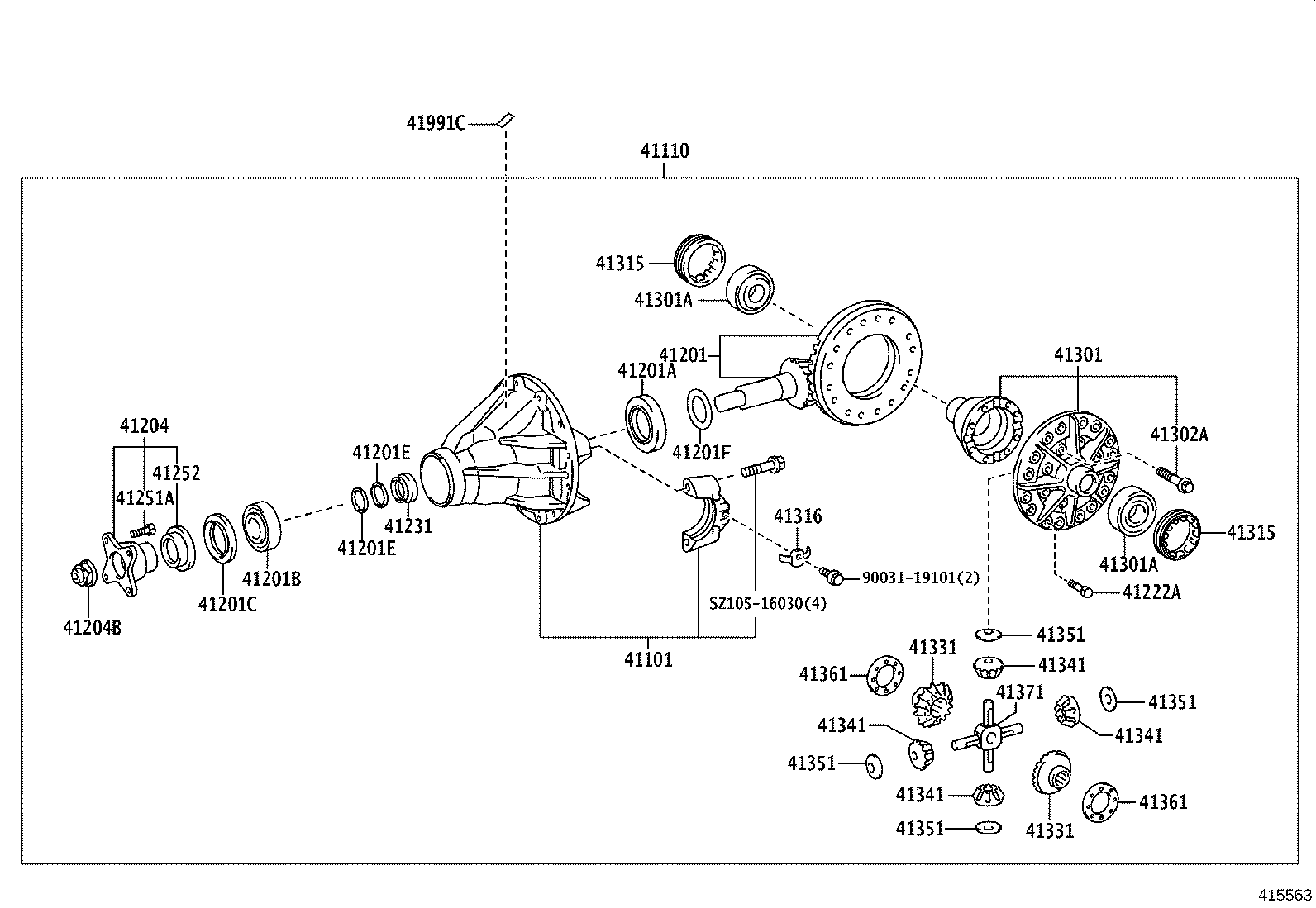

ILLUST NO. 1 OF 2(2103- )
ｻｲｼｭｳｹﾞﾝｿｸﾋ=3.900 OR 4.100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-37080 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 41101-37080 |
XKC605,XKU605,655..20T..(CBU,IV3) |
1 | ||
| 41101-37061 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-37800 |
XKU655..T3..20T *FGR=39:10=3.900,ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=S.333 |
1 | ||
| 41110-37330 |
XKU645;XKU655..T3..20T *FGR=39:9=4.333,ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4D333 |
1 | ||
| 41110-37800 |
XKC605,XKU605,655..20T..(CBU,IV3) *FGR=39:10=3.900 |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-37470 |
XKU655..T3..20T *FGR=39:10=3.900,ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=S.333 |
1 | ||
| 41201-37201 |
XKU645;XKU655..T3..20T *FGR=39:9=4.333,ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4D333 |
1 | ||
| 41201-37470 |
XKC605,XKU605,655..20T..(CBU,IV3) *FGR=39:10=3.900 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-55088 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 90366-55088 |
XKC605,XKU605,655..20T..(CBU,IV3) |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-45065 |
XKC605,XKU605,655..20T..(CBU,IV3) |
1 | ||
| 90366-45065 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| SZ366-45013 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-65005 |
XKC605,XKU605,655..20T..(CBU,IV3) |
1 | ||
| 90311-65005 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 90033-11039 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-45220 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=2.10 |
1 | ||
| 90564-45222 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=2.30 |
1 | ||
| 90564-45221 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=2.20 |
1 | ||
| 90564-45218 |
XKU655..T3..20T 厚さ=1.90,ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 90564-45219 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=2.00 |
1 | ||
| 90564-45224 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=2.50 |
1 | ||
| 90564-45227 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=2.80 |
1 | ||
| 90564-45229 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=3.00 |
1 | ||
| 90564-45225 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=2.60 |
1 | ||
| 90564-45228 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=2.90 |
1 | ||
| 90564-45230 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.80 |
1 | ||
| 90564-45218 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.90 |
1 | ||
| 90564-45226 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=2.70 |
1 | ||
| 90564-45232 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.82 |
1 | ||
| 90564-45235 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.85 |
1 | ||
| 90564-45231 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.81 |
1 | ||
| 90564-45233 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.83 |
1 | ||
| 90564-45239 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.89 |
1 | ||
| 90564-45236 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.86 |
1 | ||
| 90564-45237 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.87 |
1 | ||
| 90564-45234 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.84 |
1 | ||
| 90564-45223 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=2.40 |
1 | ||
| 90564-45238 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.88 |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-45220 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=2.10 |
1 | ||
| 90564-45222 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=2.30 |
1 | ||
| 90564-45221 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=2.20 |
1 | ||
| 90564-45218 |
XKU655..T3..20T 厚さ=1.90,ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 90564-45219 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=2.00 |
1 | ||
| 90564-45224 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=2.50 |
1 | ||
| 90564-45227 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=2.80 |
1 | ||
| 90564-45229 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=3.00 |
1 | ||
| 90564-45225 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=2.60 |
1 | ||
| 90564-45228 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=2.90 |
1 | ||
| 90564-45230 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.80 |
1 | ||
| 90564-45218 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.90 |
1 | ||
| 90564-45226 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=2.70 |
1 | ||
| 90564-45232 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.82 |
1 | ||
| 90564-45235 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.85 |
1 | ||
| 90564-45231 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.81 |
1 | ||
| 90564-45233 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.83 |
1 | ||
| 90564-45239 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.89 |
1 | ||
| 90564-45236 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.86 |
1 | ||
| 90564-45237 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.87 |
1 | ||
| 90564-45234 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.84 |
1 | ||
| 90564-45223 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=2.40 |
1 | ||
| 90564-45238 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.88 |
1 | ||
| 41201F - SHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST) | ||||
| 90564-55119 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.38 |
1 | ||
| 90564-55116 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.30 |
1 | ||
| 90564-55118 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.35 |
1 | ||
| 90564-55114 |
XKU655..T3..20T 厚さ=1.25,ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 90564-55115 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.28 |
1 | ||
| 90564-55127 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.58 |
1 | ||
| 90564-55117 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.33 |
1 | ||
| 90564-55122 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.45 |
1 | ||
| 90564-55125 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.53 |
1 | ||
| 90564-55121 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.43 |
1 | ||
| 90564-55114 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.25 |
1 | ||
| 90564-55123 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.48 |
1 | ||
| 90564-55129 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.63 |
1 | ||
| 90564-55128 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.60 |
1 | ||
| 90564-55133 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.73 |
1 | ||
| 90564-55126 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.55 |
1 | ||
| 90564-55130 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.65 |
1 | ||
| 90564-55132 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.70 |
1 | ||
| 90564-55124 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.50 |
1 | ||
| 90564-55131 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.68 |
1 | ||
| 90564-55134 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.75 |
1 | ||
| 90564-55120 |
XKC605,XKU605,655..20T..(CBU,IV3) 厚さ=1.40 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-37130 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 41204-37130 |
XKC605,XKU605,655..20T..(CBU,IV3) |
1 | ||
| 41204-37080 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-30003 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 90179-30003 |
XKC605,XKU605,655..20T..(CBU,IV3) |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90031-01203 |
XKC605,XKU605,645,655 |
16 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-37420 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.400 |
1 | ||
| 41231-37450 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.475 |
1 | ||
| 41231-37470 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.525 |
1 | ||
| 41231-37460 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.500 |
1 | ||
| 41231-37480 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.550 |
1 | ||
| 41231-37440 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.450 |
1 | ||
| 41231-37490 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.575 |
1 | ||
| 41231-37430 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.425 |
1 | ||
| 41231-37500 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.600 |
1 | ||
| 41231-37510 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.625 |
1 | ||
| 41231-37520 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.650 |
1 | ||
| 41231-37540 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.700 |
1 | ||
| 41231-37560 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.750 |
1 | ||
| 41231-37530 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.675 |
1 | ||
| 41231-37590 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.825 |
1 | ||
| 41231-37600 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.850 |
1 | ||
| 41231-37570 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.775 |
1 | ||
| 41231-37610 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.875 |
1 | ||
| 41231-37550 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.725 |
1 | ||
| 41231-37640 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 41231-37640 |
XKC605,XKU605,655..20T..(CBU,IV3) |
1 | ||
| 41231-37580 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,厚さ=14.800 |
1 | ||
| 41251A - BOLT(FOR DRIVE PINION COMPANION FLANGE) | ||||
| 90031-01165 |
XKC605,XKU605,655..20T..(CBU,IV3) |
4 | ||
| 90031-01165 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
4 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-37060 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 41252-37060 |
XKC605,XKU605,655..20T..(CBU,IV3) |
1 | ||
| S3734-11560 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-37080 |
XKC605,XKU605,655..20T..(CBU,IV3) |
1 | ||
| 41301-37080 |
XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-55089 |
XKC605,XKU605,645,655 |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-55089 |
XKC605,XKU605,645,655 |
2 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90031-05098 |
XKC605,XKU605,645,655 |
8 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-37020 |
XKC605,XKU605,645,655 |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-37020 |
XKC605,XKU605,645,655 |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-37010 |
XKC605,XKU605,645,655 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-37040 |
XKC605,XKU605,645,655 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-37040 |
XKC605,XKU605,645,655 |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
XKC605,XKU605,645,655 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
XKC605,XKU605,645,655 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
XKC605,XKU605,645,655 |
4 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-37030 |
XKC605,XKU605,645,655 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
XKC605,XKU605,645,655 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
XKC605,XKU605,645,655 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
XKC605,XKU605,645,655 |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-37020 |
XKC605,XKU605,645,655 |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-37030 |
XKC605,XKU605,645,655 厚さ=2.0 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-37030 |
XKC605,XKU605,645,655 厚さ=2.0 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-37030 |
XKC605,XKU605,645,655 |
1 | ||
| 41991C - CAUTION PLATE, REAR DIFFERENTIAL | ||||
| S7655-31350 |
XKU645;XKU655..T3..20T ﾘﾔﾃﾞｨﾌｧﾚﾝｼｬﾙ−12ｲﾝﾁ,最終減速比=4.333,ﾏｰｸ 4.33 |
1 | ||
| S7655-33370 |
XKC605,XKU605,655..20T..(CBU,IV3) |
1 | ||
| Common parts | ||||
| 90031-19101 | ||||
| SZ105-16030 | ||||

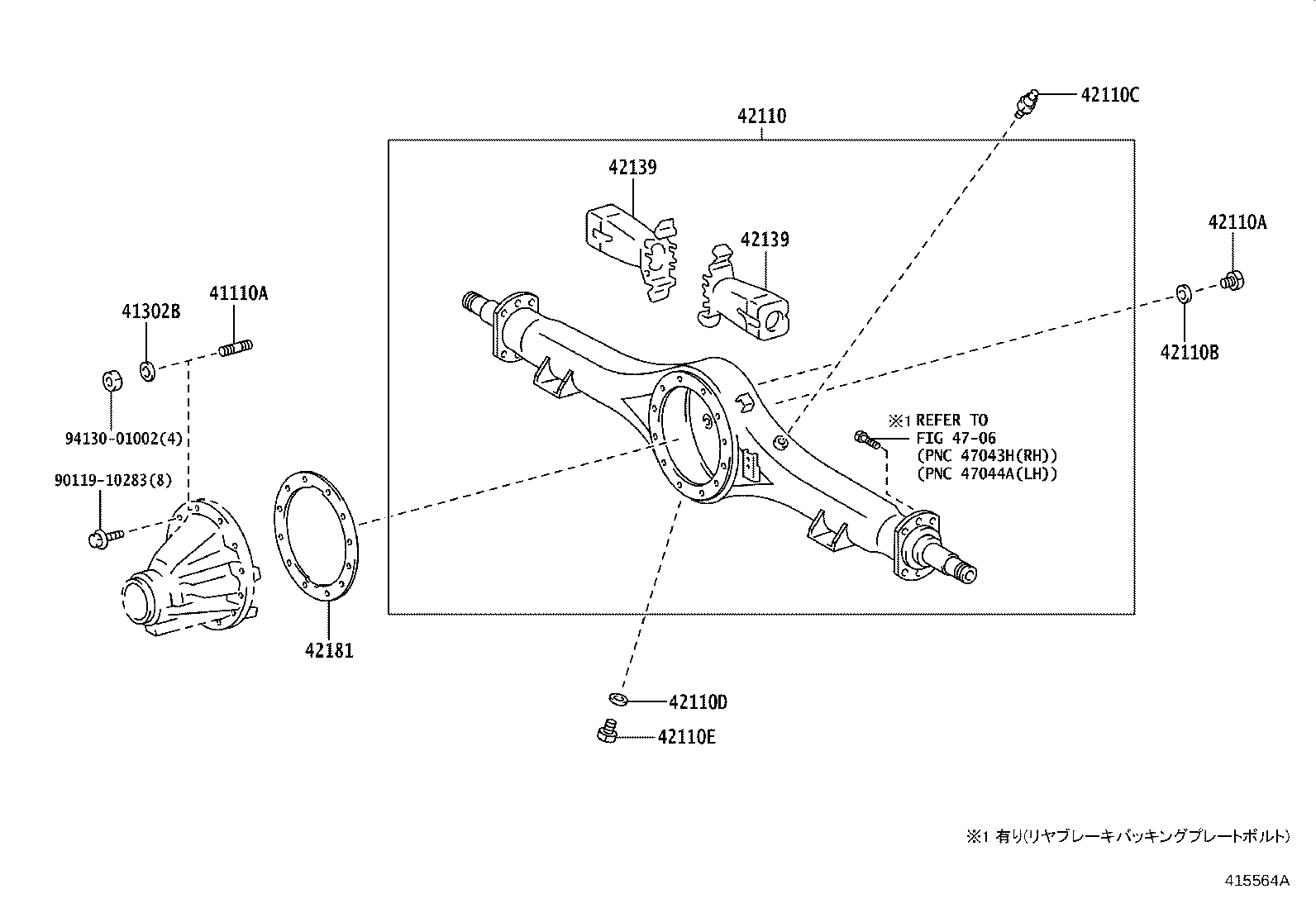

ILLUST NO. 2 OF 2(2103- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10060 |
XKC605,XKU605,645,655 ﾈｼﾞ部長さ=19&12,長さ=46 |
2 | ||
| 90116-10059 |
XKC605,XKU605,645,655 ﾈｼﾞ部長さ=19&12,長さ=57 |
2 | ||
| 41302B - WASHER, SPRING(FOR REAR DIFFERENTIAL CASE) | ||||
| 94511-01000 |
XKC605,XKU605,645,655 |
4 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-37830 |
XKU645,655 |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
XKC605,XKU605,645,655 |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
XKC605,XKU605,645,655 |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03138 |
XKC605,XKU605,645,655 |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
XKC605,XKU605,645,655 |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
XKC605,XKU605,645,655 |
1 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-37020 |
XKU645,655 |
2 | ||
| 42139 - DEFLECTOR, REAR AXLE HOUSING OIL | ||||
| 42108-37020 |
XKU645,655 |
2 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-37030 |
XKC605,XKU605,645,655 |
1 | ||
| Common parts | ||||
| 90119-10283 | ||||
| 94130-01002 | ||||
| Linked diagrams | ||||
| 4706 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
