XKU655-TKVMY (2021)

Toyota Dyna Hv

Production Mar 2021 - Sep 9999

Engine N04C

Transmission 6F AMT

Displacement 2500cc

Power 168 HP (125 kW)

(2103- )

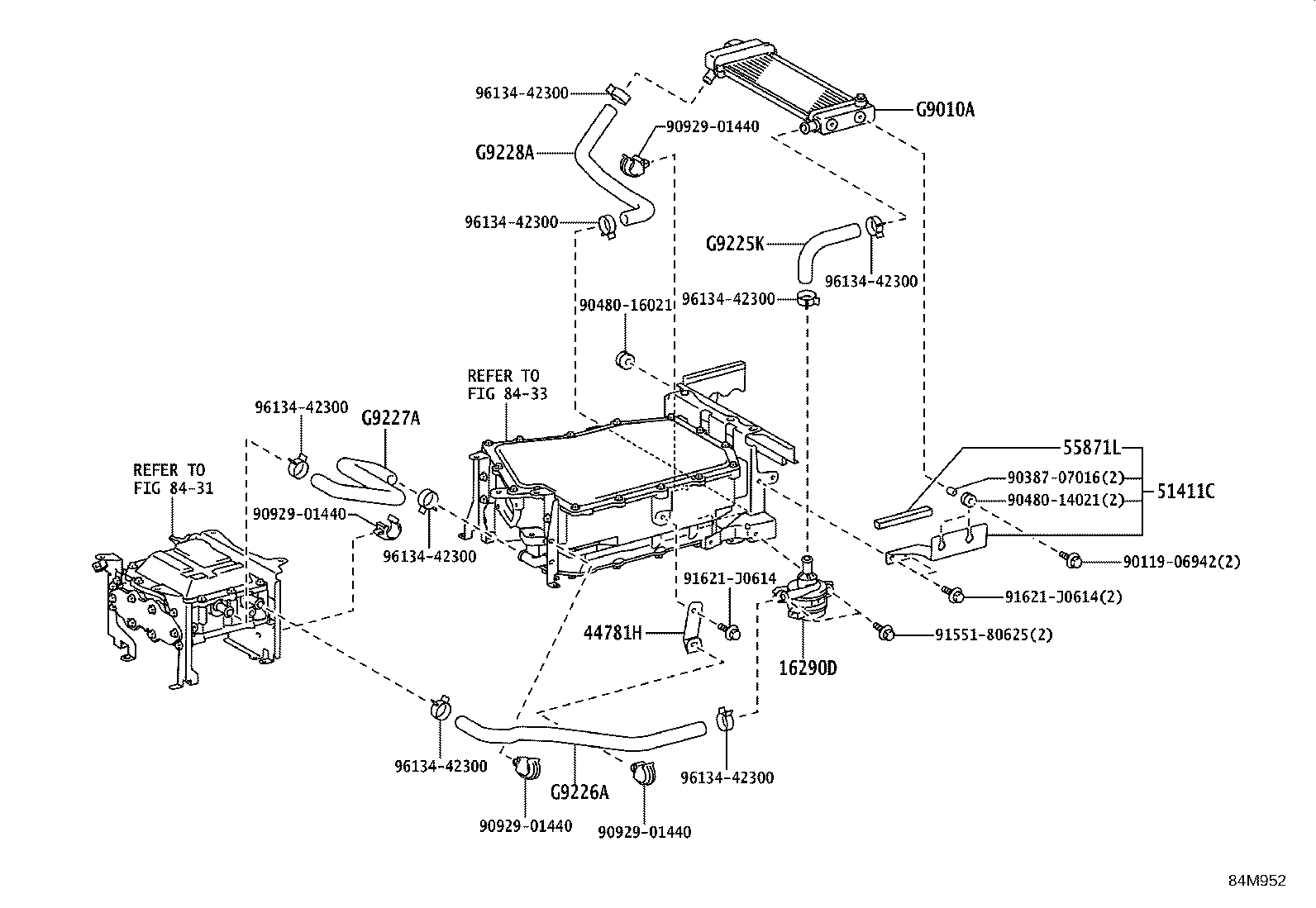

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
16290D - PUMP ASSY, WATER W/MOTOR
G9040-E0010	N04C..XKC605,XKU605,645,655	03/2021 - 12/2999	1
44781H - BRACKET, HOSE CLAMP
44781-37220	XKC605,XKU605,645,655	03/2021 - 12/2999	1
51411C - BRACKET, RADIATOR SUPPORT
51411-37070	XKC605,XKU605,645,655	03/2021 - 12/2999	1
55871L - SEAL, AIR DUCT
55871-37290	XKC605,XKU605,645,655	03/2021 - 12/2999	1
G9010A - RADIATOR ASSY
G9010-37020	XKC605,XKU605,645,655	03/2021 - 12/2999	1
G9225K - HOSE, INVERTER COOLING, NO.1
G9225-37030	XKC605,XKU605,645,655	03/2021 - 12/2999	1
G9226A - HOSE, INVERTER COOLING, NO.2
G9226-37030	XKC605,XKU605,645,655	03/2021 - 12/2999	1
G9227A - HOSE, INVERTER COOLING, NO.3
G9227-37050	XKC605,XKU605,645,655	03/2021 - 12/2999	1
G9228A - HOSE, INVERTER COOLING, NO.4
G9228-37030	XKC605,XKU605,645,655	03/2021 - 12/2999	1
Common parts
90119-06942
90387-07016
90480-14021
90480-16021
90929-01440
91551-80625
91621-J0614
96134-42300
Linked diagrams
8431
8433
