XKU655-TKVMY (2021)

Toyota Dyna Hv

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6F AMT
Displacement 2500cc
Power 168 HP (125 kW)

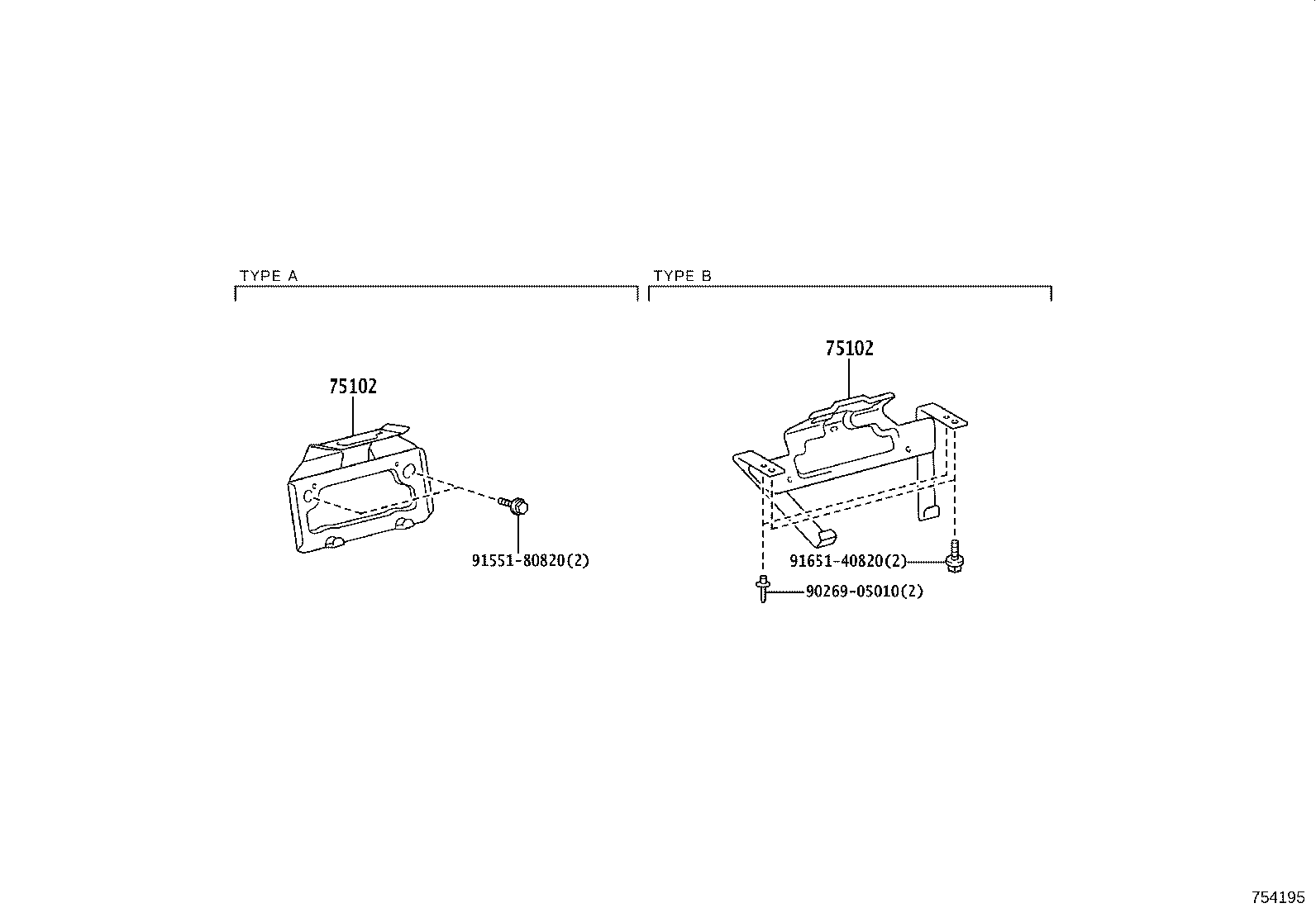

ILLUST NO. 2 OF 3(2103- )

Click highlighted areas on diagram

ﾗｲｾﾝｽﾌﾟﾚｰﾄﾌﾞﾗｹｯﾄ

diagram 75102 75102 9026905010 9155180820 9165140820
Part # Description Qty Price
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
66490-37070

XKC605,XKU605,655..CBU

TYPE B:ｲﾗｽﾄ参照

 1
75102 - BRACKET SUB-ASSY, REAR LICENSE PLATE
66490-37070

XKC605,XKU605,655..CBU

TYPE B:ｲﾗｽﾄ参照

 1
Common parts
90269-05010
91551-80820
91651-40820

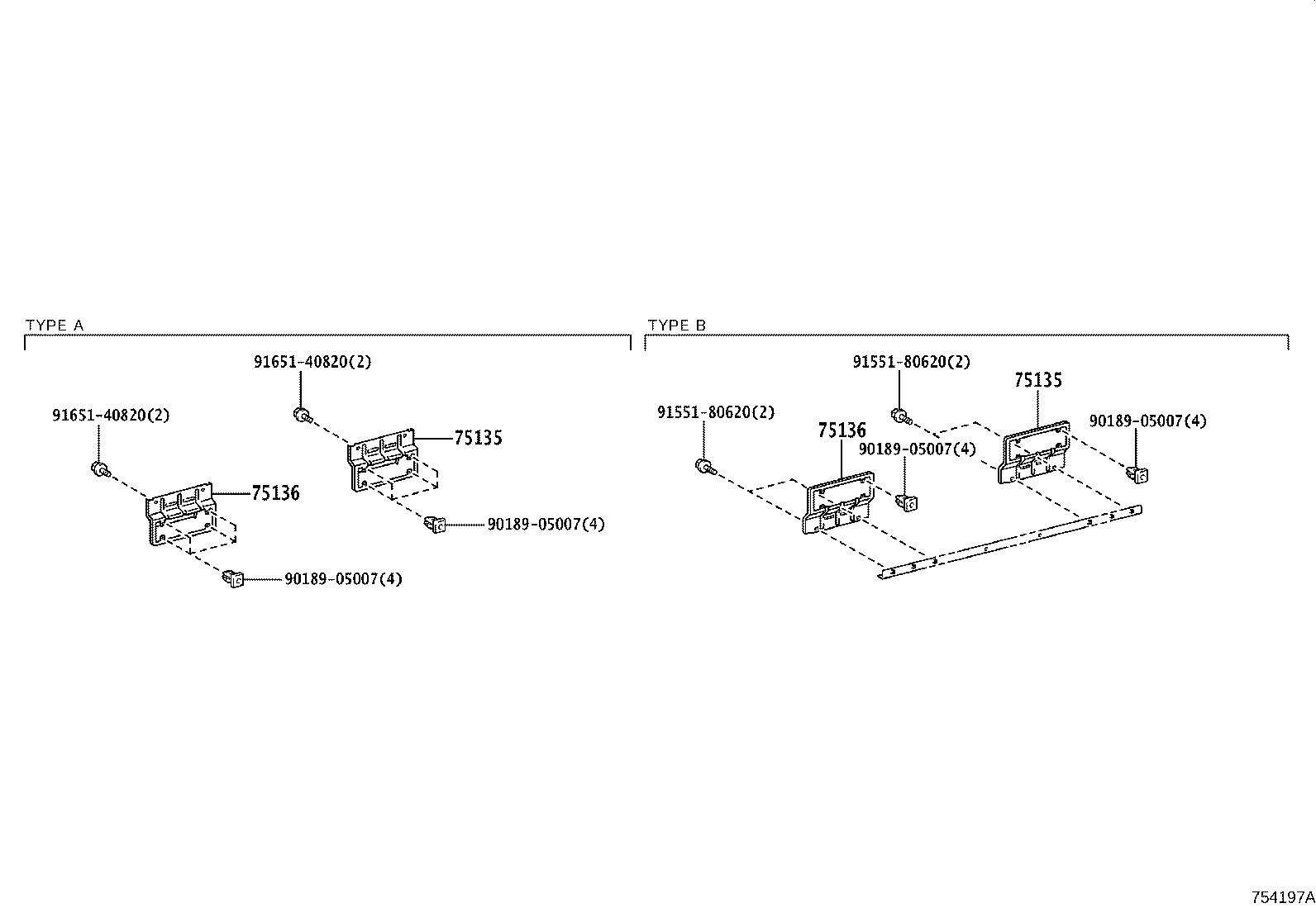

ILLUST NO. 3 OF 3(2103- )

Click highlighted areas on diagram

ﾃｰﾙﾗﾝﾌﾟﾌﾞﾗｹｯﾄ

diagram 75135 75135 75136 75136 9018905007 9018905007 9018905007 9018905007 9155180620 9155180620 9165140820 9165140820
Part # Description Qty Price
75135 - BRACKET, COMBINATION REAR LAMP, RH
75105-37071

XKC605,XKU605,655..CBU

TYPE A:ｲﾗｽﾄ参照

 1
75135 - BRACKET, COMBINATION REAR LAMP, RH
75105-37071

XKC605,XKU605,655..CBU

TYPE A:ｲﾗｽﾄ参照

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75105-37071

XKC605,XKU605,655..CBU

TYPE A:ｲﾗｽﾄ参照

 1
75136 - BRACKET, COMBINATION REAR LAMP, LH
75105-37071

XKC605,XKU605,655..CBU

TYPE A:ｲﾗｽﾄ参照

 1
Common parts
90189-05007
91551-80620
91651-40820

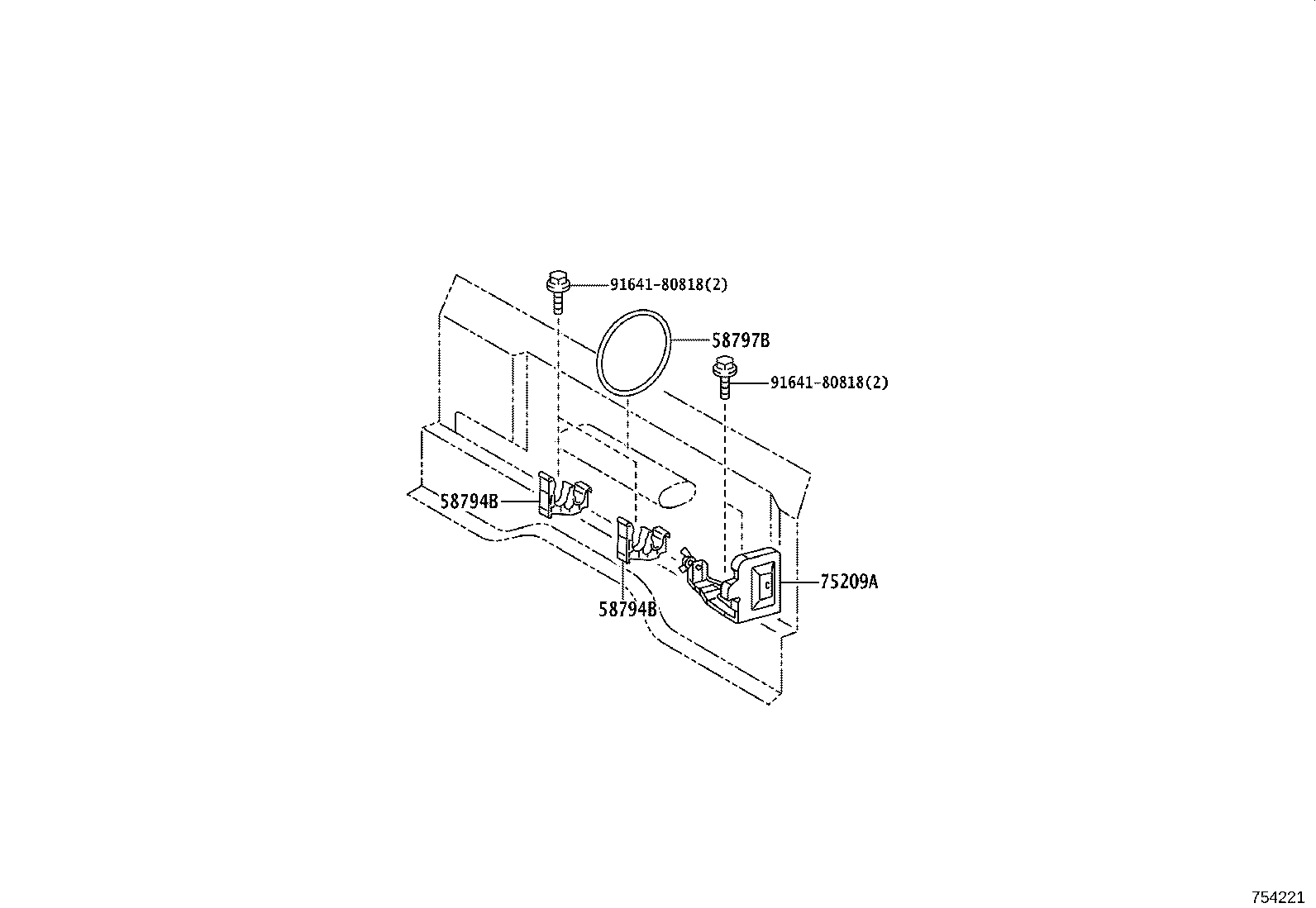

ILLUST NO. 1 OF 3(2103- )

Click highlighted areas on diagram

ｼﾞｬｯｷﾎﾙﾀﾞ,ﾂｰﾙﾊﾞﾝﾄﾞ

diagram 58794B 58794B 58797B 75209A 9164180818 9164180818
Part # Description Qty Price
58794B - SUPPORT, JACK HANDLE
58794-37010

XKC605,XKU605,645,655

 2
58794B - SUPPORT, JACK HANDLE
58794-37010

XKC605,XKU605,645,655

 2
58797B - BAND, JACK CLAMP
58797-37030

XKC605,XKU605,645,655

 1
75209A - BASE SUB ASSY, JACK HOLDER
75209-37030

XKC605,XKU605,645,655

 1
Common parts
91641-80818
