XKU655-TKVMY (2021)
Toyota Dyna Hv

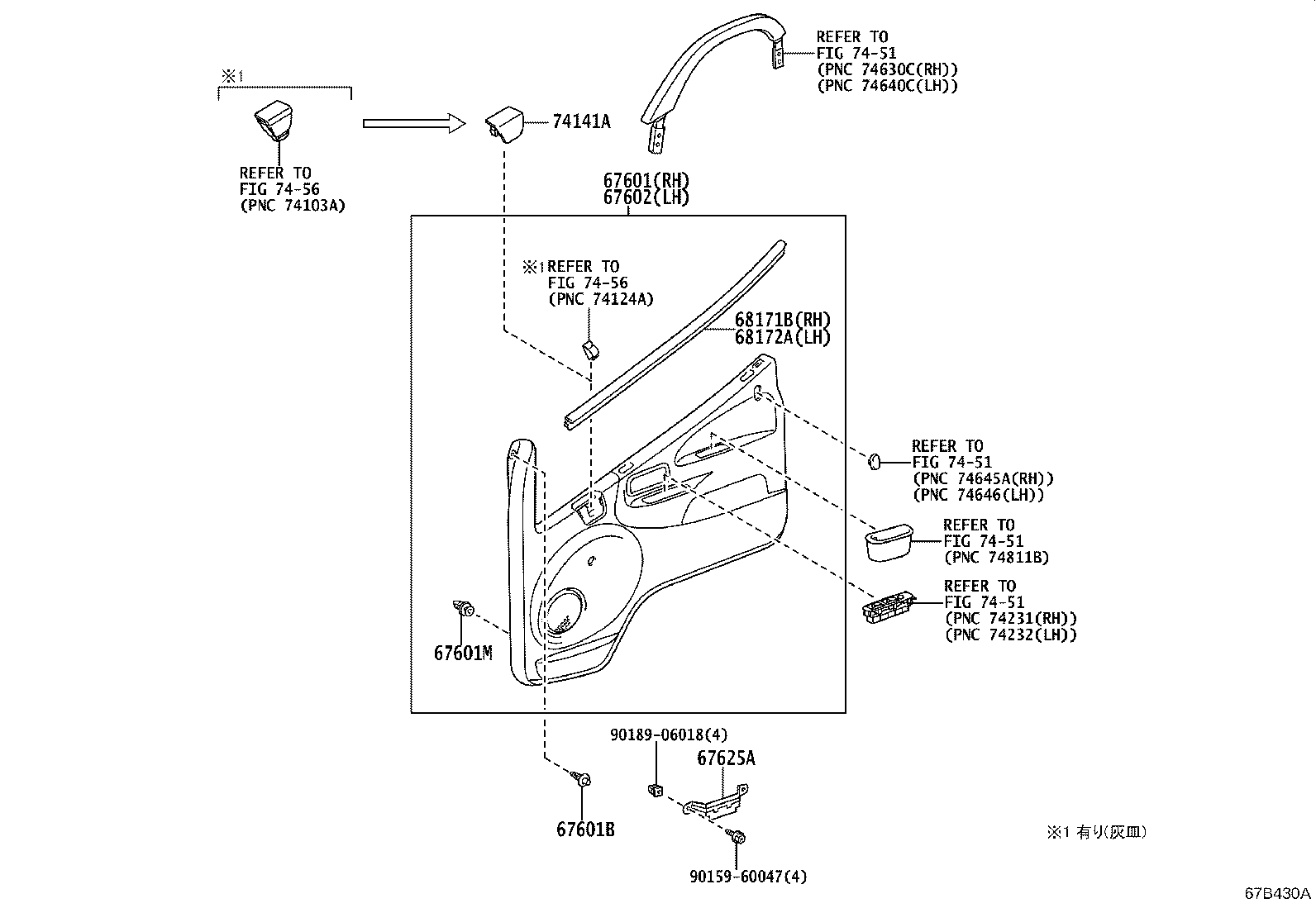

ILLUST NO. 2 OF 2(2103- )
ﾄﾞｱﾄﾘﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-37090B6 |
XKC605,XKU605,645,655 灰皿−有り,GRAY,TRIM1# |
1 | ||
| 67610-37130B2 |
XKC605,XKU605,645,655 GRAY,TRIM1# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-07071P4 |
XKC605,XKU605,645,655 GRAY,TRIM1# |
2 | ||
| 67601M - RETAINER, DOOR TRIM, NO.2 | ||||
| 90467-09206 |
XKC605,XKU605,645,655 |
16 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-37140B6 |
XKC605,XKU605,645,655 灰皿−有り,GRAY,TRIM1# |
1 | ||
| 67620-37180B5 |
XKC605,XKU605,645,655 GRAY,TRIM1# |
1 | ||
| 67625A - BRACKET, FRONT DOOR TRIM, NO.1 | ||||
| 67625-26010 |
XKC605,XKU605,645,655 |
2 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-37011 |
XKC605,XKU605,645,655 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-37011 |
XKC605,XKU605,645,655 |
1 | ||
| 74141A - GARNISH, FRONT ASH RECEPTACLE, NO.1 | ||||
| 74141-25010B1 |
XKC605,XKU605,645,655 GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90159-60047 | ||||
| 90189-06018 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 7456 | ||||

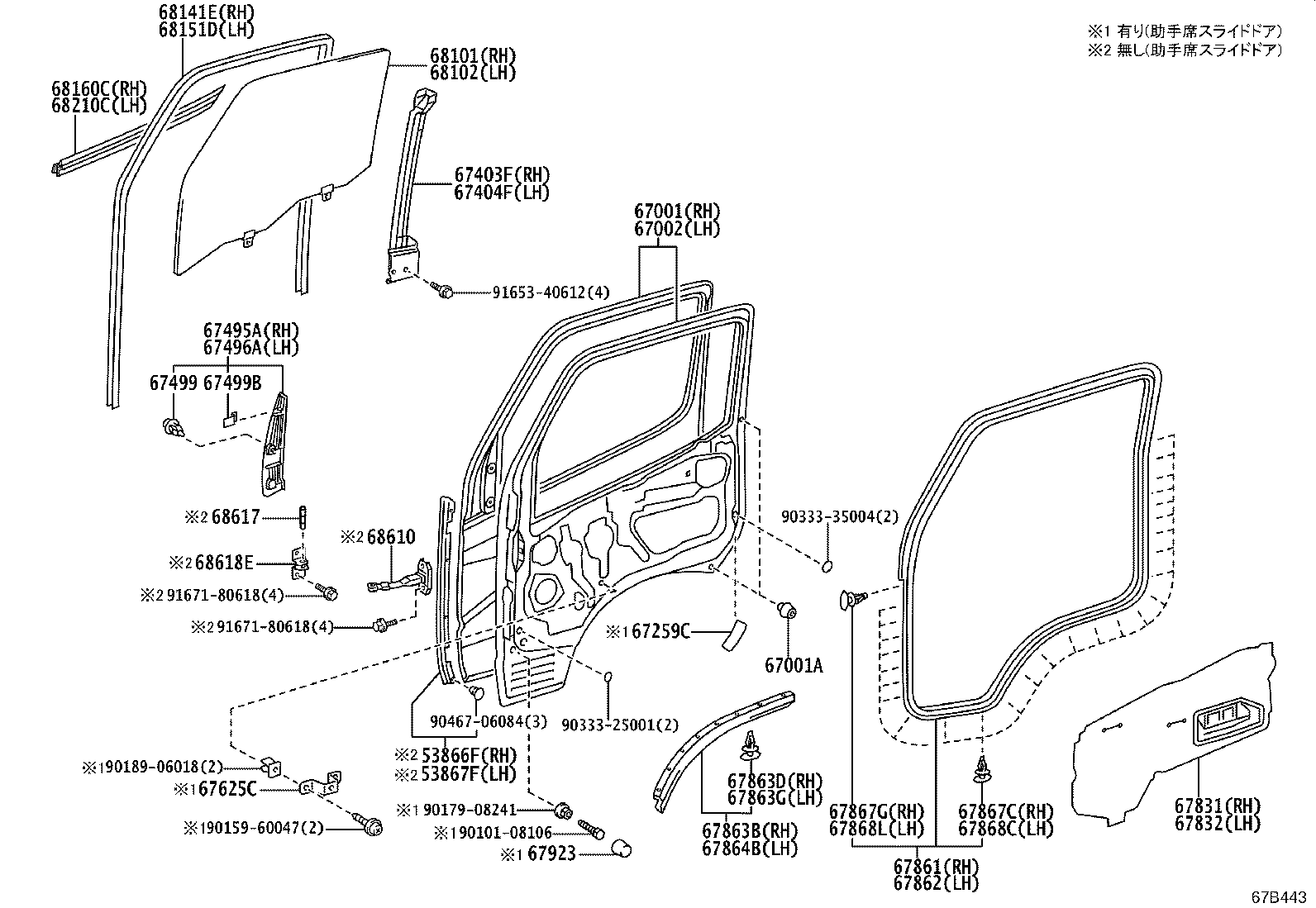

ILLUST NO. 1 OF 2(2103- )
ﾄﾞｱﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53866F - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-37042 |
XKC605,XKU605,645,655 |
1 | ||
| 53867F - SEAL, FR FENDER TO COWL SIDE, LH | ||||
| 53867-37032 |
XKC605,XKU605,645,655 |
1 | ||
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-37610 |
XKU655..CBU;XKC605,XKU605,645..T4 |
1 | ||
| 67001-37620 |
XKU655..CBU ﾘﾌﾚｯｸｽ ﾘﾌﾚｸﾀ−ｻｲﾄﾞ(ﾌﾛﾝﾄ2個,ﾘﾔ4個),ﾘﾔ(小型) |
1 | ||
| 67001-37630 |
XKU655..CBU;XKC605,XKU605,645..T4 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 67001-37640 |
XKU655..CBU ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ﾘﾌﾚｯｸｽ ﾘﾌﾚｸﾀ−ｻｲﾄﾞ(ﾌﾛﾝﾄ2個,ﾘﾔ4個),ﾘﾔ(小型) |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09031 |
XKC605,XKU605,645,655 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-37372 |
XKU655..CBU;XKC605,XKU605,645..T4 |
1 | ||
| 67002-37382 |
XKU655..CBU ﾘﾌﾚｯｸｽ ﾘﾌﾚｸﾀ−ｻｲﾄﾞ(ﾌﾛﾝﾄ2個,ﾘﾔ4個),ﾘﾔ(小型) |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-37021 |
XKC605,XKU605,645,655 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-37021 |
XKC605,XKU605,645,655 |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-37010 |
XKC605,XKU605,645,655 |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-37010 |
XKC605,XKU605,645,655 |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67771-12050 |
XKC605,XKU605,645,655 |
4 | ||
| 67499B - RETAINAR, FRONT DOOR LOWER FRAME BRACKET GARNISH, NO.2 | ||||
| 67499-37010 |
XKC605,XKU605,645,655 |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-37050 |
XKC605,XKU605,645,655 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-37060 |
XKC605,XKU605,645,655 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-89112 |
XKC605,XKU605,645,655 |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-89111 |
XKC605,XKU605,645,655 |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-37011 |
XKC605,XKU605,645,655..CBU,IV3 |
1 | ||
| 67863D - RETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP) | ||||
| 67867-12150 |
XKC605,XKU605,645,655..CBU,IV3 |
8 | ||
| 67863G - RETAINER, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP) | ||||
| 67867-12150 |
XKC605,XKU605,645,655..CBU,IV3 |
8 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67864-37011 |
XKC605,XKU605,645,655..CBU,IV3 |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
XKC605,XKU605,645,655 |
27 | ||
| 67867G - RETAINER, DOOR WEATHERSTRIP, RH | ||||
| 67867-89103 |
XKC605,XKU605,645,655 |
1 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
XKC605,XKU605,645,655 |
27 | ||
| 67868L - RETAINER, DOOR WEATHERSTRIP, LH | ||||
| 67867-89103 |
XKC605,XKU605,645,655 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-37130 |
XKC605,XKU605,645,655 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-37140 |
XKC605,XKU605,645,655 |
1 | ||
| 68141E - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-37030 |
XKC605,XKU605,645,655 |
1 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-37030 |
XKC605,XKU605,645,655 |
1 | ||
| 68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH | ||||
| 68161-37011 |
XKC605,XKU605,645,655 |
1 | ||
| 68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH | ||||
| 68162-37011 |
XKC605,XKU605,645,655 |
1 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-37030 |
XKC605,XKU605,645,655..CBU,IV3 |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-20011 |
XKC605,XKU605,645,655 |
2 | ||
| 68618E - BRACKET, FRONT DOOR CHECK ARM | ||||
| 68618-37020 |
XKC605,XKU605,645,655 |
2 | ||
| Common parts | ||||
| 90101-08106 | ||||
| 90159-60047 | ||||
| 90179-08241 | ||||
| 90189-06018 | ||||
| 90333-25001 | ||||
| 90333-35004 | ||||
| 90467-06084 | ||||
| 91653-40612 | ||||
| 91671-80618 | ||||
