XKU655-TKVMY (2021)

Toyota Dyna Hv

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6F AMT
Displacement 2500cc
Power 168 HP (125 kW)

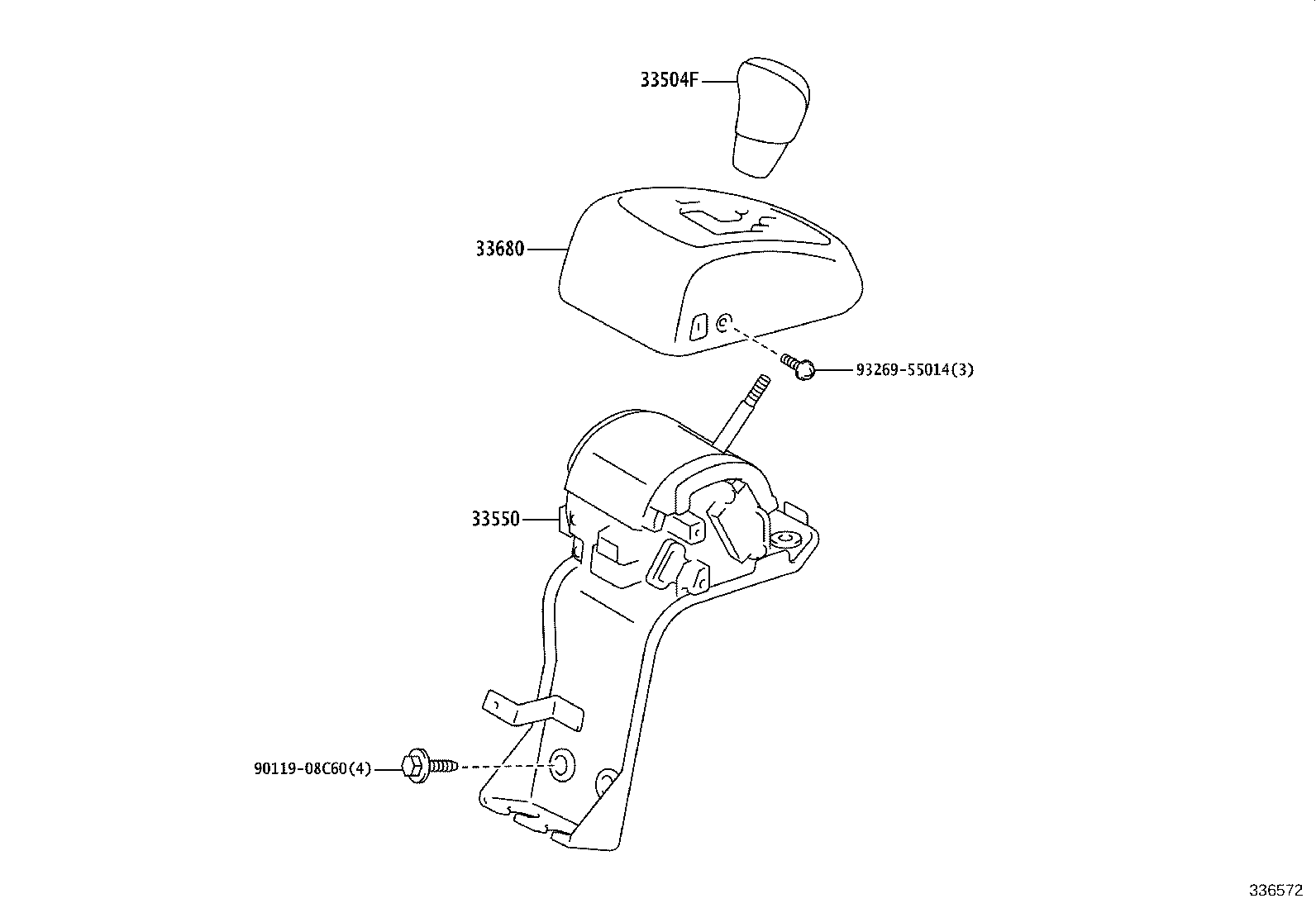

ILLUST NO. 1 OF 2(2103- )

Click highlighted areas on diagram

diagram 33504F 33550 33680 9011908C60 9326955014
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-37120C0

XKC605,XKU605,645,655

BLACK,TRIM1#

 1
33550 - FLOOR SHIFT ASSY, TRANSMISSION
33550-37240C0

XKC605,XKU605,645,655

BLACK,TRIM1#

 1
33680 - COVER SUB-ASSY, SHIFT LEVER
33522-37070C0

XKC605,XKU605,645,655

BLACK,TRIM1#

 1
Common parts
90119-08C60
93269-55014

ILLUST NO. 2 OF 2(2103- )

Click highlighted areas on diagram

diagram 33820B 33821E 33823 33826A 33826B 33826C 33826D 33826E 33826F 33829 33829B 9017908233 9020110042 9020110042 9046814016 9046814017 9155180825 9155180825 9155180825 9155281030 91611G0820 91612B1020 9167480820 9415180800 9418560800
Part # Description Qty Price
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-37Q32

XKC605,XKU605,645,655

 1
33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)
33829-37390

XKC605,XKU605,645,655

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-37B51

XKC605,XKU605,645,655

 1
33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2
33826-37210

XKC605,XKU605,645,655

 1
33826B - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33826-37580

XKC605,XKU605,645,655

 1
33826C - BRACKET, TRANSMISSION CONTROL CABLE, NO.4
33827-37210

XKC605,XKU605,645,655

 1
33826D - BRACKET, TRANSMISSION CONTROL CABLE, NO.5
33827-37360

XKC605,XKU605,645,655

 1
33826E - BRACKET, TRANSMISSION CONTROL CABLE, NO.6
33828-37310

XKC605,XKU605,645,655

 1
33826F - BRACKET, TRANSMISSION CONTROL CABLE, NO.7
33827-37352

XKC605,XKU605,645,655

 1
33829 - SUPPORT, TRANSMISSION CONTROL CABLE
33829-37400

XKC605,XKU605,645,655

 1
33829B - CLAMP, TRANSMISSION CONTROL CABLE
33829-37210

XKC605,XKU605,645,655

 2
Common parts
90179-08233
90201-10042
90468-14016
90468-14017
91551-80825
91552-81030
91611-G0820
91612-B1020
91674-80820
94151-80800
94185-60800
