XKU645-TQVQY3 (2021)
Toyota Dyna Hv

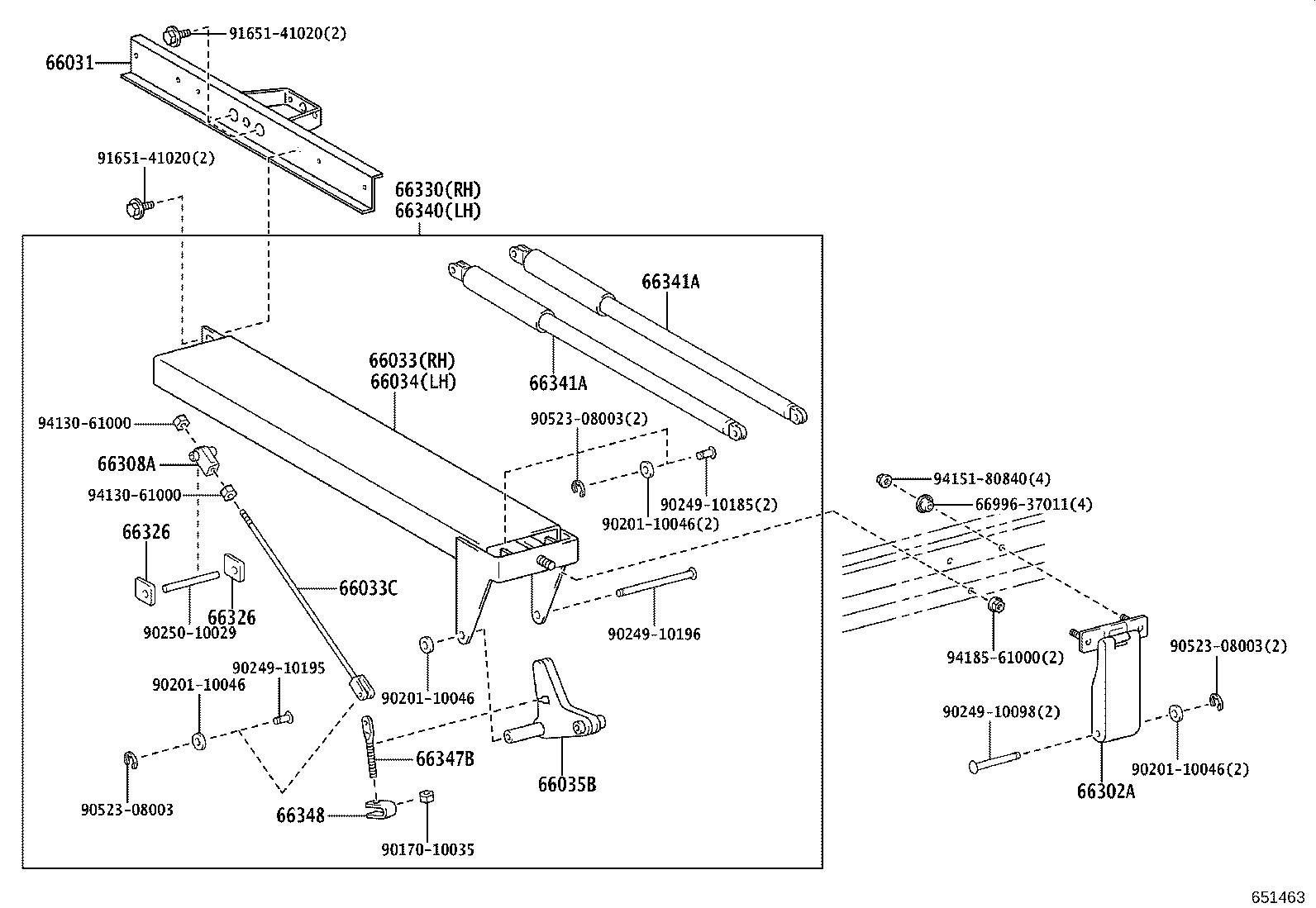

ILLUST NO. 2 OF 2(2103- )XKU645
ｻｲﾄﾞｹﾞｰﾄﾍﾙﾊﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66031 - BRACKET SUB-ASSY, GATE HELPER, NO.1 | ||||
| 66031-37020 |
XKU645 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−無し&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ｾﾐﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
1 | ||
| 66033 - BRACKET SUB-ASSY, GATE HELPER, NO.3 | ||||
| 66033-37090 |
XKU645 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−無し&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ｾﾐﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
1 | ||
| 66033C - ROD SUB-ASSY, GATE HELPER TENSION | ||||
| 66033-37100 |
XKU645 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−無し&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ｾﾐﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
2 | ||
| 66034 - BRACKET SUB-ASSY, GATE HELPER, NO.3 LH | ||||
| 66033-37090 |
XKU645 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−無し&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ｾﾐﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
1 | ||
| 66035B - BELLCRANK SUB-ASSY, GATE HELPER | ||||
| 66035-37020 |
XKU645 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−無し&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ｾﾐﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
2 | ||
| 66302A - LINK SUB-ASSY, GATE HELPER | ||||
| 66302-37061 |
XKU645 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−無し&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ｾﾐﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
2 | ||
| 66308A - END SUB-ASSY, GATE HELPER ROD, NO.2 | ||||
| 66308-37010 |
XKU645 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−無し&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ｾﾐﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
2 | ||
| 66326 - SLIDER, ROD CONTROL | ||||
| 66326-37010 |
XKU645 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−無し&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ｾﾐﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
4 | ||
| 66326 - SLIDER, ROD CONTROL | ||||
| 66326-37010 |
XKU645 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−無し&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ｾﾐﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
4 | ||
| 66330 - HELPER ASSY, GATE, RH | ||||
| 66330-37050 |
XKU645 ***,ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−無し&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ｾﾐﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
1 | ||
| 66340 - HELPER ASSY, GATE, LH | ||||
| 66330-37050 |
XKU645 ***,ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−無し&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ｾﾐﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
1 | ||
| 66341A - STAY, GATE HELPER | ||||
| 66341-37070 |
XKU645 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−無し&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ｾﾐﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
4 | ||
| 66341A - STAY, GATE HELPER | ||||
| 66341-37070 |
XKU645 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−無し&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ｾﾐﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
4 | ||
| 66347B - BOLT, GATE HELPER BELLCRANK ADJUST | ||||
| 66347-37020 |
XKU645 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−無し&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ｾﾐﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
2 | ||
| 66348 - RETAINER, GATE HELPER BELLCRANK ADJUST BOLT | ||||
| 66348-37010 |
XKU645 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−無し&ﾘﾔﾎﾞﾃﾞｰﾀｲﾌﾟ−ﾜｲﾄﾞｷｬﾌﾞ(ｾﾐﾛﾝｸﾞ3方開ﾃﾞｯｷ) |
2 | ||
| Common parts | ||||
| 66996-37011 | ||||
| 90170-10035 | ||||
| 90201-10046 | ||||
| 90249-10098 | ||||
| 90249-10185 | ||||
| 90249-10195 | ||||
| 90249-10196 | ||||
| 90250-10029 | ||||
| 90523-08003 | ||||
| 91651-41020 | ||||
| 94130-61000 | ||||
| 94151-80840 | ||||
| 94185-61000 | ||||

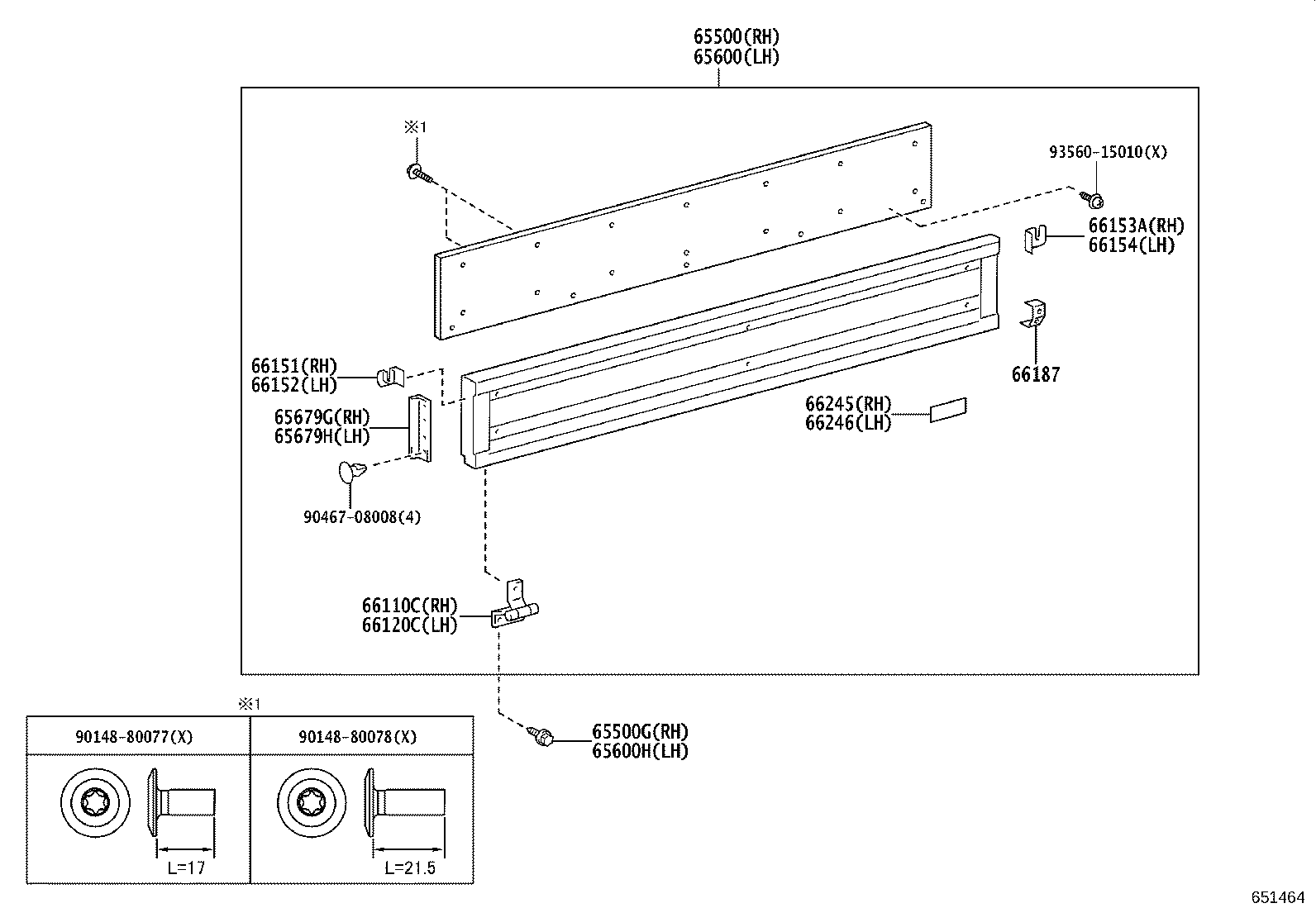

ILLUST NO. 1 OF 2(2103- )CBU ; (2103- )XKU645
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-37D81 |
XKU645 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−無し |
1 | ||
| 65500G - BOLT, W/WASHER(FOR SIDE GATE, RH) | ||||
| 91551-80820 |
XKU645 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−無し |
10 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-37D41 |
XKU645 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−無し |
1 | ||
| 65600H - BOLT, W/WASHER(FOR SIDE GATE, LH) | ||||
| 91551-80820 |
XKU645 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−無し |
10 | ||
| 65679G - SEAL, SIDE GATE | ||||
| 65679-37011 |
XKU645 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−無し |
1 | ||
| 65679H - SEAL, SIDE GATE | ||||
| 65679-37011 |
XKU645 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−無し |
1 | ||
| 66110C - HINGE ASSY, SIDE GATE, NO.1 RH | ||||
| 65010-37071 |
XKU645 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−無し |
5 | ||
| 66120C - HINGE ASSY, SIDE GATE, NO.1 LH | ||||
| 65010-37071 |
XKU645 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−無し |
5 | ||
| 66151 - LATCH, SIDE GATE FEMALE, RH | ||||
| 66151-37030 |
XKU645 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−無し |
1 | ||
| 66152 - LATCH, SIDE GATE FEMALE, LH | ||||
| 66152-37030 |
XKU645 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−無し |
1 | ||
| 66153A - LATCH, TAIL GATE FEMALE, RH | ||||
| 66153-37010 |
XKU645 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−無し |
1 | ||
| 66154 - LATCH, TAIL GATE FEMALE, LH | ||||
| 66154-37010 |
XKU645 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−無し |
1 | ||
| 66187 - HANDLE, SIDE GATE LATCH, CENTER NO.2 | ||||
| 66187-37040 |
XKU645 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−無し,右側 |
1 | ||
| 66187-37050 |
XKU645 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−無し,左側 |
1 | ||
| 66245 - PROTECTOR, REAR BODY, NO.3 RH | ||||
| 66243-37060 |
XKU645 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−無し |
5 | ||
| 66246 - PROTECTOR, REAR BODY, NO.3 LH | ||||
| 66243-37060 |
XKU645 ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−無し |
5 | ||
| Common parts | ||||
| 90148-80077 | ||||
| 90148-80078 | ||||
| 90467-08008 | ||||
| 93560-15010 | ||||
