XKU605-TQVMY3 (2021)
Toyota Dyna Hv

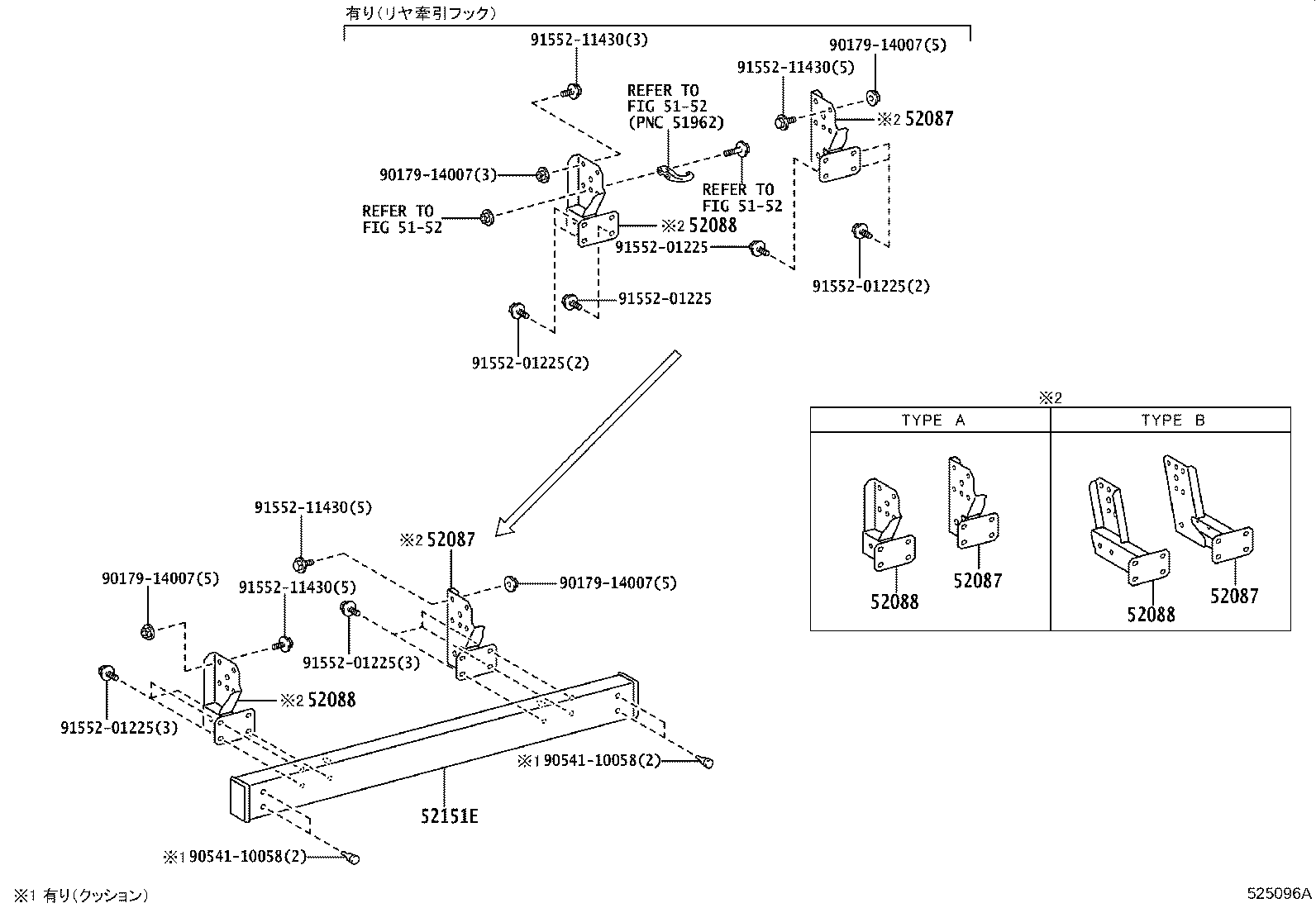

ILLUST NO. 1 OF 2(2103- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52087 - STAY SUB-ASSY, REAR BUMPER SIDE, RH | ||||
| 52151-37510 |
XKC605,XKU605..IV3 ｽﾍﾟｱﾎｲｰﾙｷｬﾘｱ−無し&牽引ﾌｯｸ−ﾌﾛﾝﾄ & ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)&ﾘﾔﾊﾞﾝﾊﾟ−有り,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 52151-37520 |
XKC605,XKU605..IV3 ﾘﾔﾊﾞﾝﾊﾟ−有り,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 52151-37520 |
XKC605,XKU605..IV3 牽引ﾌｯｸ−ﾌﾛﾝﾄ & ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)&ﾘﾔﾊﾞﾝﾊﾟ−有り,TYoE B:ｲﾗｽﾄ参照 |
1 | ||
| 52151-37510 |
XKC605,XKU605..IV3 ｽﾍﾟｱﾎｲｰﾙｷｬﾘｱ−無し&ﾘﾔﾊﾞﾝﾊﾟ−有り,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 52087 - STAY SUB-ASSY, REAR BUMPER SIDE, RH | ||||
| 52151-37510 |
XKC605,XKU605..IV3 ｽﾍﾟｱﾎｲｰﾙｷｬﾘｱ−無し&牽引ﾌｯｸ−ﾌﾛﾝﾄ & ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)&ﾘﾔﾊﾞﾝﾊﾟ−有り,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 52151-37520 |
XKC605,XKU605..IV3 ﾘﾔﾊﾞﾝﾊﾟ−有り,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 52151-37520 |
XKC605,XKU605..IV3 牽引ﾌｯｸ−ﾌﾛﾝﾄ & ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)&ﾘﾔﾊﾞﾝﾊﾟ−有り,TYoE B:ｲﾗｽﾄ参照 |
1 | ||
| 52151-37510 |
XKC605,XKU605..IV3 ｽﾍﾟｱﾎｲｰﾙｷｬﾘｱ−無し&ﾘﾔﾊﾞﾝﾊﾟ−有り,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 52087 - STAY SUB-ASSY, REAR BUMPER SIDE, RH | ||||
| 52151-37510 |
XKC605,XKU605..IV3 ｽﾍﾟｱﾎｲｰﾙｷｬﾘｱ−無し&牽引ﾌｯｸ−ﾌﾛﾝﾄ & ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)&ﾘﾔﾊﾞﾝﾊﾟ−有り,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 52151-37520 |
XKC605,XKU605..IV3 ﾘﾔﾊﾞﾝﾊﾟ−有り,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 52151-37520 |
XKC605,XKU605..IV3 牽引ﾌｯｸ−ﾌﾛﾝﾄ & ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)&ﾘﾔﾊﾞﾝﾊﾟ−有り,TYoE B:ｲﾗｽﾄ参照 |
1 | ||
| 52151-37510 |
XKC605,XKU605..IV3 ｽﾍﾟｱﾎｲｰﾙｷｬﾘｱ−無し&ﾘﾔﾊﾞﾝﾊﾟ−有り,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 52087 - STAY SUB-ASSY, REAR BUMPER SIDE, RH | ||||
| 52151-37510 |
XKC605,XKU605..IV3 ｽﾍﾟｱﾎｲｰﾙｷｬﾘｱ−無し&牽引ﾌｯｸ−ﾌﾛﾝﾄ & ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)&ﾘﾔﾊﾞﾝﾊﾟ−有り,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 52151-37520 |
XKC605,XKU605..IV3 ﾘﾔﾊﾞﾝﾊﾟ−有り,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 52151-37520 |
XKC605,XKU605..IV3 牽引ﾌｯｸ−ﾌﾛﾝﾄ & ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)&ﾘﾔﾊﾞﾝﾊﾟ−有り,TYoE B:ｲﾗｽﾄ参照 |
1 | ||
| 52151-37510 |
XKC605,XKU605..IV3 ｽﾍﾟｱﾎｲｰﾙｷｬﾘｱ−無し&ﾘﾔﾊﾞﾝﾊﾟ−有り,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 52088 - STAY SUB-ASSY, REAR BUMPER SIDE, LH | ||||
| 52152-37210 |
XKC605,XKU605..IV3 ｽﾍﾟｱﾎｲｰﾙｷｬﾘｱ−無し&牽引ﾌｯｸ−ﾌﾛﾝﾄ & ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)&ﾘﾔﾊﾞﾝﾊﾟ−有り,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 52152-37220 |
XKC605,XKU605..IV3 牽引ﾌｯｸ−ﾌﾛﾝﾄ & ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)&ﾘﾔﾊﾞﾝﾊﾟ−有り,TYoE B:ｲﾗｽﾄ参照 |
1 | ||
| 52152-37220 |
XKC605,XKU605..IV3 ﾘﾔﾊﾞﾝﾊﾟ−有り,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 52152-37210 |
XKC605,XKU605..IV3 ｽﾍﾟｱﾎｲｰﾙｷｬﾘｱ−無し&ﾘﾔﾊﾞﾝﾊﾟ−有り,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 52088 - STAY SUB-ASSY, REAR BUMPER SIDE, LH | ||||
| 52152-37210 |
XKC605,XKU605..IV3 ｽﾍﾟｱﾎｲｰﾙｷｬﾘｱ−無し&牽引ﾌｯｸ−ﾌﾛﾝﾄ & ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)&ﾘﾔﾊﾞﾝﾊﾟ−有り,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 52152-37220 |
XKC605,XKU605..IV3 牽引ﾌｯｸ−ﾌﾛﾝﾄ & ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)&ﾘﾔﾊﾞﾝﾊﾟ−有り,TYoE B:ｲﾗｽﾄ参照 |
1 | ||
| 52152-37220 |
XKC605,XKU605..IV3 ﾘﾔﾊﾞﾝﾊﾟ−有り,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 52152-37210 |
XKC605,XKU605..IV3 ｽﾍﾟｱﾎｲｰﾙｷｬﾘｱ−無し&ﾘﾔﾊﾞﾝﾊﾟ−有り,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 52088 - STAY SUB-ASSY, REAR BUMPER SIDE, LH | ||||
| 52152-37210 |
XKC605,XKU605..IV3 ｽﾍﾟｱﾎｲｰﾙｷｬﾘｱ−無し&牽引ﾌｯｸ−ﾌﾛﾝﾄ & ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)&ﾘﾔﾊﾞﾝﾊﾟ−有り,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 52152-37220 |
XKC605,XKU605..IV3 牽引ﾌｯｸ−ﾌﾛﾝﾄ & ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)&ﾘﾔﾊﾞﾝﾊﾟ−有り,TYoE B:ｲﾗｽﾄ参照 |
1 | ||
| 52152-37220 |
XKC605,XKU605..IV3 ﾘﾔﾊﾞﾝﾊﾟ−有り,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 52152-37210 |
XKC605,XKU605..IV3 ｽﾍﾟｱﾎｲｰﾙｷｬﾘｱ−無し&ﾘﾔﾊﾞﾝﾊﾟ−有り,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 52088 - STAY SUB-ASSY, REAR BUMPER SIDE, LH | ||||
| 52152-37210 |
XKC605,XKU605..IV3 ｽﾍﾟｱﾎｲｰﾙｷｬﾘｱ−無し&牽引ﾌｯｸ−ﾌﾛﾝﾄ & ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)&ﾘﾔﾊﾞﾝﾊﾟ−有り,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 52152-37220 |
XKC605,XKU605..IV3 牽引ﾌｯｸ−ﾌﾛﾝﾄ & ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)&ﾘﾔﾊﾞﾝﾊﾟ−有り,TYoE B:ｲﾗｽﾄ参照 |
1 | ||
| 52152-37220 |
XKC605,XKU605..IV3 ﾘﾔﾊﾞﾝﾊﾟ−有り,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 52152-37210 |
XKC605,XKU605..IV3 ｽﾍﾟｱﾎｲｰﾙｷｬﾘｱ−無し&ﾘﾔﾊﾞﾝﾊﾟ−有り,TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 52151E - BAR, REAR BUMPER | ||||
| 52105-37420 |
XKC605,XKU605..IV3 塗装不要,ﾘﾔﾊﾞﾝﾊﾟ−有り |
1 | ||
| 52105-37420 |
XKC605,XKU605..IV3 塗装不要,ｽﾍﾟｱﾎｲｰﾙｷｬﾘｱ−無し&ﾘﾔﾊﾞﾝﾊﾟ−有り |
1 | ||
| 52105-37420 |
XKC605,XKU605..IV3 塗装不要,ｽﾍﾟｱﾎｲｰﾙｷｬﾘｱ−無し&牽引ﾌｯｸ−ﾌﾛﾝﾄ & ﾘﾔ(ﾄﾗﾝｽﾎﾟ[ﾄﾌｯｸ付き)&ﾘﾔﾊﾞﾝﾊﾟ−有り |
1 | ||
| 52105-37420 |
XKC605,XKU605..IV3 塗装不要,牽引ﾌｯｸ−ﾌﾛﾝﾄ & ﾘﾔ(ﾄﾗﾝｽﾎﾟｰﾄﾌｯｸ付き)&ﾘﾔﾊﾞﾝﾊﾟ−Lり |
1 | ||
| Common parts | ||||
| 90179-14007 | ||||
| 90541-10058 | ||||
| 91552-01225 | ||||
| 91552-11430 | ||||
| Linked diagrams | ||||
| 5152 | ||||
ILLUST NO. 2 OF 2(2103- )
ｱﾘ(ﾃｰﾙｹﾞｰﾄﾊﾞﾝﾊﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91552-81225 | ||||
| 93210-16014 | ||||
| 94151-21200 | ||||
