XKU605-TQVMY3 (2021)

Toyota Dyna Hv

Production Mar 2021 - Sep 9999
Engine N04C
Transmission 6F AMT
Displacement 2500cc
Power 168 HP (125 kW)

(2103- )XKC605,XKU605,645

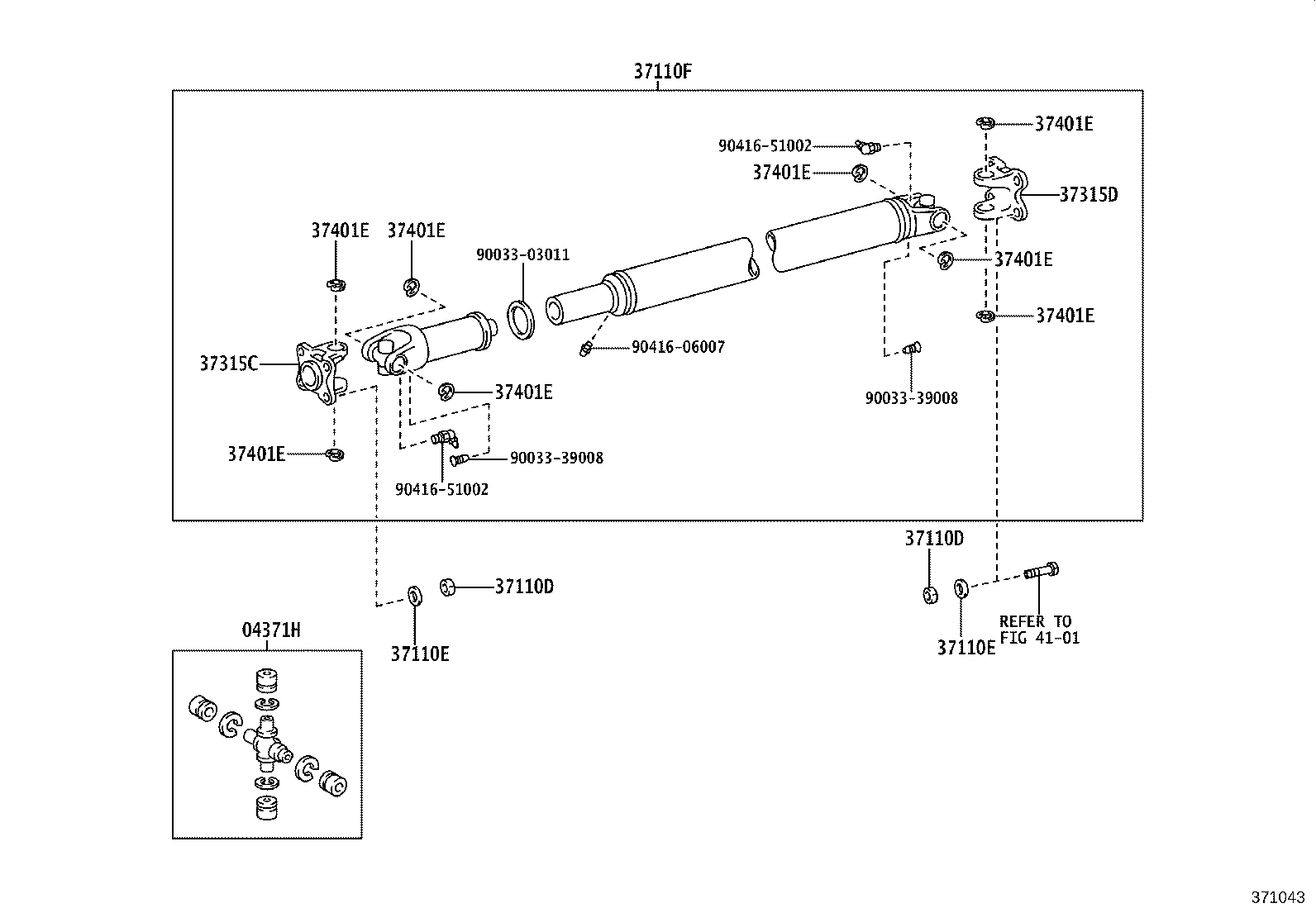

Click highlighted areas on diagram

diagram 04371H 37110D 37110D 37110E 37110E 37110F 37315C 37315D 37401E 37401E 37401E 37401E 37401E 37401E 37401E 37401E 4101 9003303011 9003339008 9003339008 9041606007 9041651002 9041651002
Part # Description Qty Price
04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT
04371-37110

XKC605,XKU605,645

 2
37110D - NUT (FOR PROPELLER SHAFT)
90170-12005

XKC605,XKU605,645,655

 8
37110D - NUT (FOR PROPELLER SHAFT)
90170-12005

XKC605,XKU605,645,655

 8
37110E - WASHER (FOR PROPELLER SHAFT)
94512-01200

XKC605,XKU605,645,655

 8
37110E - WASHER (FOR PROPELLER SHAFT)
94512-01200

XKC605,XKU605,645,655

 8
37110F - SHAFT ASSY, PROPELLER, REAR
37110-37J60

XKC605,XKU605

 1
37315C - YOKE, NO.1, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE
37315-37070

XKC605,XKU605,645,655

 1
37315D - YOKE, NO.2, REAR PROPELLER SHAFT UNIVERSAL JOINT FLANGE
37315-37070

XKC605,XKU605,645,655

 1
37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI
90035-21039

XKC605,XKU605,645,655

厚さ=1.65

 8
90035-21040

XKC605,XKU605,645,655

厚さ=1.62

 8
90035-21041

XKC605,XKU605,645,655

厚さ=1.59

 8
90035-21038

XKC605,XKU605,645,655

厚さ=1.68

 8
90035-21043

XKC605,XKU605,645,655

厚さ=1.53

 8
90035-21042

XKC605,XKU605,645,655

厚さ=1.56

 8
90035-21044

XKC605,XKU605,645,655

厚さ=1.50

 8
37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI
90035-21039

XKC605,XKU605,645,655

厚さ=1.65

 8
90035-21040

XKC605,XKU605,645,655

厚さ=1.62

 8
90035-21041

XKC605,XKU605,645,655

厚さ=1.59

 8
90035-21038

XKC605,XKU605,645,655

厚さ=1.68

 8
90035-21043

XKC605,XKU605,645,655

厚さ=1.53

 8
90035-21042

XKC605,XKU605,645,655

厚さ=1.56

 8
90035-21044

XKC605,XKU605,645,655

厚さ=1.50

 8
37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI
90035-21039

XKC605,XKU605,645,655

厚さ=1.65

 8
90035-21040

XKC605,XKU605,645,655

厚さ=1.62

 8
90035-21041

XKC605,XKU605,645,655

厚さ=1.59

 8
90035-21038

XKC605,XKU605,645,655

厚さ=1.68

 8
90035-21043

XKC605,XKU605,645,655

厚さ=1.53

 8
90035-21042

XKC605,XKU605,645,655

厚さ=1.56

 8
90035-21044

XKC605,XKU605,645,655

厚さ=1.50

 8
37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI
90035-21039

XKC605,XKU605,645,655

厚さ=1.65

 8
90035-21040

XKC605,XKU605,645,655

厚さ=1.62

 8
90035-21041

XKC605,XKU605,645,655

厚さ=1.59

 8
90035-21038

XKC605,XKU605,645,655

厚さ=1.68

 8
90035-21043

XKC605,XKU605,645,655

厚さ=1.53

 8
90035-21042

XKC605,XKU605,645,655

厚さ=1.56

 8
90035-21044

XKC605,XKU605,645,655

厚さ=1.50

 8
37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI
90035-21039

XKC605,XKU605,645,655

厚さ=1.65

 8
90035-21040

XKC605,XKU605,645,655

厚さ=1.62

 8
90035-21041

XKC605,XKU605,645,655

厚さ=1.59

 8
90035-21038

XKC605,XKU605,645,655

厚さ=1.68

 8
90035-21043

XKC605,XKU605,645,655

厚さ=1.53

 8
90035-21042

XKC605,XKU605,645,655

厚さ=1.56

 8
90035-21044

XKC605,XKU605,645,655

厚さ=1.50

 8
37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI
90035-21039

XKC605,XKU605,645,655

厚さ=1.65

 8
90035-21040

XKC605,XKU605,645,655

厚さ=1.62

 8
90035-21041

XKC605,XKU605,645,655

厚さ=1.59

 8
90035-21038

XKC605,XKU605,645,655

厚さ=1.68

 8
90035-21043

XKC605,XKU605,645,655

厚さ=1.53

 8
90035-21042

XKC605,XKU605,645,655

厚さ=1.56

 8
90035-21044

XKC605,XKU605,645,655

厚さ=1.50

 8
37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI
90035-21039

XKC605,XKU605,645,655

厚さ=1.65

 8
90035-21040

XKC605,XKU605,645,655

厚さ=1.62

 8
90035-21041

XKC605,XKU605,645,655

厚さ=1.59

 8
90035-21038

XKC605,XKU605,645,655

厚さ=1.68

 8
90035-21043

XKC605,XKU605,645,655

厚さ=1.53

 8
90035-21042

XKC605,XKU605,645,655

厚さ=1.56

 8
90035-21044

XKC605,XKU605,645,655

厚さ=1.50

 8
37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI
90035-21039

XKC605,XKU605,645,655

厚さ=1.65

 8
90035-21040

XKC605,XKU605,645,655

厚さ=1.62

 8
90035-21041

XKC605,XKU605,645,655

厚さ=1.59

 8
90035-21038

XKC605,XKU605,645,655

厚さ=1.68

 8
90035-21043

XKC605,XKU605,645,655

厚さ=1.53

 8
90035-21042

XKC605,XKU605,645,655

厚さ=1.56

 8
90035-21044

XKC605,XKU605,645,655

厚さ=1.50

 8
Common parts
90033-03011
90033-39008
90416-06007
90416-51002
Linked diagrams
4101
