XKU605-TQVMY (2021)
Toyota Dyna Hv
Production
Mar 2021
-
Sep 9999
Engine
N04C
Transmission
6F AMT
Displacement
2500cc
Power
168 HP (125 kW)

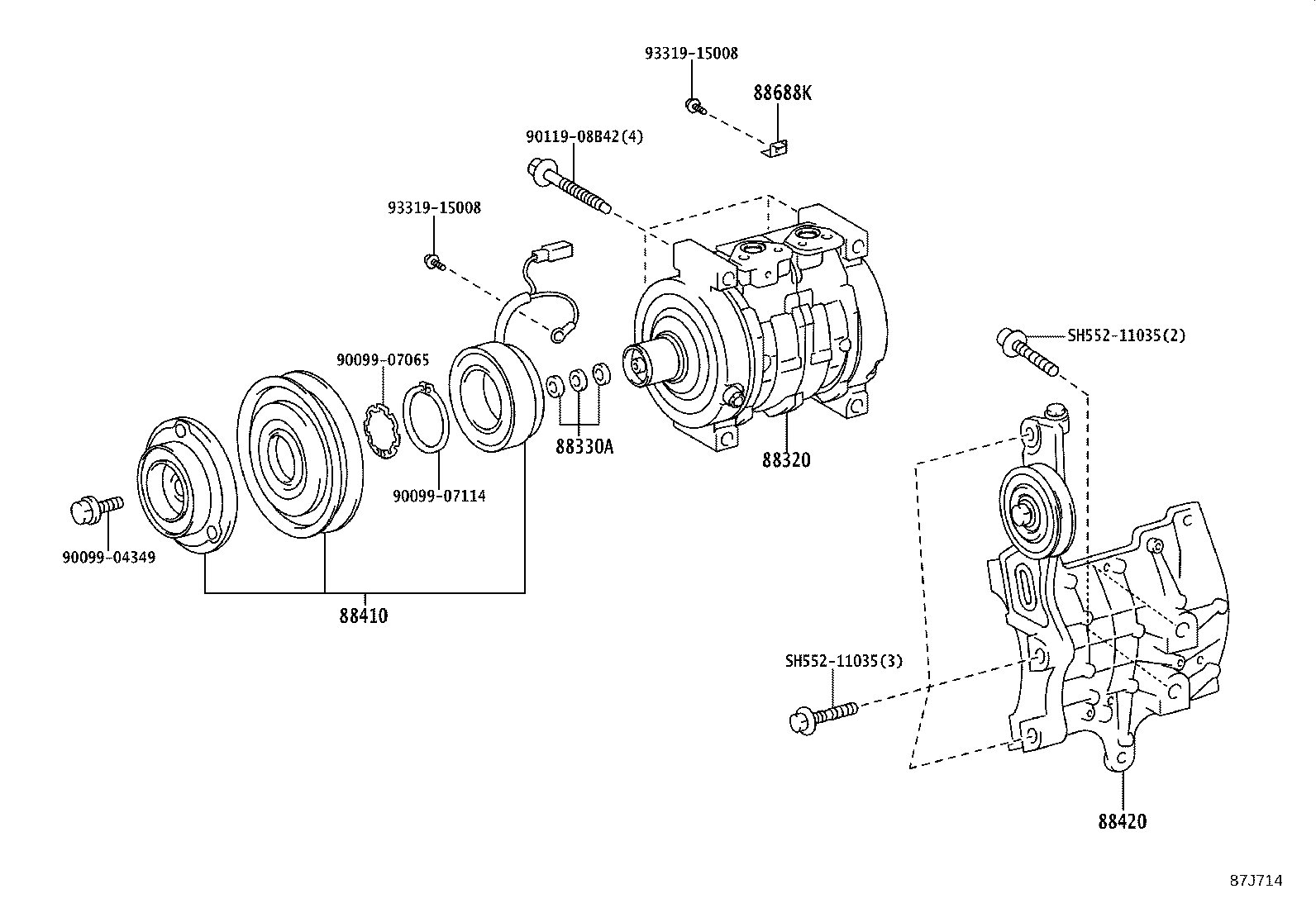

ILLUST NO. 1 OF 2(2103- )
Click highlighted areas on diagram
ｴｱｺﾝｺﾝﾌﾟﾚｯｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-37110 |
XKC605,XKU605,645,655 |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
XKC605,XKU605,645,655 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-17100 |
XKC605,XKU605,645,655 |
1 | ||
| 88420 - PULLEY ASSY, IDLE, W/BRACKET | ||||
| 88420-37320 |
XKC605,XKU605,645,655 |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-3V580 |
XKC605,XKU605,645,655 |
1 | ||
| Common parts | ||||
| 90099-04349 | ||||
| 90099-07065 | ||||
| 90099-07114 | ||||
| 90119-08B42 | ||||
| 93319-15008 | ||||
| SH552-11035 | ||||

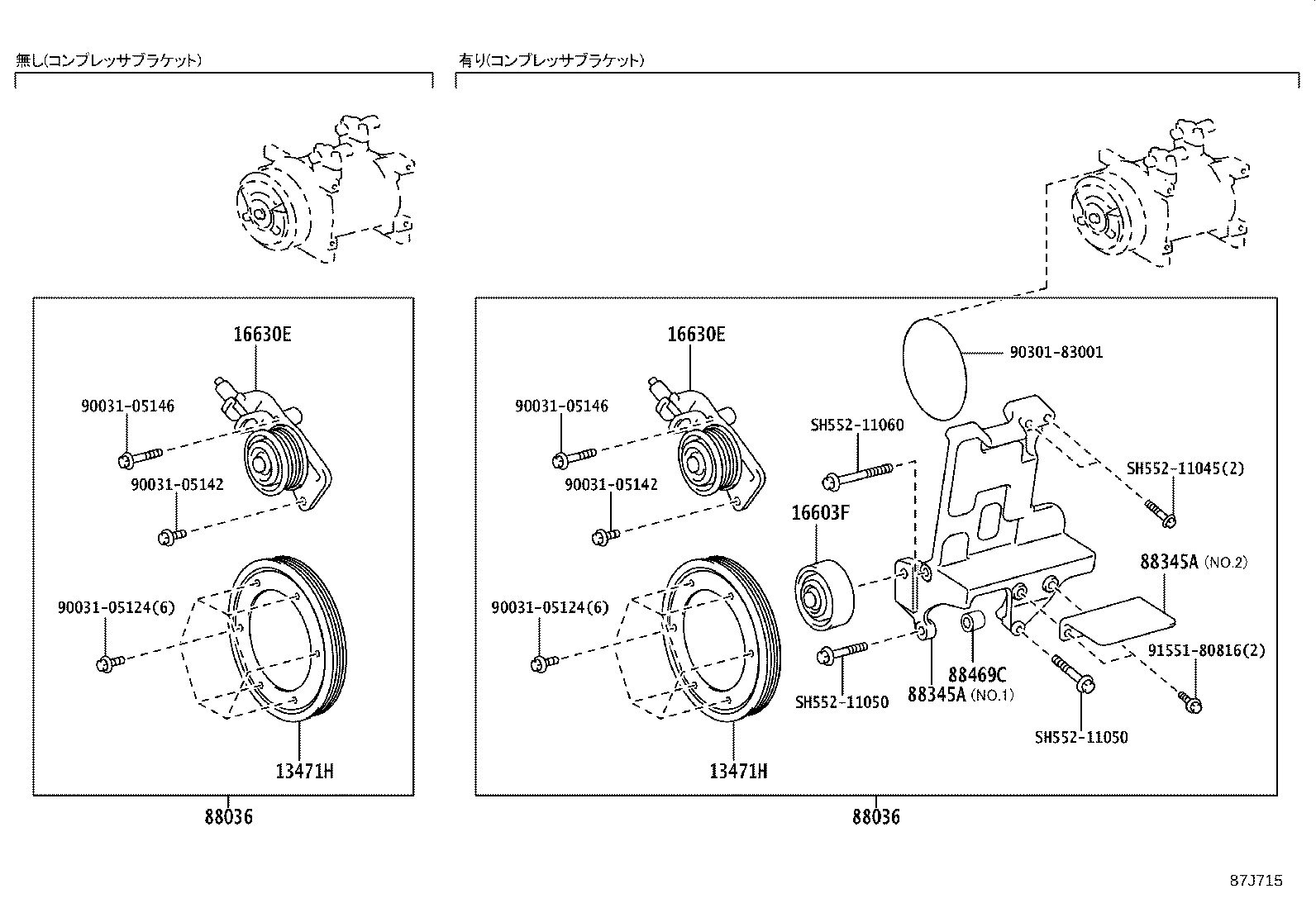

ILLUST NO. 2 OF 2(2103- )
Click highlighted areas on diagram
ﾚｲﾄｳｷｺﾝﾌﾟﾚｯｻﾏｳﾝﾃｨﾝｸﾞｾｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90031-05124 | ||||
| 90031-05142 | ||||
| 90031-05146 | ||||
| 90301-83001 | ||||
| 91551-80816 | ||||
| SH552-11045 | ||||
| SH552-11050 | ||||
| SH552-11060 | ||||
